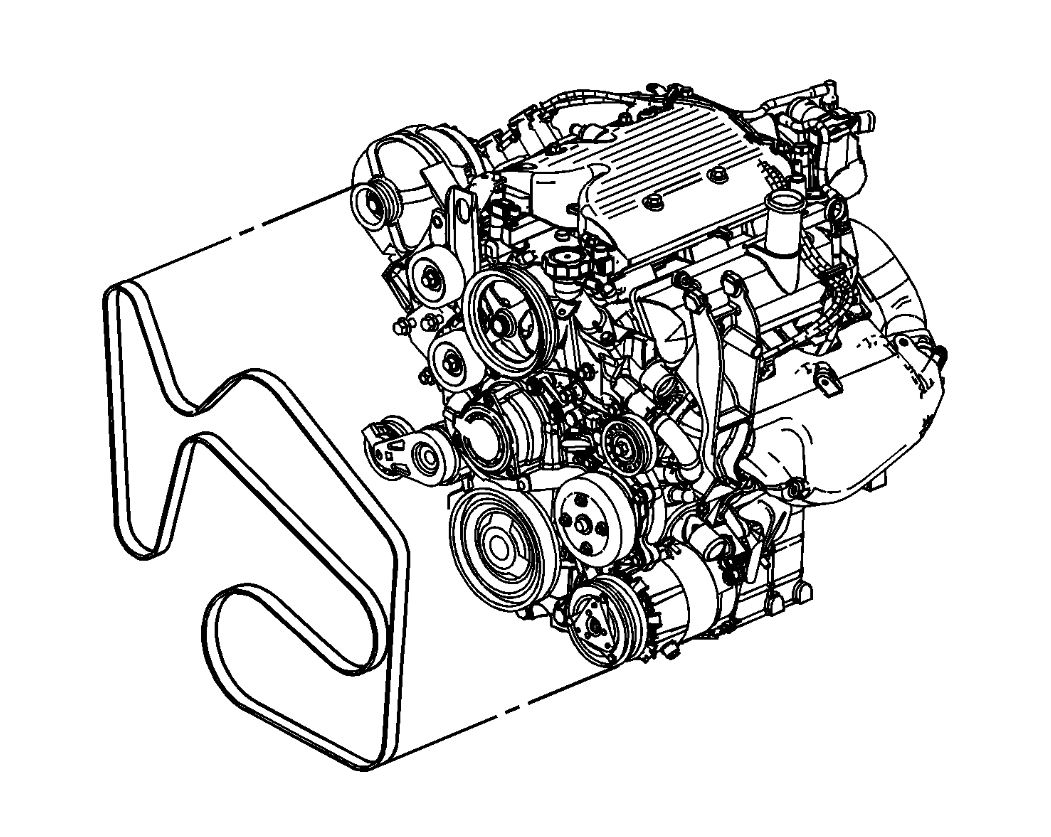

that should be on the panel above radiator most cars have that unless someone stripped it off see pic for diagram. tensioner should be replaced as well if replacing belt. Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.

Do I torque the tensioner towards the front or back of the car to loosen the serpentine belt?

which ever way is away from the belt over the pulley

I had the rack and pinion replaced and the power steering pump,belt tension, serpentine belt, power steering line replaced my car is making a whining noise can you give me the belt diagrams so I can replace it?

Hello,

Here is a guide to help you change the serpentine belt out with the routing diagrams in the diagrams for your car below.

https://www.2carpros.com/articles/replace-serpentine-belt


Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.

what is the belt serpentine belt routing for an 06 impala with a 3.5 liter engine?

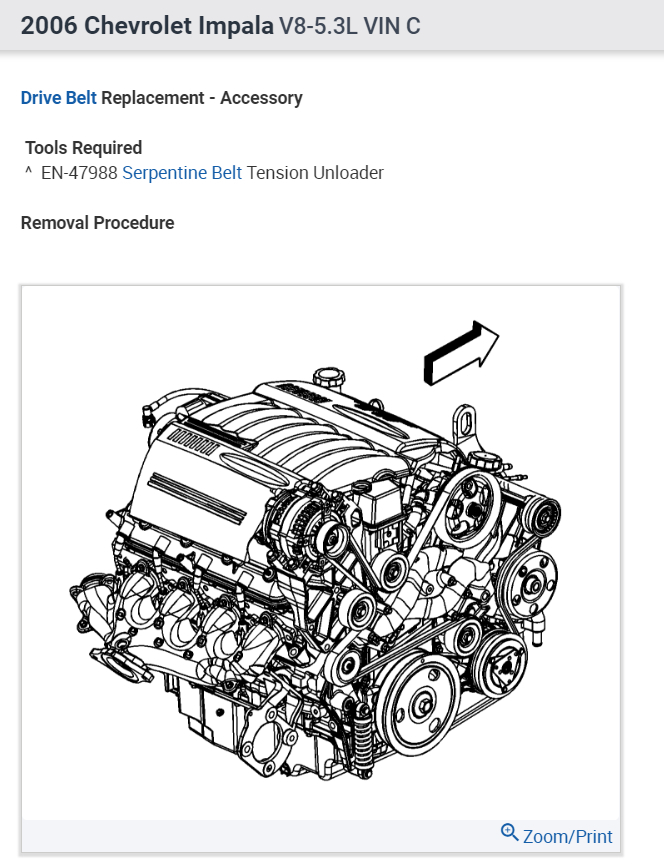

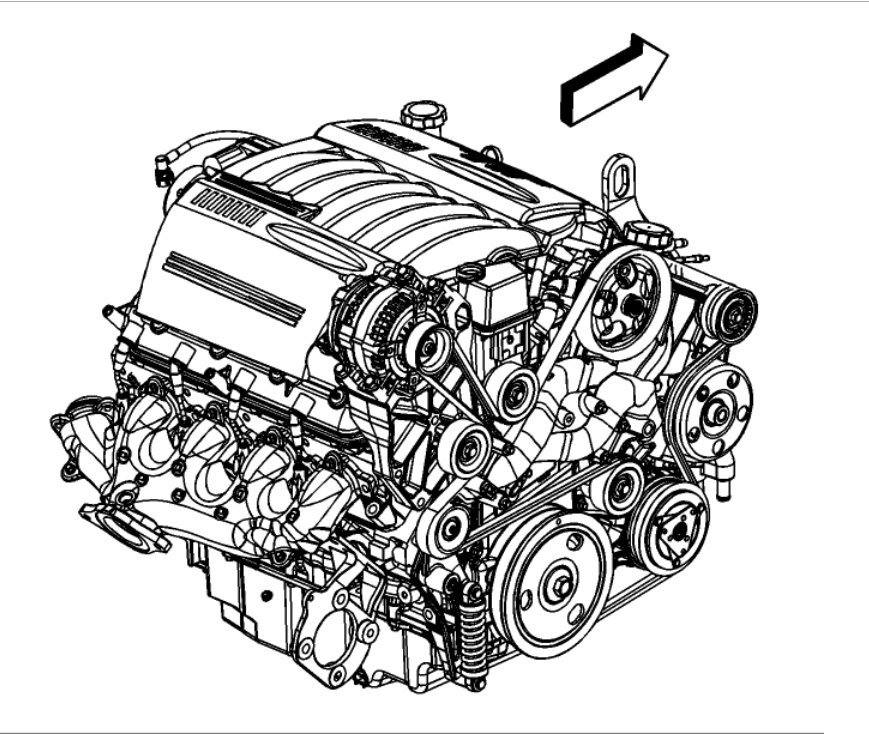

Hello 3.5L Engine - 5.3 Liter is in the diagrams below

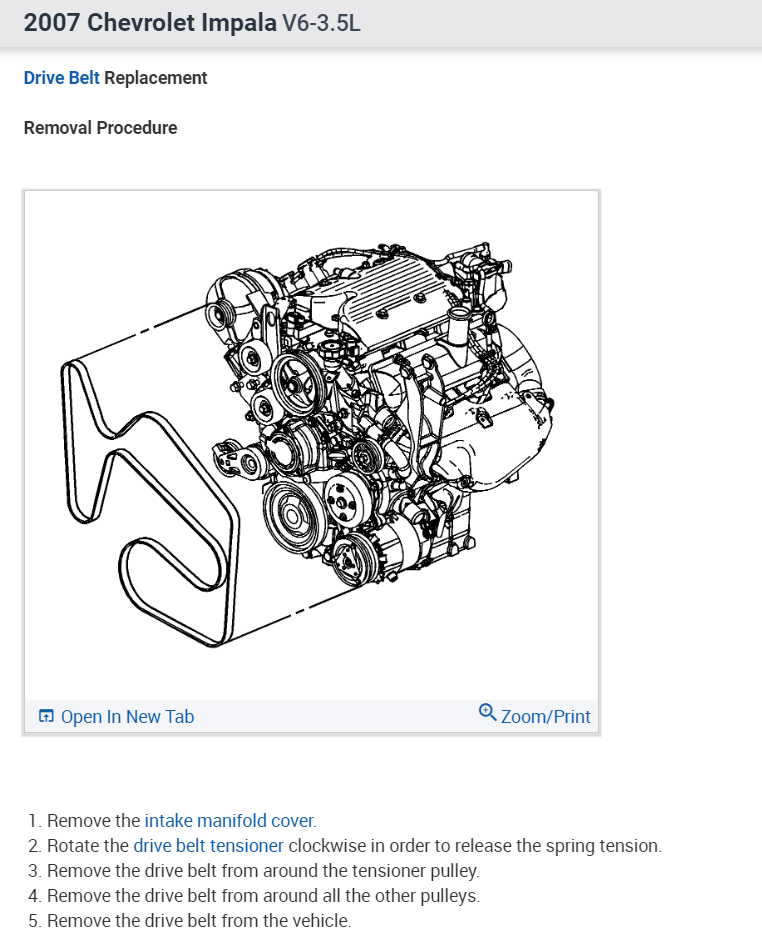

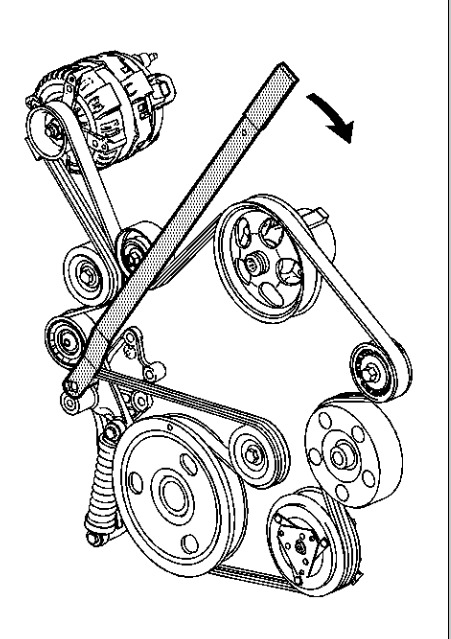

Install by starting at the generator, route belt around all pulleys except for tensioner. Rotate belt tensioner clockwise in order to release the spring tension. Install drive belt around the tensioner. This guide can help as well. https://www.2carpros.com/articles/replace-serpentine-belt Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed. Cheers

I need to change the belt on my car becasue I can see cracks. Can I get a diagram to put the belt back on? 3.5 engine Thanks! love this site.

Here is a guide that will give you an idea on what you are in for when changing the belt:

https://www.2carpros.com/articles/replace-serpentine-belt

Here is the diagram (below).

Please let us know if you need anything else to get the problem fixed.

Cheers

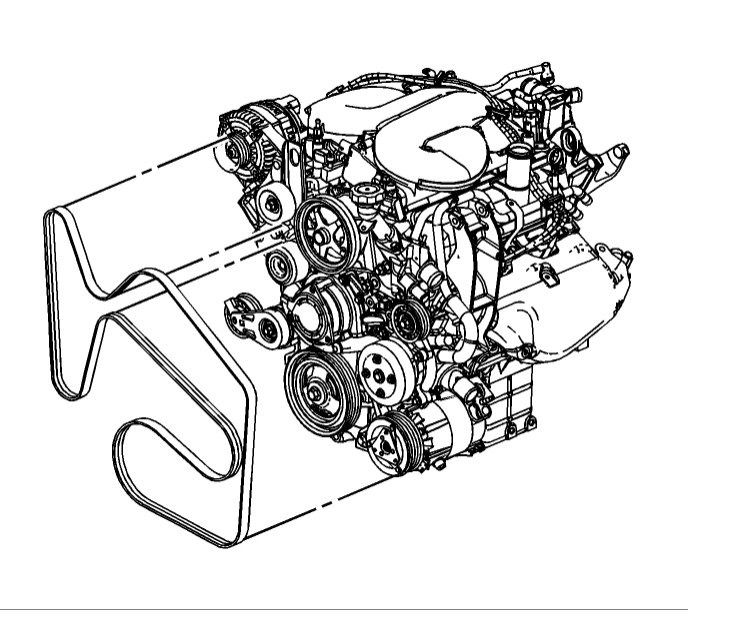

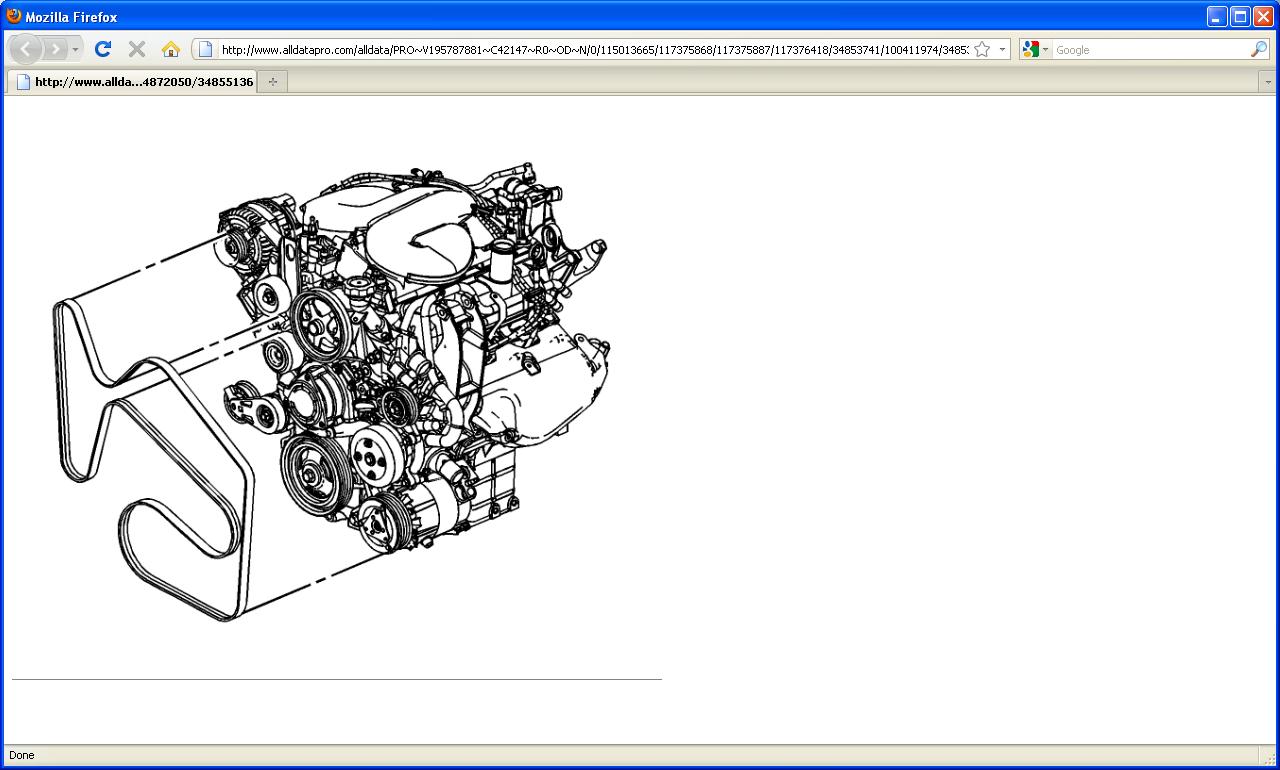

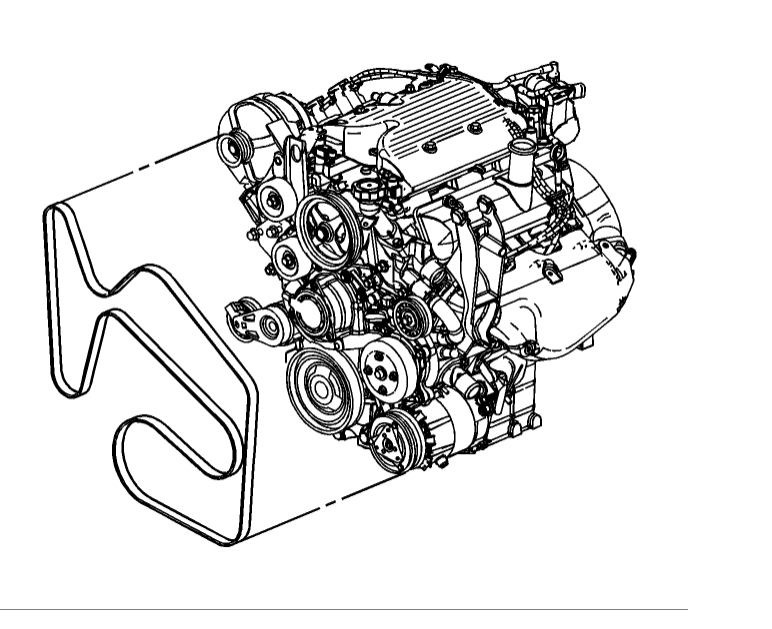

I was looking at both 3.5L and 3.9L and looks to me like they are the same? Here is diagram for a 3.5L. And this one is 3.9L.

Hope this helps you?

I have a 2006 chevy impala and I need a serpentine belt diagram

There you go.

Hope this helps.

I need to replace my alternator, but I want to replace my serpentine belt also, I just need the diagram for it, as I cannot find it anywhere.

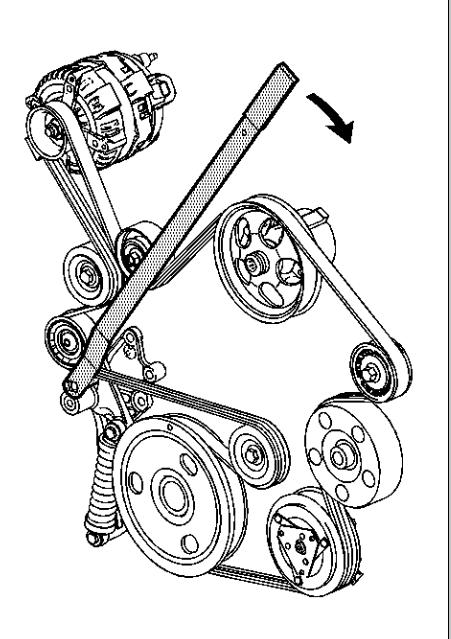

if you go to repair and service then diagrams it is right there. however, if you are replacing belt replace tension-er as well as it is worn out too. See picture.

I need to find the diagram to replace my serpentine belt

it's on the site here when you first sign in look to the left under belt diagrams

My serpentine belt broke and I was wondering where is the tensioned located at and what tool I need to loosen it up , is there a video that would show me ,

This guide should help walk you through the steps.

https://www.2carpros.com/articles/replace-serpentine-belt

It is a different model GM vehicle, but should help.

I have the SS model with a 5.3 liter engine. I am in need of a serpentine belt diagram since Chevrolet failed to put on on this vehicle.

What tool and size of the socket I need to perform this duty?

Love this site!

Hello,

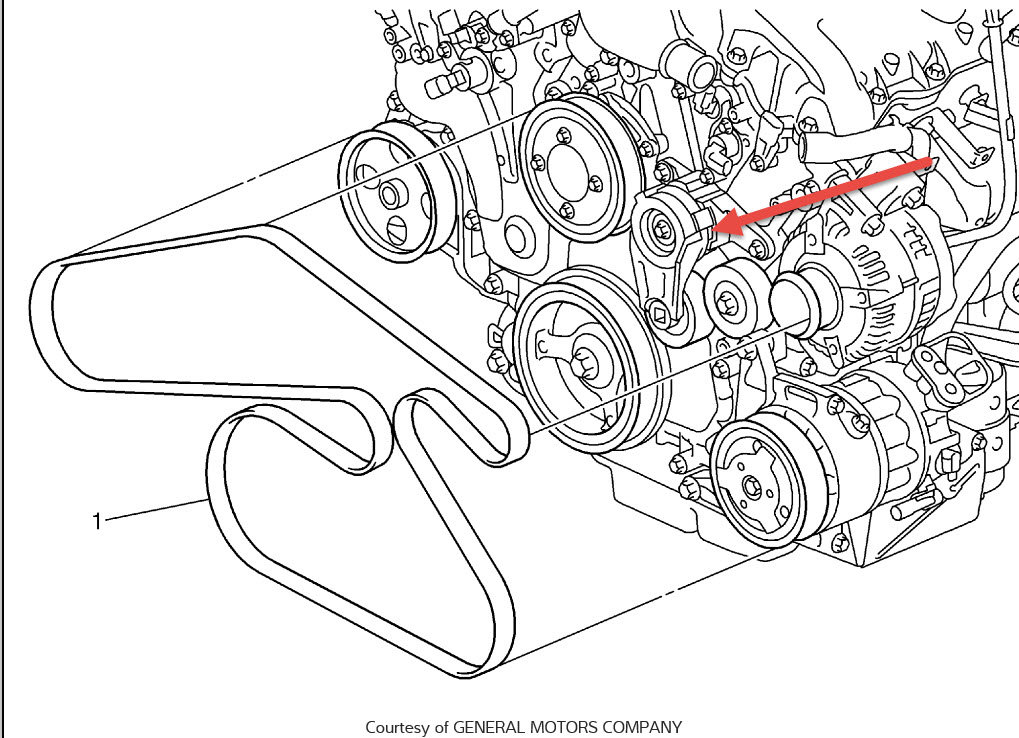

Here is a guide and some diagrams (below) to help you get the job done. This guide will give you an idea the diagrams will be fore your car.

https://www.2carpros.com/articles/replace-serpentine-belt

This guide may help too.

https://www.2carpros.com/diagrams/chevrolet/impala/2004

More (below). Please let us know if you need anything else to get the problem fixed.

I need a diagram on how to put the belt back on. the engine is a 3.8

See below.
