I have seen in this site about diagram for the 86120-0R130 OEM radio which fit the model RAV 4 2012.
Could you send to me, in high resolution, please?
Thank you so much.

Ricardo

Sep 16, 2019 at 9:21 AM

SCGRANTURISMO

CERTIFIED EXPERT
4,897 POSTS

Hello,

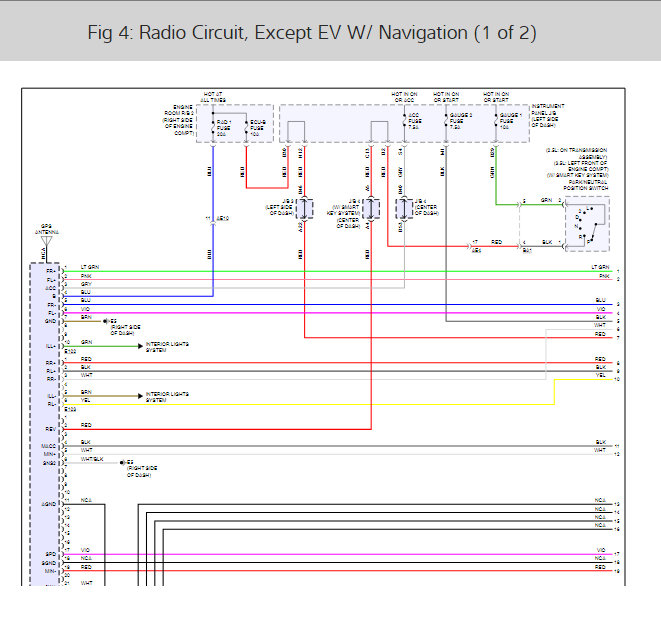

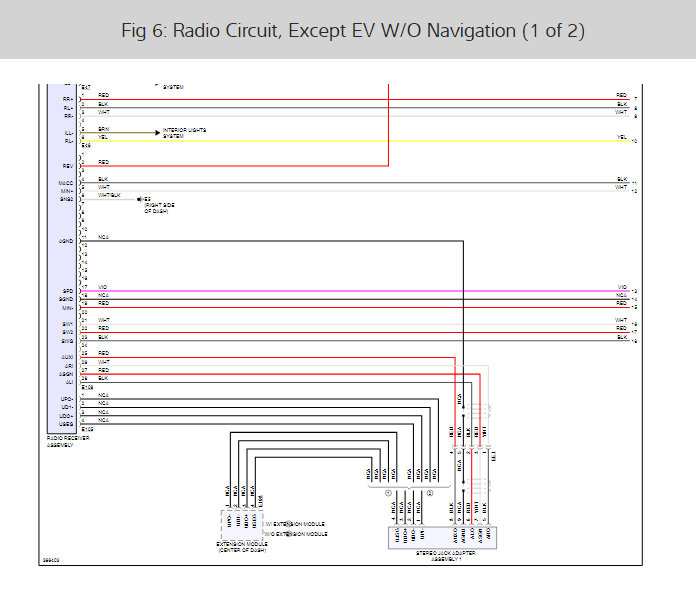

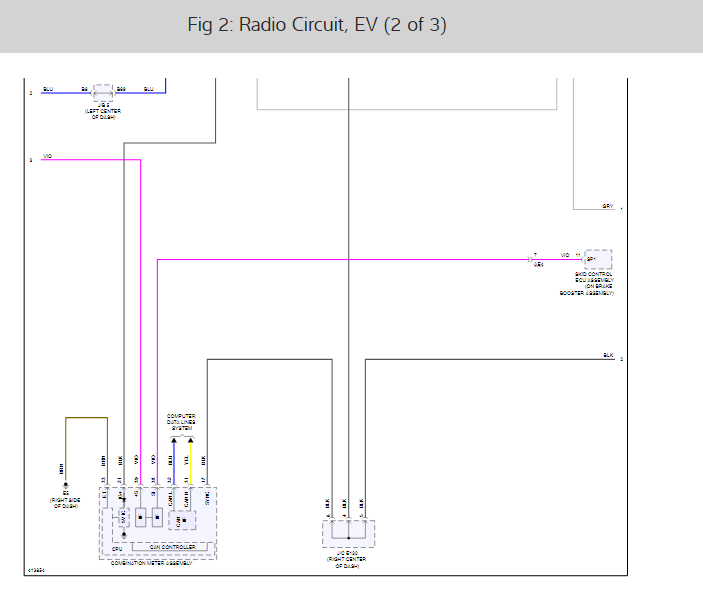

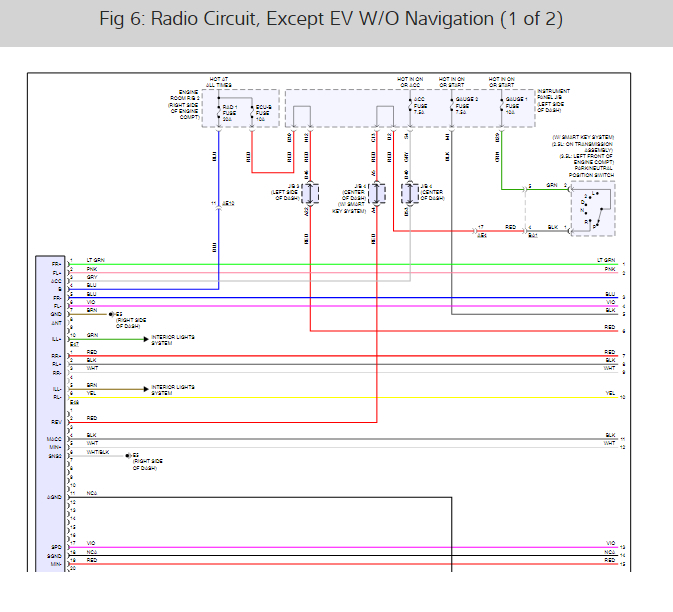

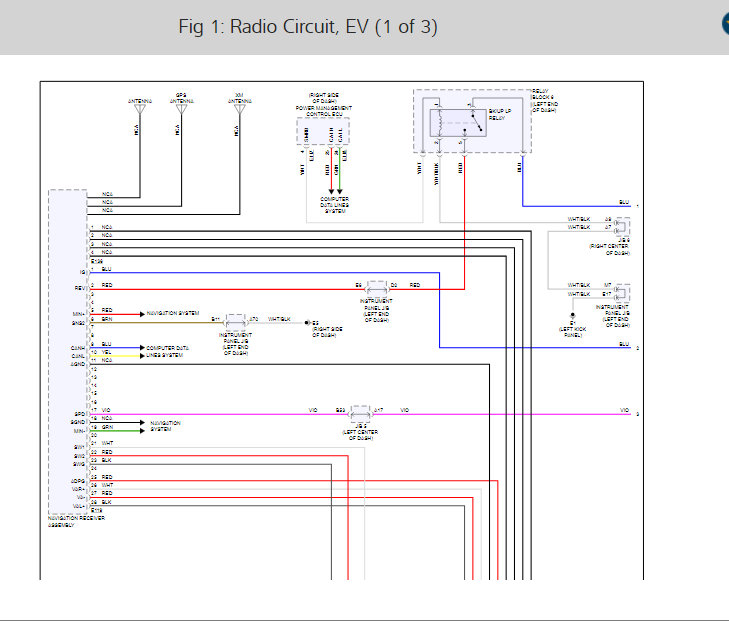

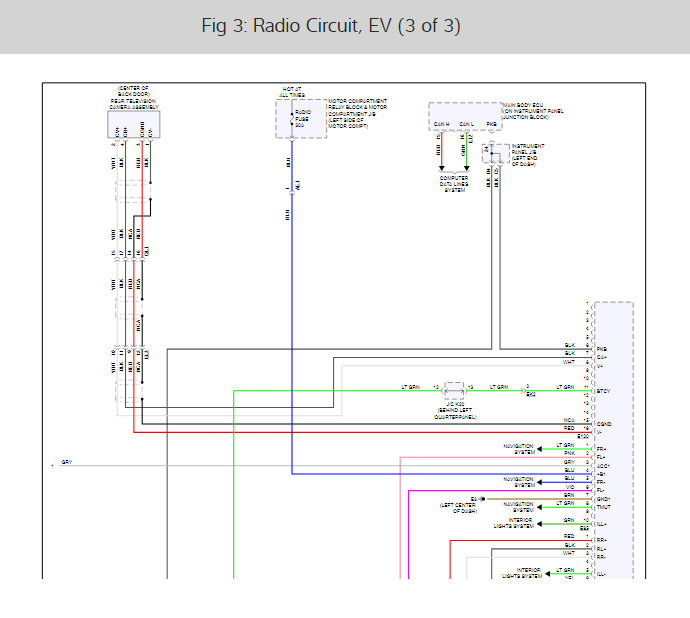

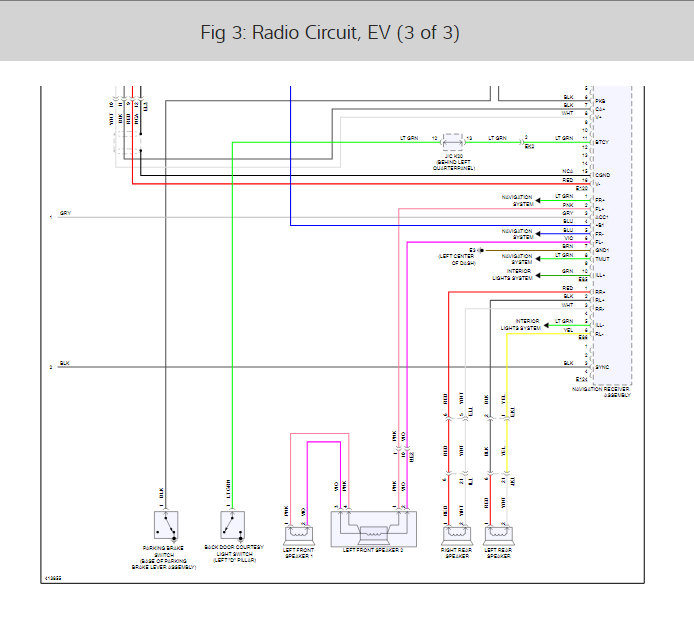

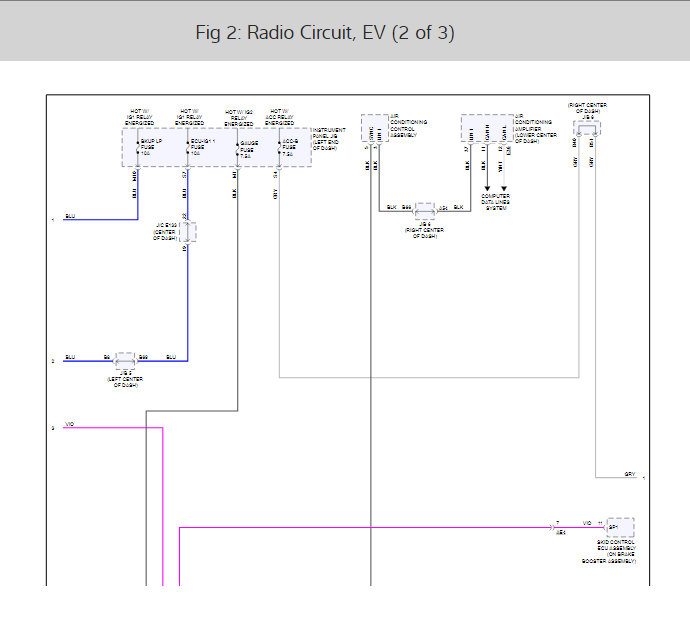

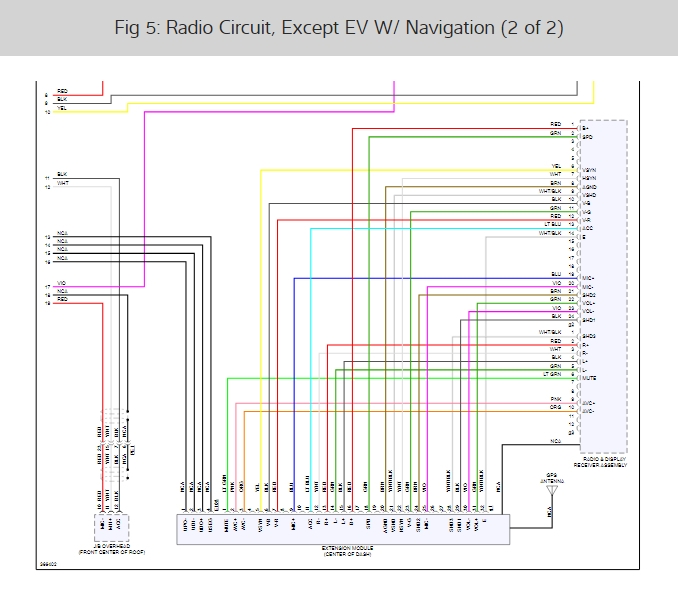

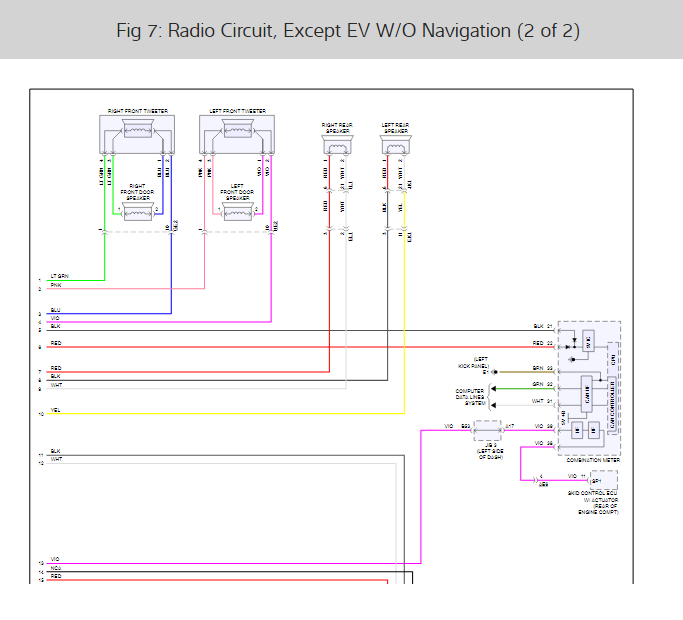

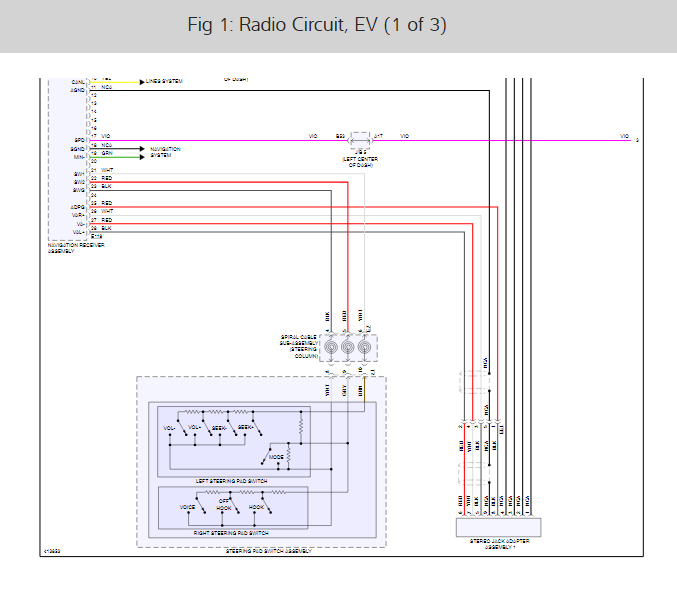

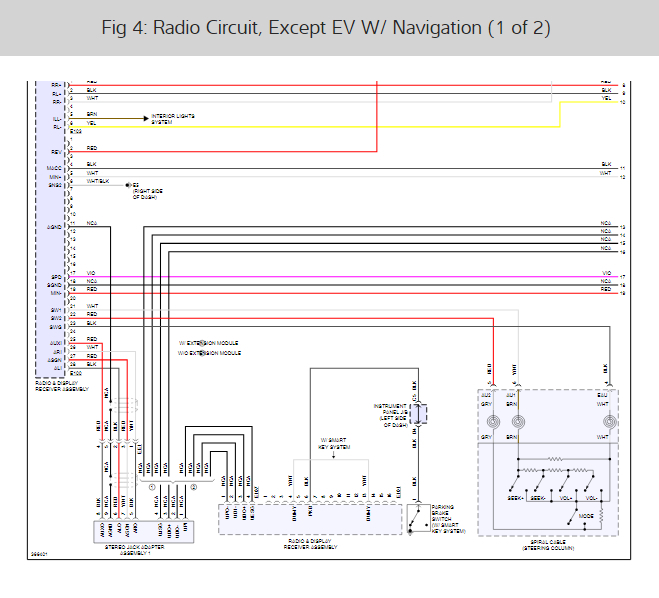

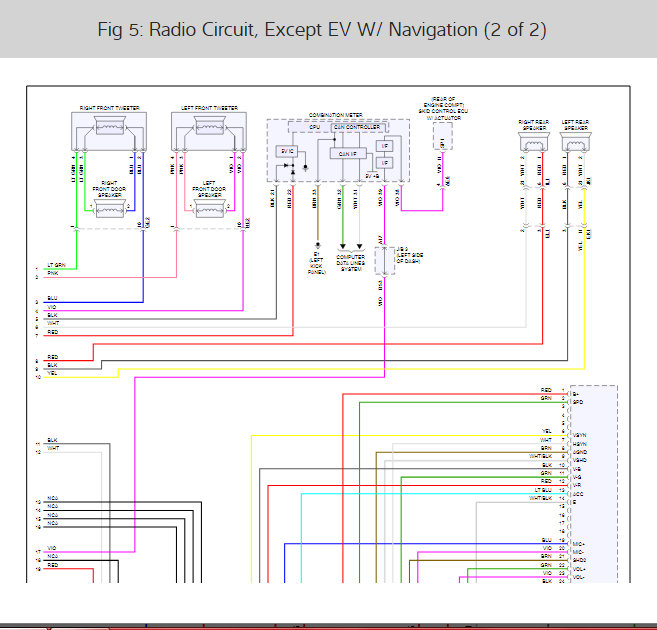

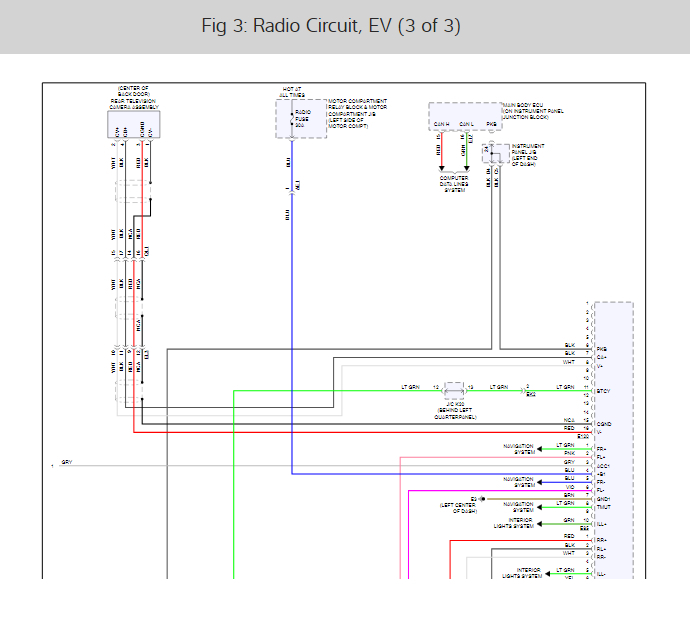

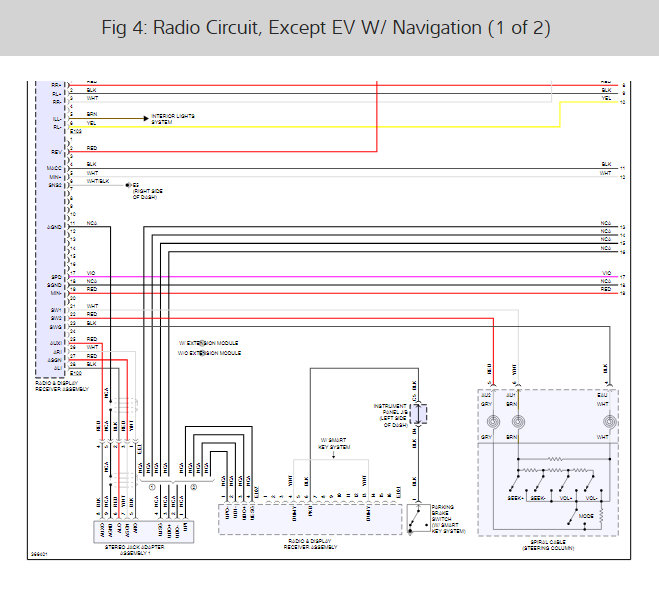

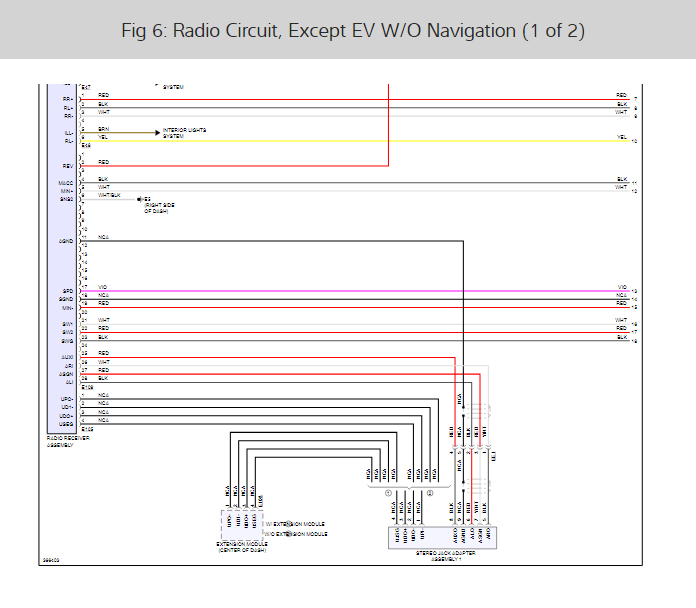

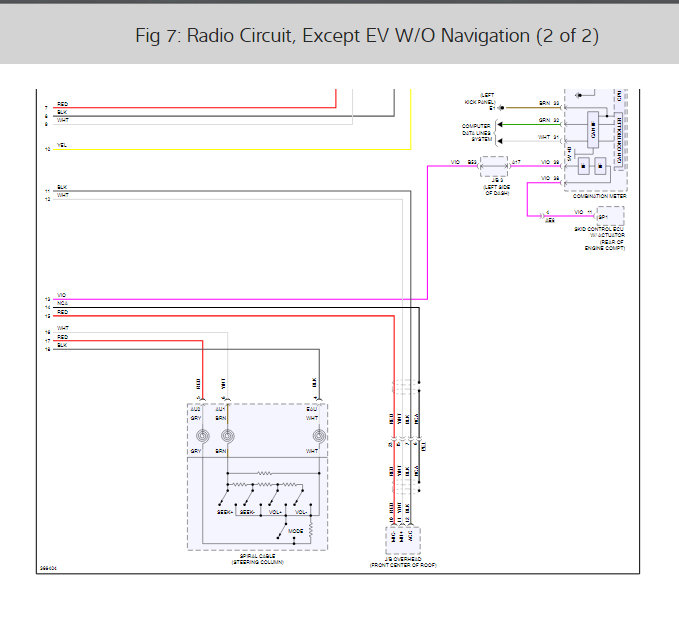

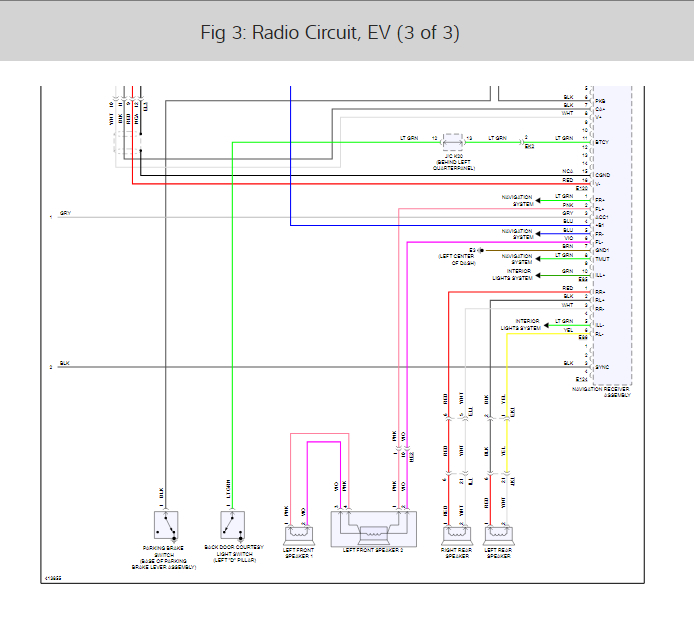

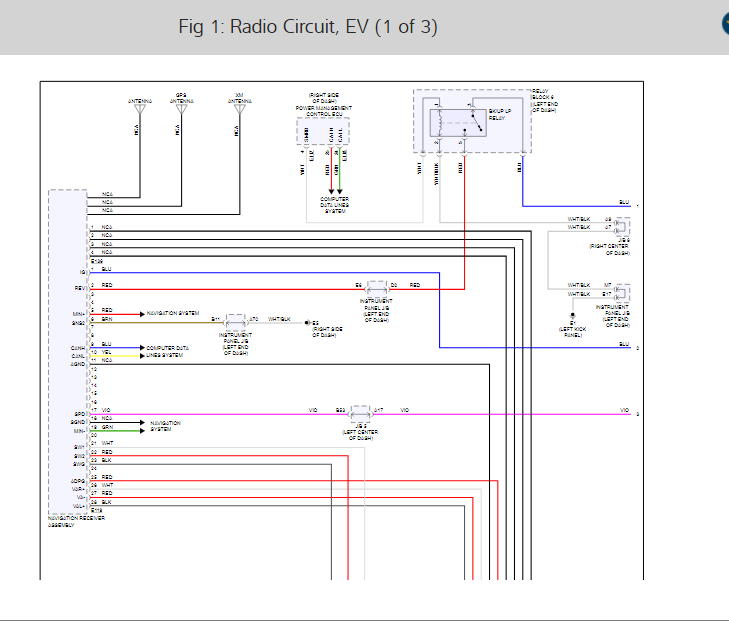

There are three different stereo options in the 2012 Rav4, so I have included all three in the diagrams down below. If the diagrams are two small, right click your mouse and open the diagram in a new page and it will become bigger and legilable. Please get back to us with how everything turns out, or if you have more questions.

Thanks,
Alex
2CarPros

Images (Click to enlarge)

Sep 16, 2019 at 10:09 AM

RVO

MEMBER
2 POSTS

Thank you so much Alex I'm from Brazil.Feel free if you need something from here.
