defrost actuator

2003 TOYOTA 4RUNNER
200,000 MILES • 4.6L • V6 • 4WD • AUTOMATIC
Avatar
DON DANIEL
  • MEMBER
  • 1 POST
My climate control system is stuck in the dash vent position and will not shift. Should I replace the blend door actuator or is there a defrost actuator?
Feb 27, 2018 at 10:39 AM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
Hello,

Yes is does sounds like you have a defrost blend door actuator that is not working.

Here is a guide to help you see what you are in for when doing the job:

https://www.2carpros.com/articles/replace-blend-door-motor

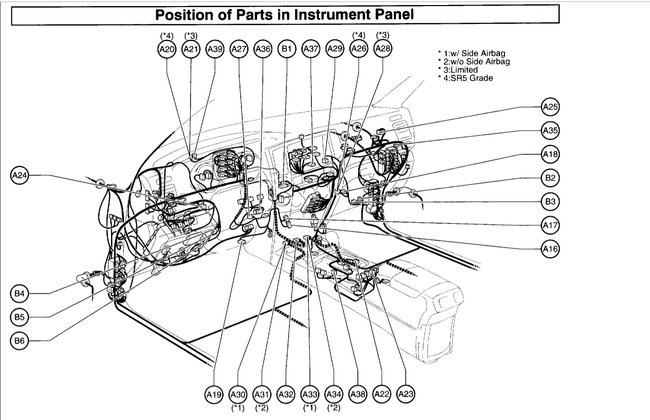

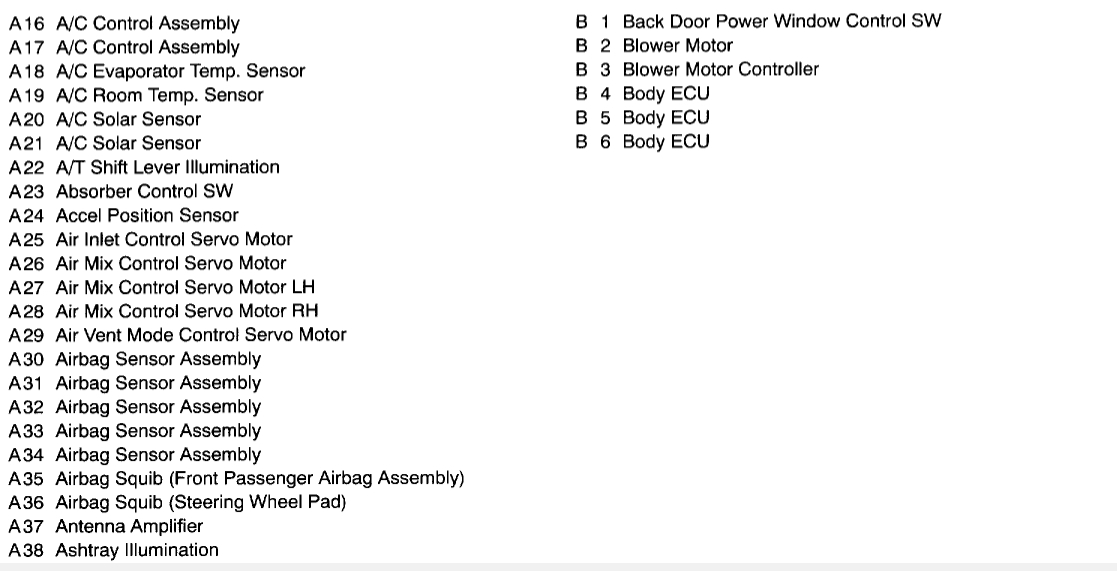

Here is the locations of all the blend door actuators for reference (below).

Cheers, Ken
Images (Click to enlarge)
Attached Media
Attached Media
Feb 28, 2018 at 11:06 AM
