Dash/instrument panel re-installation

2009 FORD EDGE

105,000 MILES • 6 CYL • 2WD • AUTOMATIC

ANTMAT

MEMBER
6 POSTS
FOLLOW

I had to replace the defrost/panel/floor mode door actuator on my vehicle. It is a long job because of removing the whole dash. I followed the instructions from the repair manual. (Chilton and Cardiagn) The problem was I could never get the dash totally off, it always felt like it was connected somewhere. I was able to replace the actuator and I am trying to put things back together, but I can't get the dashboard/instrument panel back into a flush position. Again, it is very difficult to move and it feels like it is attached to something. I have got about an 1/4" - 1/2" gap between the panel and the mounts it needs to attach to. The dashboard/instrument panel is one piece and I can find no information on it anywhere. I can see that the dashboard/instrument panel is attached with "clips" (more like a tapered post into a hole) but I was unable to remove the dash. Help! What did I miss or what am I doing wrong?

Nov 28, 2018 at 5:57 AM

ASEMASTER6371

CERTIFIED EXPERT
52,796 POSTS

Good morning,

From the sounds of it, the ducts that connect to the dash from the firewall may not be seating correctly.

Can you post a picture of what you see so I can see what you have?

Roy

Nov 28, 2018 at 6:33 AM

ANTMAT

MEMBER
6 POSTS

I do believe it could be a duct issue. I will take pictures and upload them when I get home from work. Thank you very much!

Nov 28, 2018 at 7:15 AM

ASEMASTER6371

CERTIFIED EXPERT
52,796 POSTS

You are welcome.

We are always glad to help.

Roy

Nov 28, 2018 at 7:47 AM

ANTMAT

MEMBER
6 POSTS

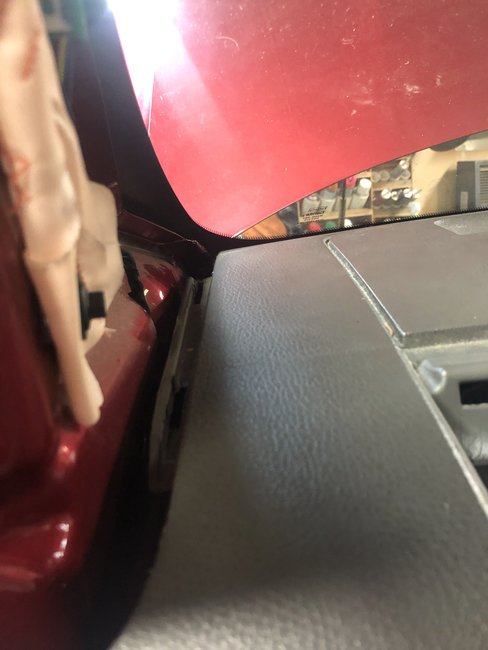

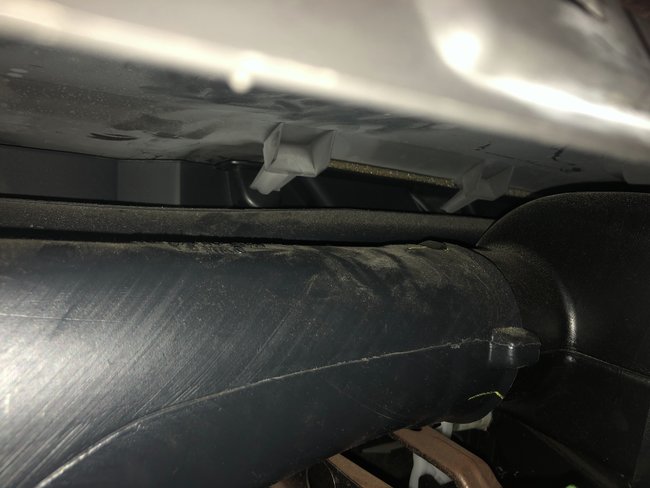

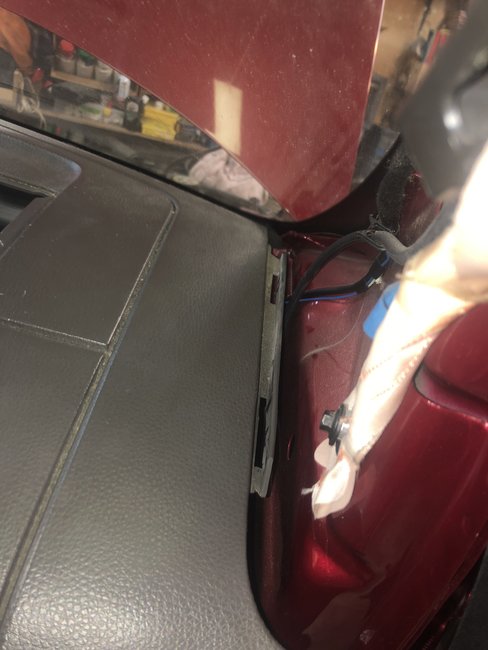

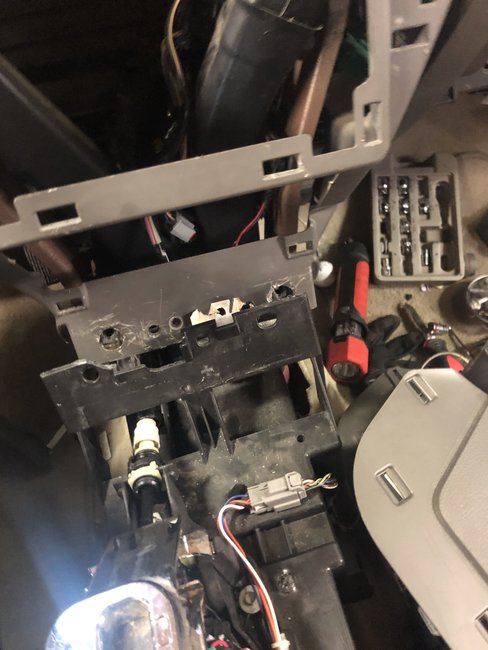

Here are some pictures. I tried to show the clips that keep it attached. The ones that can be seen are above the glove box. The problem is one that I saw seemed to have a nut attached at the end and it was pretty impossible to get off. I have a few more pictures, but I am converting them from my iPhone format to .jpg so I can upload them.

Nov 29, 2018 at 9:35 AM

ASEMASTER6371

CERTIFIED EXPERT
52,796 POSTS

No uploads are shown. Can you try and re-post?

Roy

Nov 29, 2018 at 9:45 AM

ANTMAT

MEMBER
6 POSTS

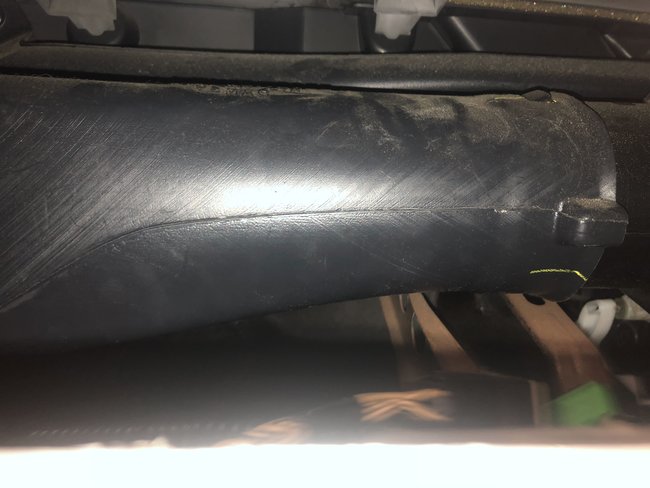

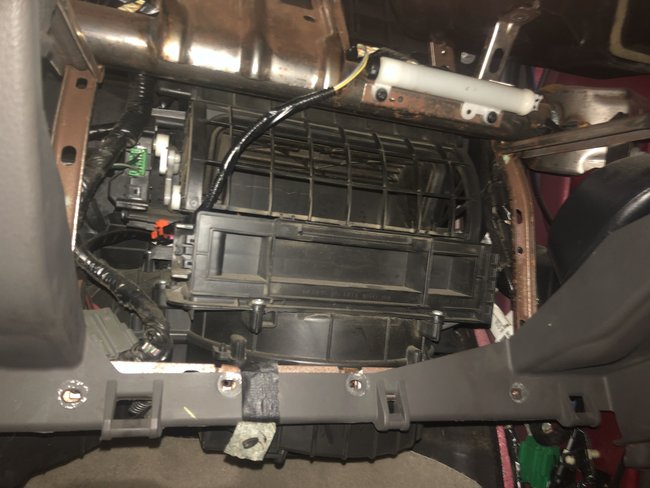

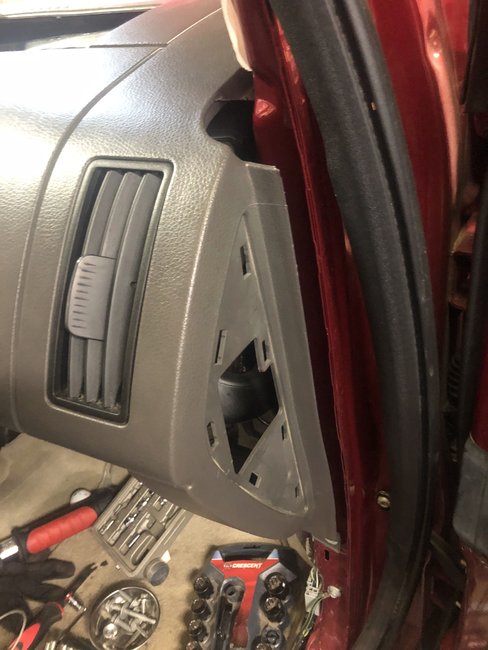

Does this work?

Images (Click to enlarge)

Nov 29, 2018 at 9:59 AM

ASEMASTER6371

CERTIFIED EXPERT
52,796 POSTS

Got them.

Looks like it may be an angle issue getting it to sit correctly. Try lifting it up and see if it seats in any better.

Roy

Nov 29, 2018 at 10:03 AM

ANTMAT

MEMBER
6 POSTS

Thank you. I have tried that, but I will try from different angles. I also will get some help - maybe two people maneuvering it will make it work
Are those clips/posts usually attached with nuts? I thought it was supposed to "pop out" - I was even using trim tools, but it was not until i used a small mirror did I see the nut. It seemed impossible to find any information at all on how to take off the 2009 Edge dashboard. All the other years seem to have a panel or small area that could be popped out to receive the screw. I have the Chilton manual and it stops (like everything else) at the instrument panel. It just says to lift it off. Do you know if there are pictures or directions anywhere that I can access?

Nov 29, 2018 at 10:49 AM

ASEMASTER6371

CERTIFIED EXPERT
52,796 POSTS

Yes there is. Bear with me. There are many and will have to copy. Will take a bit.

Roy

Nov 29, 2018 at 11:11 AM

ANTMAT

MEMBER
6 POSTS

Thank you!

Nov 29, 2018 at 11:20 AM

ASEMASTER6371

CERTIFIED EXPERT
52,796 POSTS

Procedure

Instrument Panel

1. Remove the driver seat.

2. Remove the floor console. For additional information, refer to Console - Floor See: Console > Removal and Replacement > Console - Floor.

3. Remove the steering wheel.

4. Remove the weatherstripping from the front door openings near the instrument panel.

5. Remove the LH and RH instrument panel side trim panels.

6. Remove the LH and RH A-pillar trim panels.

7. Remove the LH and RH cowl panels.

8. Remove the steering column opening trim panel.
- Remove the 2 steering column opening trim panel screws.

- Disengage the steering column opening trim panel from the retaining clips.

- Disconnect the electrical connector and hose, if equipped.

imageOpen In New TabZoom/Print

9. Remove the bolt and the hood opening handle.
- Position the handle aside.

imageOpen In New TabZoom/Print

10. Disconnect the LH bulkhead electrical connector from under the steering column.

imageOpen In New TabZoom/Print

11. Disconnect the RH bulkhead electrical connector from under the steering column.

imageOpen In New TabZoom/Print

12. Disconnect the 2 electrical connectors from the left cowl panel side.

imageOpen In New TabZoom/Print

13. Disconnect the electrical connectors and the antenna lead-in cable from the right cowl panel side.
- Remove the harness from the retainers.

imageOpen In New TabZoom/Print

14. Disconnect the 2 A/C electrical connectors from inside the glove compartment.

imageOpen In New TabZoom/Print

15. Disconnect the selector lever cable from the ball stud on the selector lever.

imageOpen In New TabZoom/Print

16. Remove the selector lever cable from the retaining clips.

imageOpen In New TabZoom/Print

17. Remove the 4 screws (2 each side) from the inner floor console support.

18. Remove the screws from the front inner floor console support-to-instrument panel.

imageOpen In New TabZoom/Print

19. Disconnect the electrical connectors from the front inner floor console.

imageOpen In New TabZoom/Print

20. Remove the inner floor console support.

21. Disconnect the small Restraints Control Module (RCM) electrical connector.

imageOpen In New TabZoom/Print

22. Remove the LH pushpin retainer and position the carpet aside.

imageOpen In New TabZoom/Print

23. Remove the LH pushpin retainer from the instrument panel-to-A/C duct.

imageOpen In New TabZoom/Print

24. Remove the 2 LH instrument panel-to-floor bolts.
- To install, tighten to 22 Nm (16 lb-ft).

25. Remove the RH pushpin retainer and position the carpet aside.

imageOpen In New TabZoom/Print

26. Remove the screw from the RH instrument panel brace-to-A/C duct.

imageOpen In New TabZoom/Print

27. Remove the RH instrument panel-to-floor bolt.
- To install, tighten to 22 Nm (16 lb-ft).

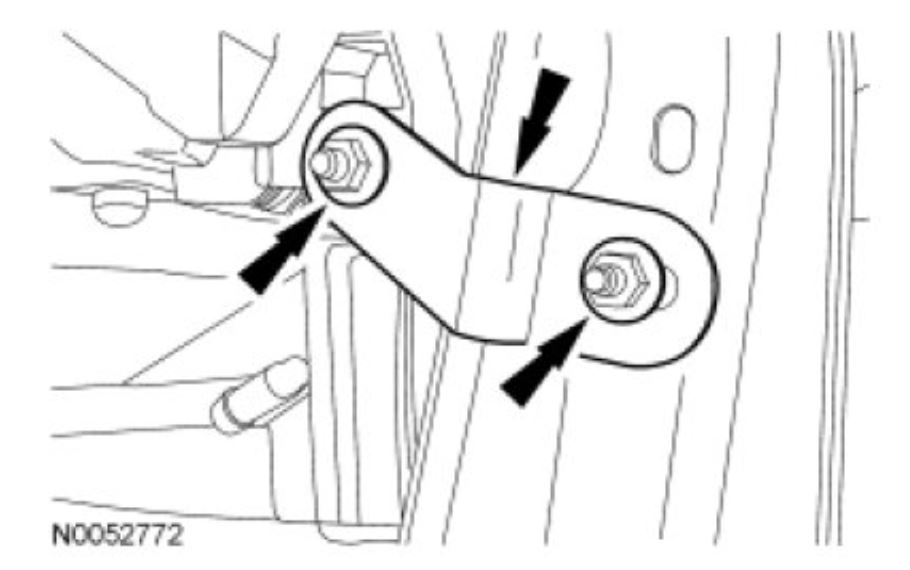

28. Remove the 2 nuts and the LH instrument panel brace-to-A/C duct.

imageOpen In New TabZoom/Print

29. Remove and discard the steering column shaft-to-steering column bolt.
- To install, use a new steering column pinch bolt and tighten to 23 Nm (17 lb-ft).

30. Detach the steering column shaft from the steering column.

31. Remove the upper cowl panel grille.

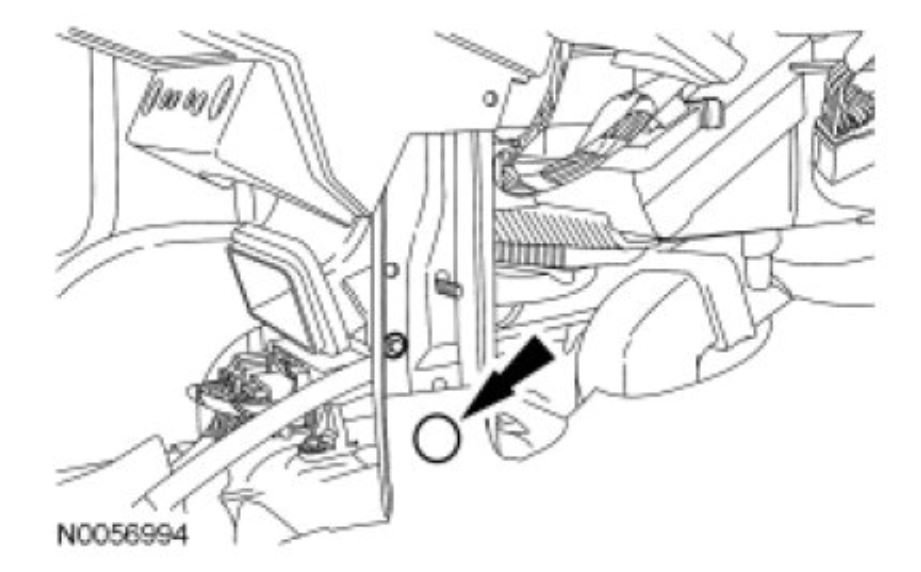

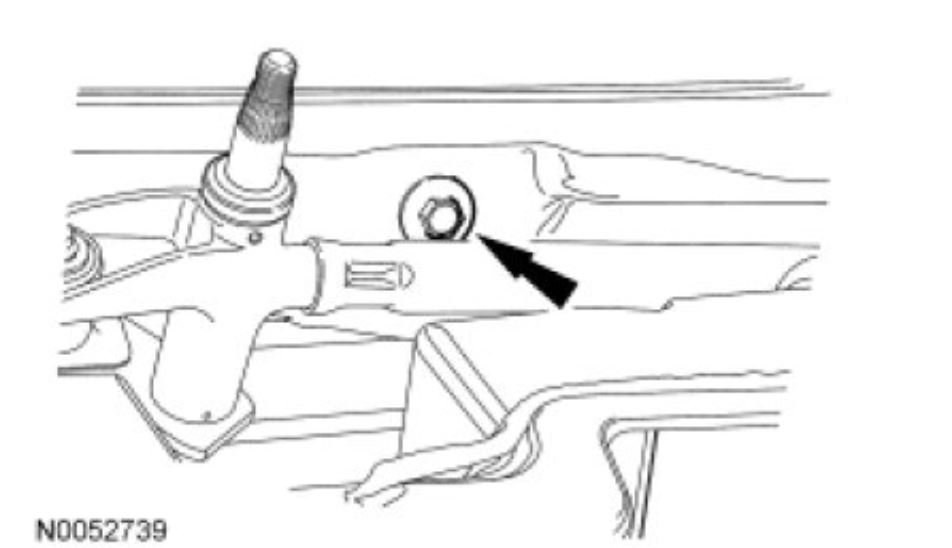

32. Remove the bolt from the front of dash.
- To install, tighten to 20 Nm (177 lb-in).

imageOpen In New TabZoom/Print

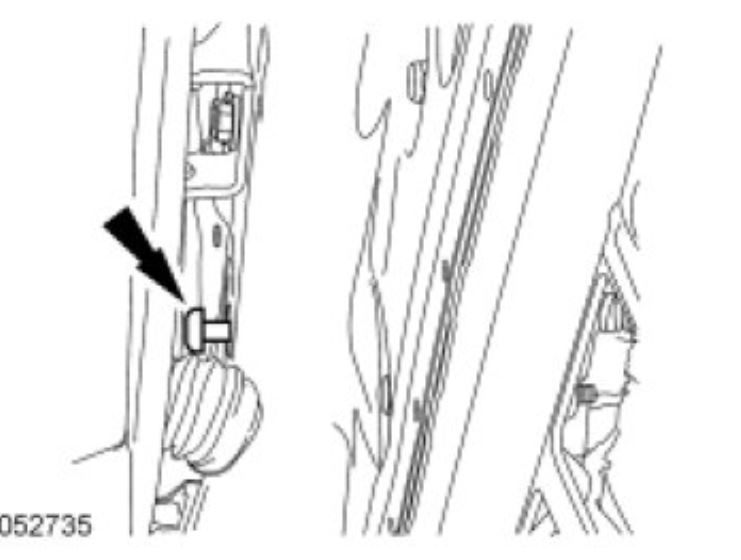

33. NOTE: The Torx head bolt is not completely removed. The bolt is pulled outward far enough to allow for clearance when removing the instrument panel.

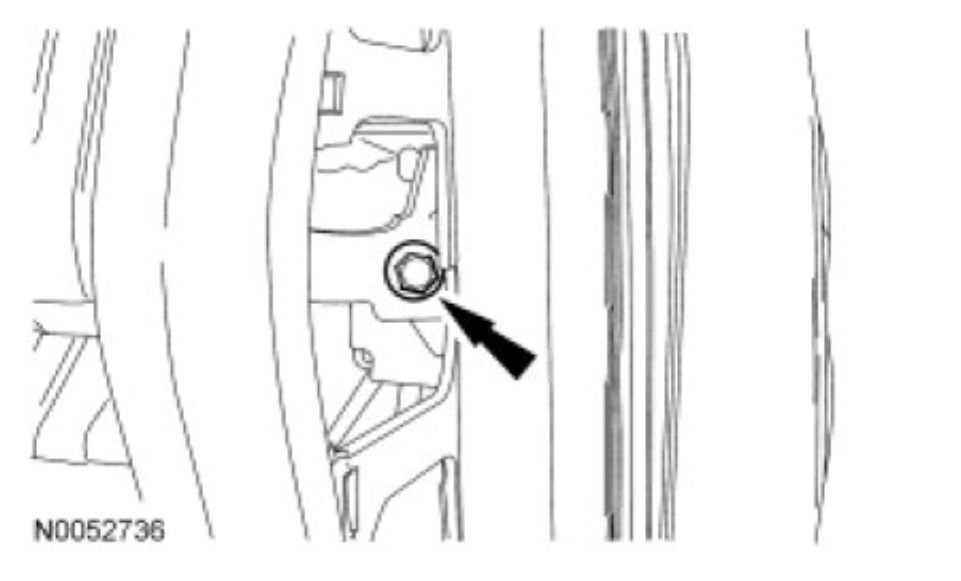

Completely loosen the Torx head bolt from inside the LH door opening.

- To install, tighten to 30 Nm (22 lb-ft).

imageOpen In New TabZoom/Print

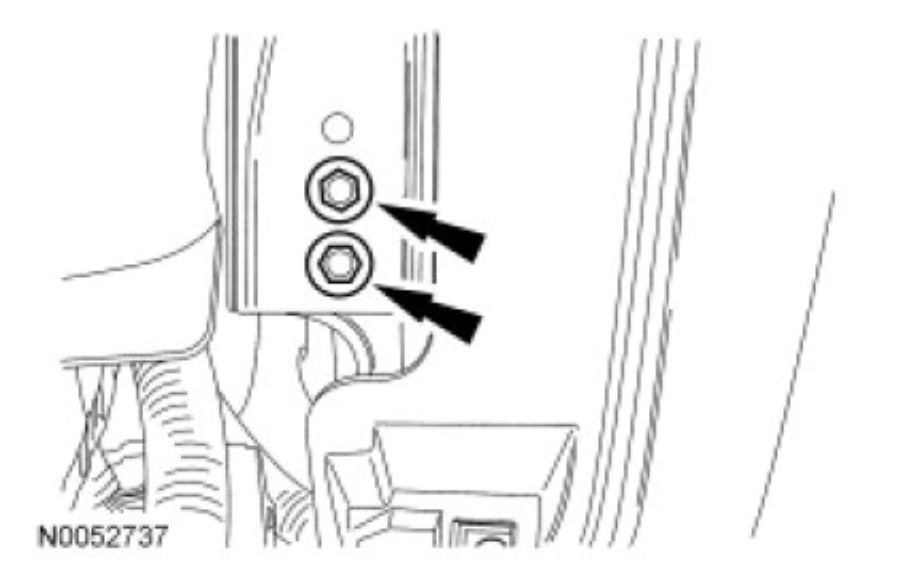

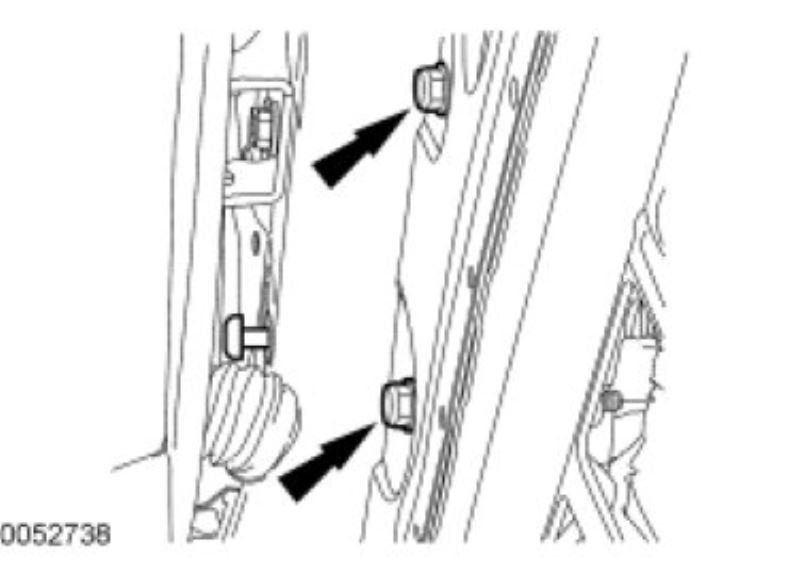

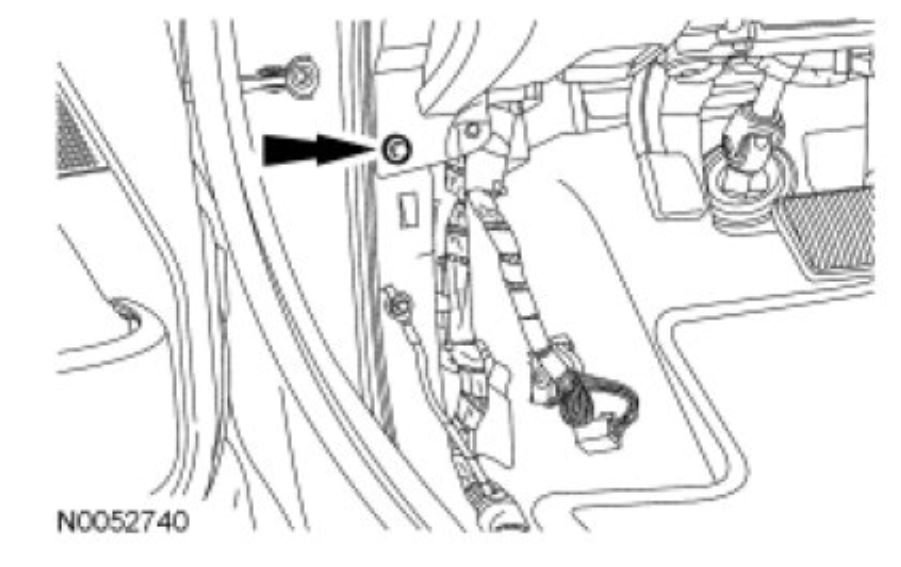

34. Remove the 2 LH instrument panel bolts from inside the LH door opening.
- To install, tighten to 20 Nm (177 lb-in).

imageOpen In New TabZoom/Print

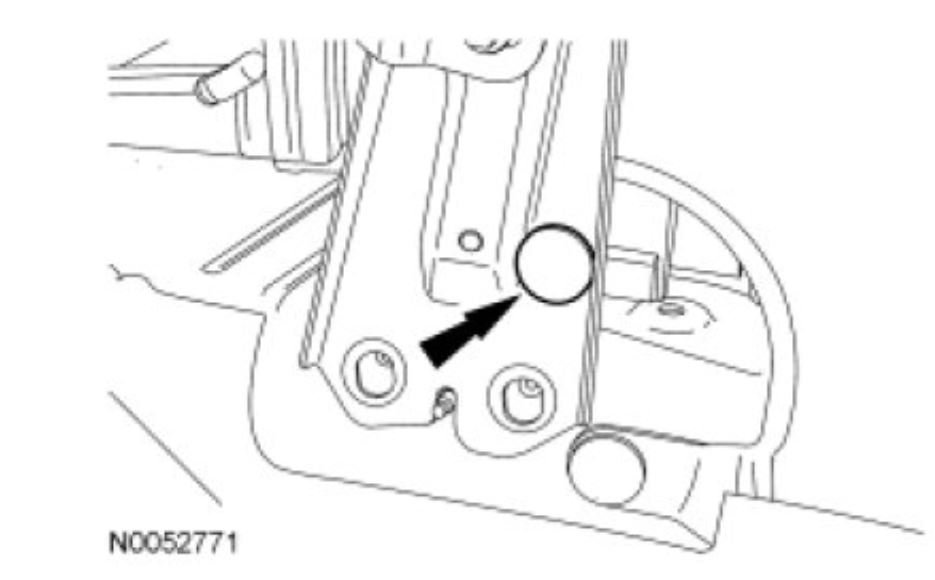

35. Remove the 2 instrument panel-to-steering column bracket bolts from the bracket under the steering column.
- To install, tighten to 22 Nm (16 lb-ft).

imageOpen In New TabZoom/Print

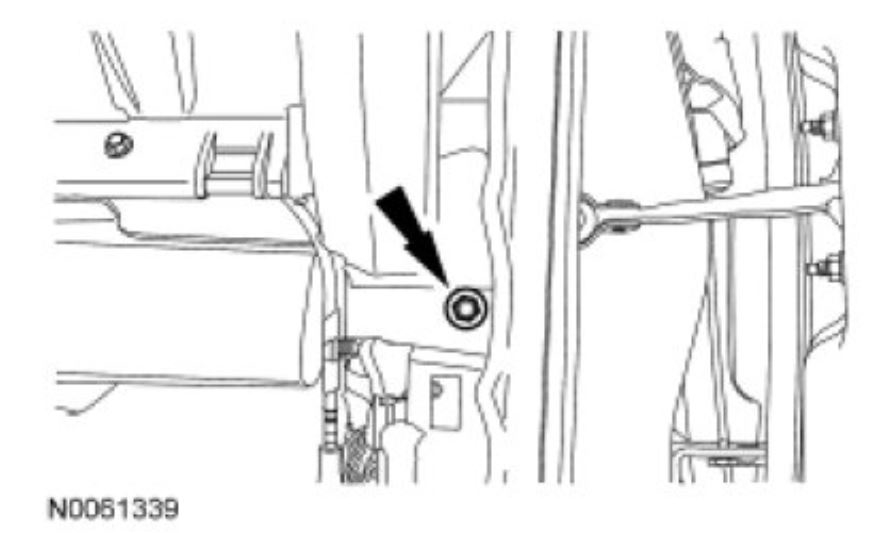

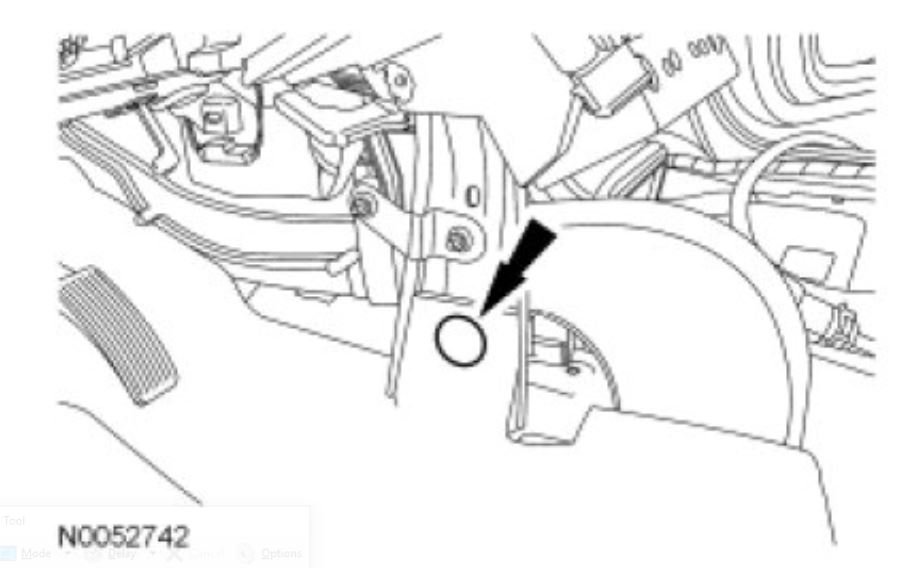

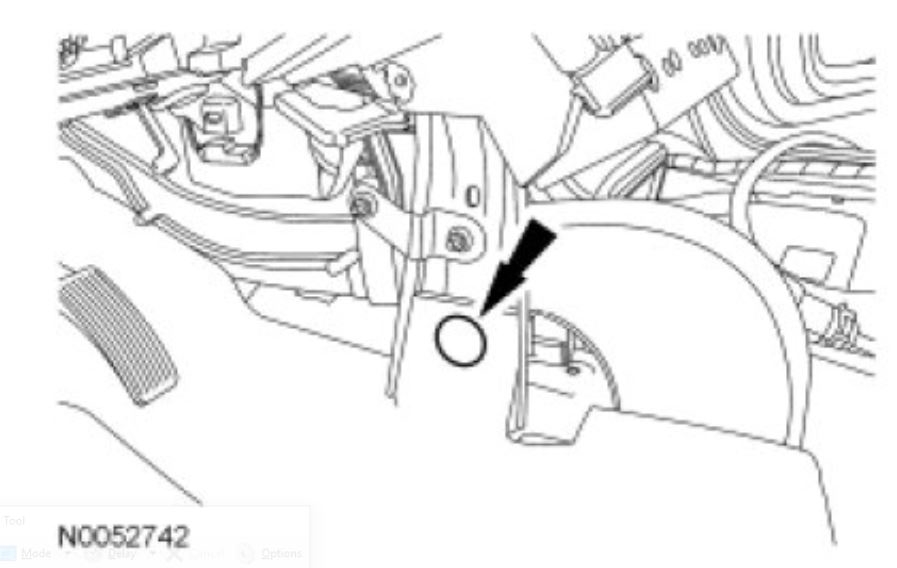

36. Remove the LH instrument panel-to-body bolt.
- To install, tighten to 7 Nm (62 lb-in).

imageOpen In New TabZoom/Print

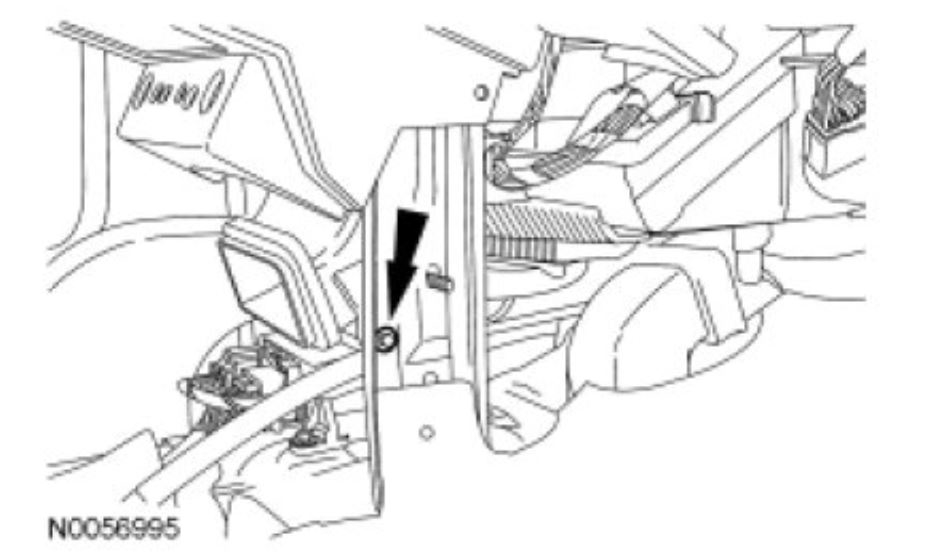

37. Remove the bolt from the RH instrument panel.
- To install, tighten to 22 Nm (16 lb-ft).

imageOpen In New TabZoom/Print

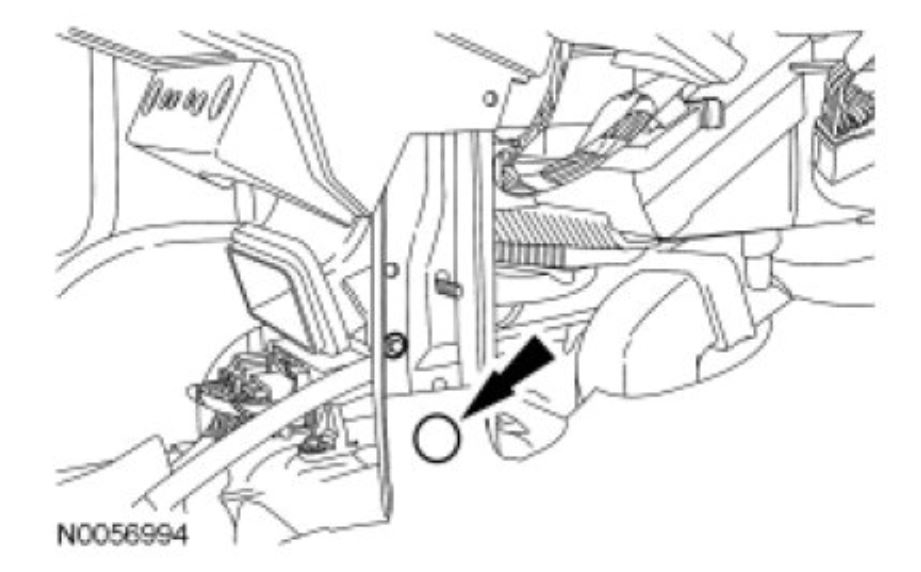

38. Remove the RH instrument panel-to-body bolt.
- To install, tighten to 7 Nm (62 lb-in).

imageOpen In New TabZoom/Print

39. NOTICE: To avoid damage to the instrument panel, this step requires the help of an assistant.

NOTICE: Make sure that all electrical connectors and wiring are not hindered before removing the instrument panel or damage to the components may occur.

NOTE: Rotate the instrument panel as necessary to remove the instrument panel from the vehicle.

Remove the instrument panel.

40. NOTICE: To avoid damaging the instrument panel, the aid of an assistant is required when positioning the instrument panel to the vehicle.

NOTICE: Make sure that all electrical connectors and wiring are correctly routed when installing the instrument panel or damage to the components may occur.

To install, reverse the removal procedure.

Nov 29, 2018 at 11:24 AM

ASEMASTER6371

CERTIFIED EXPERT
52,796 POSTS

Sorry too much for one answer.

Roy
