Replacing vacuum air lines that run across the motor 3/8, 1/4 lines is there a picture or diagram for this, air tree routing and vent air? Thanks
Nov 13, 2022 at 4:21 PM
Crossed up my vacuum line and now no air blows?
1995 DODGE RAM
OLLIE2022
- MEMBER
- 49 POSTS
- FOLLOW
Advertisement
Hi,
The only vacuum schematic I have for emissions is attached below. I'm not sure if you need the interior HVAC control or not, but I attached it as well.

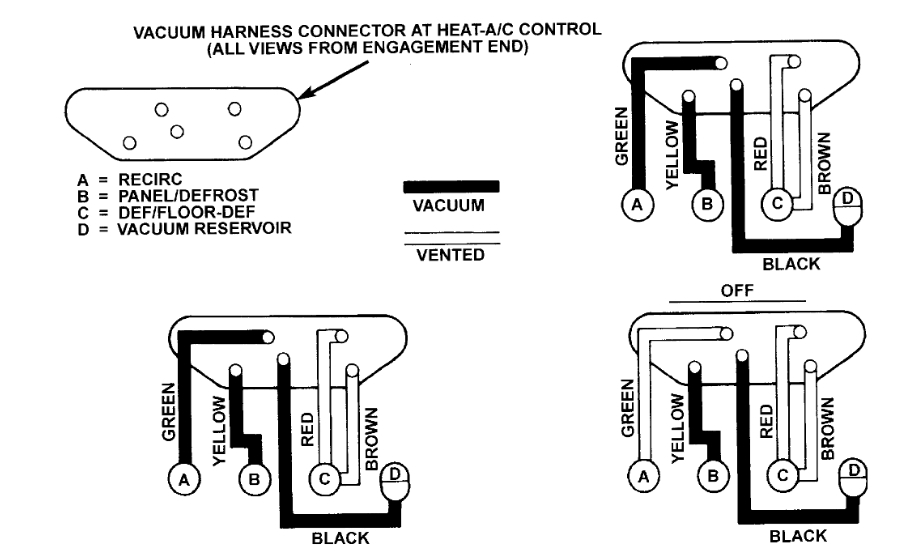

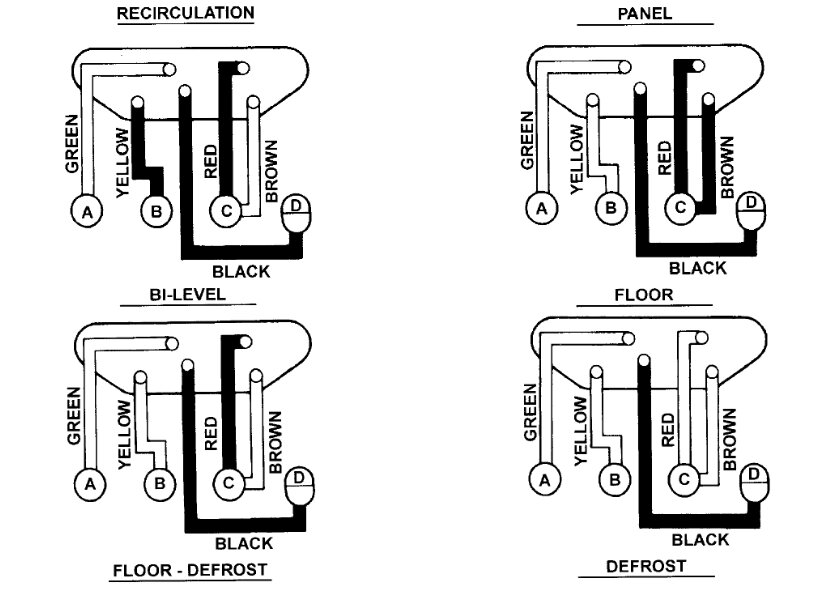

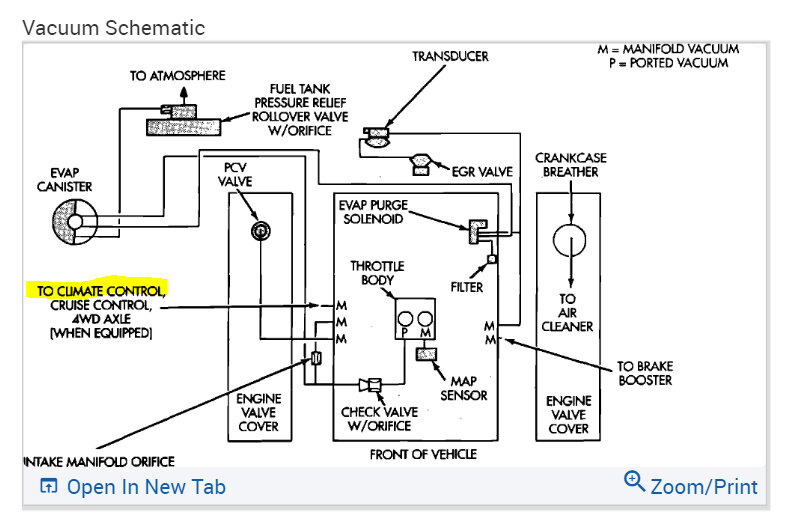

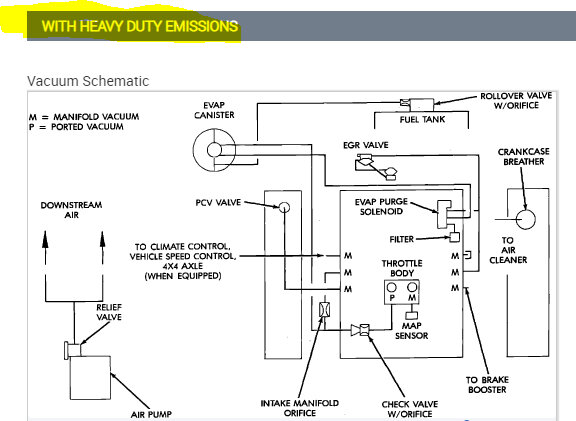

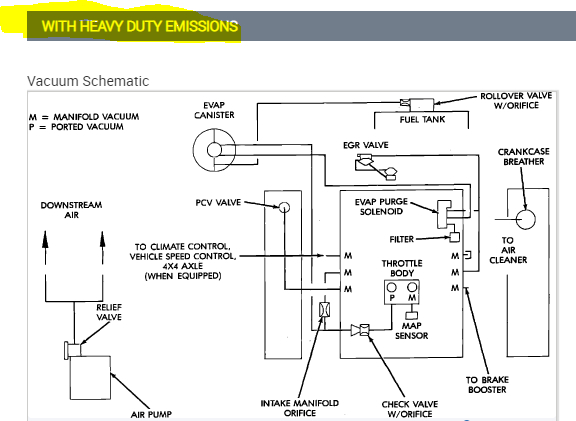

As far as the attachments, pic 1 is for light-duty emissions, pic 2 is for heavy-duty emissions, and pics 3 and 4 are the air flow directions for the HVAC.
Let me know if this helps.
Take care,
Joe
See pics below.
The only vacuum schematic I have for emissions is attached below. I'm not sure if you need the interior HVAC control or not, but I attached it as well.
As far as the attachments, pic 1 is for light-duty emissions, pic 2 is for heavy-duty emissions, and pics 3 and 4 are the air flow directions for the HVAC.
Let me know if this helps.
Take care,
Joe
See pics below.
