Where is the Crankshaft sensor located?

2008 SATURN VUE
200,000 MILES • 2.4L • 4 CYL • 2WD • AUTOMATIC
Avatar
ANDYRU
  • MEMBER
  • 3 POSTS

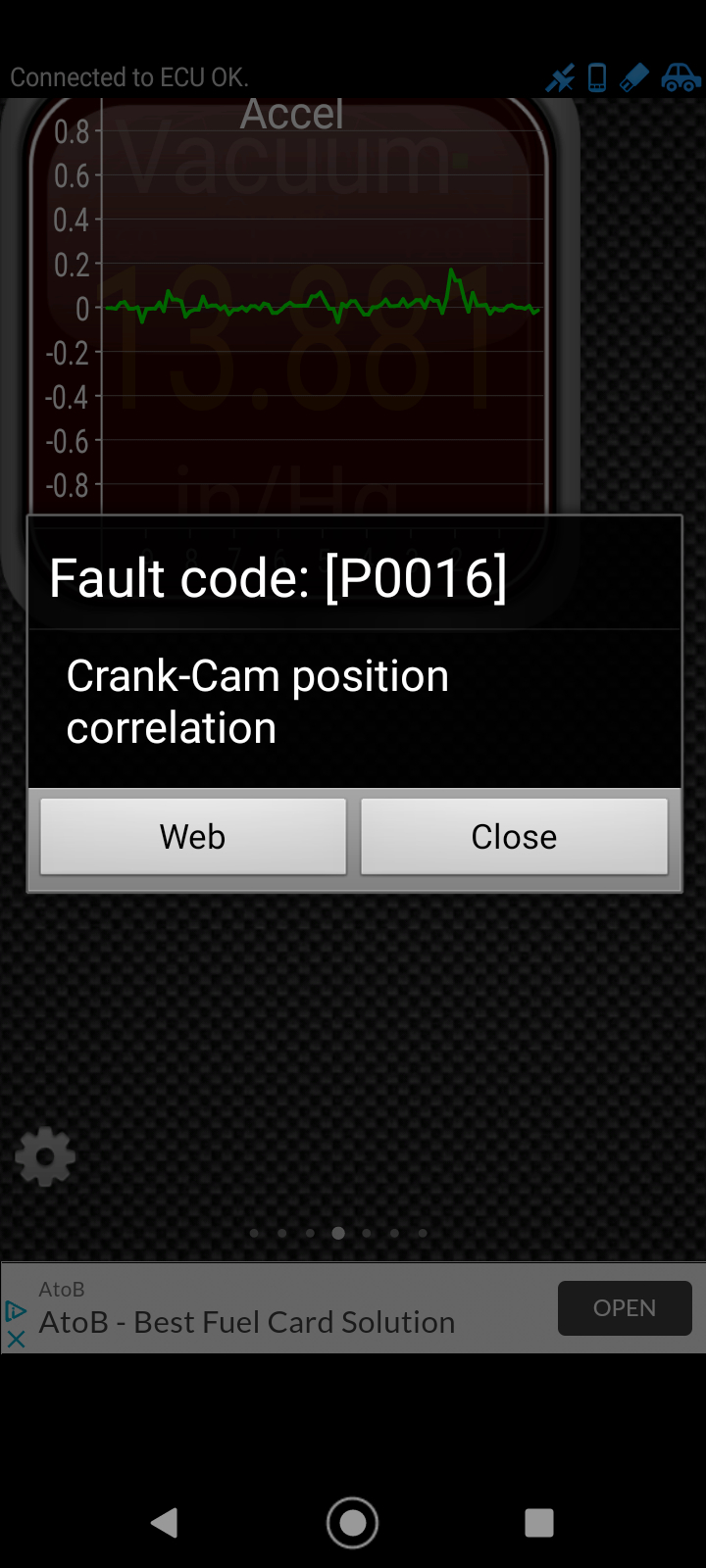

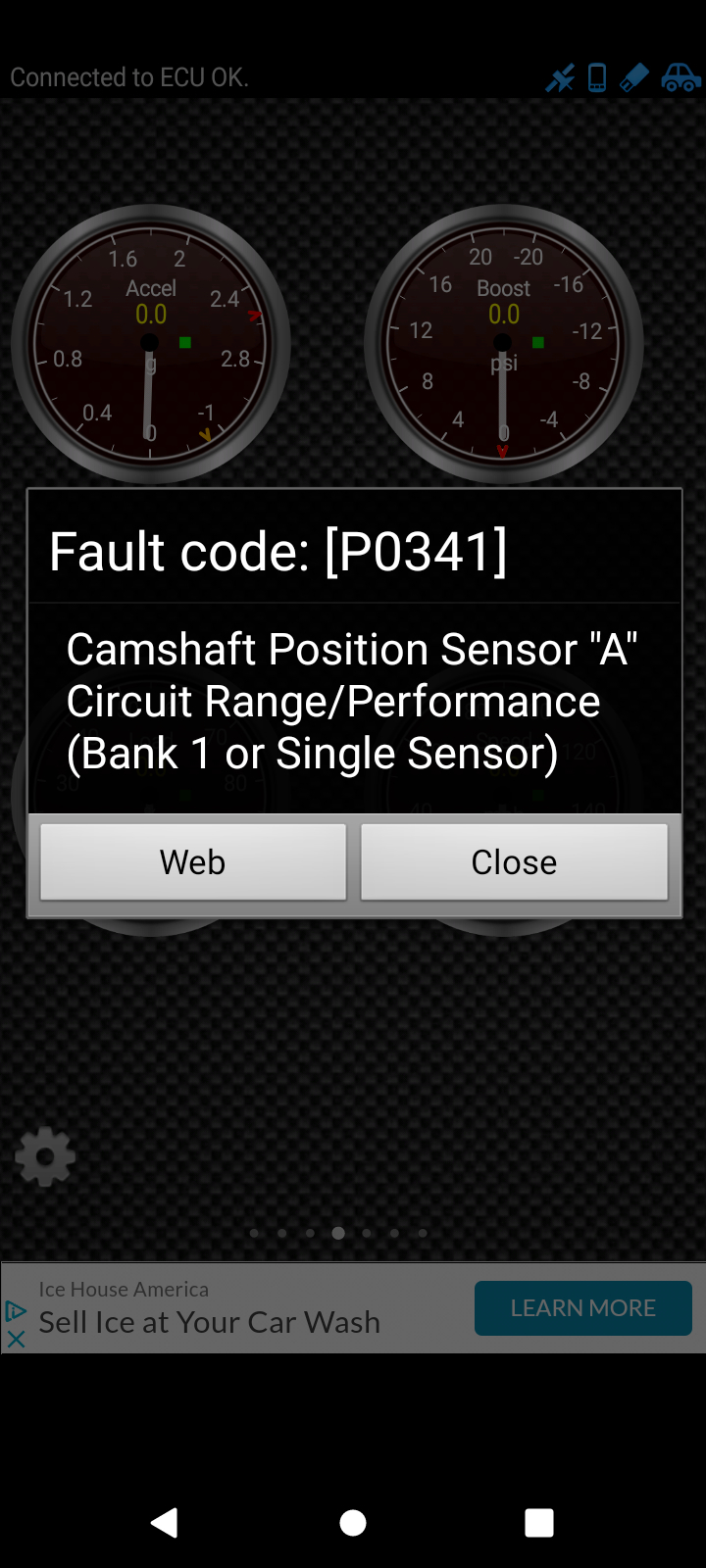

Ran rough. Drove fine on flat surface, dogged and/or died on any incline. 016 error. Now won't start. Replaced CVV intake and exhaust solenoids. Replaced cam sensor. Code p0340 or p0341 somewhere along this process. Want to replace crankshaft sensor but getting conflicting answers on location of this in my 2.4 Ecotec engine.
Oct 14, 2021 at 2:14 PM
Advertisement
Avatar
SQM
  • CERTIFIED EXPERT
  • 6,383 POSTS
Hello,

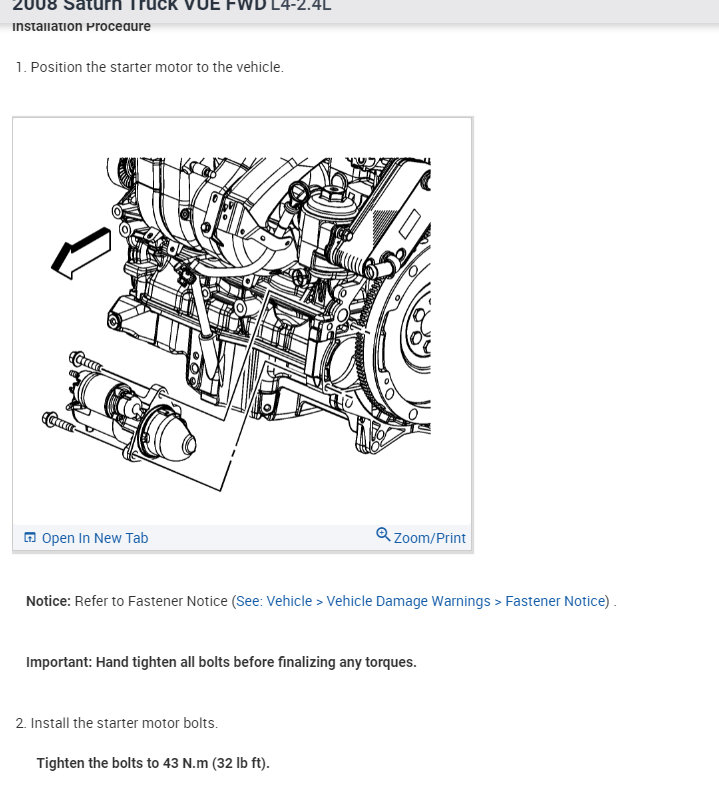

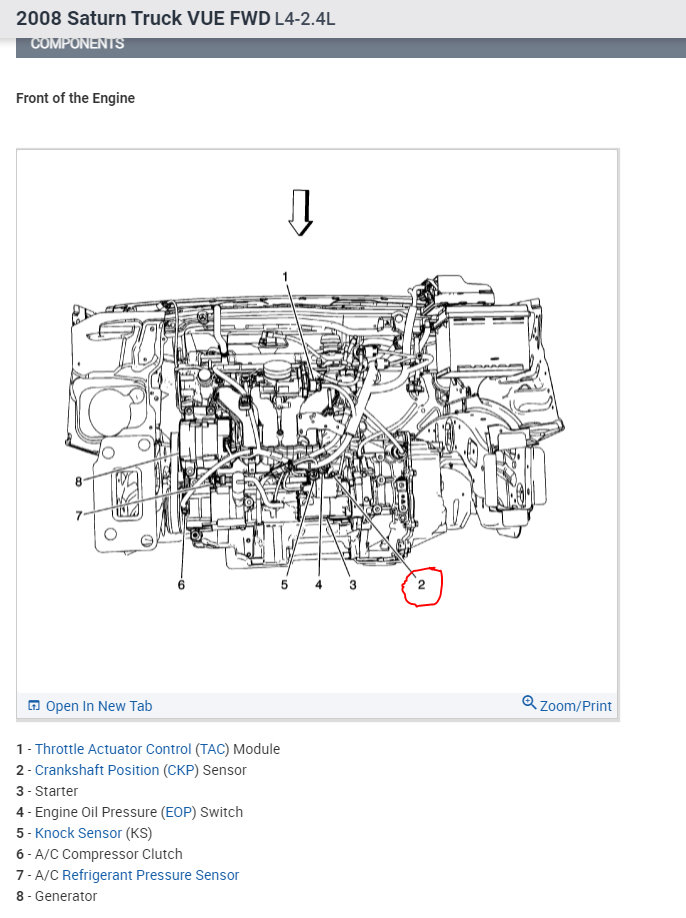

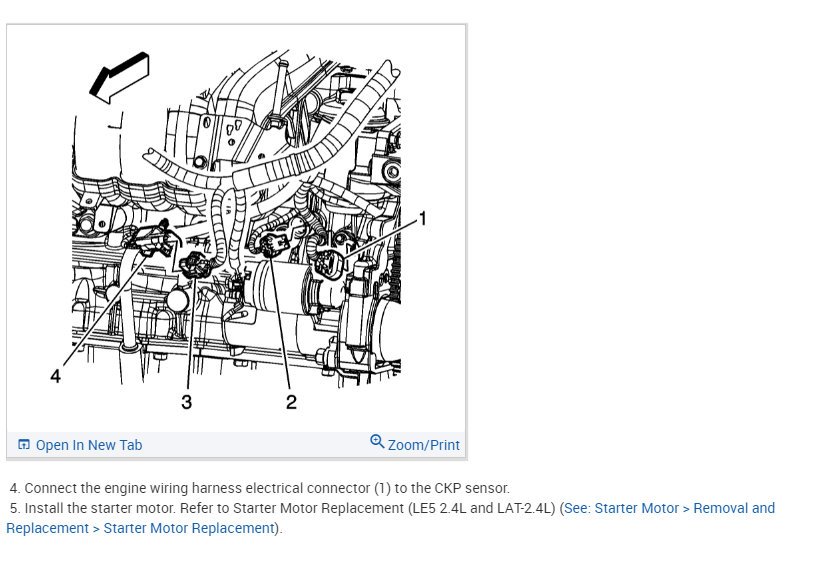

The crank position sensor is located on the front lower part of the engine (see diagram below). It is being the starter.
In order to replace the crank sensor, you will have to remove the starter.

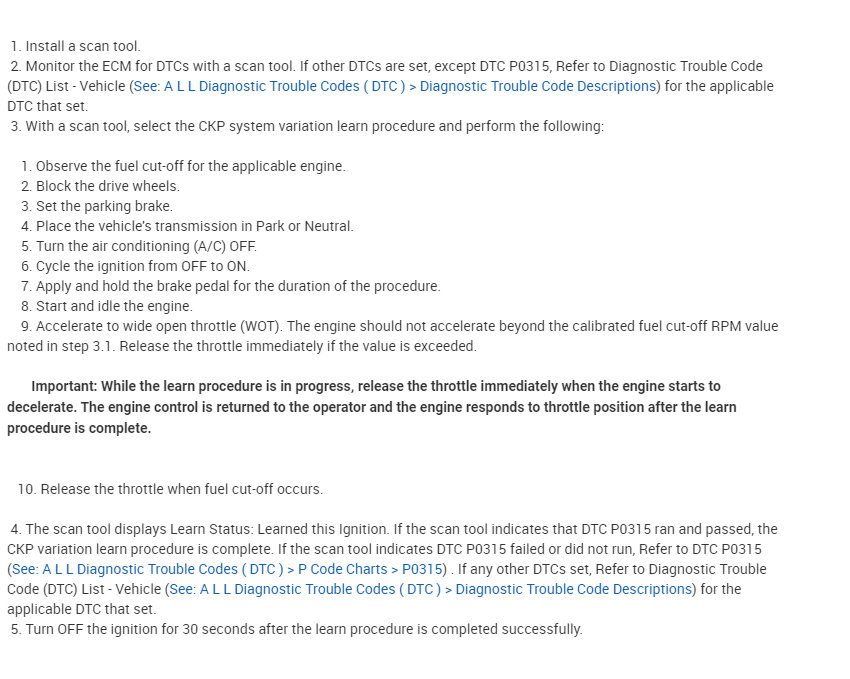

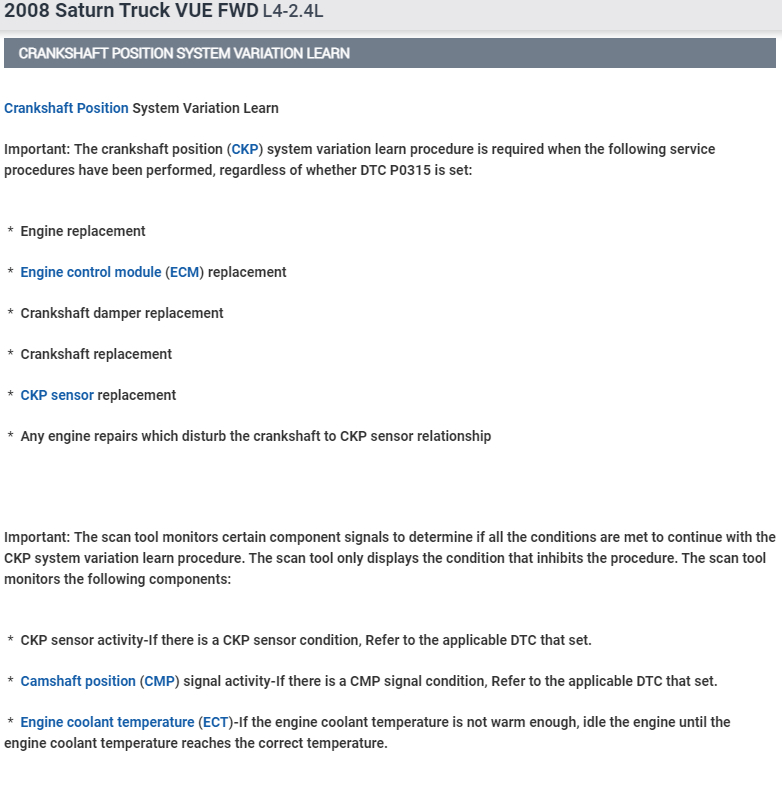

Keep in mind that the crank position sensor needs to be programmed to the vehicle after replacement.

https://www.2carpros.com/articles/symptoms-of-a-bad-crankshaft-sensor
https://www.2carpros.com/articles/crankshaft-angle-sensor-replacement

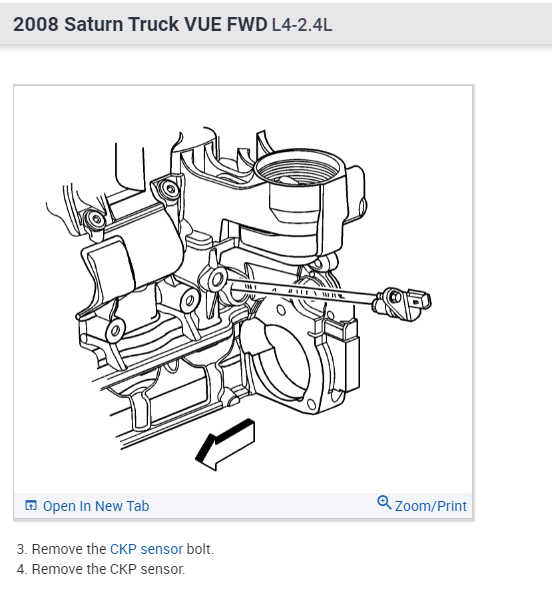

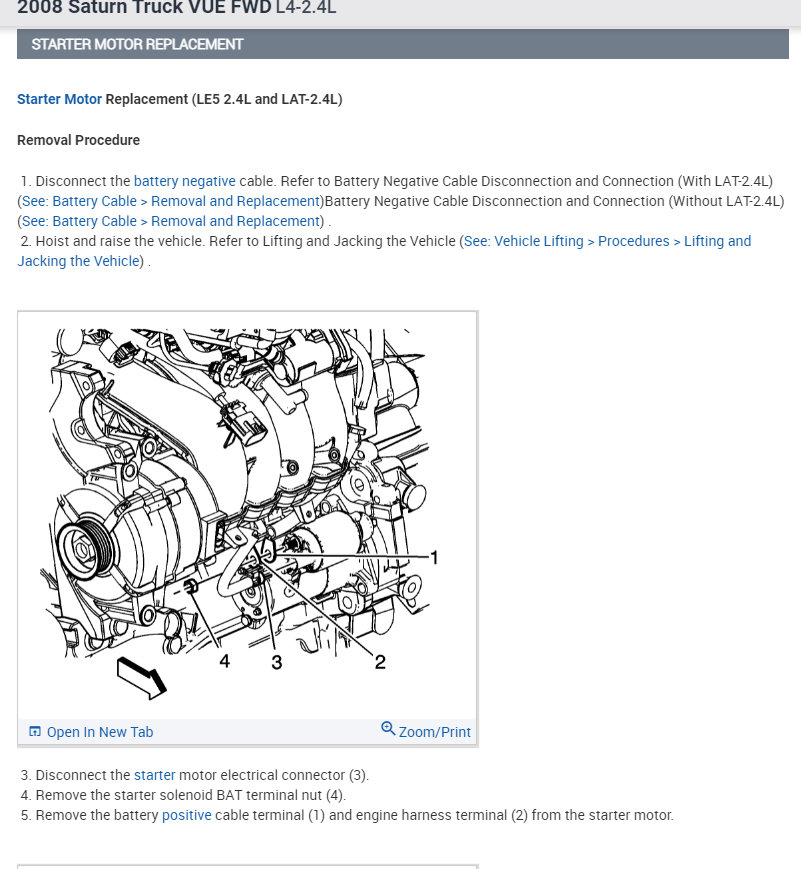

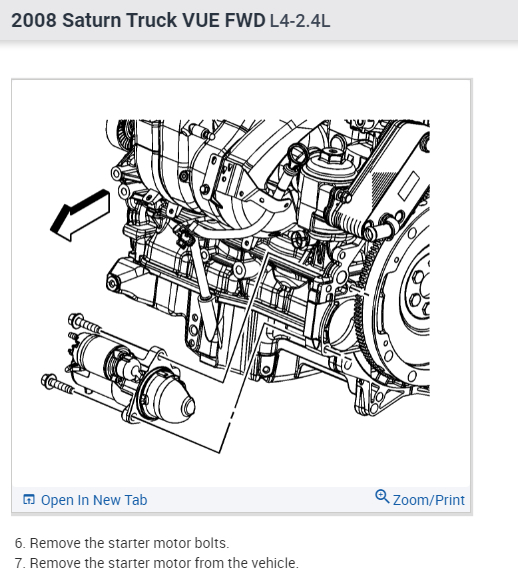

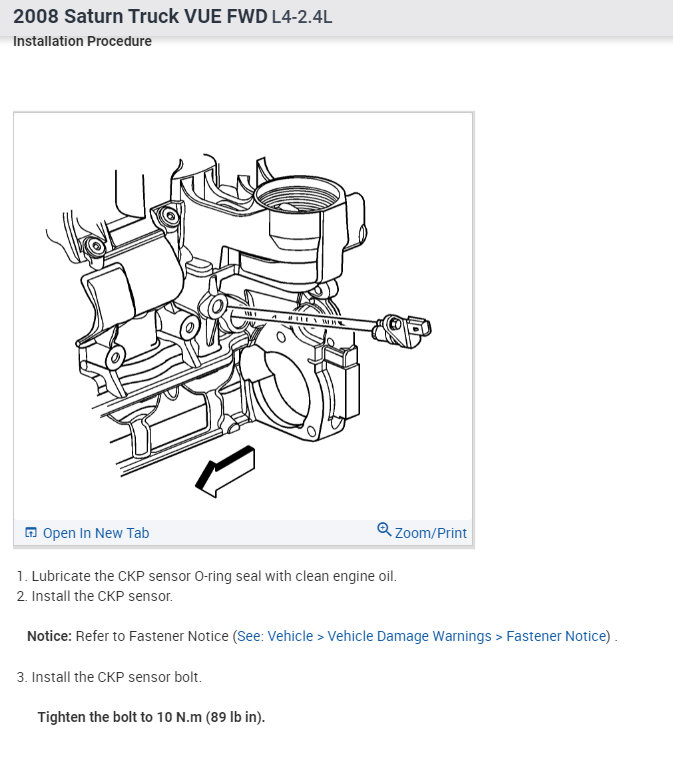

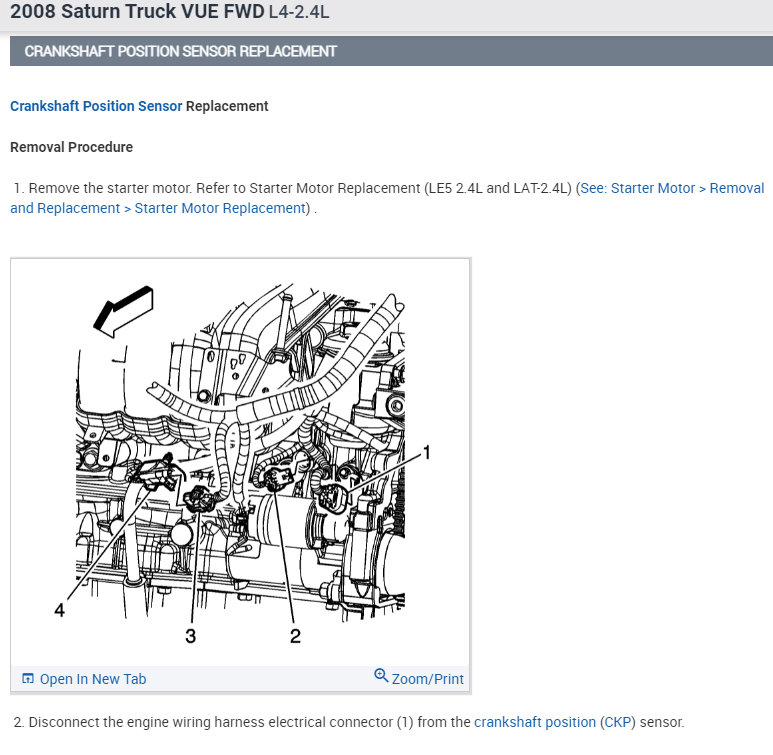

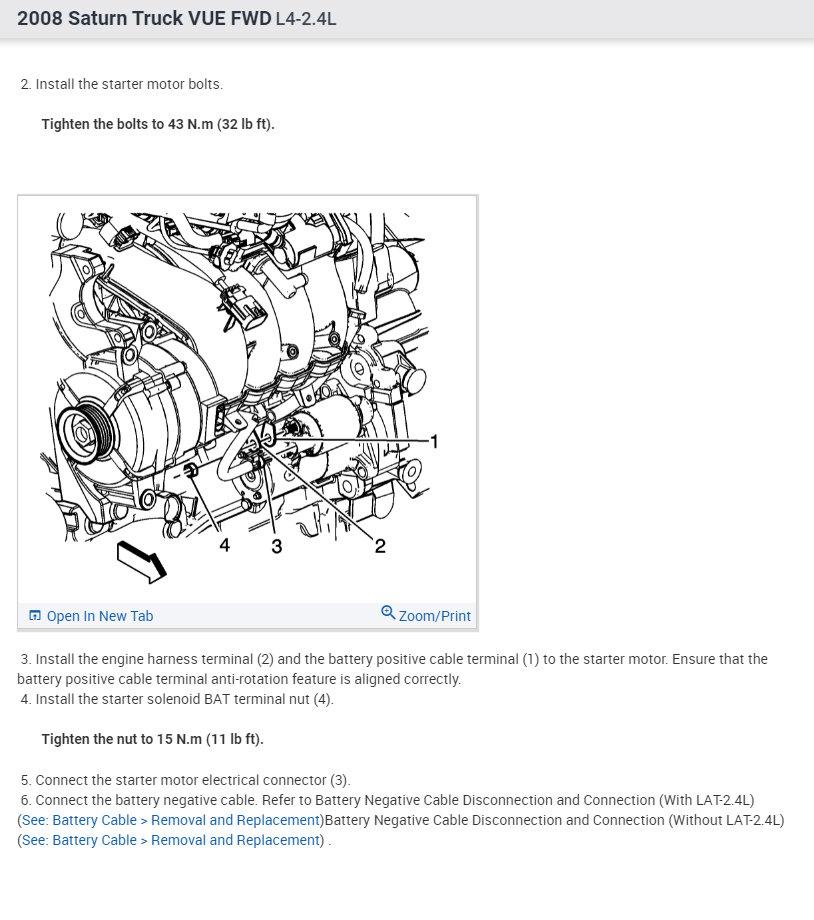

I have attached the replacement procedure for your reference.

Please let me know of any questions.
Thank you.
Oct 14, 2021 at 3:02 PM
Avatar
ANDYRU
  • MEMBER
  • 3 POSTS
So if I don't have the equipment needed to program it, I probably shouldn't even do the replacement myself?
Oct 14, 2021 at 4:03 PM
Advertisement
Avatar
SQM
  • CERTIFIED EXPERT
  • 6,383 POSTS
That is correct.
By the way what issues are you having in order for you to change the crank sensor?
Oct 14, 2021 at 6:36 PM
Avatar
ANDYRU
  • MEMBER
  • 3 POSTS

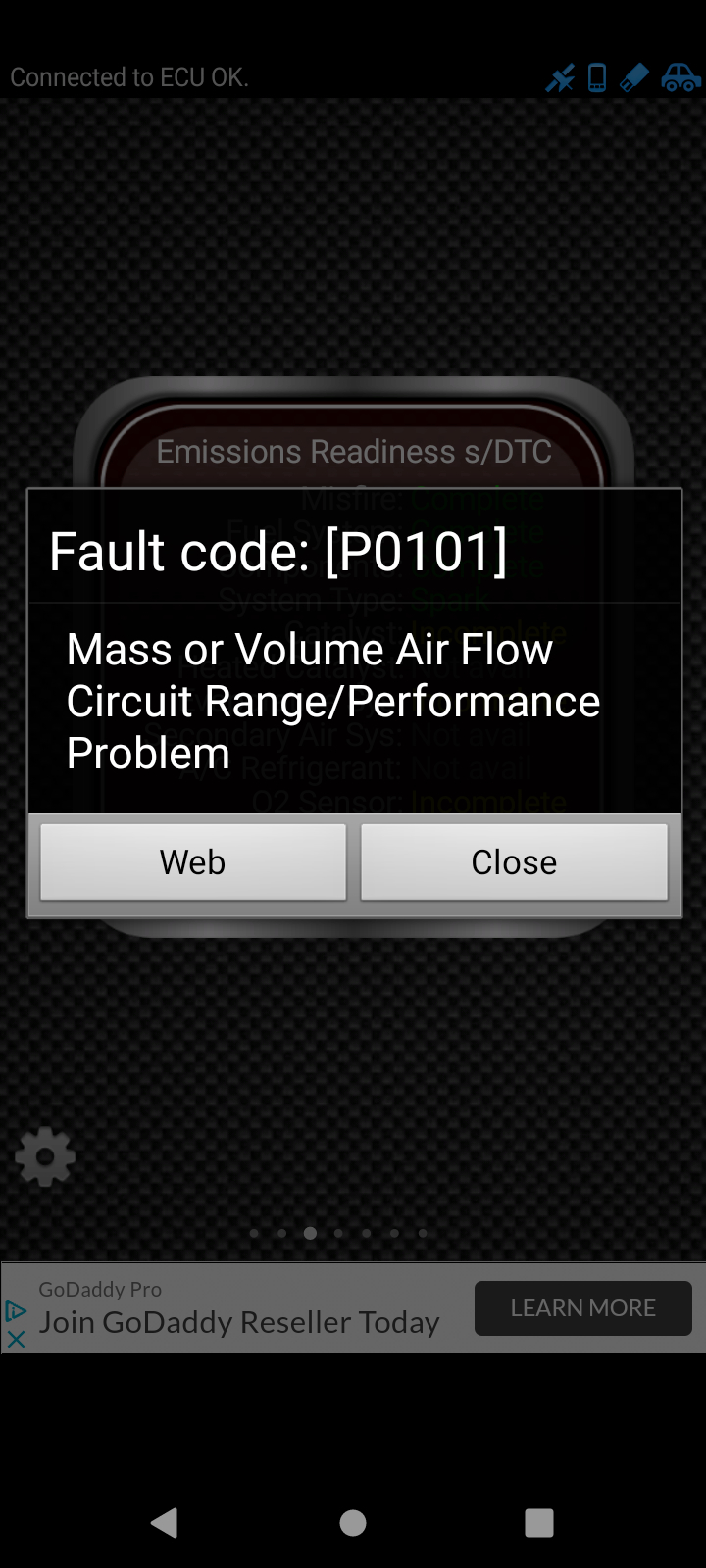

I'll copy/paste from my initial question: "Ran rough. Drove fine on flat surface, dogged and/or shut off on any incline. 016 error. Now won't start. Replaced CVV intake and exhaust solenoids. Replaced cam sensor. Code 340 or 341 somewhere along this process.". I replaced the MAF, CVV's and cam sensor based on research into the codes below. I found the location of the crank sensor tonight, but if I need equipment I don't have to program/re-learn, I'm not going to replace it myself. I'm limited physically to do some things.
Oct 14, 2021 at 7:07 PM
Avatar
SQM
  • CERTIFIED EXPERT
  • 6,383 POSTS
Keep in mind that this issue can be triggered by the sensor not getting proper voltage.

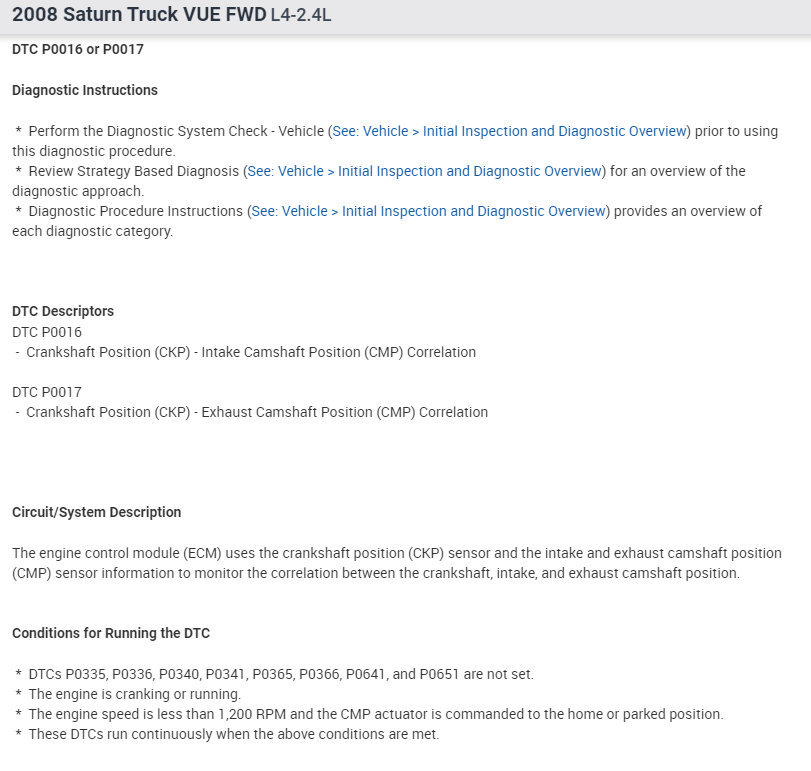

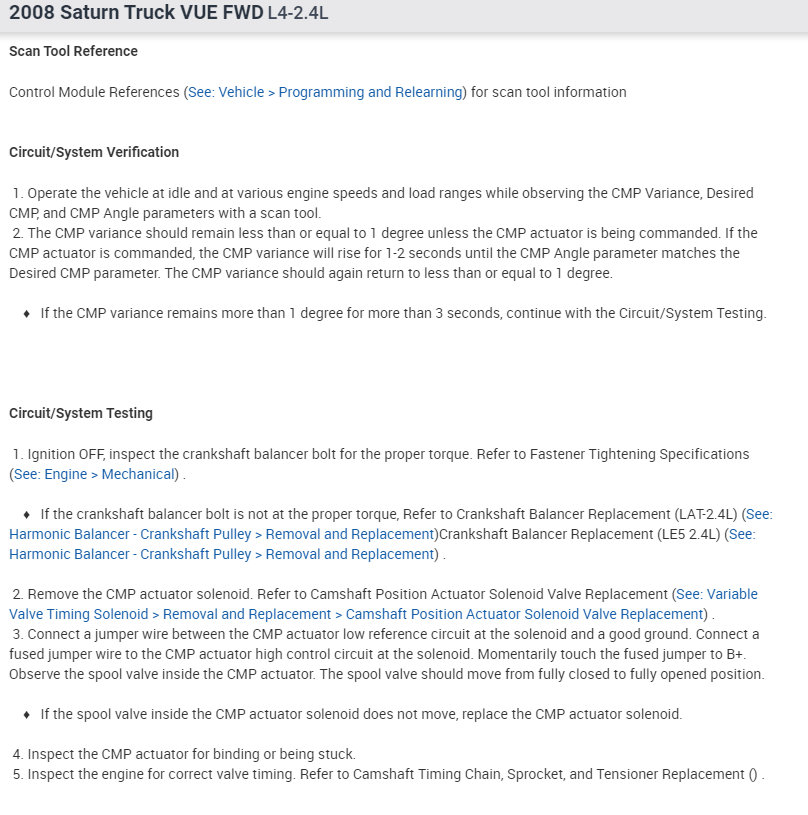

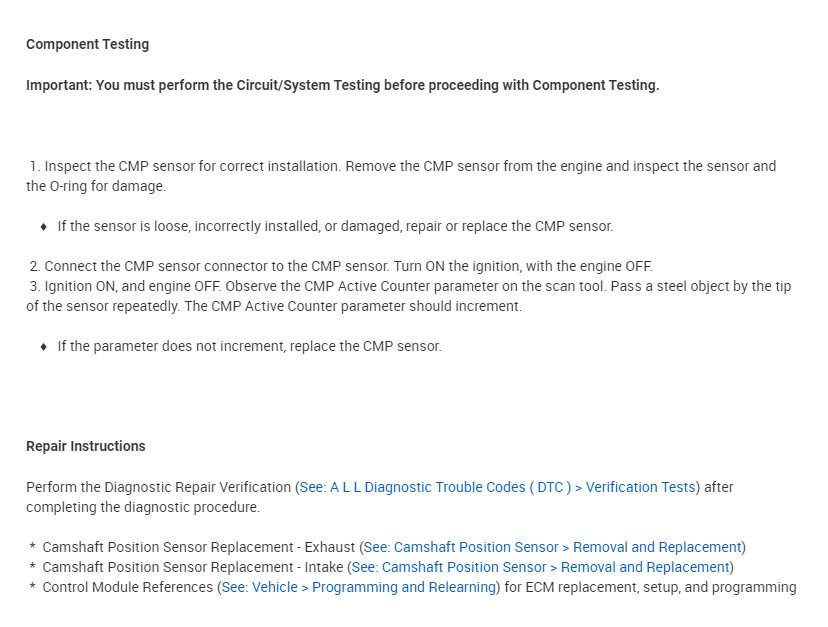

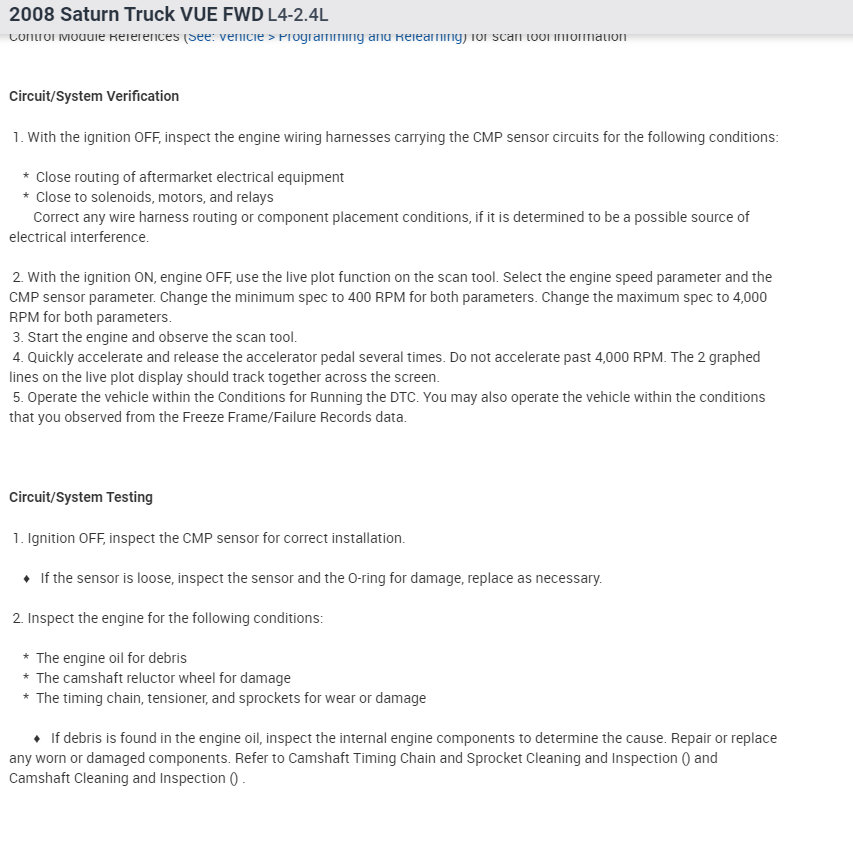

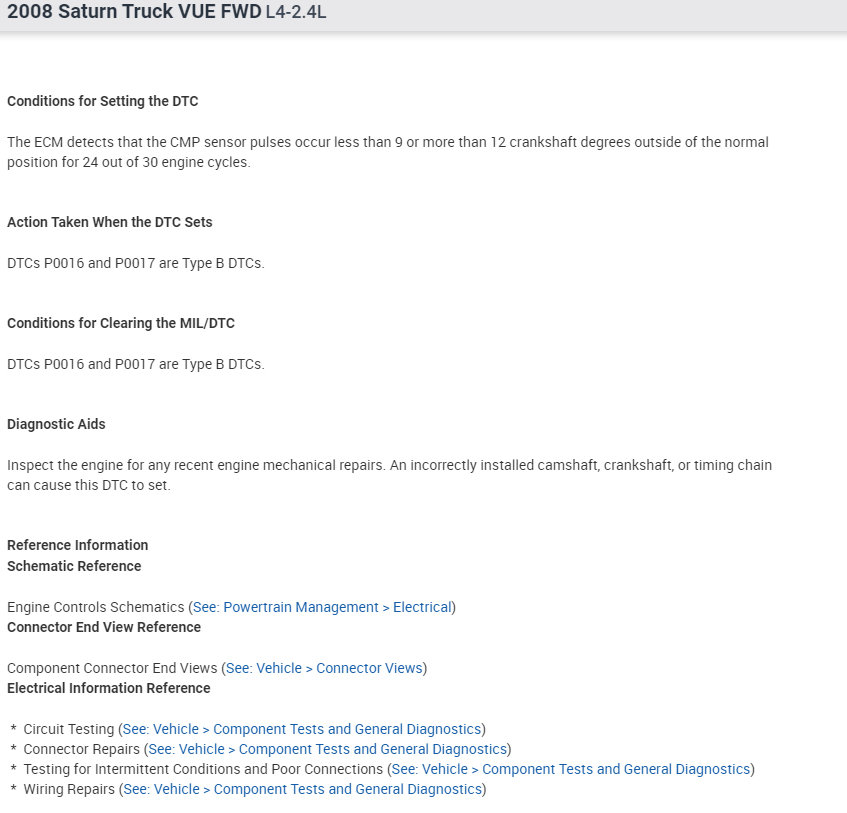

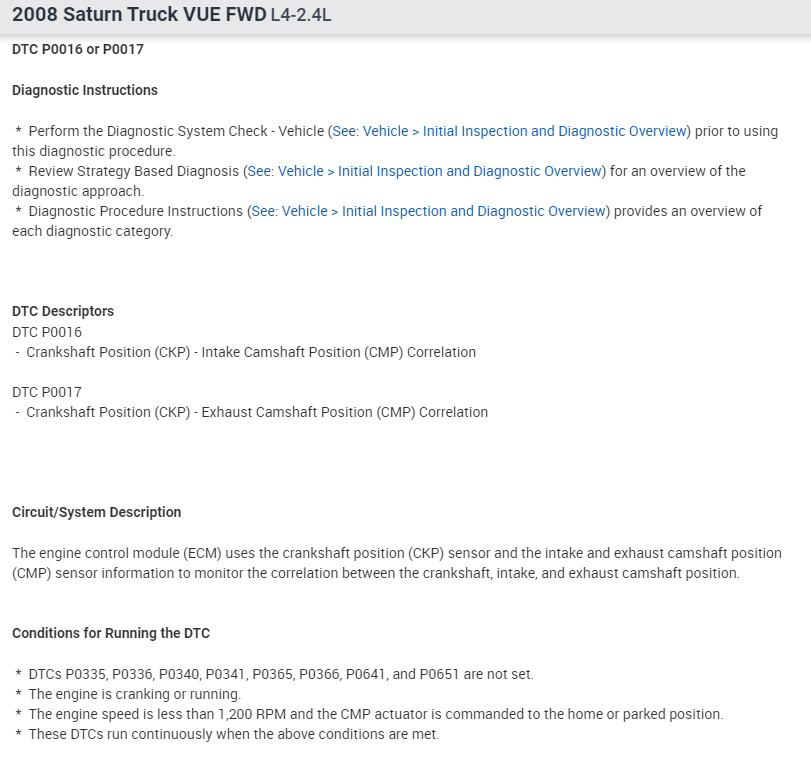

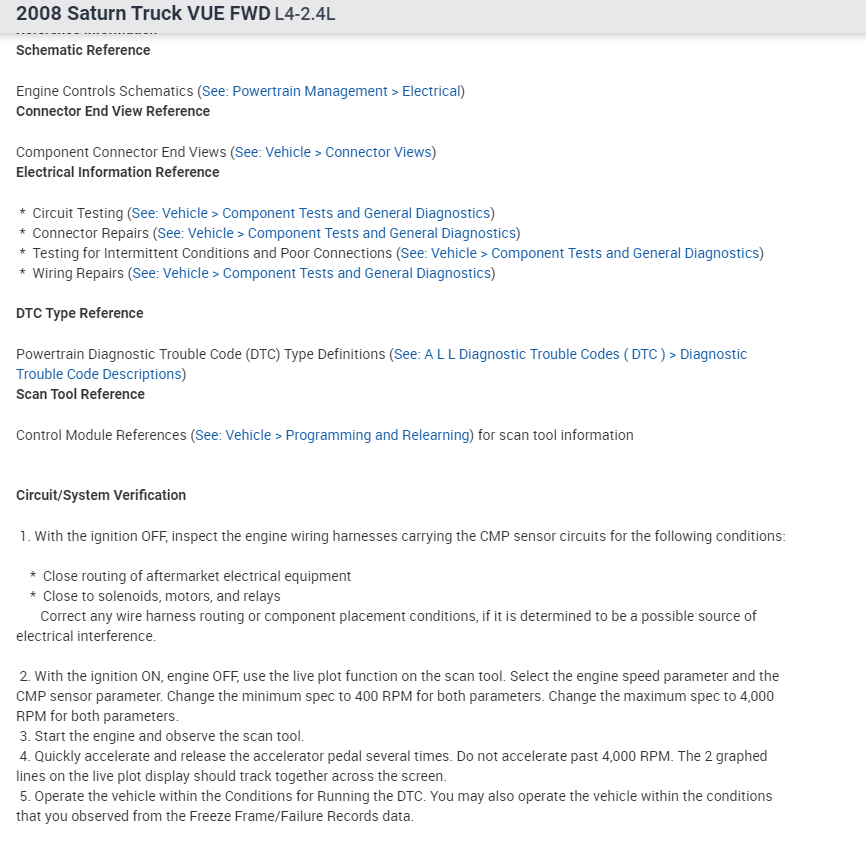

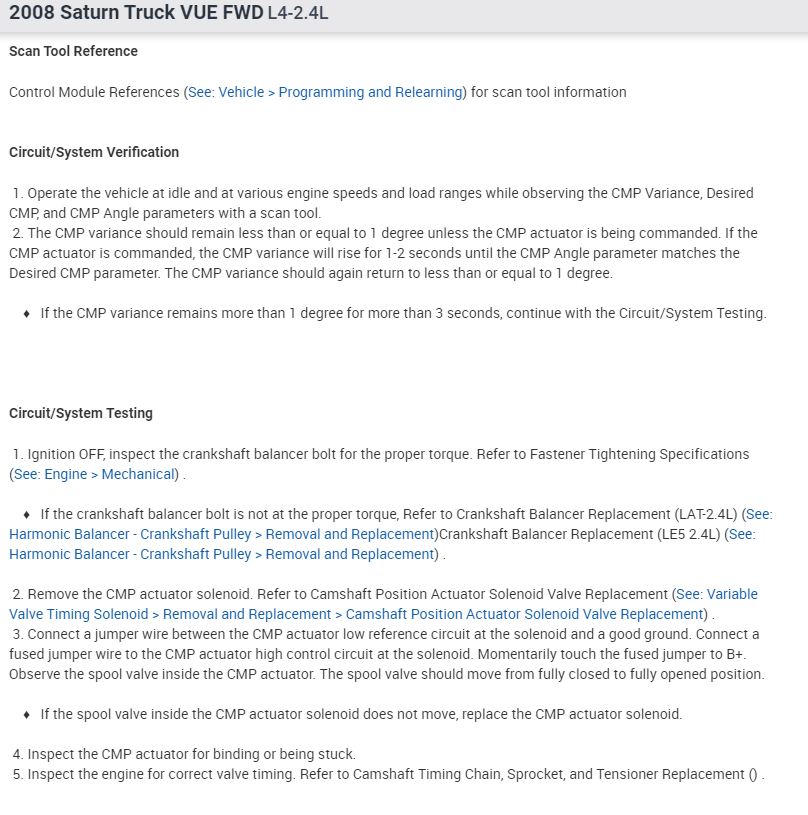

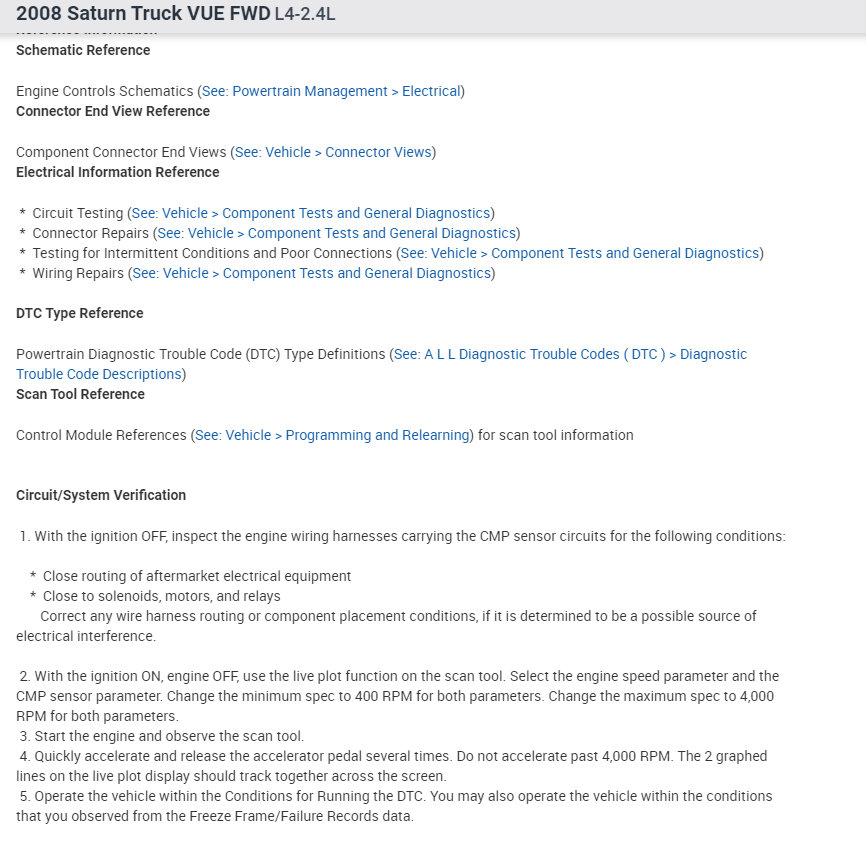

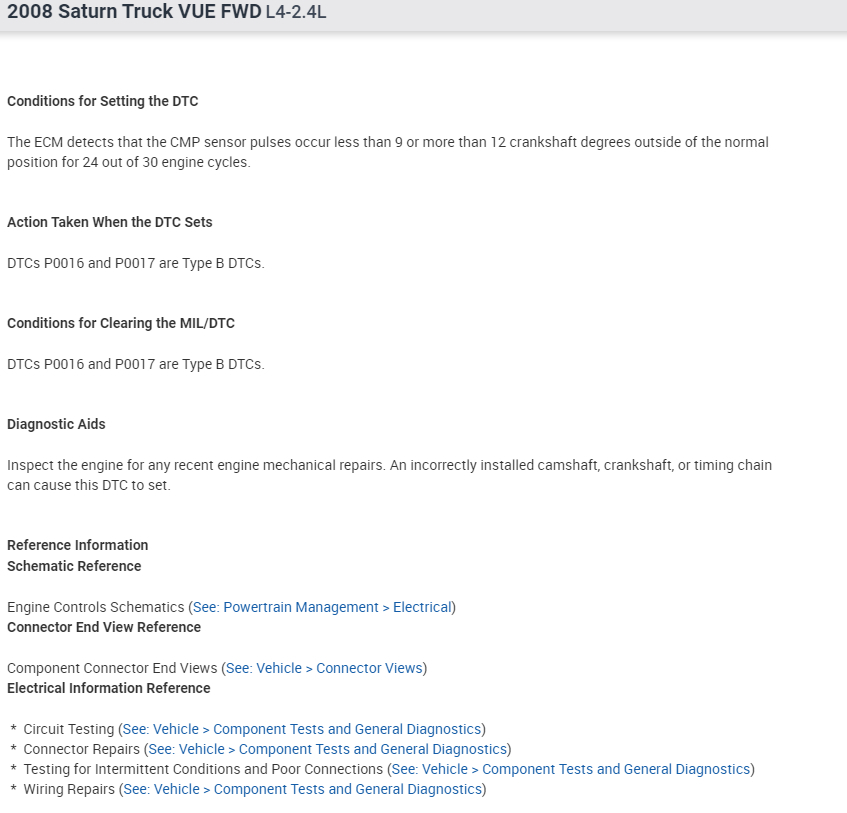

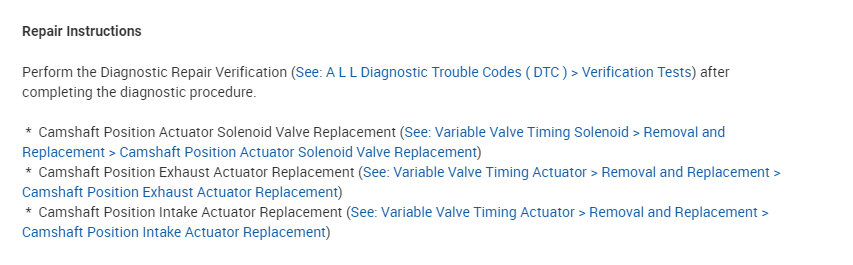

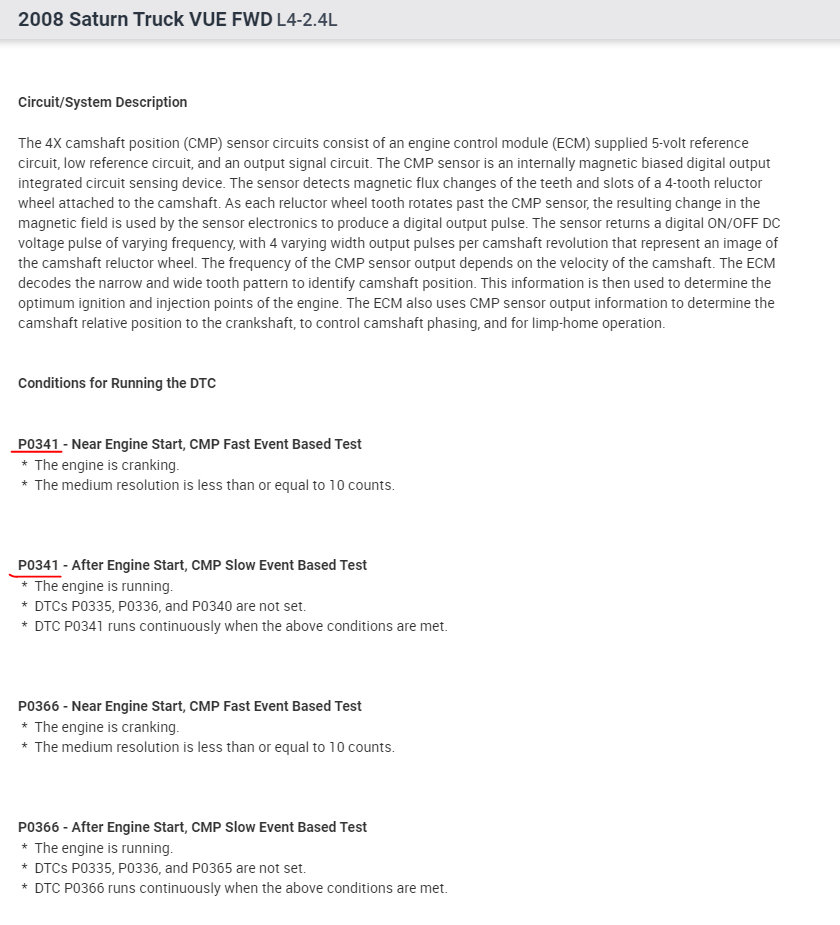

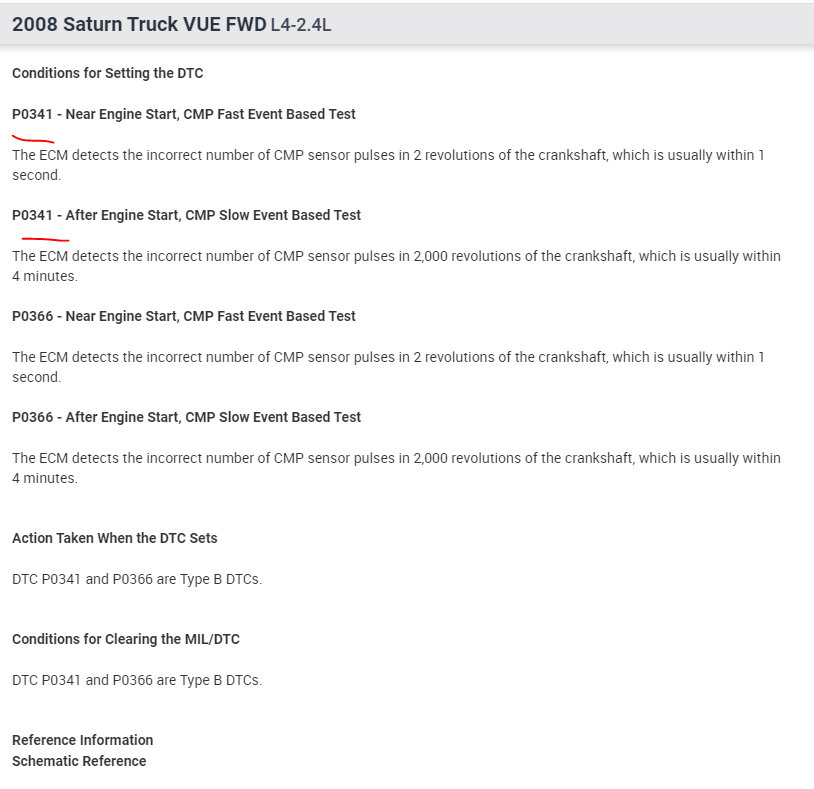

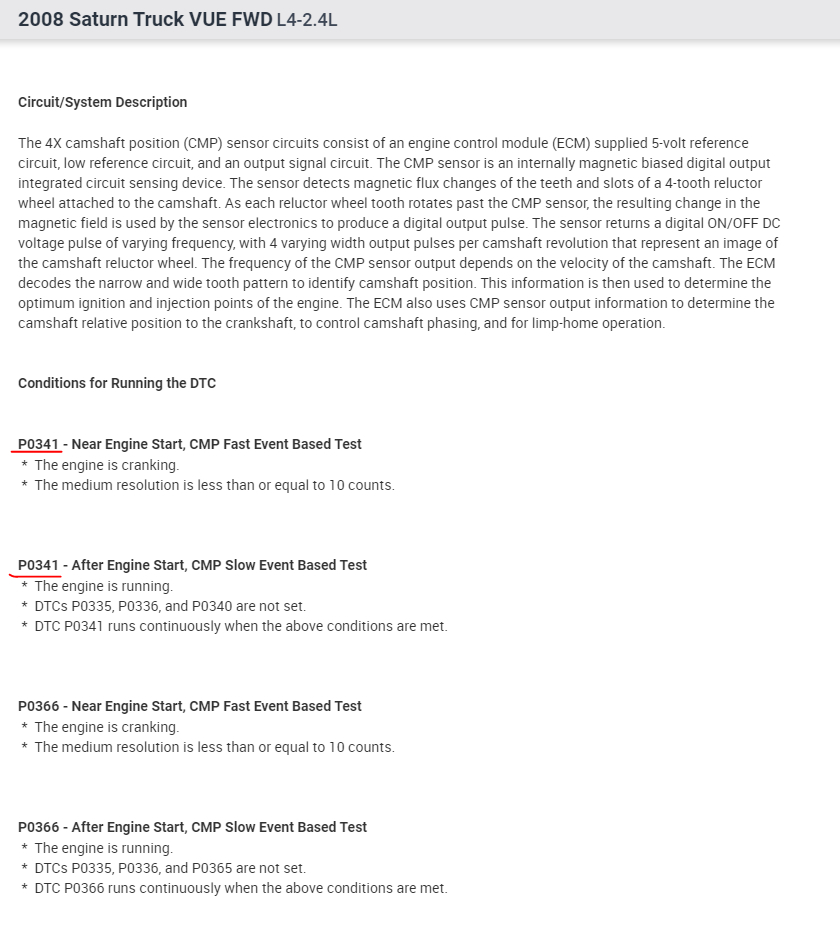

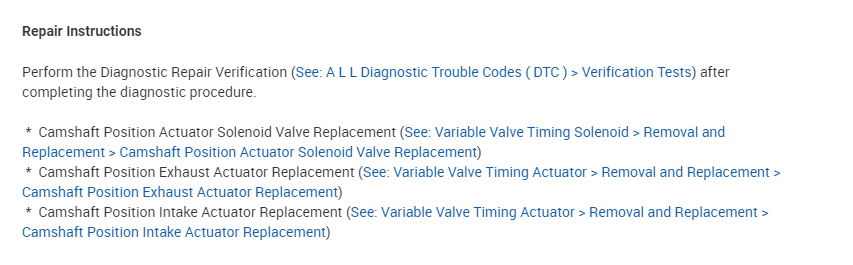

I have attached the troubleshooting guide for these codes below, it could help you with the diagnostics.
Oct 16, 2021 at 2:35 PM
