Crankshaft sensor location needed

I attached the process from the manual on how to replace it. Let us know if you need more info. Thanks

Good morning,

I attached the procedure below which is in line with the pictures already provided in the previous response.

https://www.2carpros.com/articles/crankshaft-angle-sensor-replacement

https://www.2carpros.com/articles/how-a-crank-shaft-angle-sensor-works

Roy

Crankshaft Position Sensor Replacement

Tools Required

J 45059 Angle Meter

Removal Procedure


imageOpen In New TabZoom/Print

1. Remove the crankshaft balancer. Refer to Crankshaft Balancer Replacement (See: Harmonic Balancer - Crankshaft Pulley > Removal and Replacement).

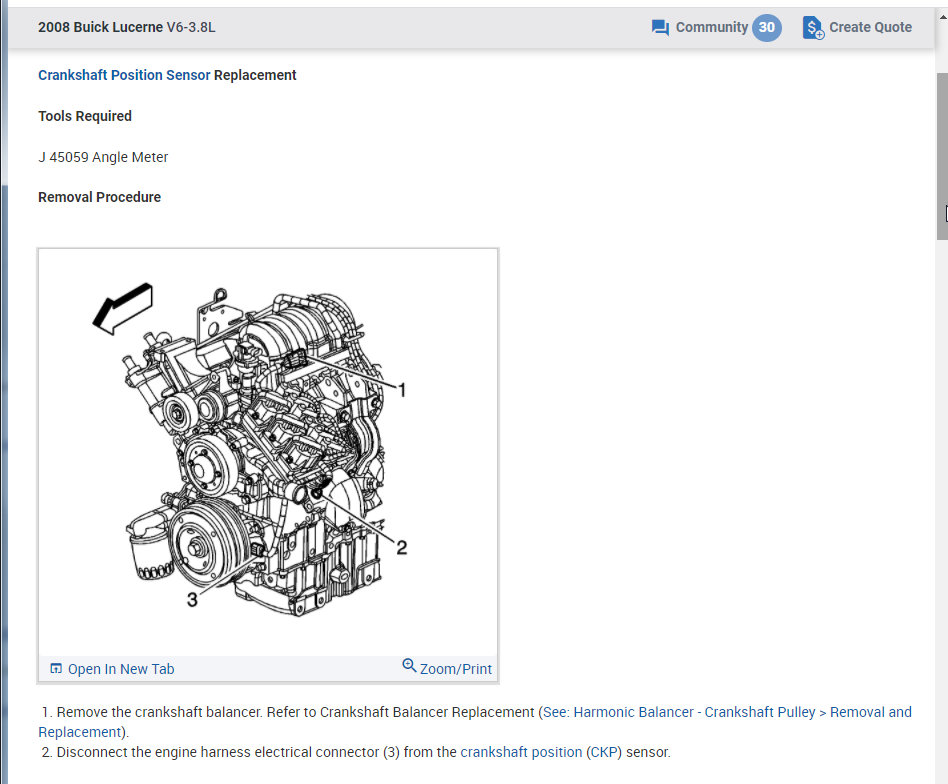

2. Disconnect the engine harness electrical connector (3) from the crankshaft position (CKP) sensor.


imageOpen In New TabZoom/Print

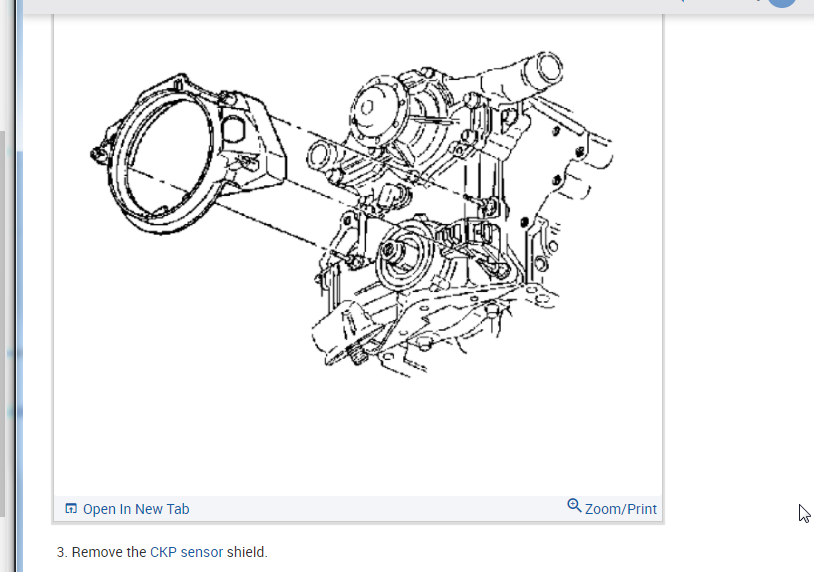

3. Remove the CKP sensor shield.


imageOpen In New TabZoom/Print

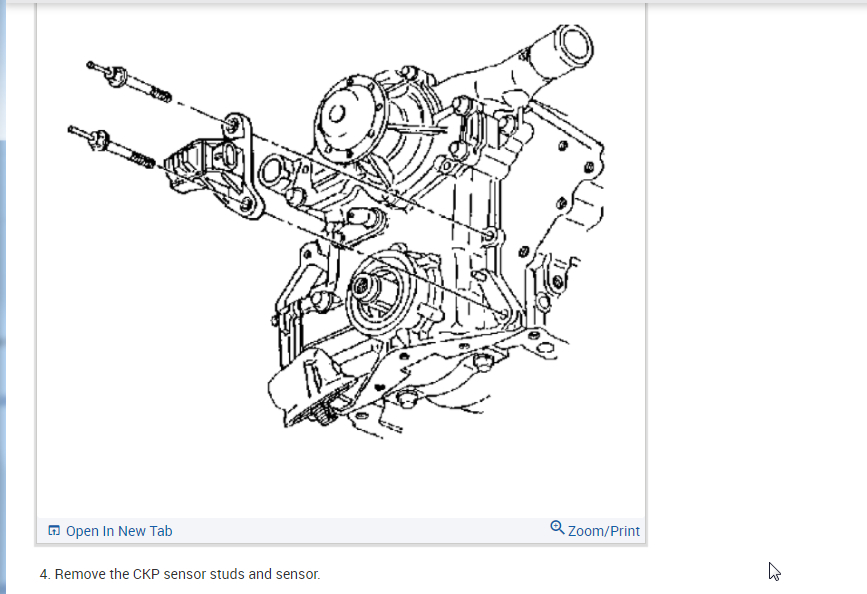

4. Remove the CKP sensor studs and sensor.


Installation Procedure


imageOpen In New TabZoom/Print


Notice: Refer to Fastener Notice (See: Vehicle > Vehicle Damage Warnings > Fastener Notice).

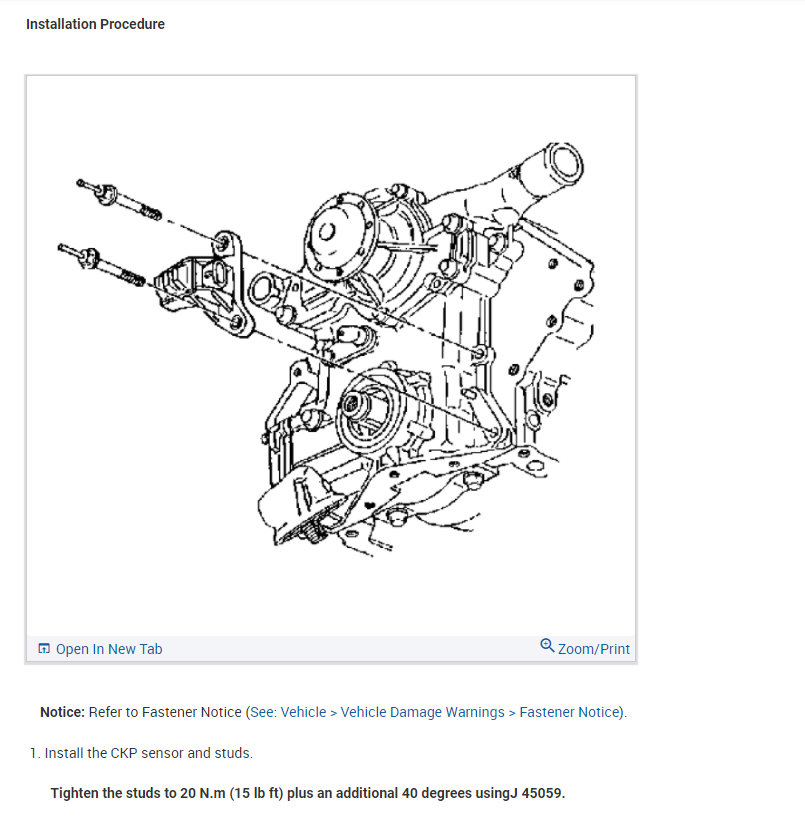

1. Install the CKP sensor and studs.

Tighten the studs to 20 N.m (15 lb ft) plus an additional 40 degrees usingJ 45059.


imageOpen In New TabZoom/Print

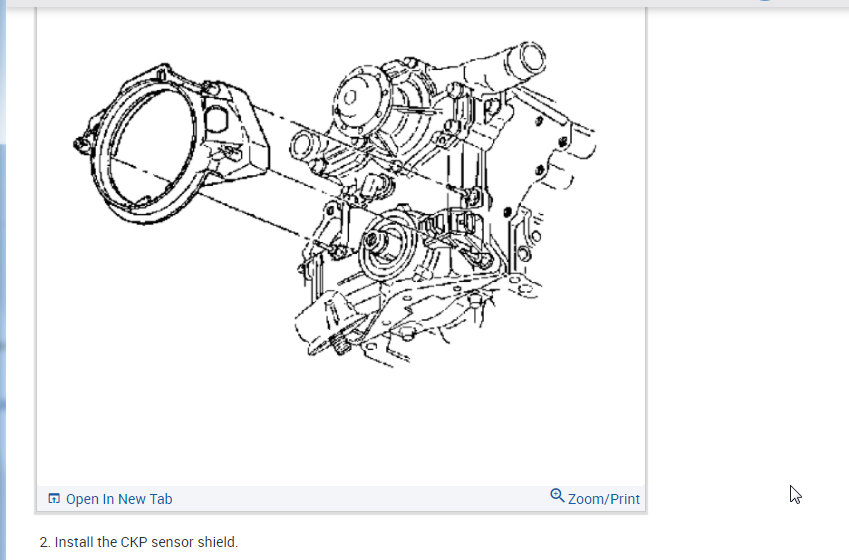

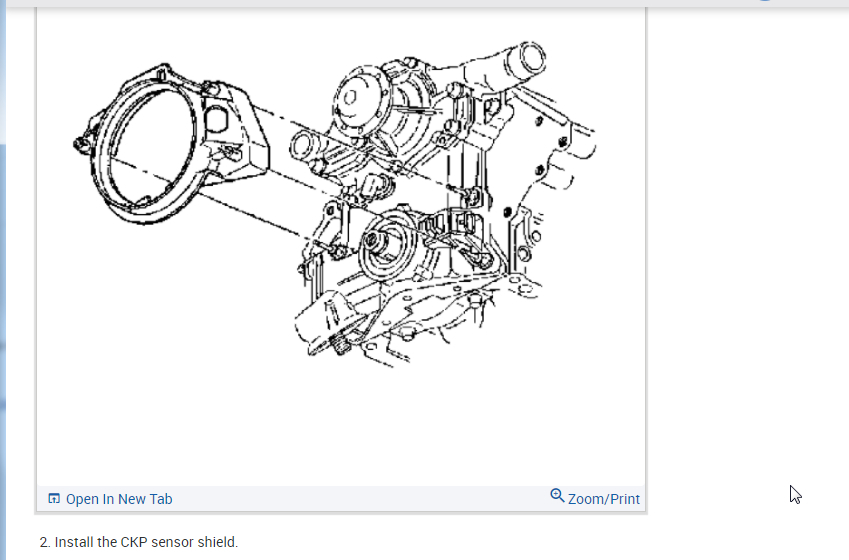

2. Install the CKP sensor shield.


imageOpen In New TabZoom/Print

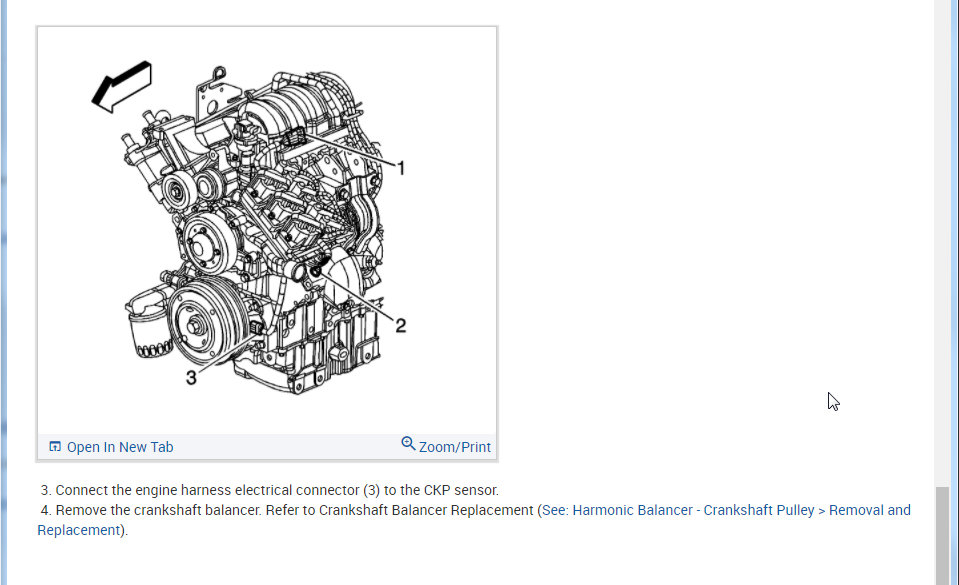

3. Connect the engine harness electrical connector (3) to the CKP sensor.
4. Remove the crankshaft balancer. Refer to Crankshaft Balancer Replacement (See: Harmonic Balancer - Crankshaft Pulley > Removal and Replacement).
