Where is the Crankshaft Sensor located?

2006 INFINITI M35
165,000 MILES • 3.5L • V6 • 2WD • AUTOMATIC
Avatar
MIKEGONZA1980
  • MEMBER
  • 12 POSTS
Hi, I need to know the location for the crankshaft sensor. I change the 2 camshaft sensors behind the engine already but not sure where the crankshaft one is located on the vehicle listed above.
Feb 8, 2023 at 2:01 PM
Advertisement
Avatar
AL514
  • CERTIFIED EXPERT
  • 5,463 POSTS

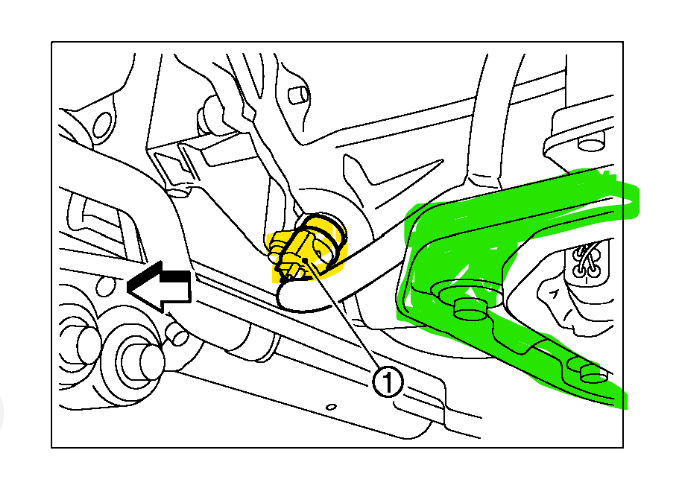

Hello, the crankshaft position sensor is located on the driver side lower down next to the oil pan. I will post a diagram, but facing the vehicle it will be on your right side, you will probably have to look under the vehicle to see it. It has a 3-wire connector,

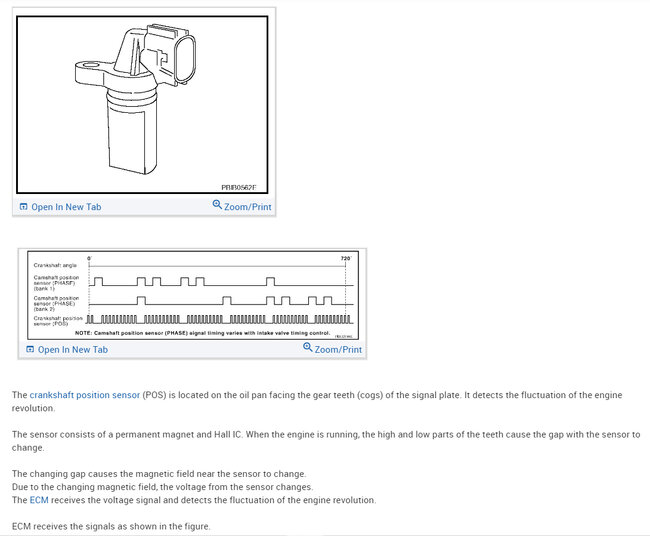

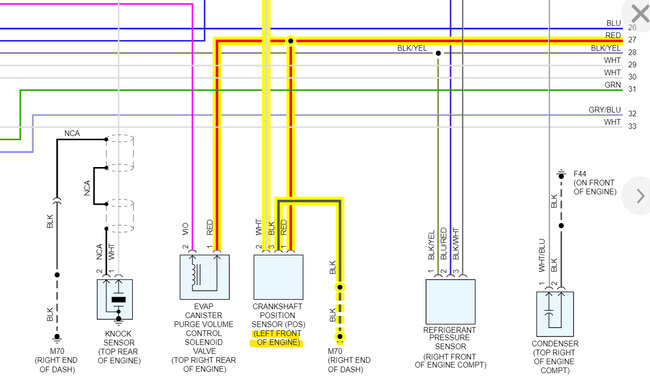

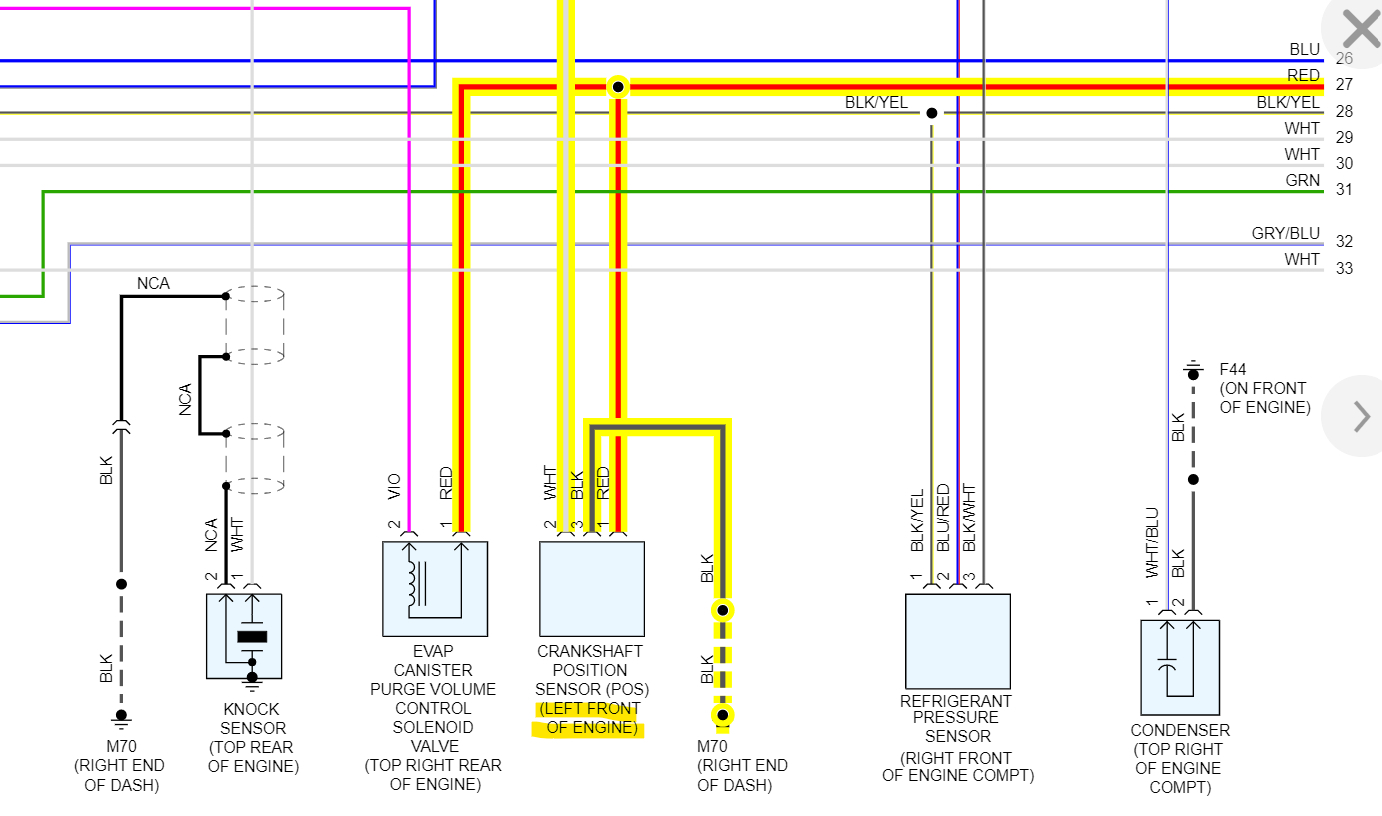

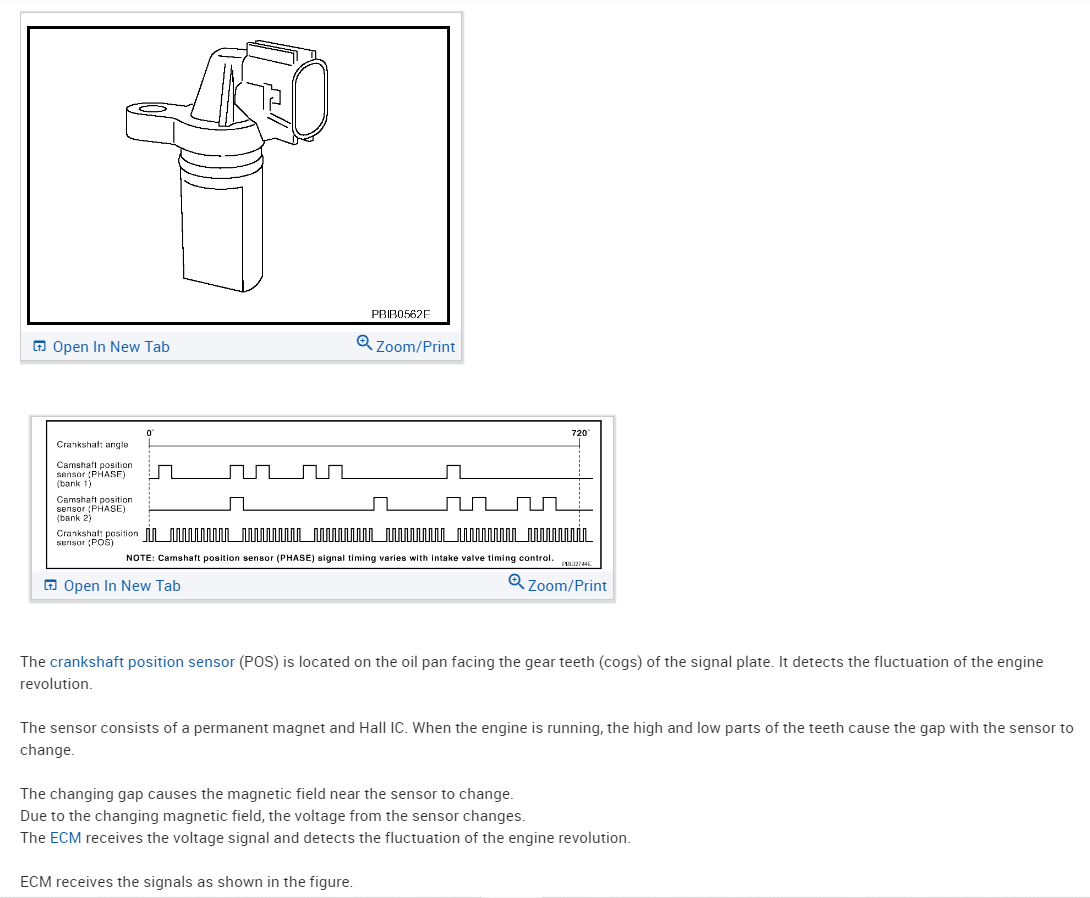

The green in the 2nd diagram is the oil pan for reference to where the sensor is located. This is a Hall Effect sensor so it should have 12-volts on the red wire for a power feed.

https://www.2carpros.com/articles/crankshaft-angle-sensor-replacement
