crankshaft position sensor plug wiring diagram needed?

2007 VOLKSWAGEN BEETLE
147,000 MILES • 2.5L • 5 CYL • 2WD • MANUAL
Avatar
RICKTBOW
  • MEMBER
  • 3 POSTS
When I was replacing the crank position sensor on my daughter's car listed above, the wires came out of the plug on the wiring harness side. I'm looking for a wiring diagram that shows what color wire goes to which pin location on the harness so I can re-pin the plug and get her car back on the road. Thanks!
May 26, 2024 at 5:47 AM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS

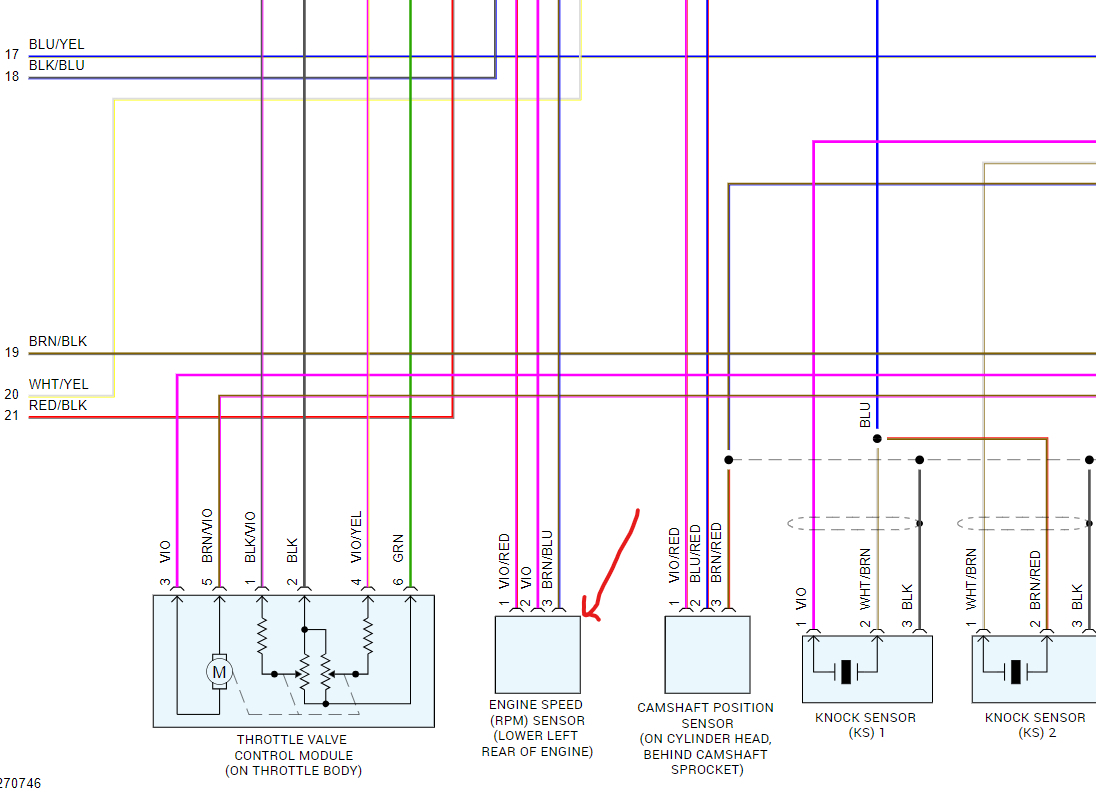

They call it an engine speed sensor and they only have the wiring diagrams which show you how they go into the connector by location number. Check out the images (below). Let us know if you need anything else.
Image (Click to enlarge)
Attached Media
May 26, 2024 at 9:57 AM
Avatar
RICKTBOW
  • MEMBER
  • 3 POSTS
Thanks Ken! This is the exact information I was looking for.
May 26, 2024 at 11:21 AM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
You are welcome, please use 2CarPros anytime we are here to help.
May 27, 2024 at 9:50 AM
Avatar
RICKTBOW
  • MEMBER
  • 3 POSTS
Re-pinned the connector and her car is back up and running again. Thank you!
Jun 5, 2024 at 8:02 AM
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
Nice work!
Jun 5, 2024 at 9:30 AM
