Crankshaft Position Sensor main wire harness color code needed?

2008 NISSAN VERSA
95,070 MILES • 4 CYL • AUTOMATIC
Avatar
GOGO5371
  • MEMBER
  • 1 POST

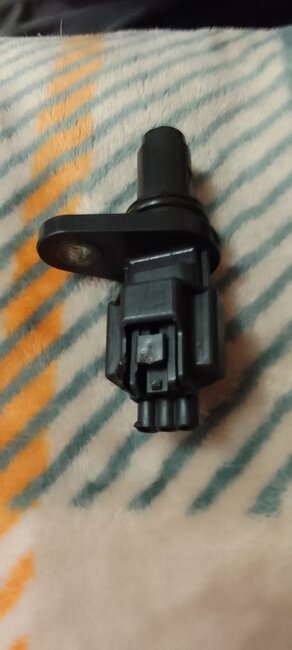

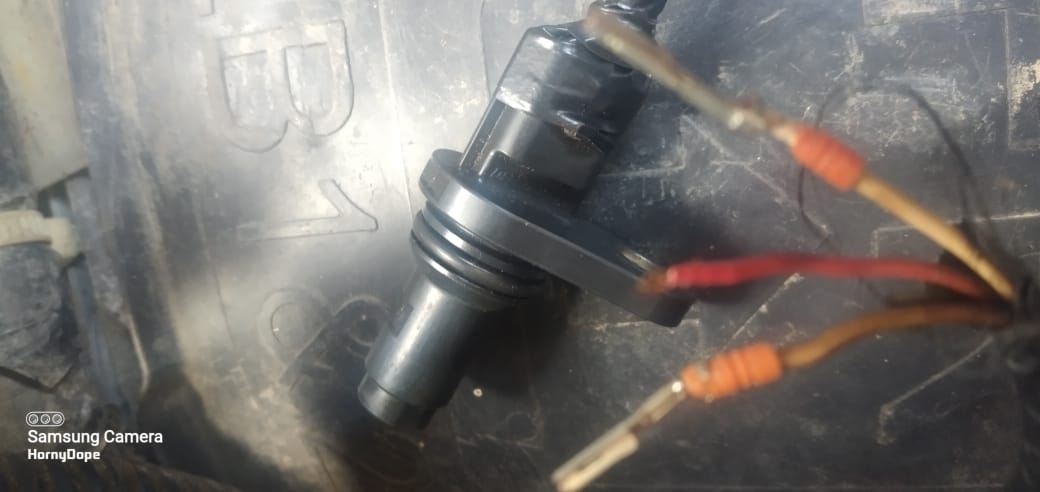

Hello, I need CPS main wire harness color code that goes into the plug. Pictures below. Thank you
Images (Click to enlarge)
Attached Media
Attached Media
Mar 14, 2024 at 6:27 PM
Advertisement
Avatar
BORIS K
  • CERTIFIED EXPERT
  • 836 POSTS
Hello,

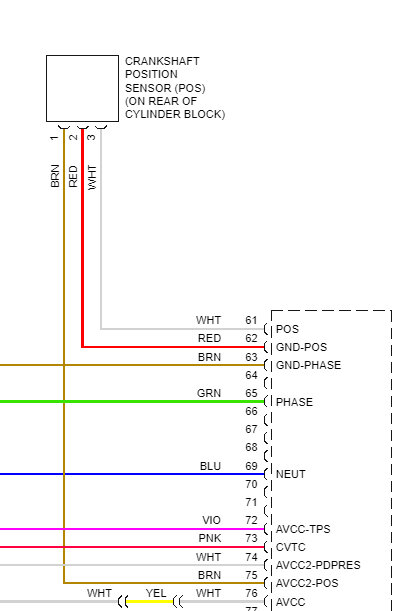

Please see attached diagram for crankshaft position sensor wiring.

Pin 1, brown wire
Pin 2, red wire
Pin 3, white wire

Cheers, Boris
