scanner and gave the code u0101?

2009 MAZDA 3
150,000 MILES • 2.3L • 4 CYL • 2WD • AUTOMATIC
Avatar
ROKR_MAZDA
  • MEMBER
  • 1 POST
My problem started with the start of the check engine and the AT, it was checked with a scanner and gave the code u0101, when reviewing the TCM module they indicated that it received a short circuit.

I would like to know if someone has the diagrams for the identification of the short circuit.

thanks
Feb 11, 2020 at 2:41 PM
Advertisement
Avatar
JOETECHPRO
  • CERTIFIED EXPERT
  • 705 POSTS
Hey ROKR_MAZDA,

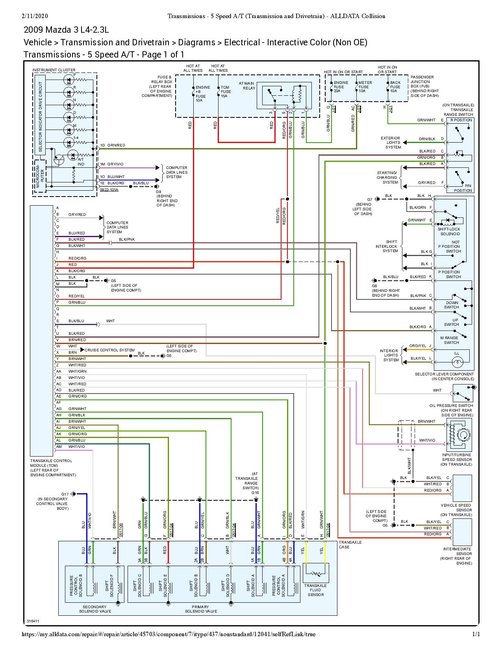

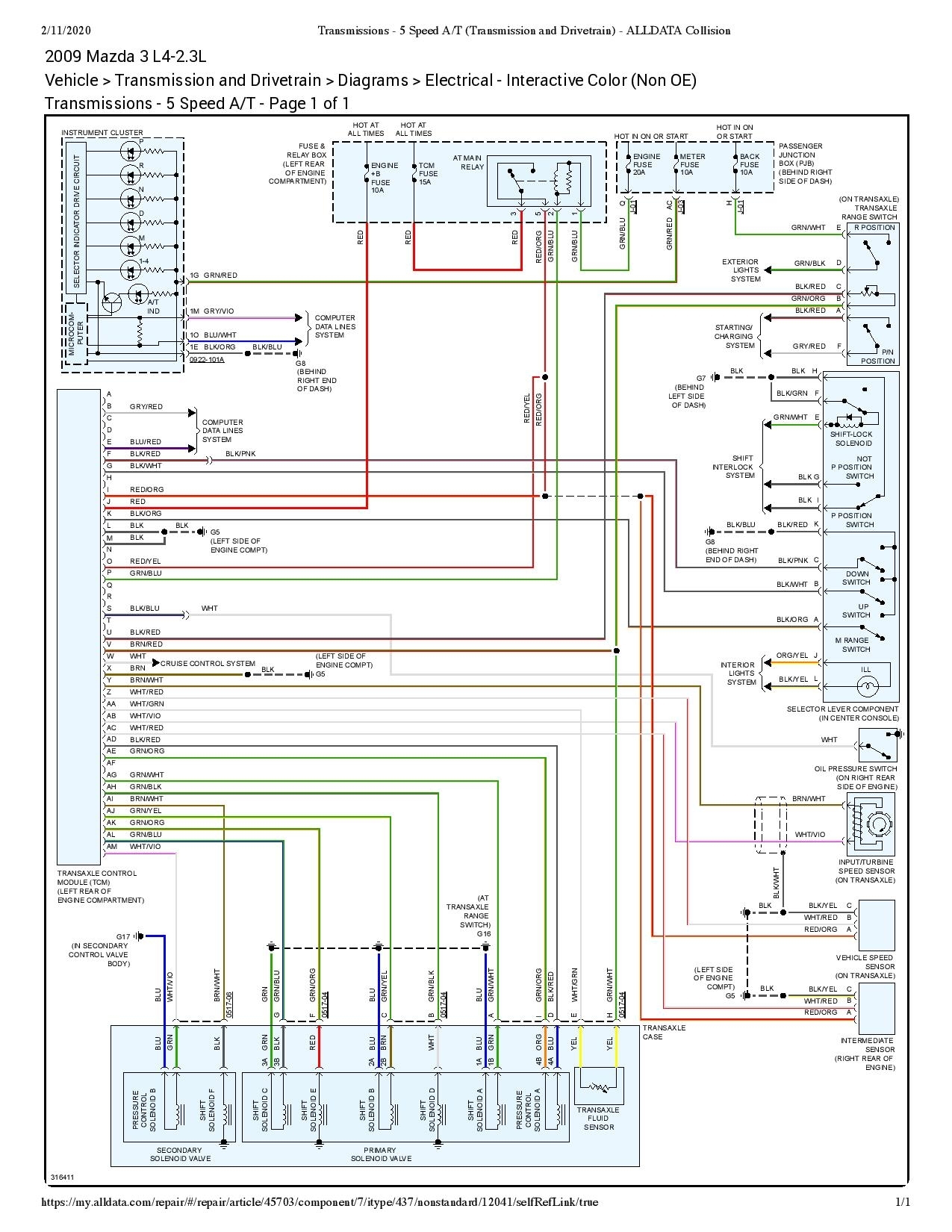

I have attached the wiring diagram for the A/T controls.

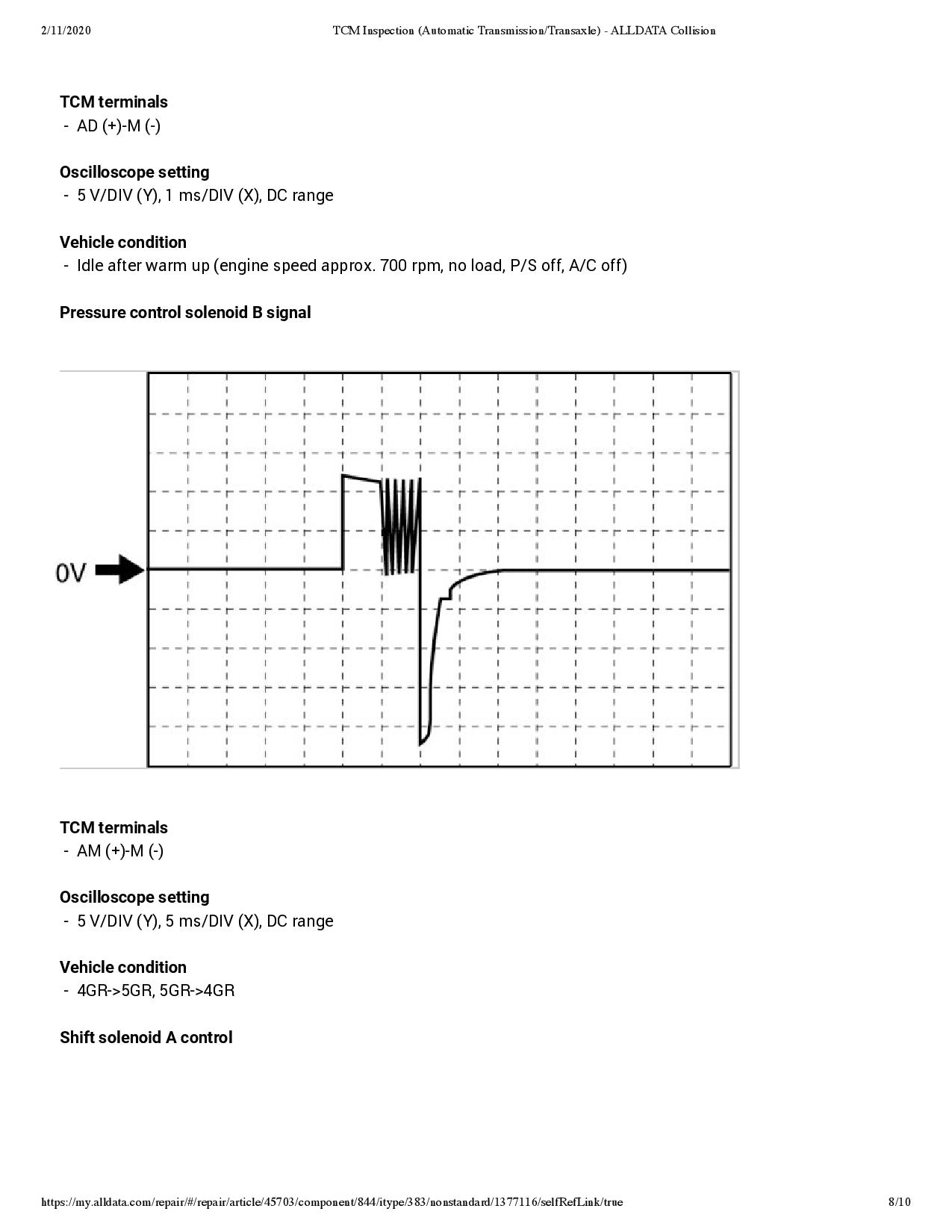

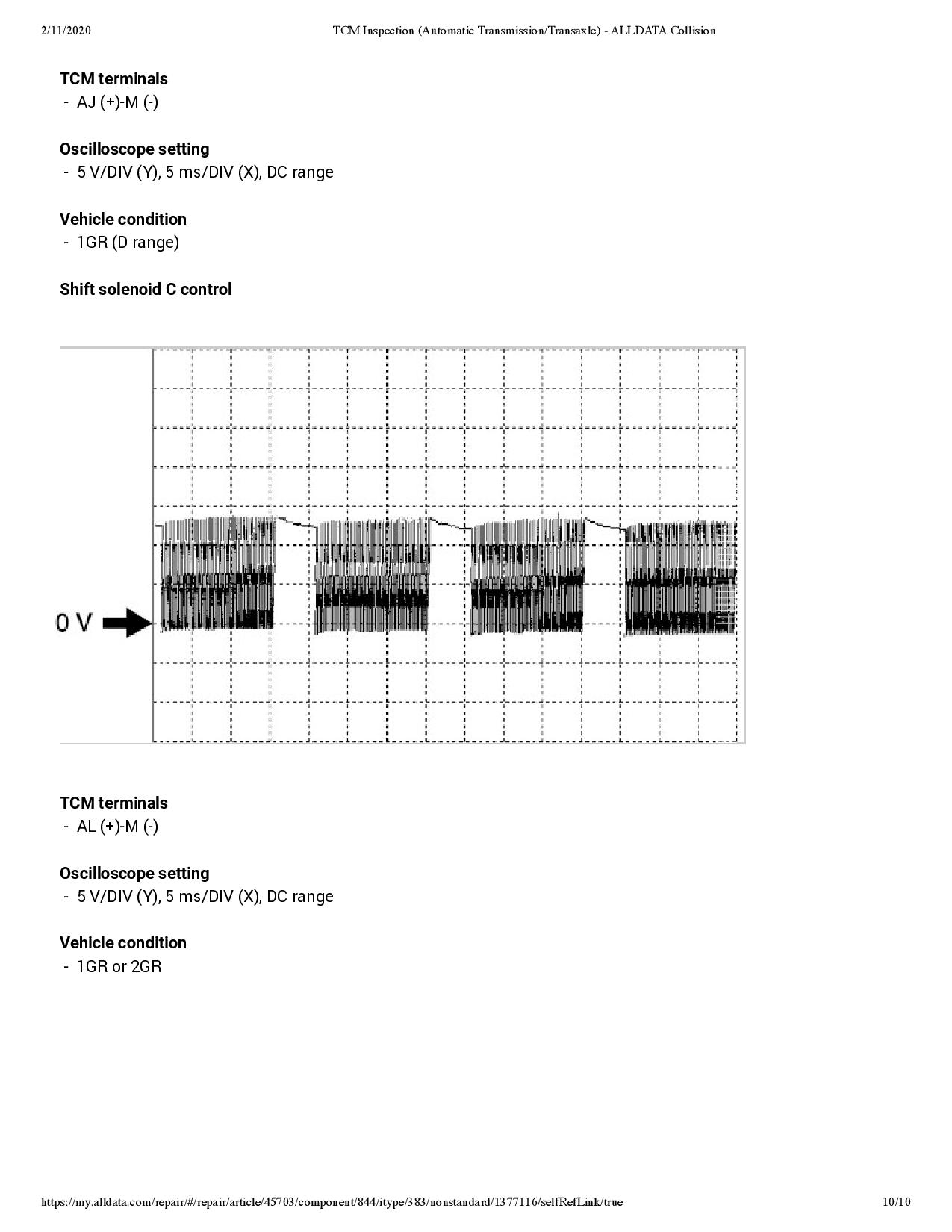

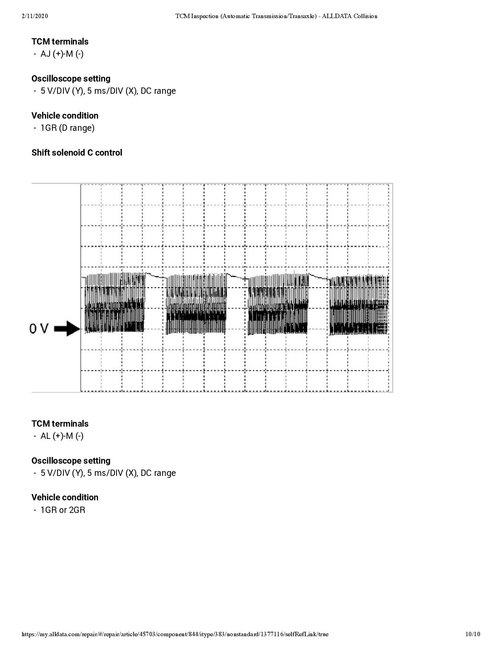

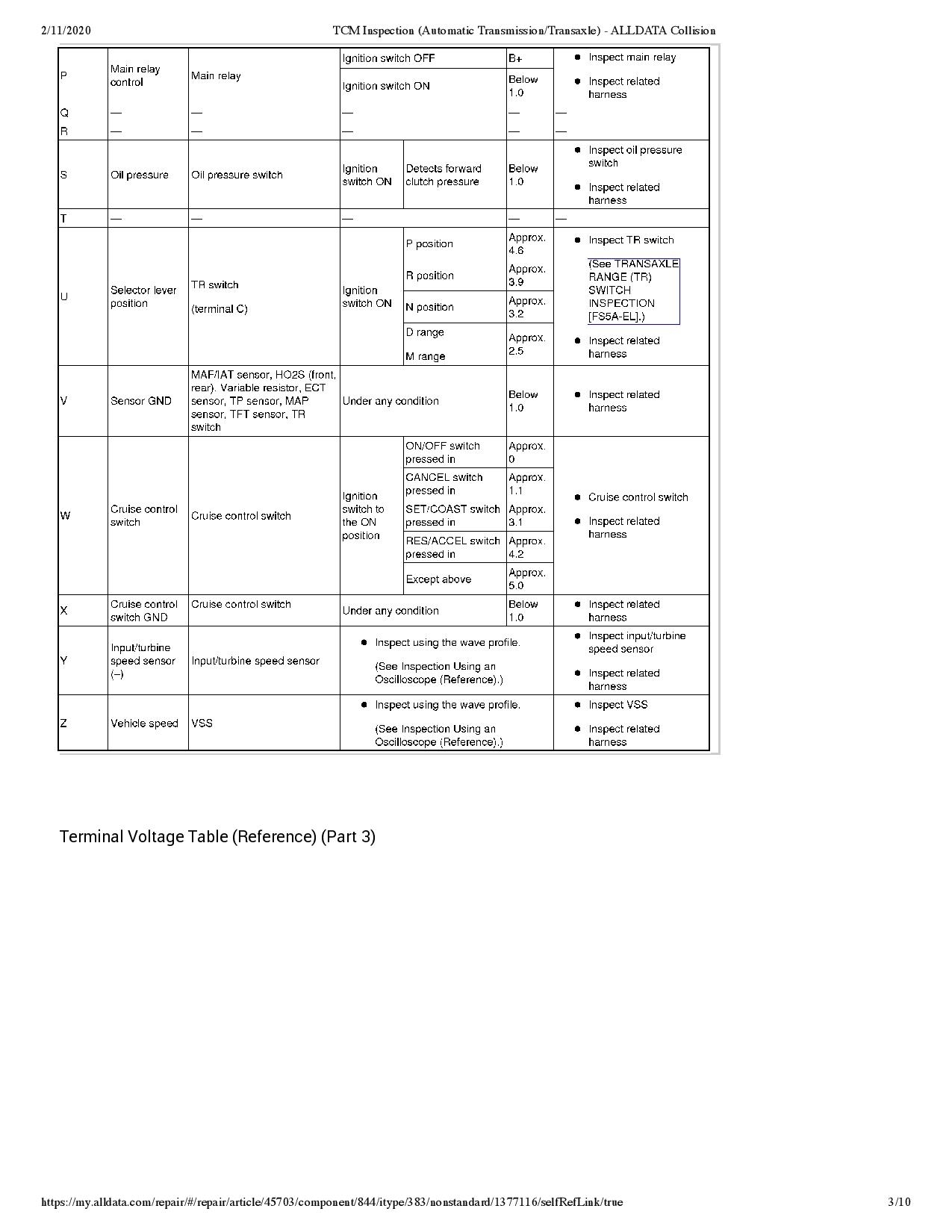

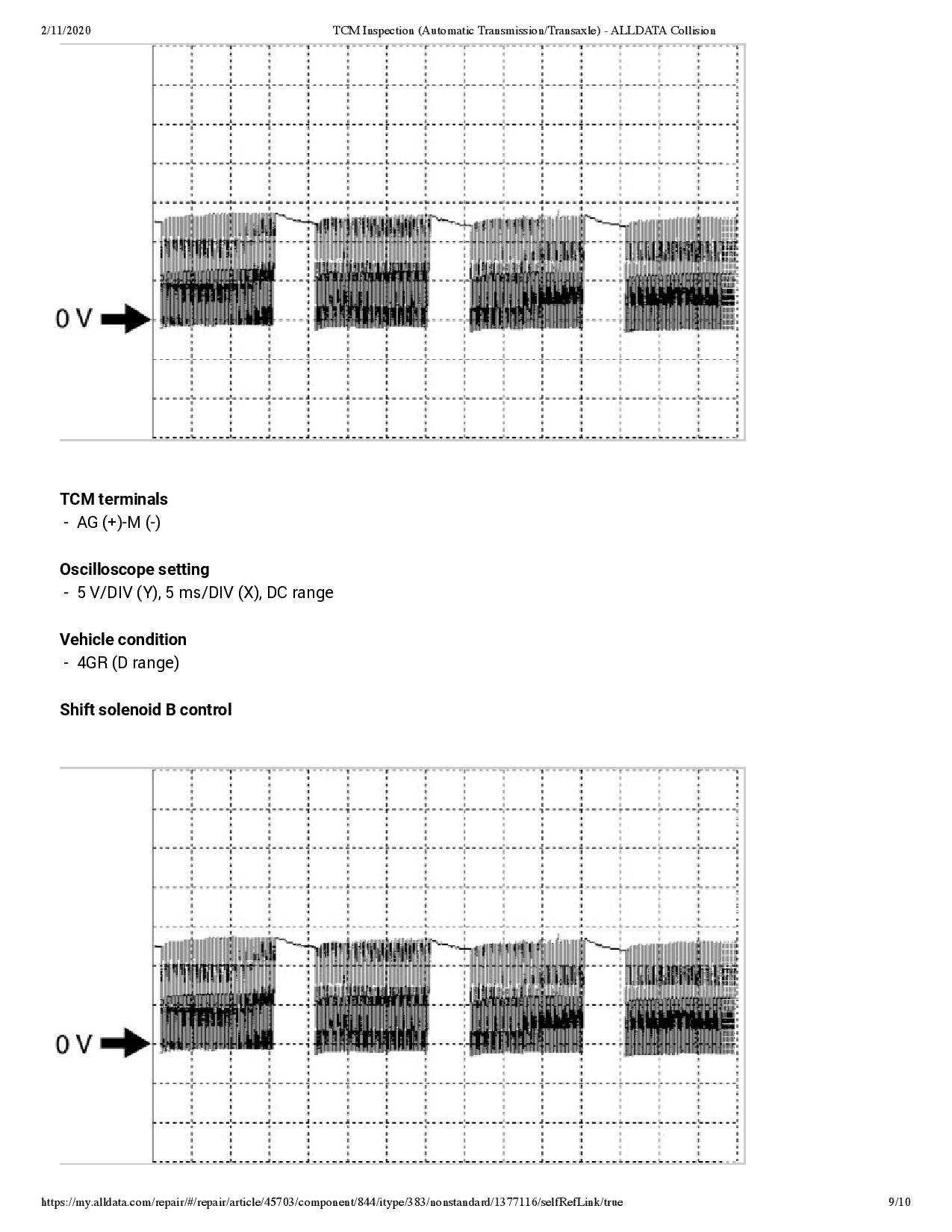

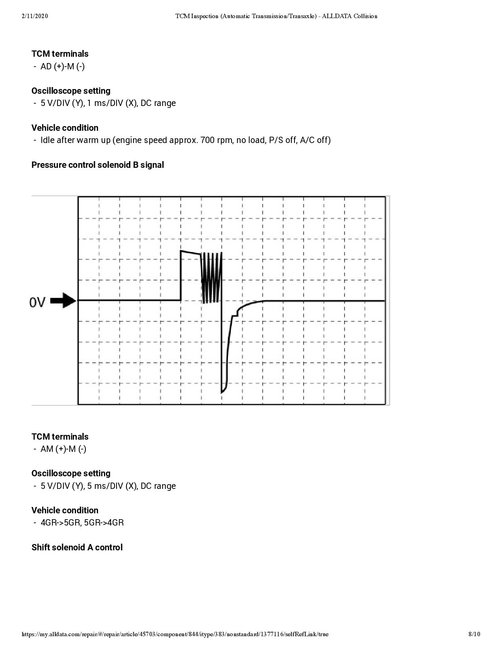

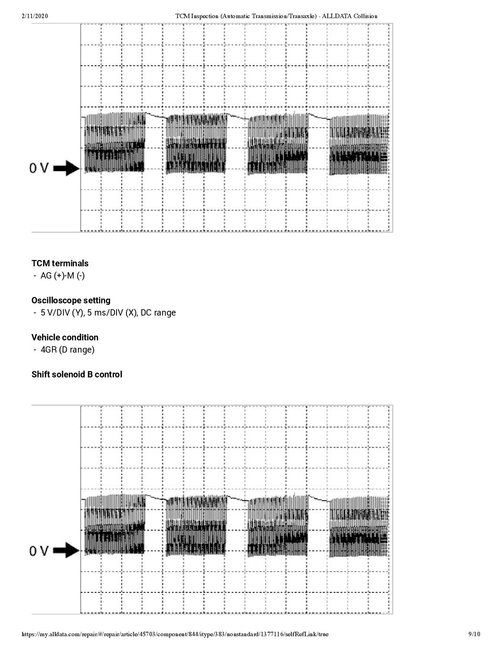

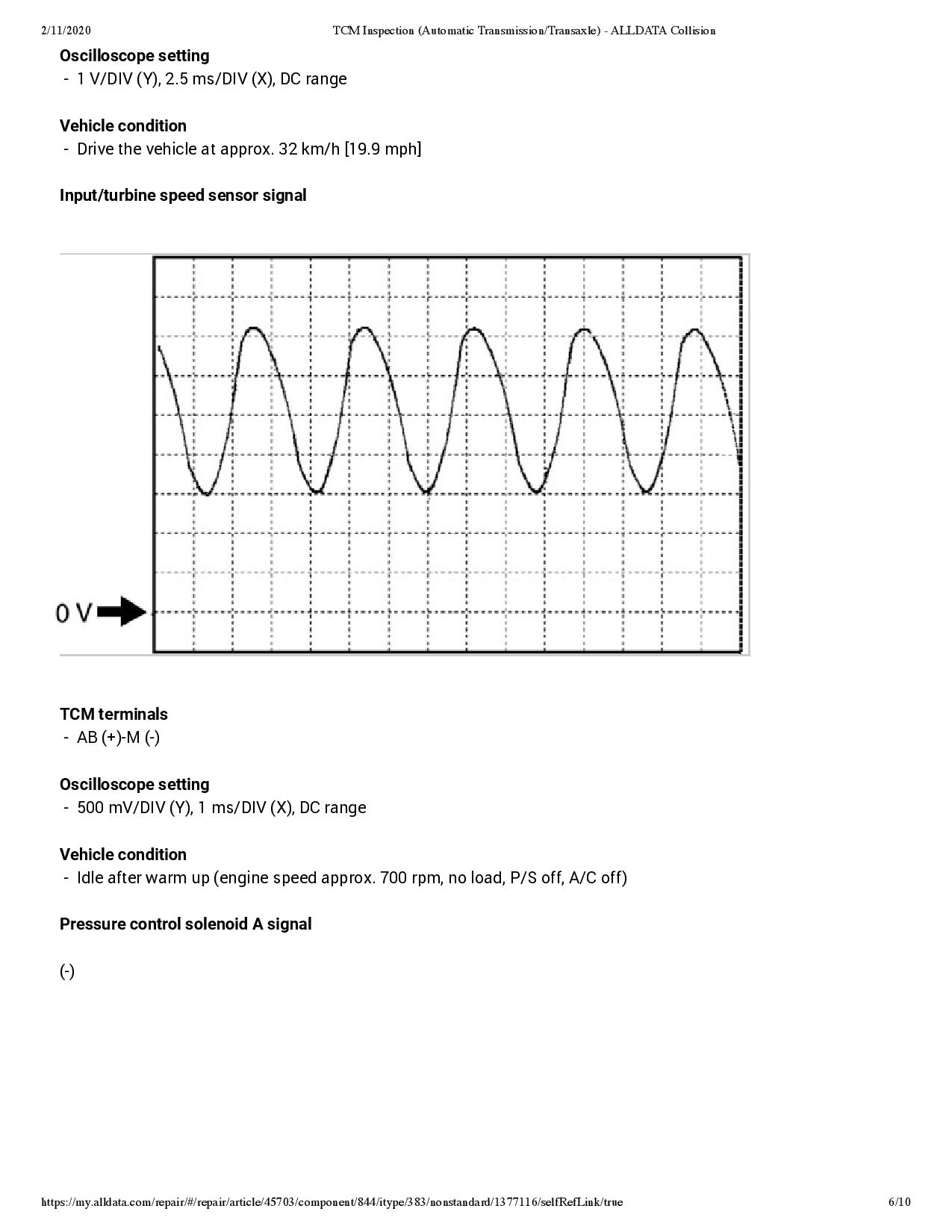

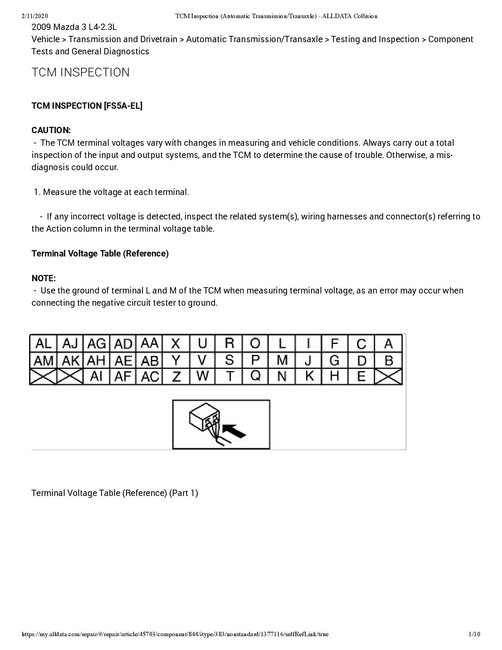

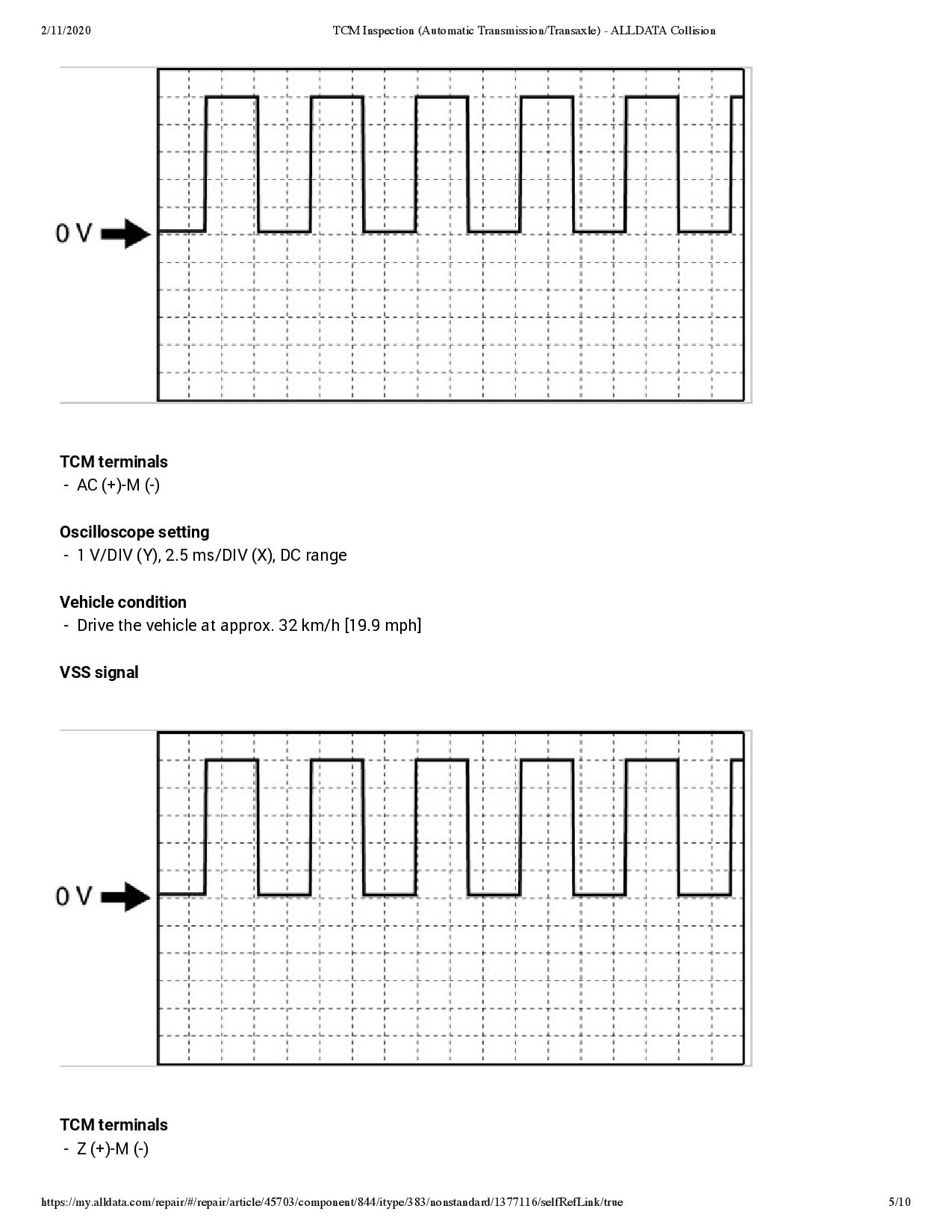

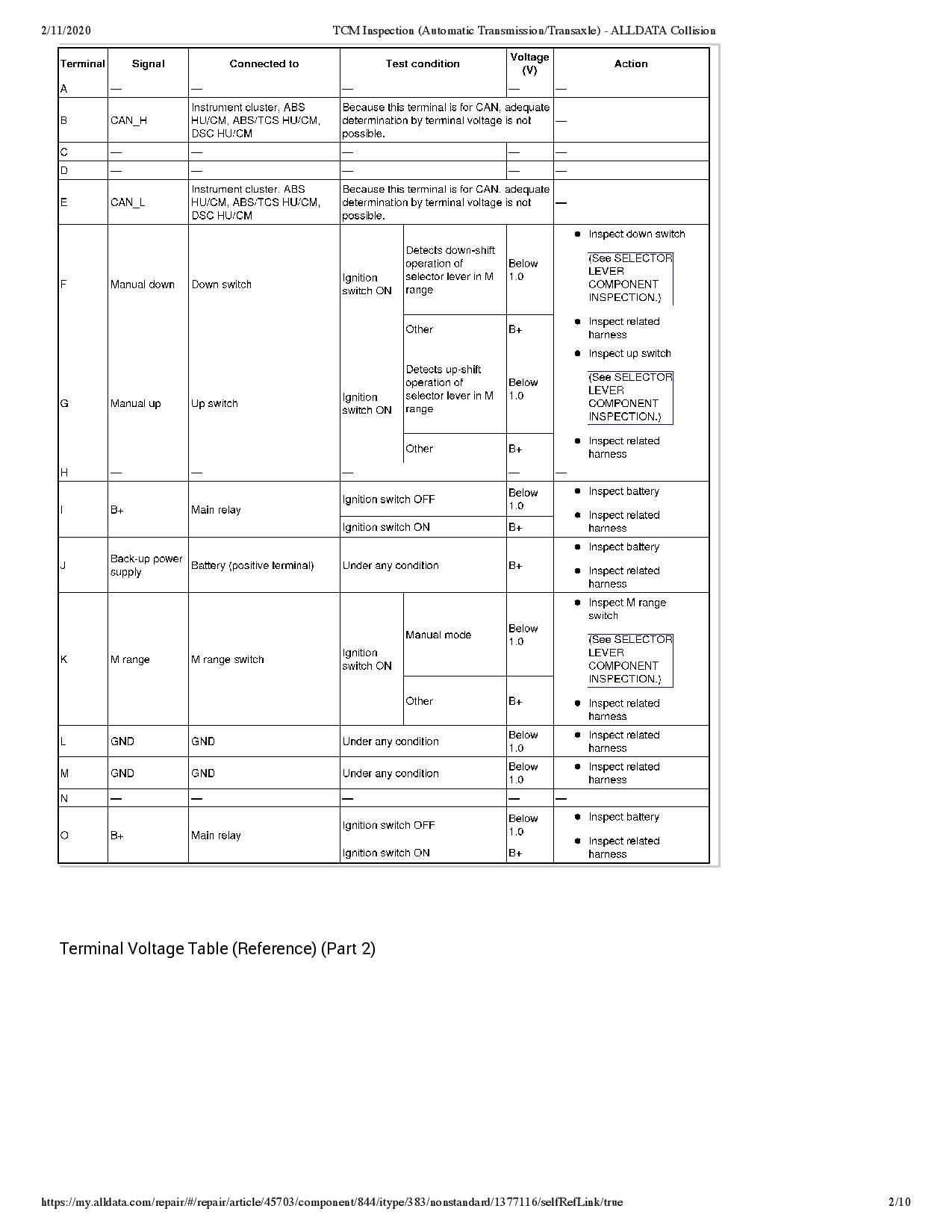

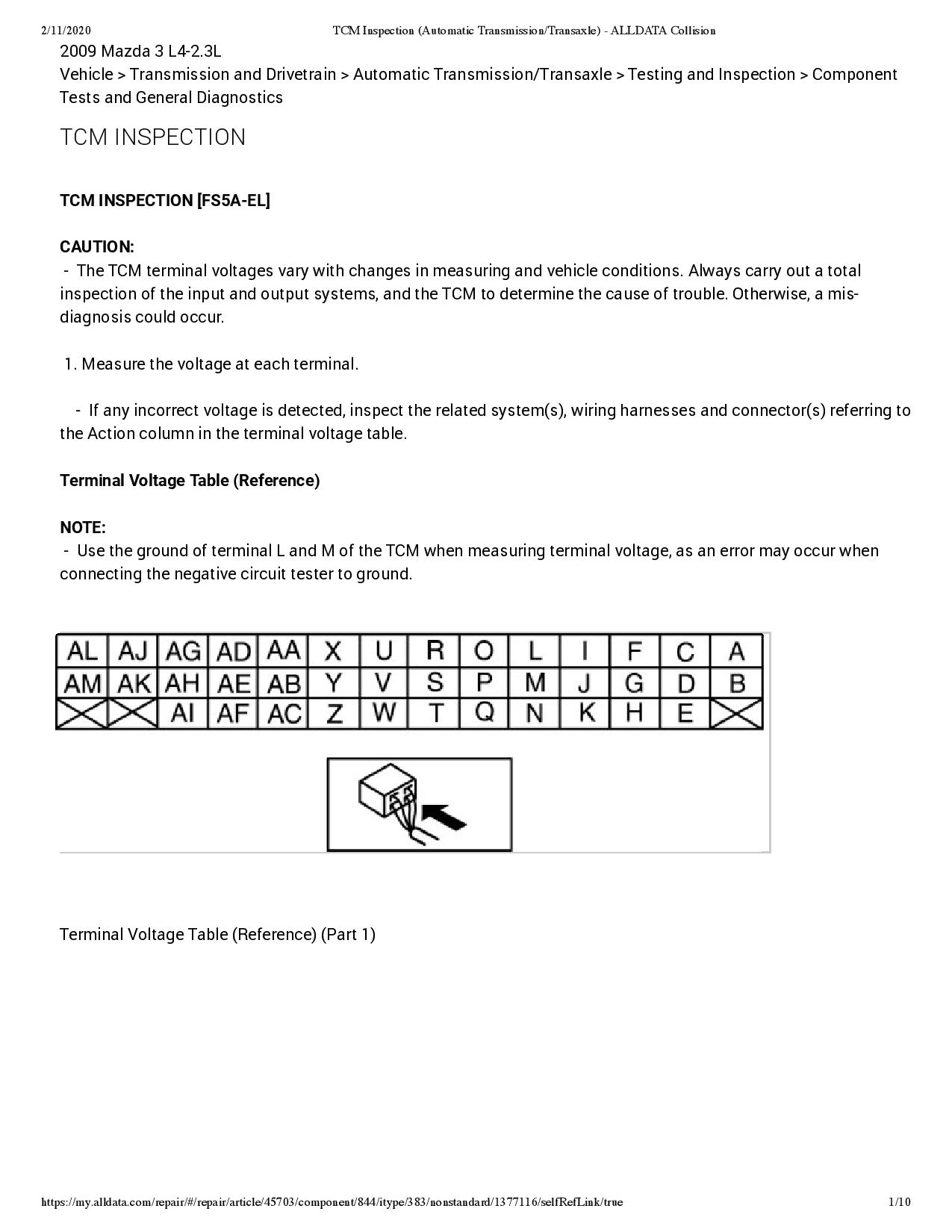

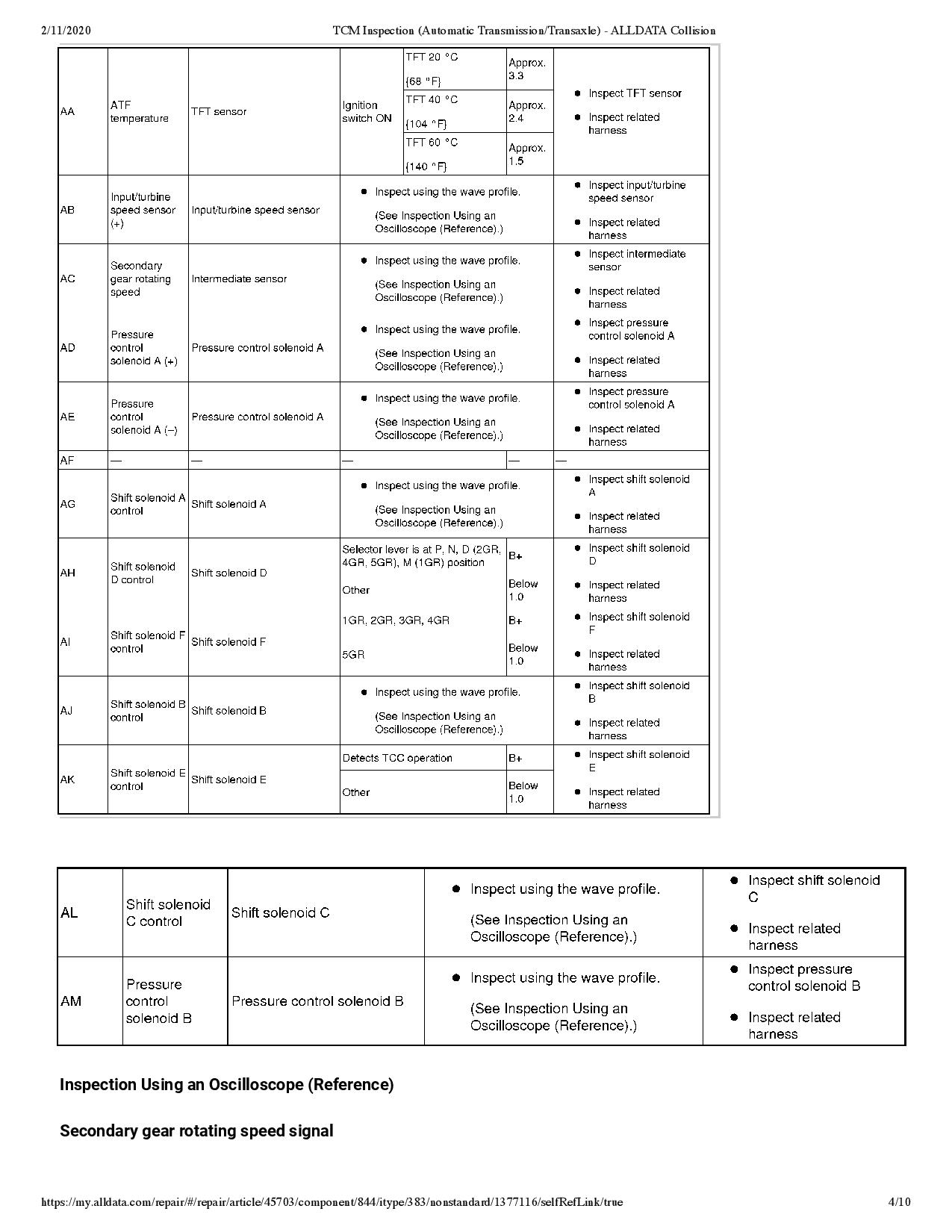

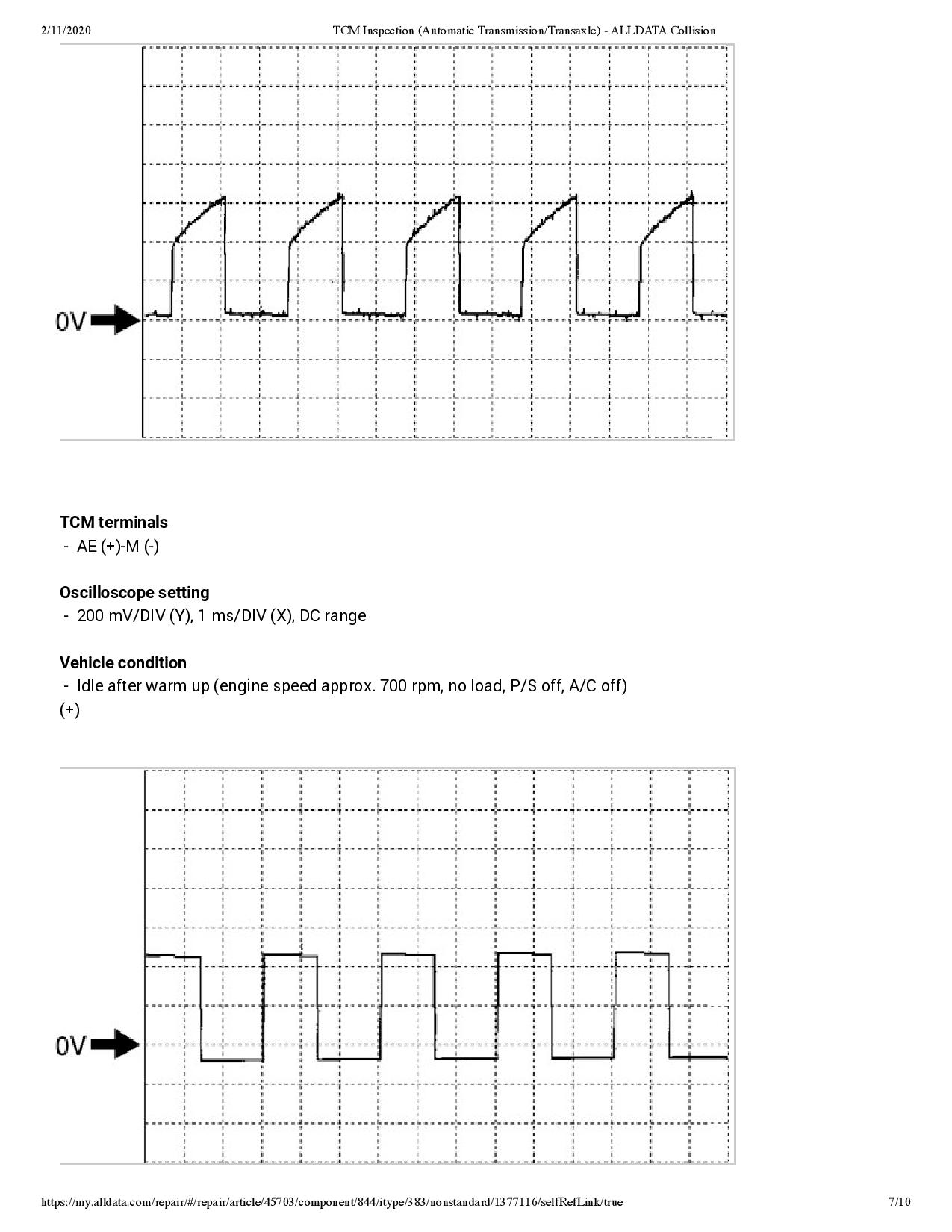

I have also attached the testing information for the terminals at the TCM plug connector.

Let us know if you need any further information or have any questions about the testing results you get.

Regards, Joe
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Feb 11, 2020 at 3:52 PM
Avatar
[email protected]
  • MEMBER
  • 45 POSTS
Can you also please also indicate the wire to test that is related to the throttle body from the TCM , i have similar issue because even my PRND indicator is not lighting up. It just shows AT and the throttle body misbehaves. Thank you
Oct 22, 2024 at 4:34 PM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,855 POSTS

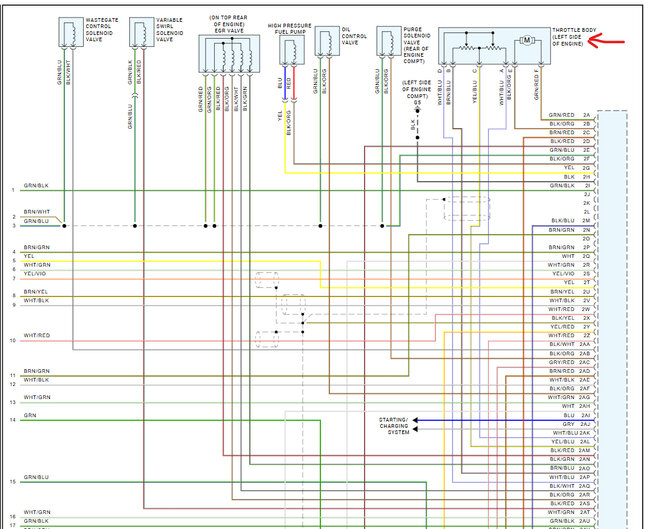

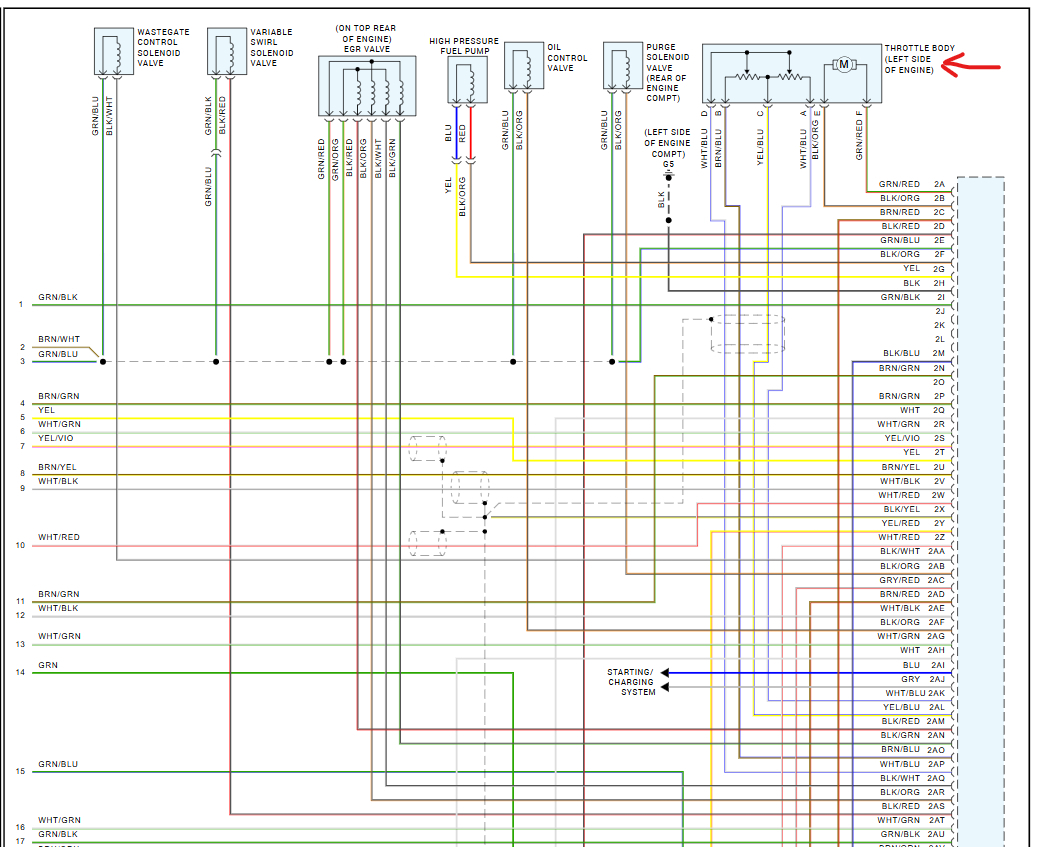

The throttle body connected to the PCM only. Here is the wiring diagrams and a guide to help you test the wiring.

https://www.2carpros.com/articles/how-to-check-wiring

Check out the images (below). Please let us know what happens.

Image (Click to enlarge)
Attached Media
Oct 25, 2024 at 5:10 PM
