Can somebody give me a diagram of the color wires for the cooling fan sensor please?
Dec 24, 2022 at 4:46 PM
Cooling fans do not turn on?
1993 CADILLAC ELDORADO
SWEETHUSTLE1
- MEMBER
- 2 POSTS
- FOLLOW
Advertisement
I mean relay sorry..
Dec 24, 2022 at 4:50 PM
Hi,
No problem whatsoever. LOL There are three relays that control the radiator cooling fan.
If you look below, I provided the entire wiring schematic for the radiator cooling fans. Take a look through them and let me know if they help or if you have other questions.
Take care and Merry Christmas,
joe

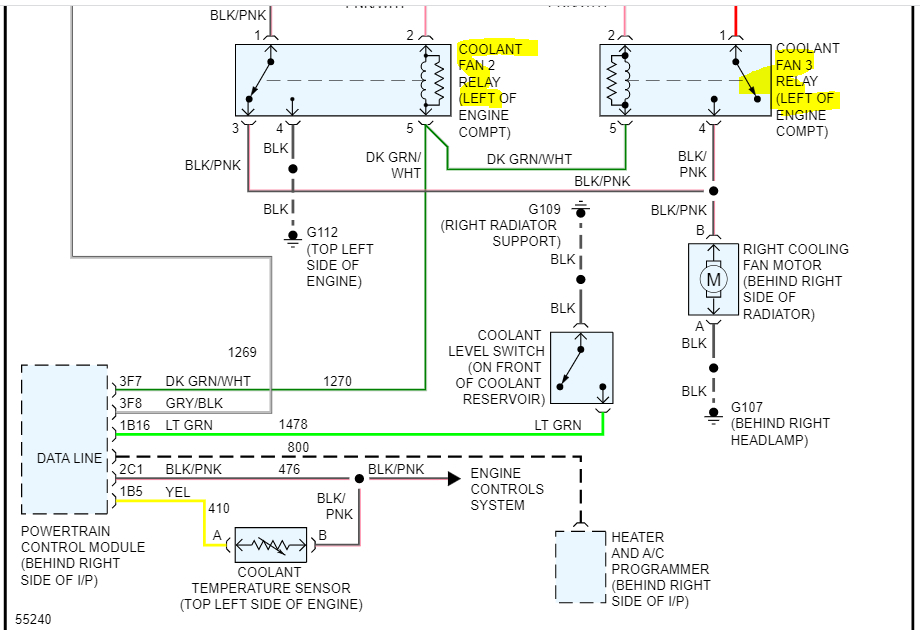

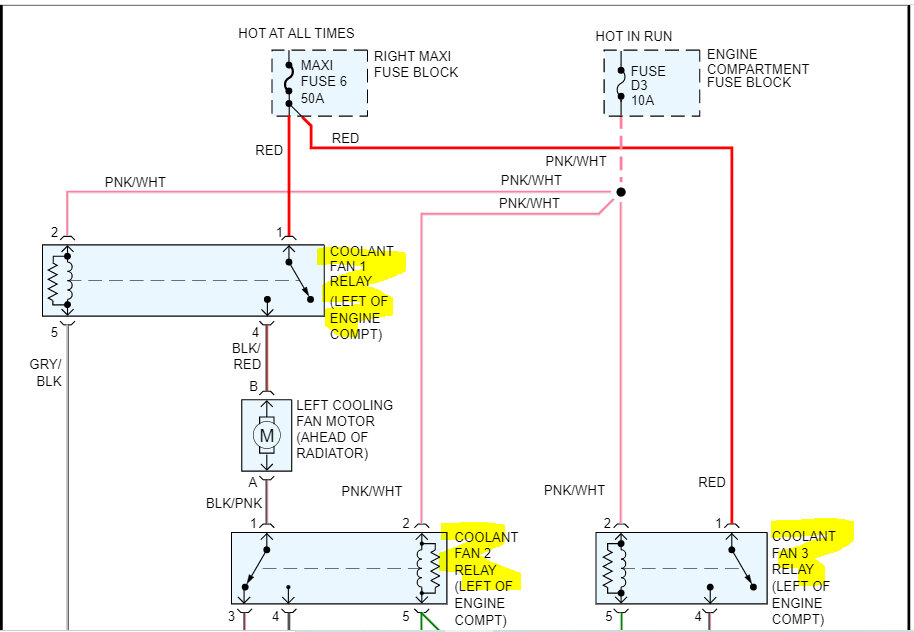

See pics below. Note: The schematic was only one page long. I cut it in half to make it readable for you. I overlapped the two pics so you can follow from one to the next.
No problem whatsoever. LOL There are three relays that control the radiator cooling fan.
If you look below, I provided the entire wiring schematic for the radiator cooling fans. Take a look through them and let me know if they help or if you have other questions.
Take care and Merry Christmas,
joe
See pics below. Note: The schematic was only one page long. I cut it in half to make it readable for you. I overlapped the two pics so you can follow from one to the next.
Images (Click to enlarge)
Dec 24, 2022 at 11:11 PM
