Control panel not working

2002 CHRYSLER TOWN AND COUNTRY
370,000 MILES • 3.8L • V6 • 2WD • AUTOMATIC
Avatar
SANDIZ
  • MEMBER
  • 1 POST
Not working control panel and not working turn lights, alarm lights. Speedometer is okay, fuse, okay, turn relay okay (works on 3.3 Grand Voyager) . Needed wiring diagram, to find wires by color and voltage on connector pins.
Jul 26, 2019 at 1:22 PM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
Hello,

If the fuses and grounds are good it sounds like the climate control panel might be out . To be sure here is a guide to help you check power and grounds with the control panel wiring diagrams below:

https://www.2carpros.com/articles/how-to-check-wiring

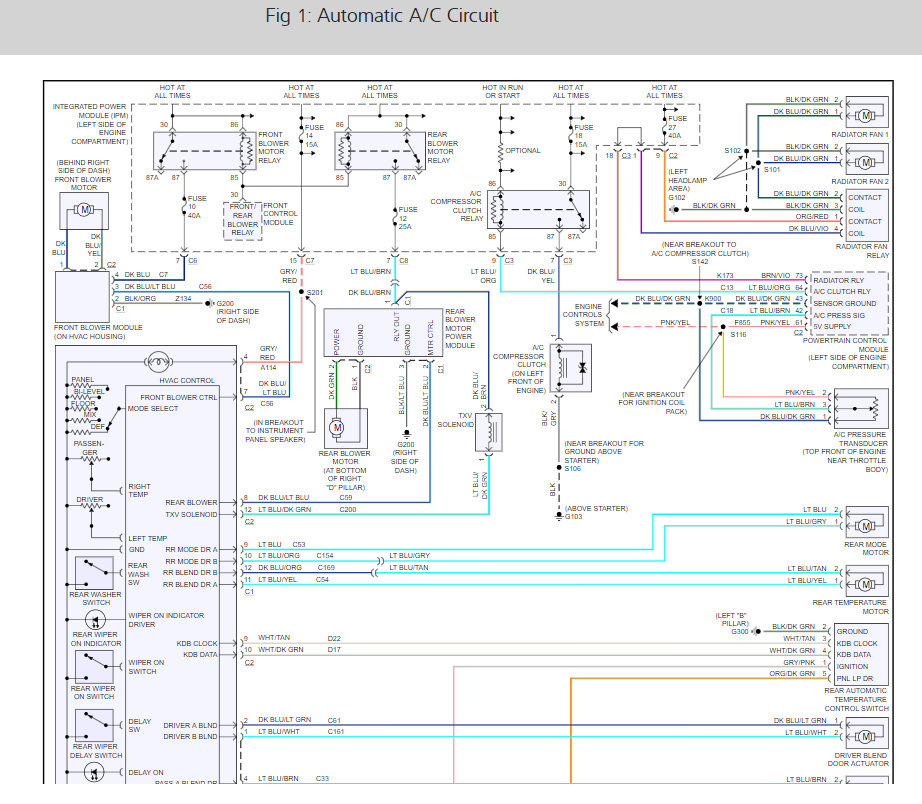

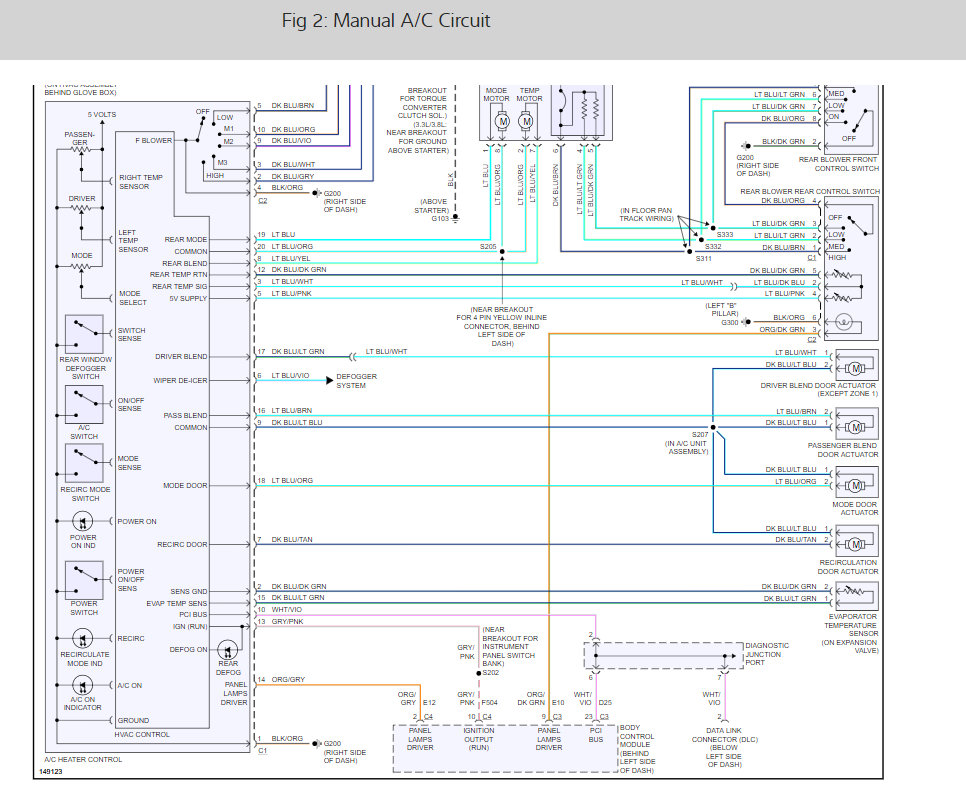

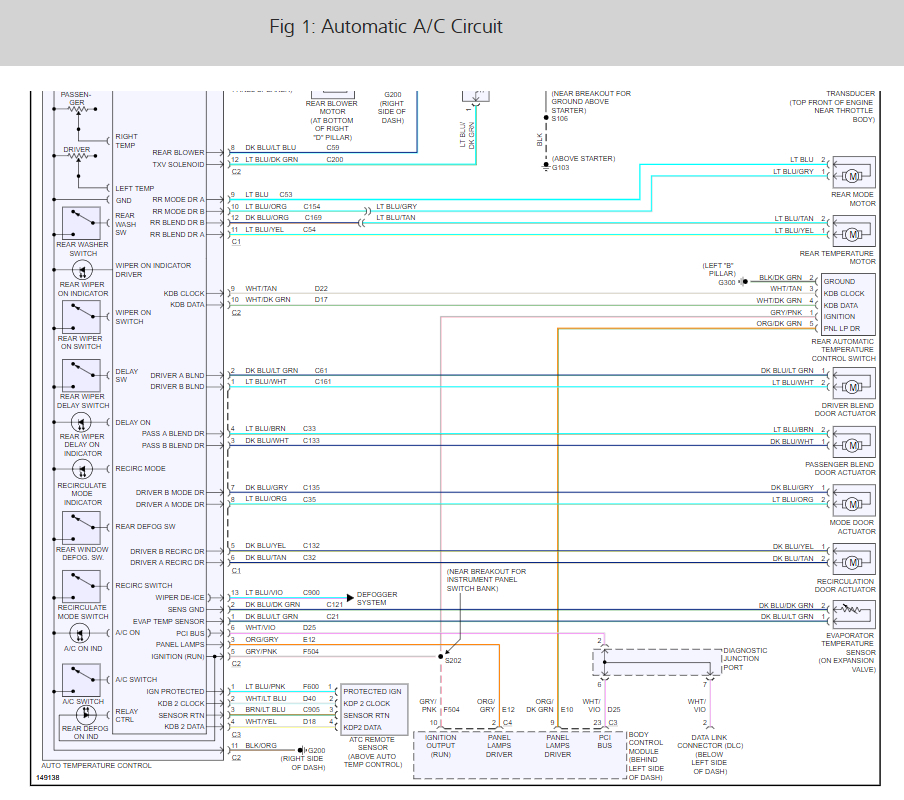

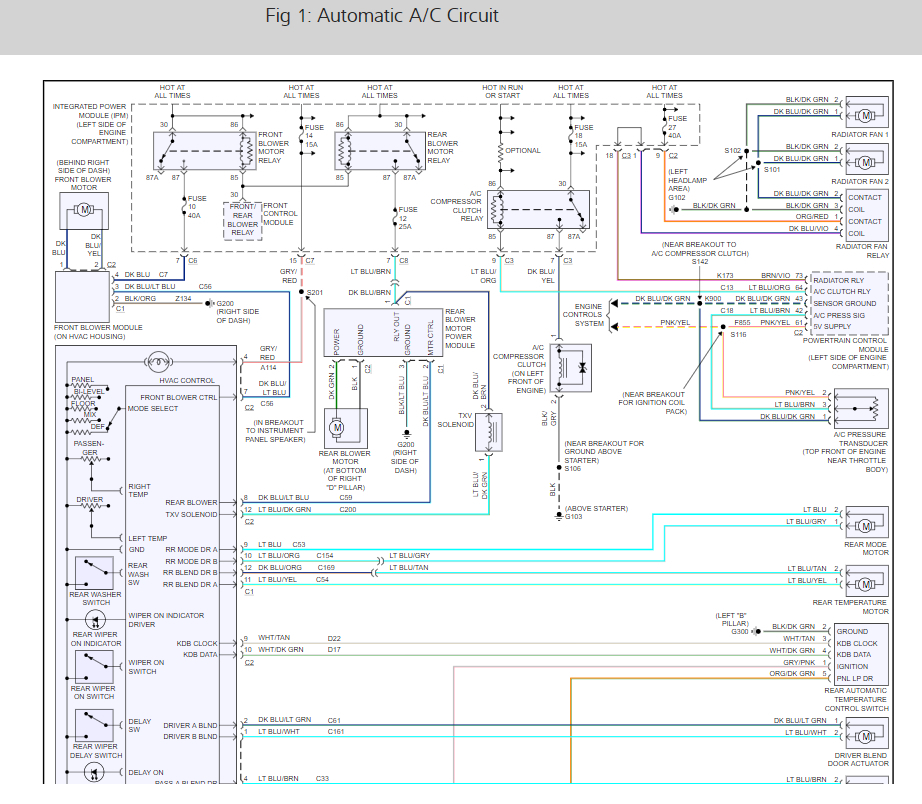

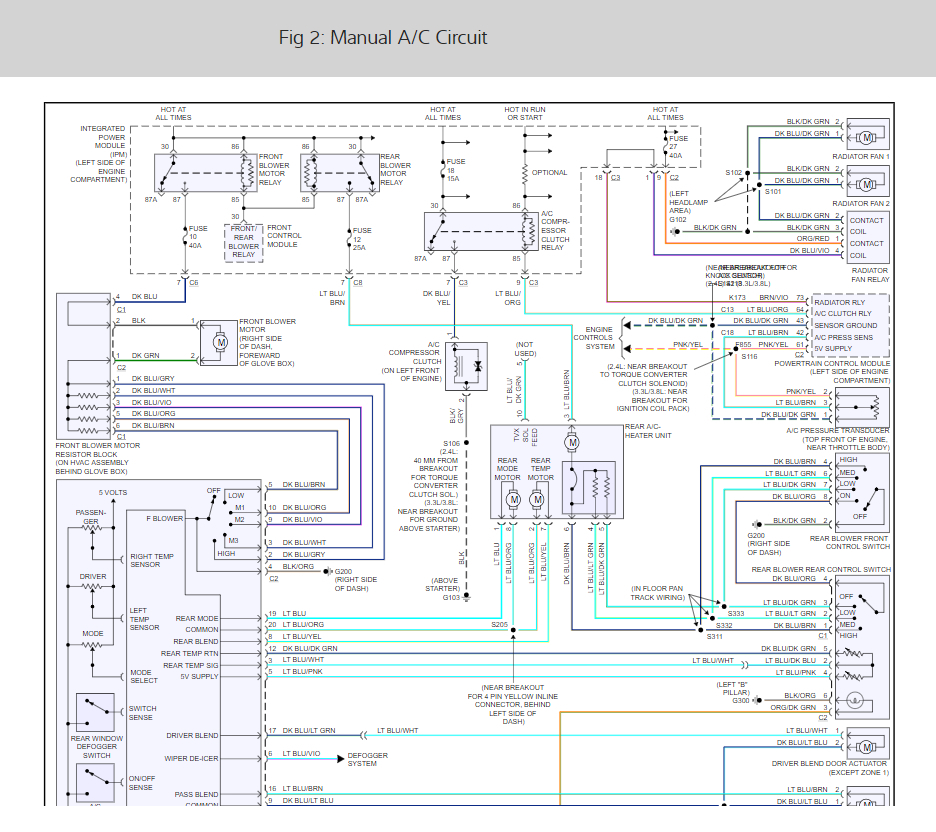

Check out the diagrams (below). Please let us know what you find. We are interested to see what it is.
