Control arm ball joint different sizes?

2005 AUDI A6
213,000 MILES • 3.2L • V6 • 4WD • AUTOMATIC
Avatar
RJNADIGER
  • MEMBER
  • 2 POSTS
The original right front upper rearward control arm has a bigger sized shank on the ball joint than the replacement part I received. What would cause this discrepancy?
Aug 19, 2022 at 12:45 PM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS

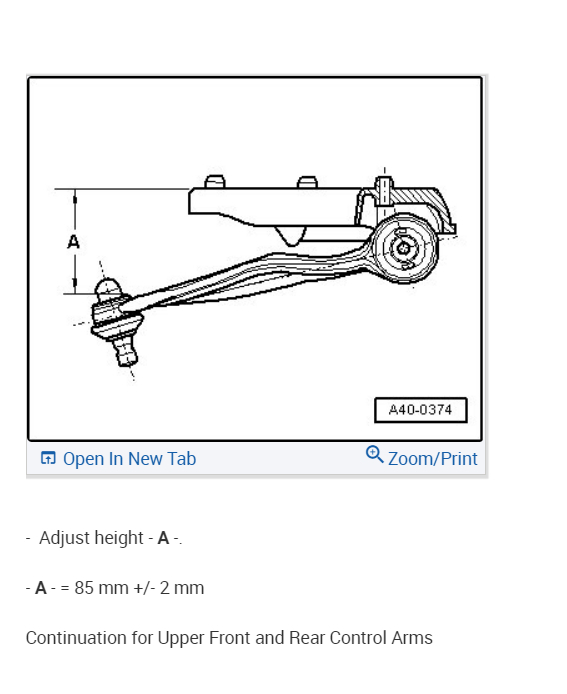

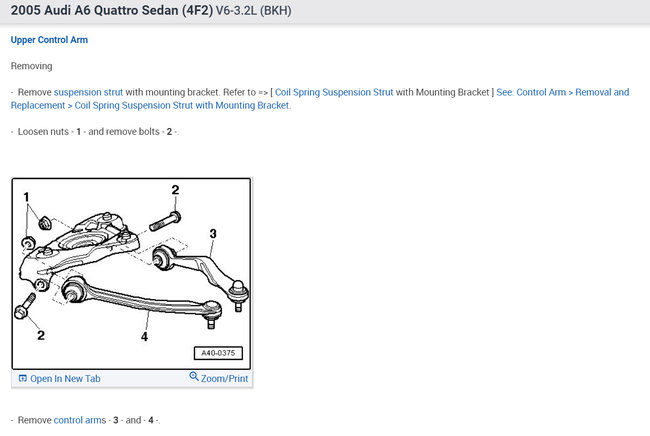

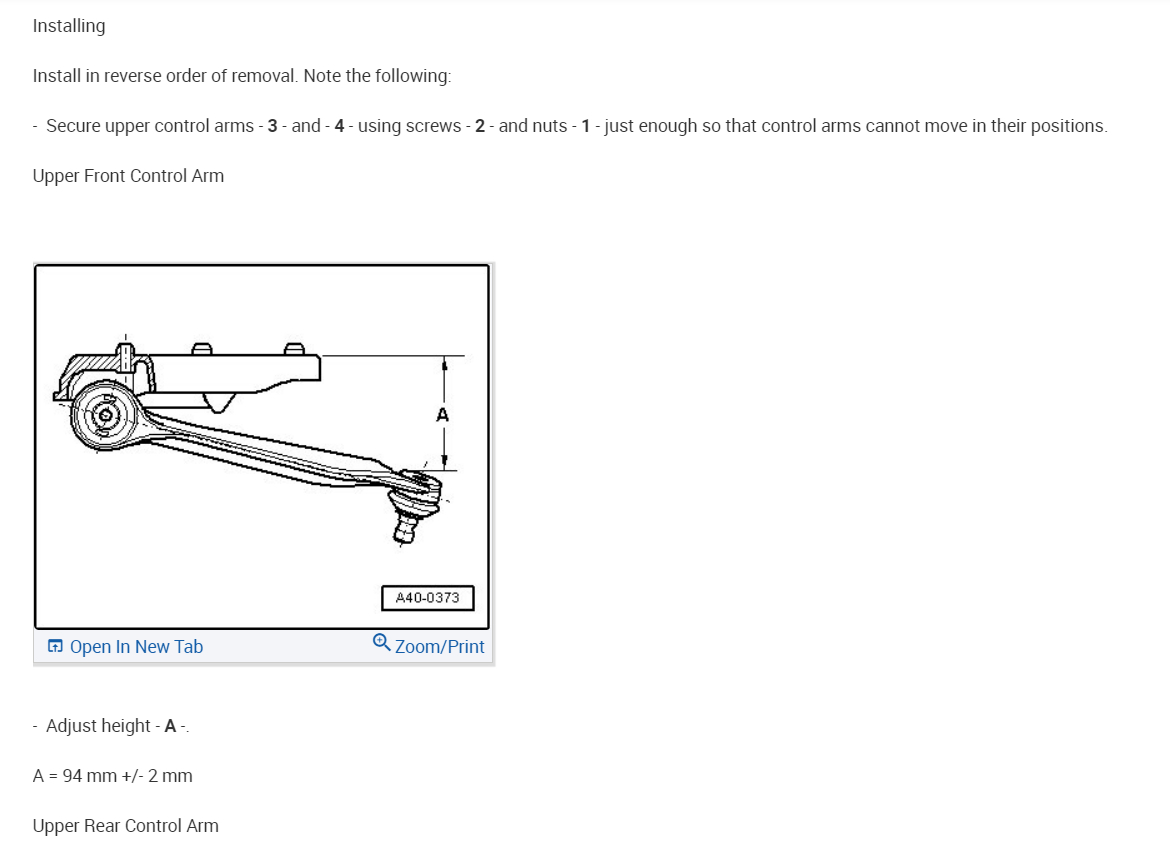

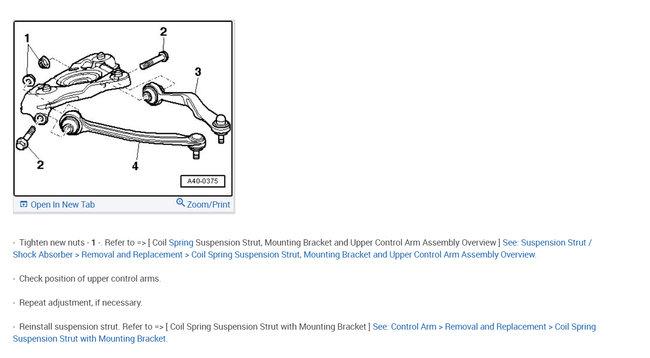

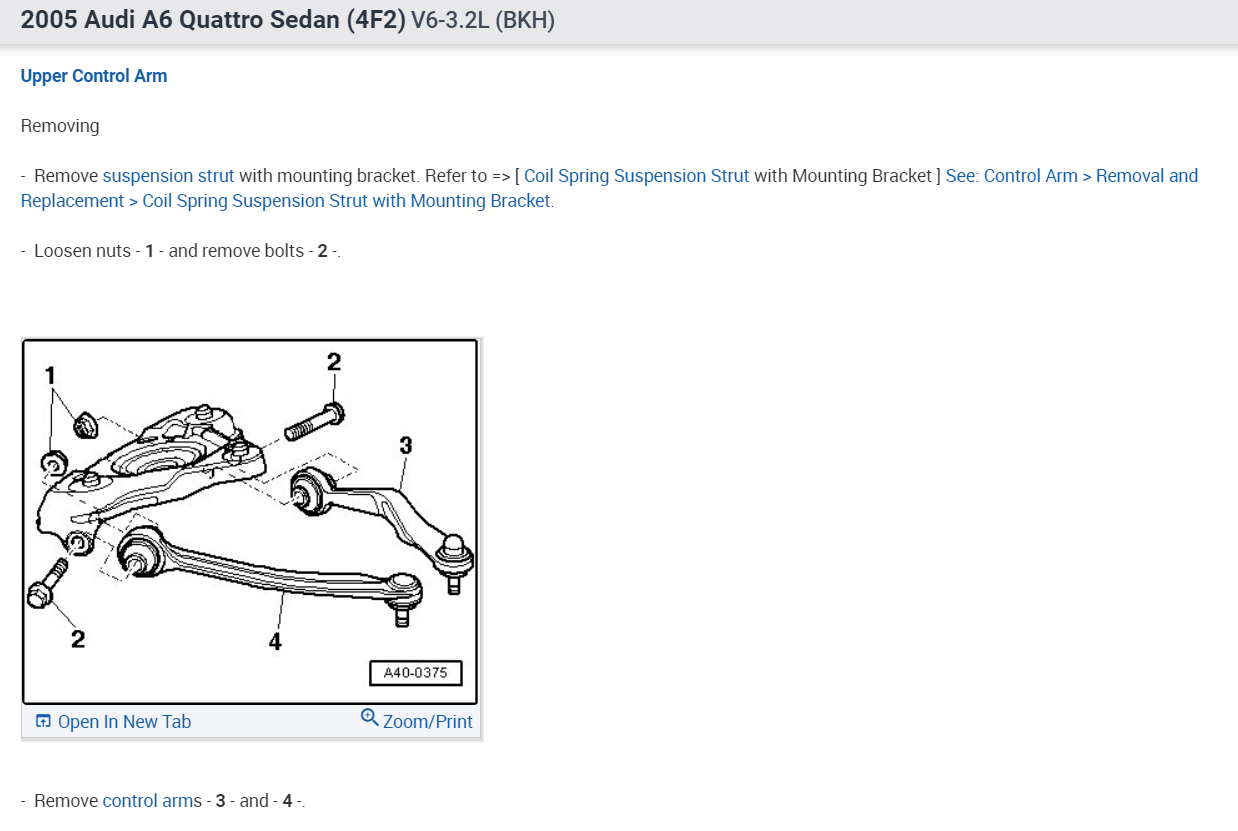

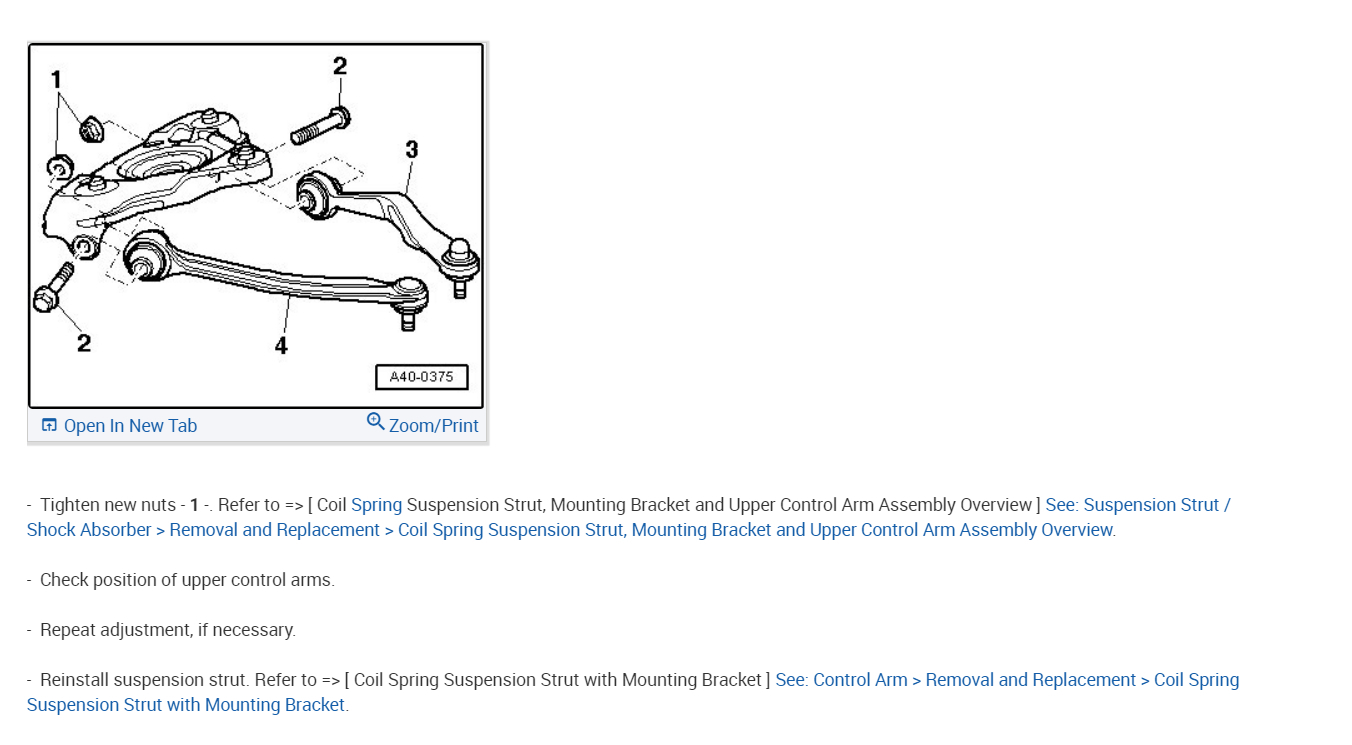

This can be manufacturers change mid-year, try to match arms from the year after or before your car was made. Plus, they came with two different size engines this can do it as well. Audi is famous for this. I have included how to change the arms out in the images below in case you need it.
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Aug 19, 2022 at 4:19 PM
Avatar
RJNADIGER
  • MEMBER
  • 2 POSTS

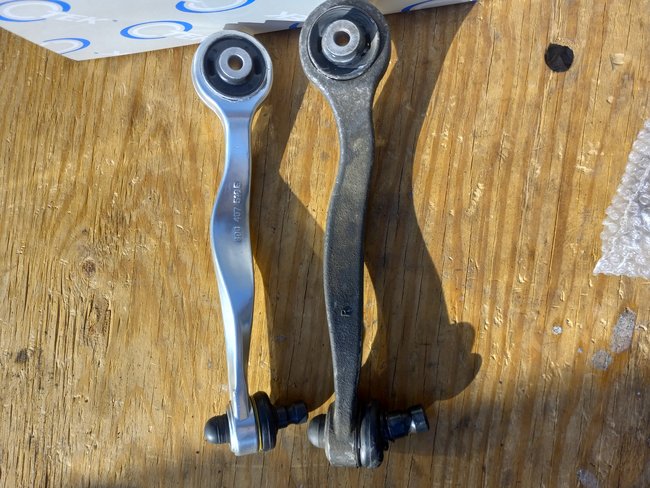

The Audi A6 does come with the 4.2L V8. Would that cause it? In the picture you can see the old one and new one. It would make sense for the suspension on a V8 model to be bigger.
Image (Click to enlarge)
Attached Media
Aug 19, 2022 at 4:32 PM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
Yep, even if the length is different, it could be a year spit which is common. Here are the part numbers they show:

Lower Control Arm
12 - Lower Control Arm
4F0407151A
438.33

Upper Link
Front
Right
4 - Upper Link
4E0407506E
393.33

Left
4 - Upper Link
4E0407505E
393.33

Rear
Right
4 - Upper Link
4E0407510E
393.33

Left
4 - Upper Link
4E0407509E
393.33

Lower Link
Right
7 - Lower Link
4F0407694H
500.00

Left
7 - Lower Link
4F0407693H
500.00
Aug 20, 2022 at 4:53 PM
