please tell me where the connecting wire comes from?

2020 RAM 1500
90,000 MILES • 5.7L • V8 • 2WD • AUTOMATIC
Avatar
SSHAFFER92
  • MEMBER
  • 22 POSTS

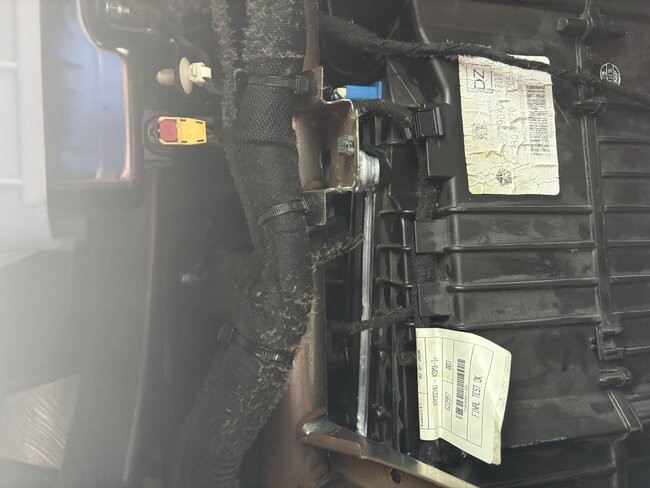

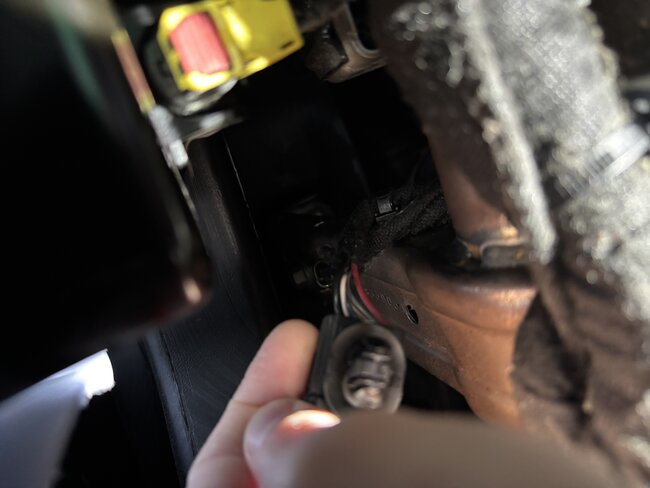

Can you please tell me where the connecting wire comes from for this plug above the heater core? I just had my heater core replaced and had to change a blend door actuator when I noticed this was not connected. The wires are black, white, blue, yellow with red line, gray, and red.
Images (Click to enlarge)
Attached Media
Attached Media
Dec 3, 2024 at 6:12 AM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
Thanks for the images, but I cannot see the connector or the wiring colors which I need to look up what is it for. Can you please upload a better shot of what I need please?
Dec 3, 2024 at 11:05 AM
Avatar
SSHAFFER92
  • MEMBER
  • 22 POSTS

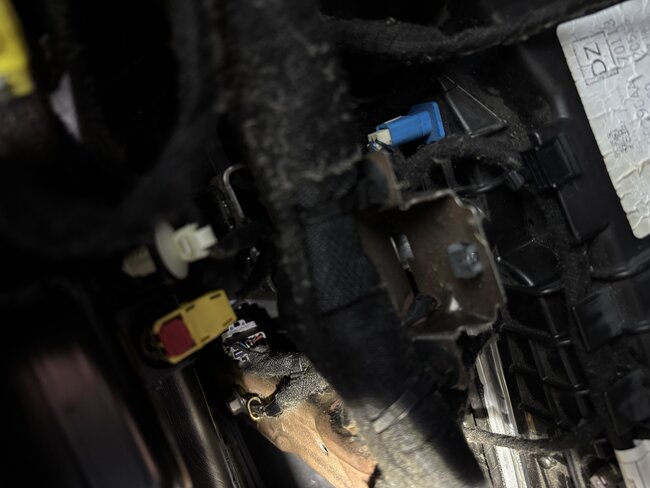

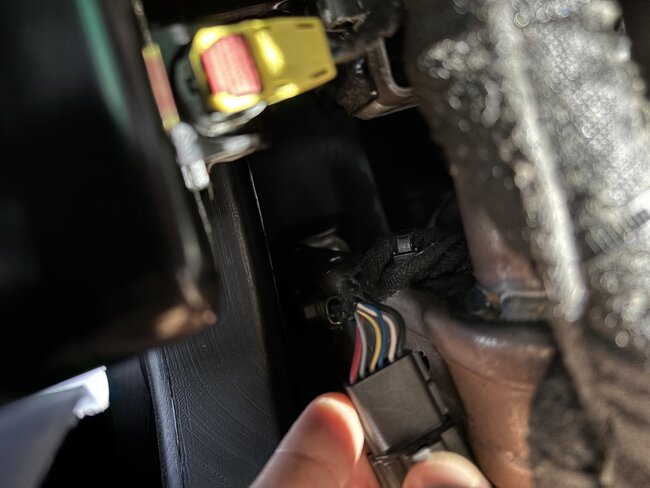

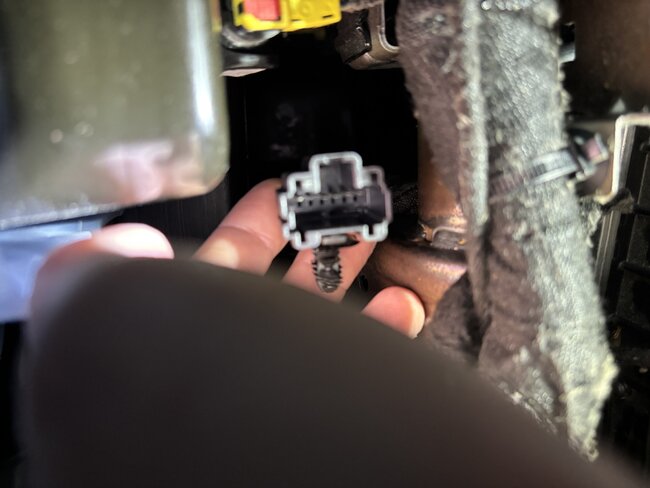

Here is a picture of the wiring and clip.
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Dec 5, 2024 at 5:25 AM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS

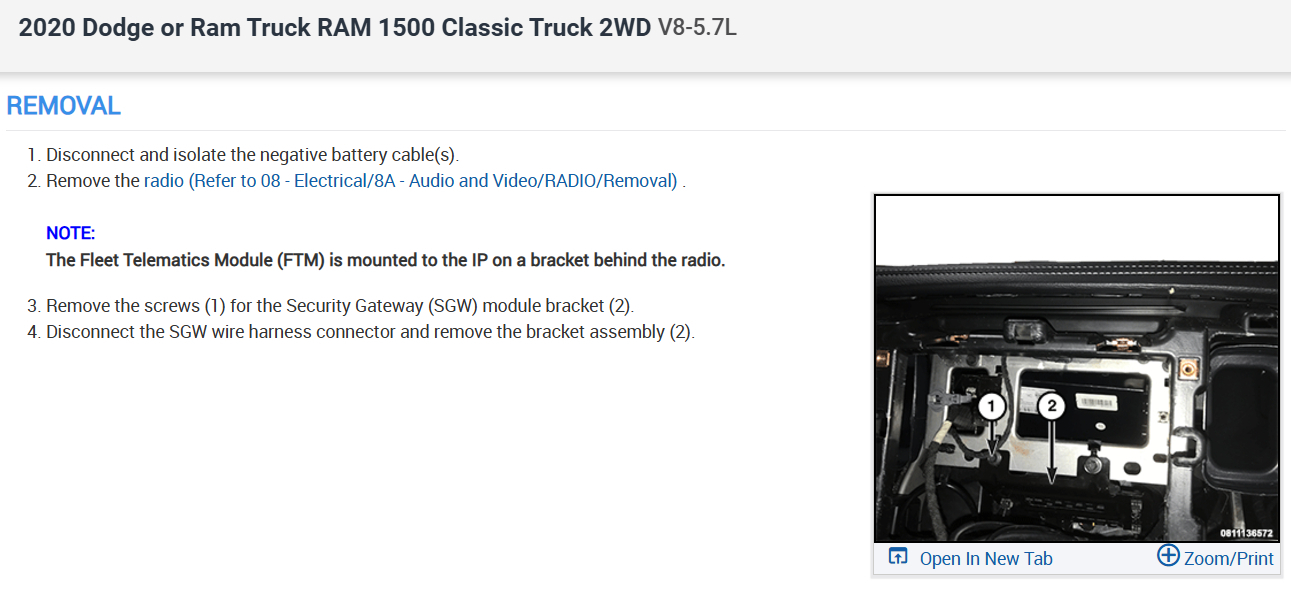

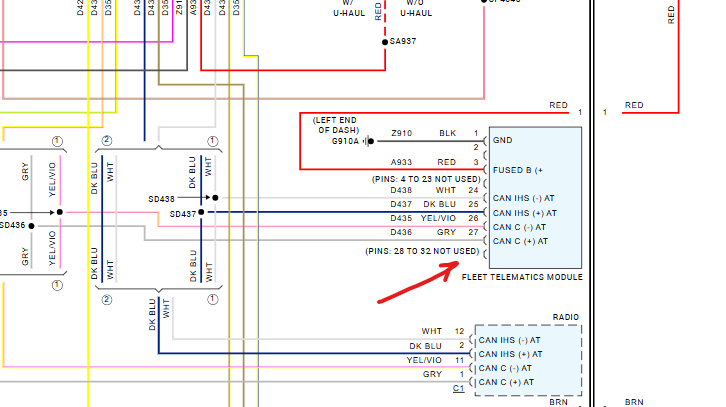

It does not belong to the HVAC or SRS system for sure. Can you tell me if anything is not working or if you have a warning light on? It looks like it could be for fleet telematics module. Here are the wiring colors and the location of the module so you can check it out. Check out the images (below). Let us know how it goes.
Images (Click to enlarge)
Attached Media
Attached Media
Dec 5, 2024 at 1:29 PM
Avatar
SSHAFFER92
  • MEMBER
  • 22 POSTS
Everything seems to be working on.
Dec 5, 2024 at 2:21 PM
Avatar
SSHAFFER92
  • MEMBER
  • 22 POSTS
Okay.
Dec 5, 2024 at 2:21 PM
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
I cant see the color of the wire tracers, can you confirm the wiring color with the wiring diagrams?
Dec 6, 2024 at 9:12 AM
