Computer module pinout needed
2001 DODGE DAKOTA
DICKENSON
- MEMBER
- 1 POST
- FOLLOW
Advertisement
Hello,

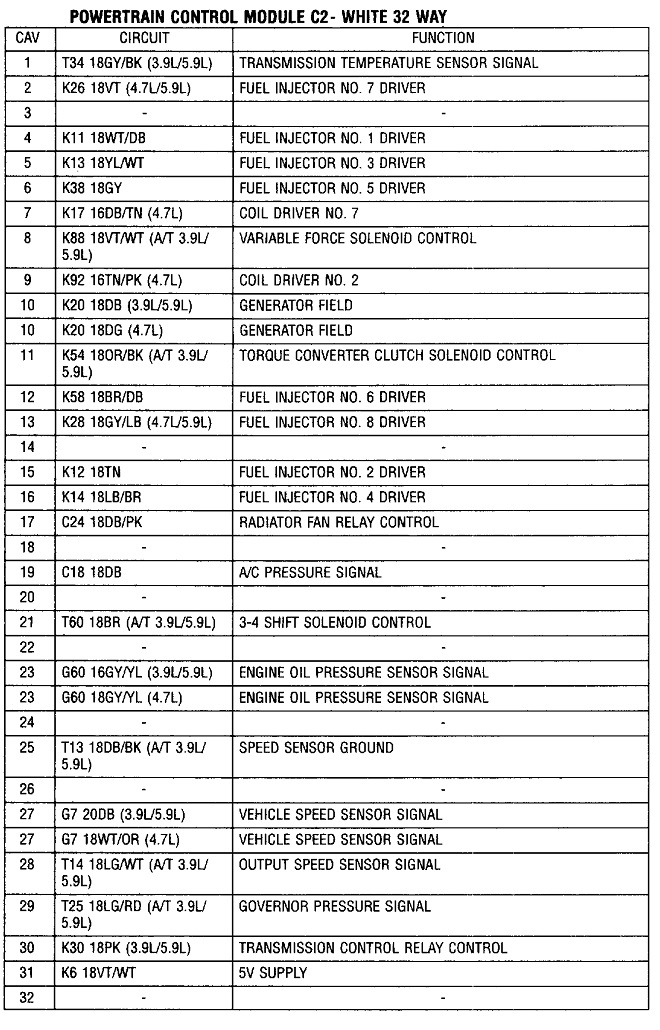

See attached for the pinout.
Let me know of any questions.
Thank you
https://www.2carpros.com/articles/how-a-car-computer-works-pcm-ecm-bcm

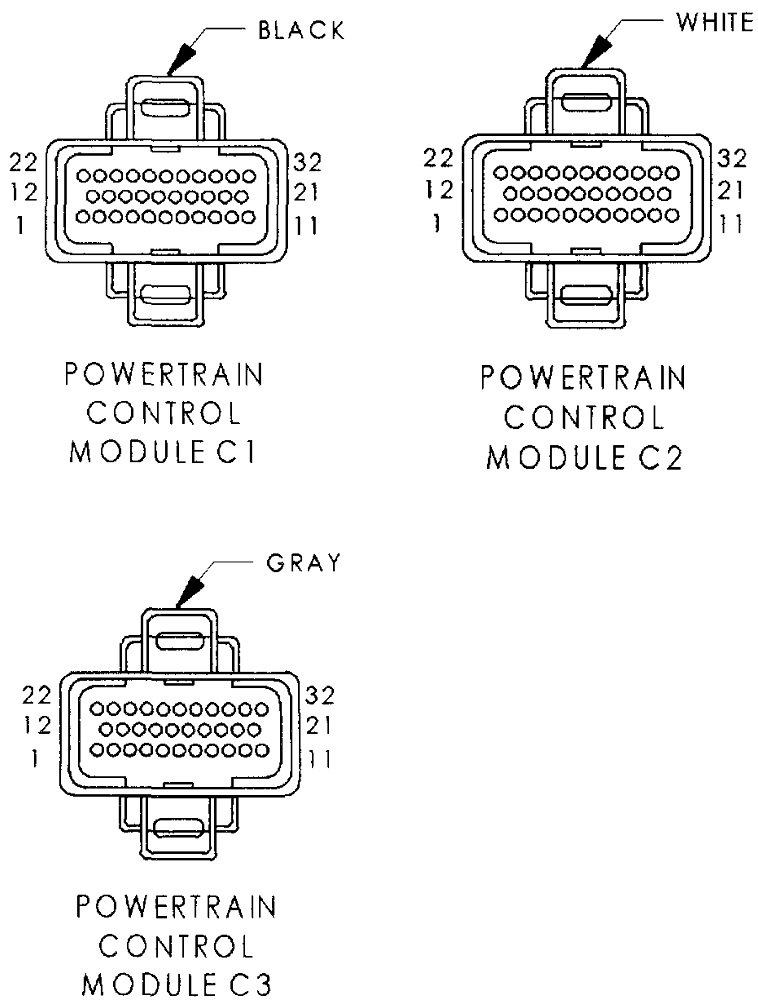

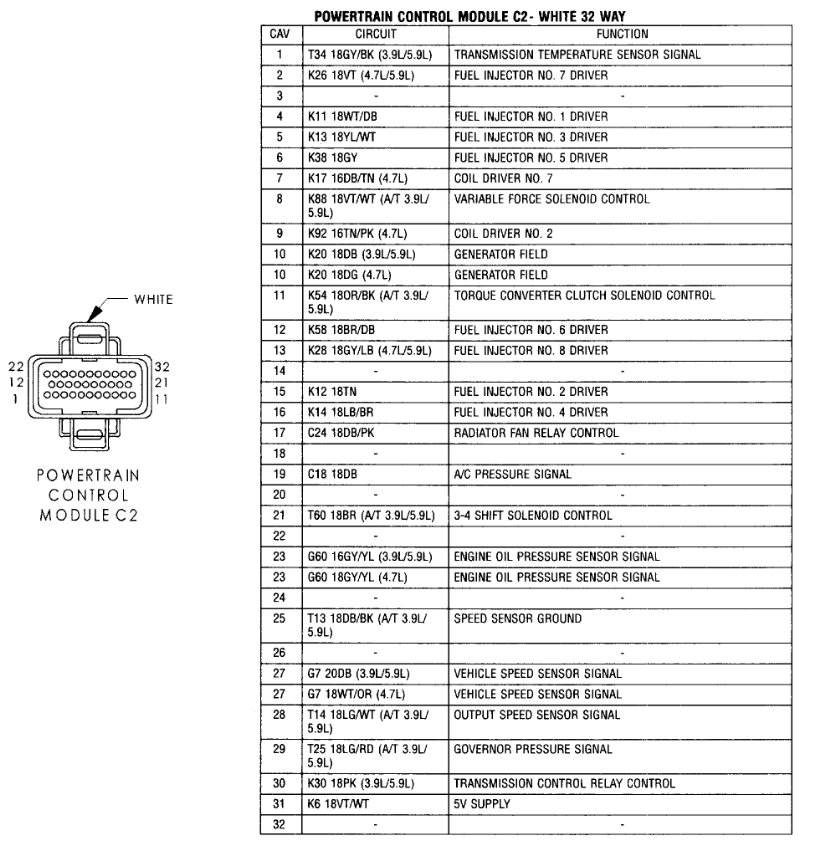

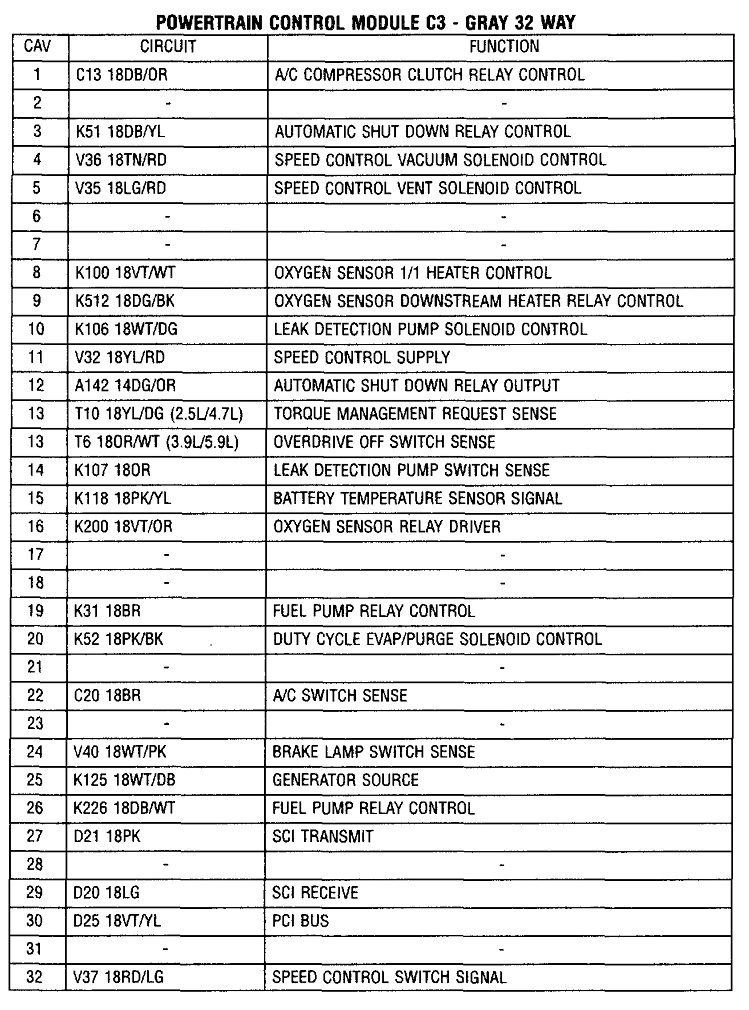

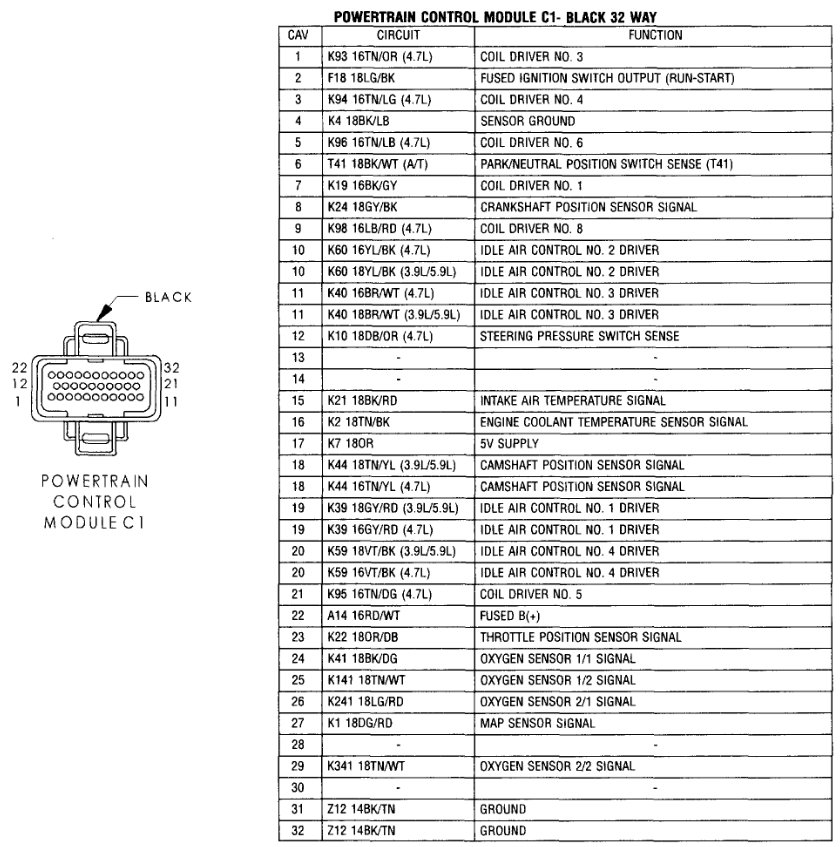

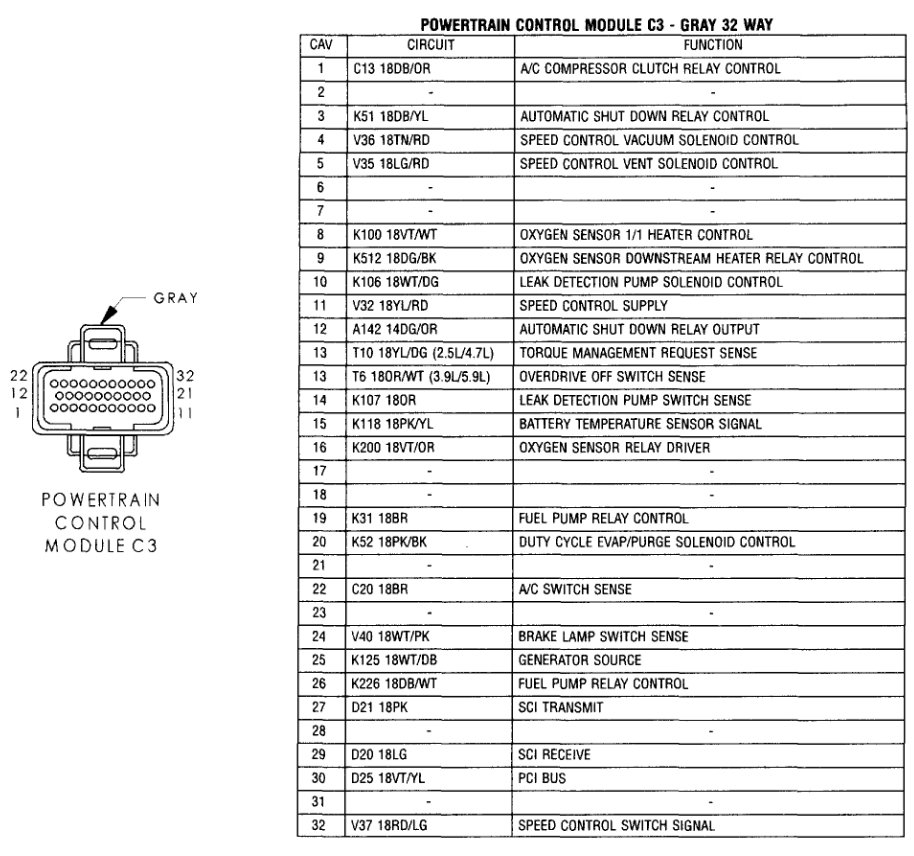

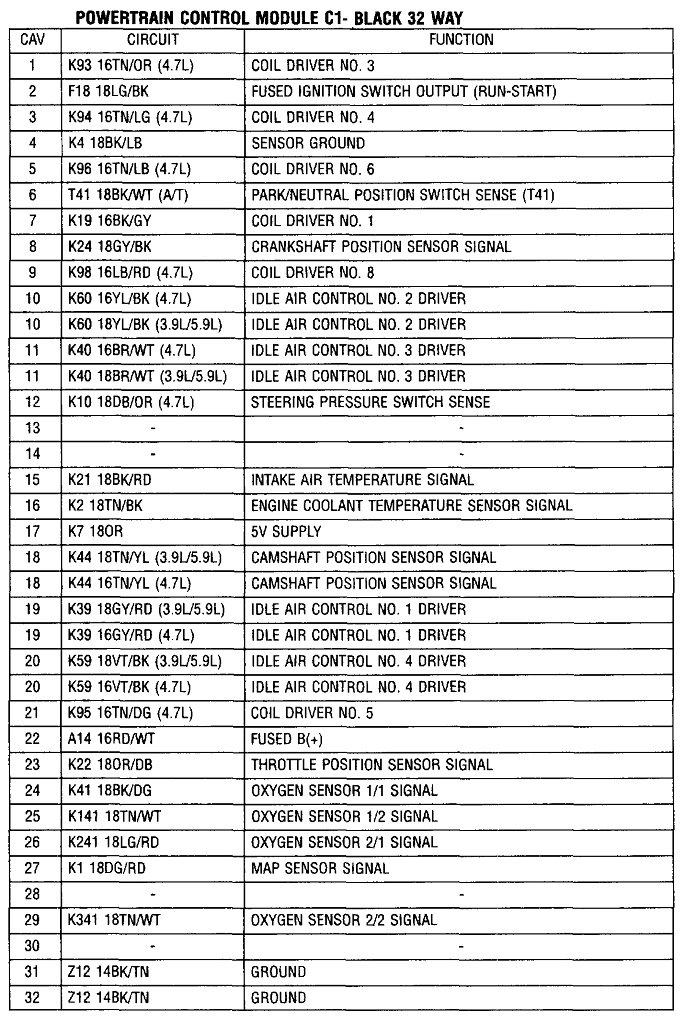

See attached for the pinout.
Let me know of any questions.
Thank you
https://www.2carpros.com/articles/how-a-car-computer-works-pcm-ecm-bcm
Images (Click to enlarge)
Jun 12, 2022 at 12:21 PM

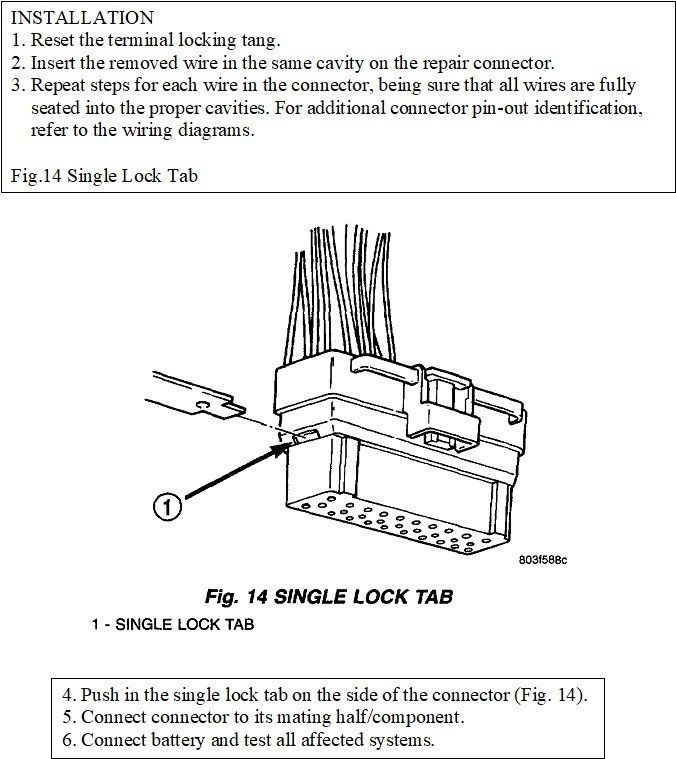

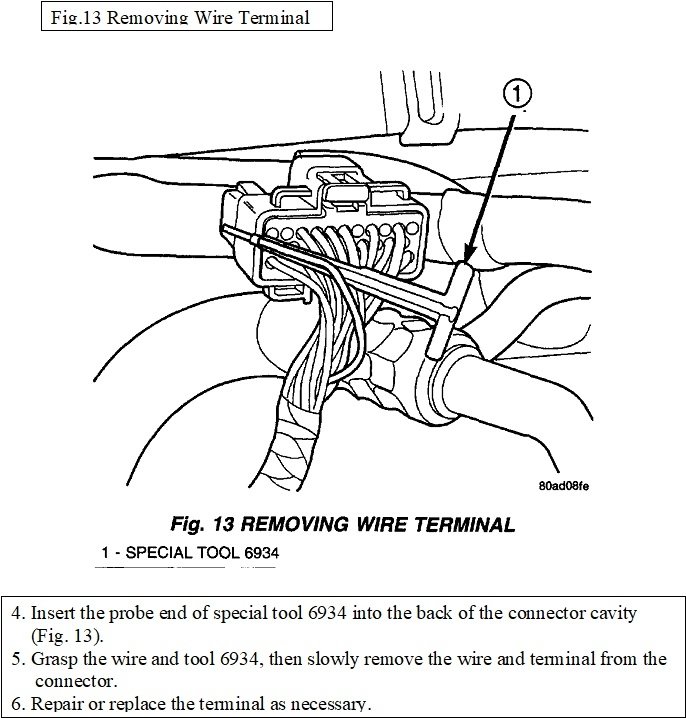

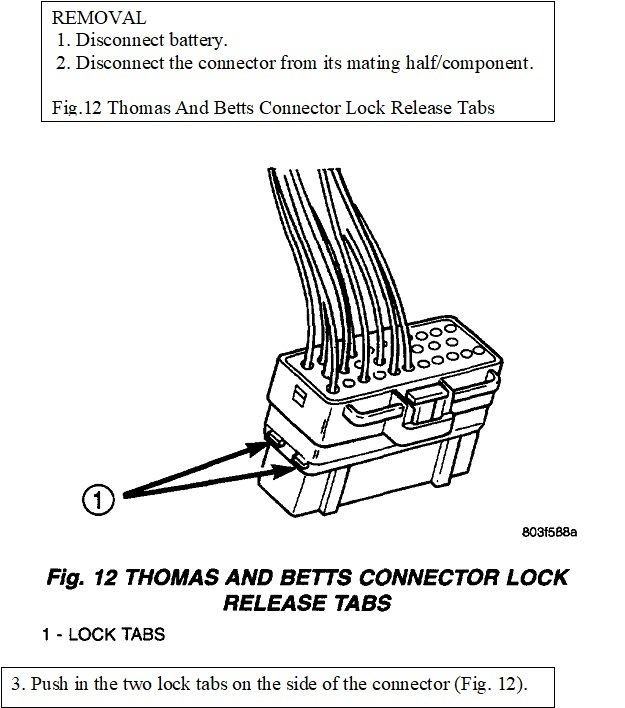

Some of these connectors can be frustrating to take apart, so I included the procedure in the last three drawings.
