Component location diagram

2010 CHEVROLET COBALT

181,000 MILES • 2.2L • 4 CYL • 2WD • AUTOMATIC

DUWHOP31

MEMBER
151 POSTS
FOLLOW

I need a diagram of the component locations on my car. Like where the O² sensor, TCM, cam, etc.

Jun 27, 2019 at 12:29 PM

KASEKENNY

CERTIFIED EXPERT
18,907 POSTS

Hi DUWHOP,

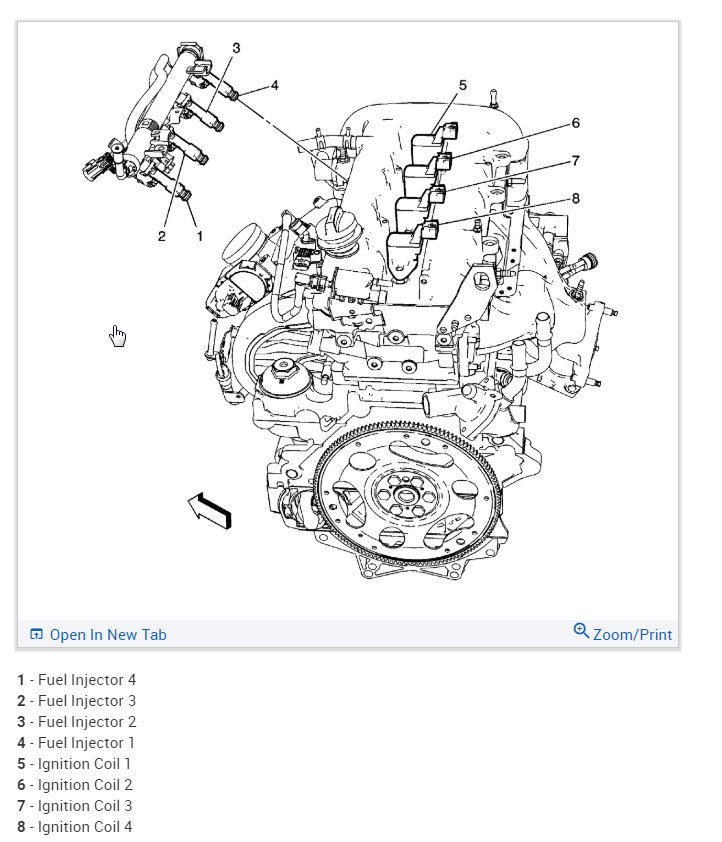

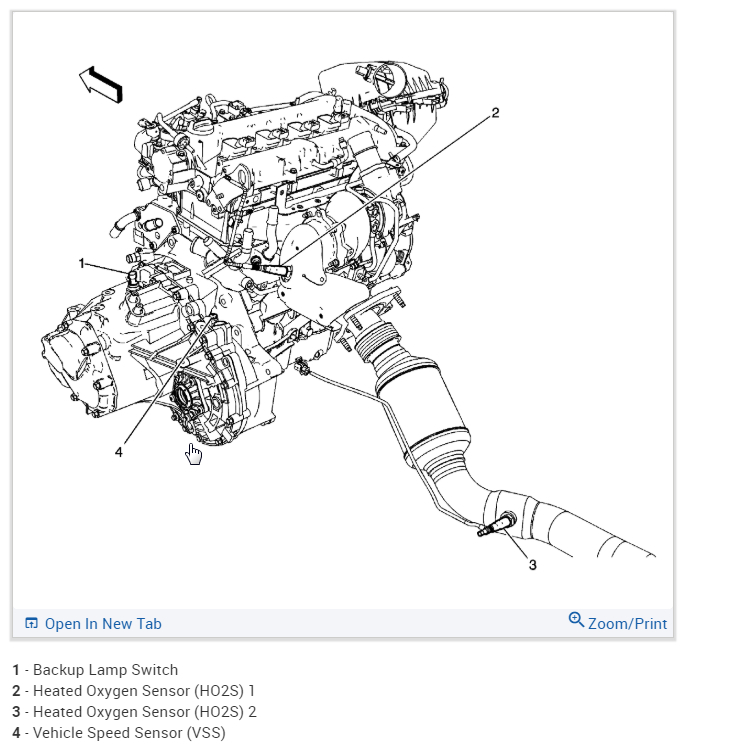

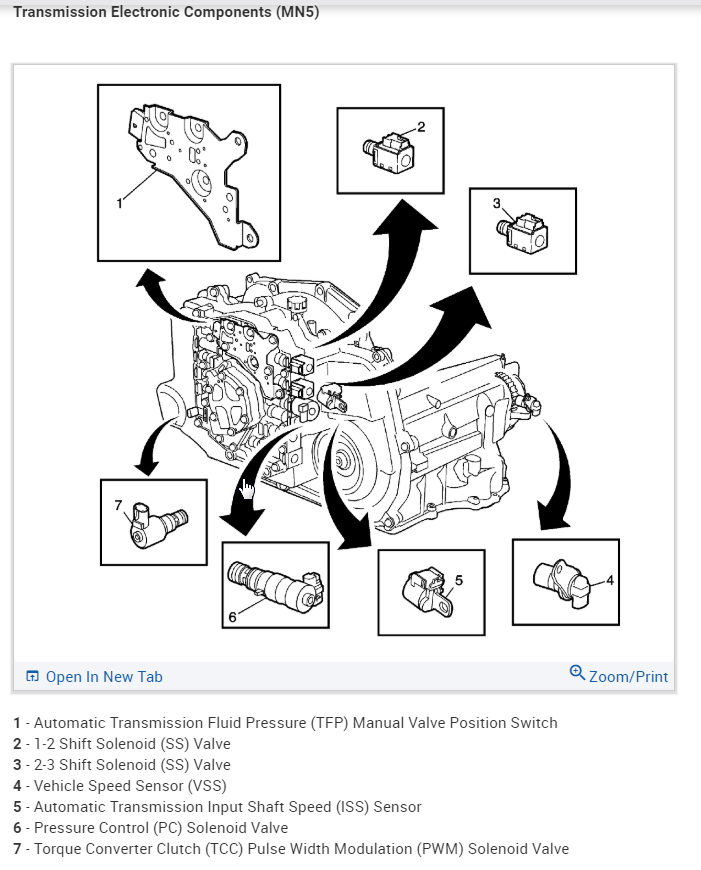

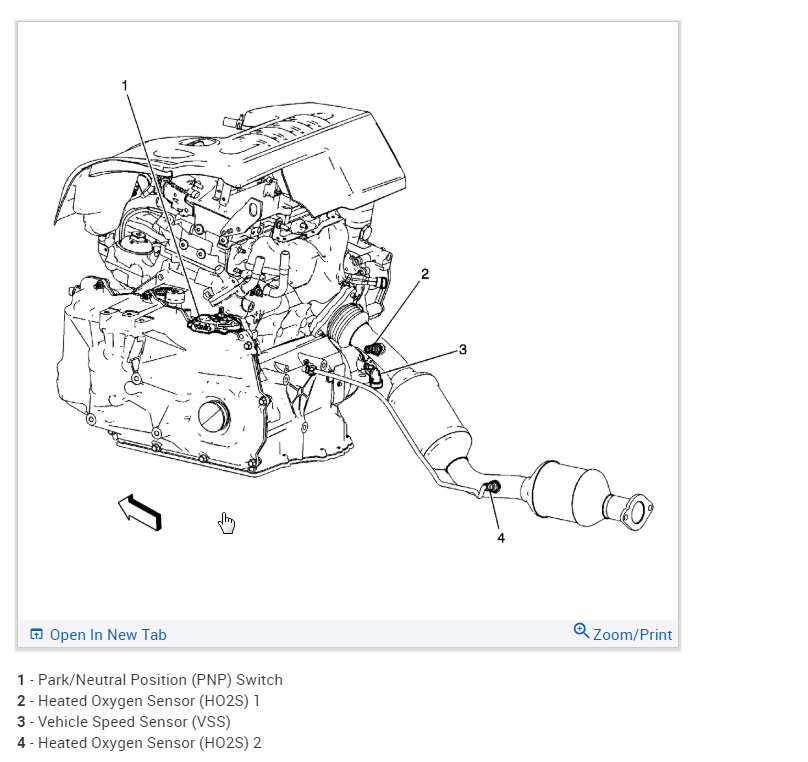

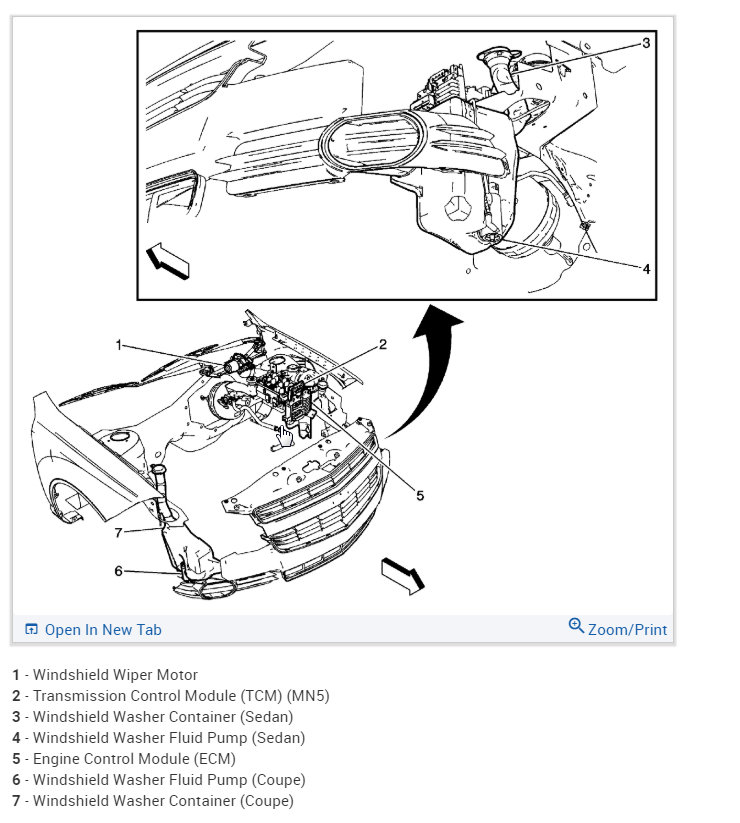

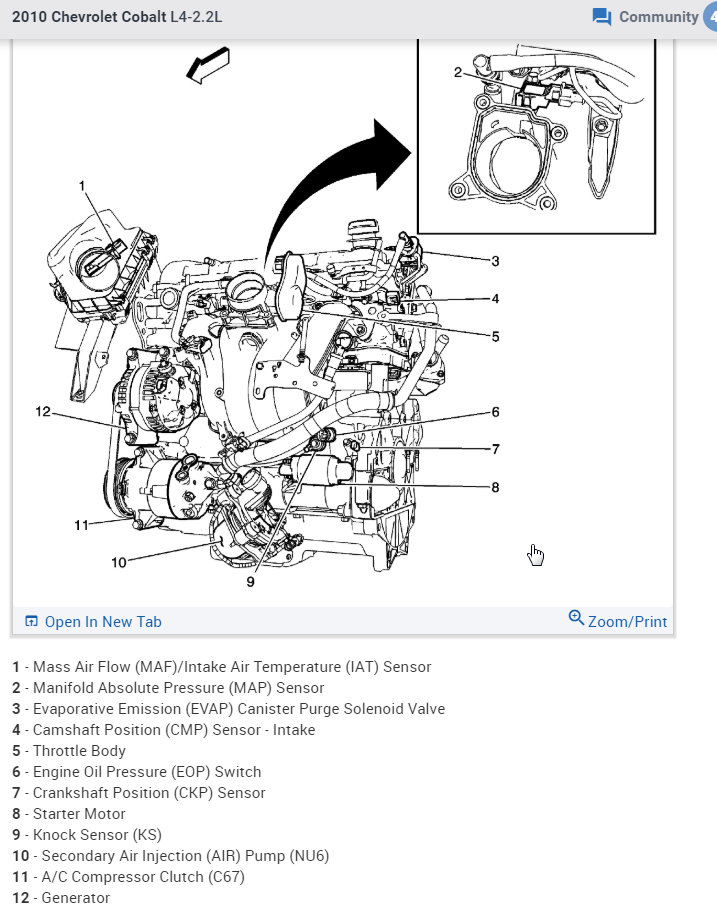

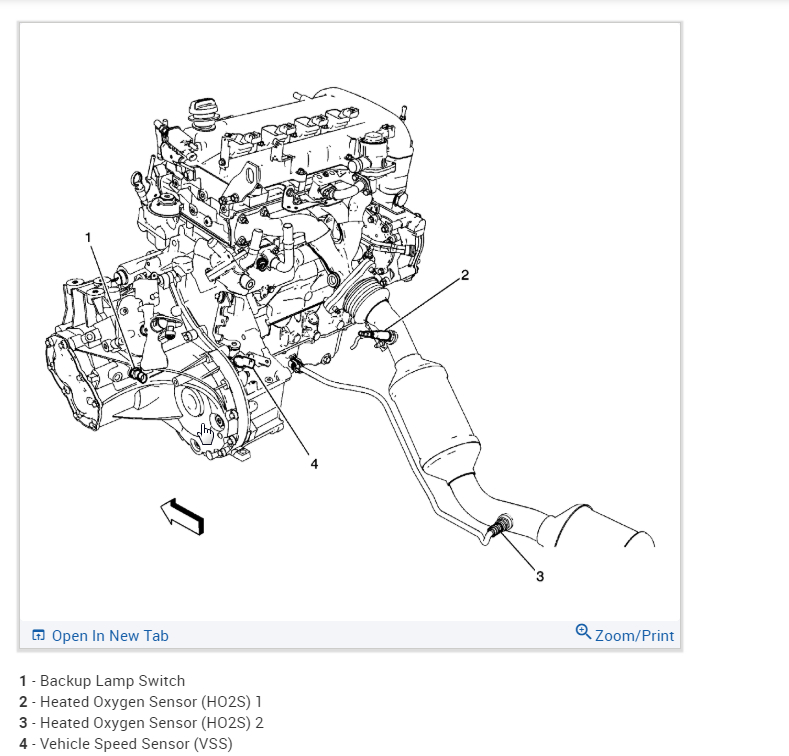

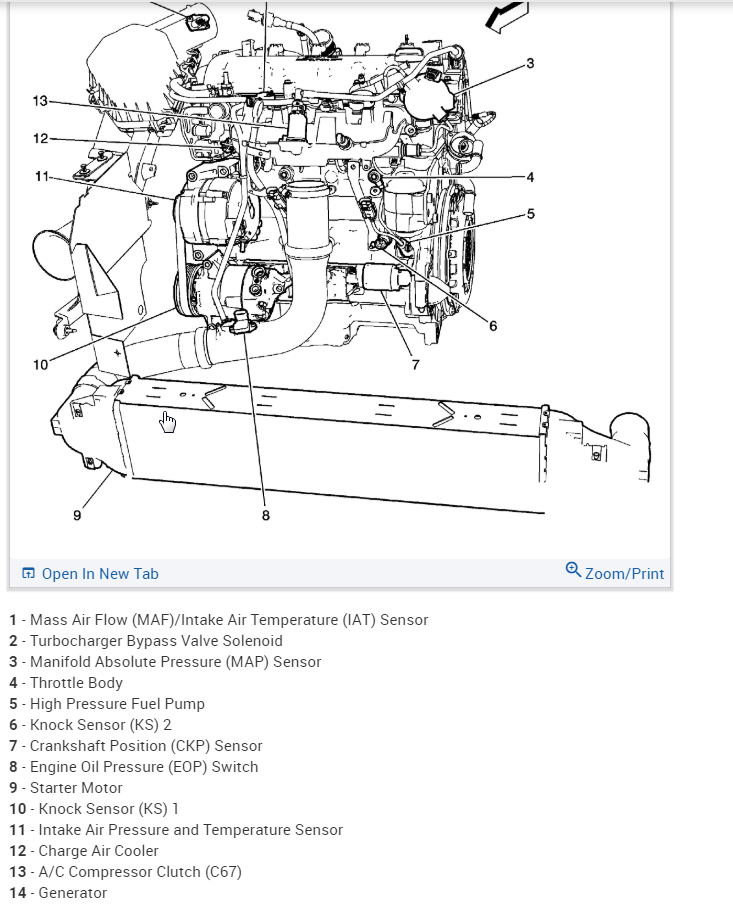

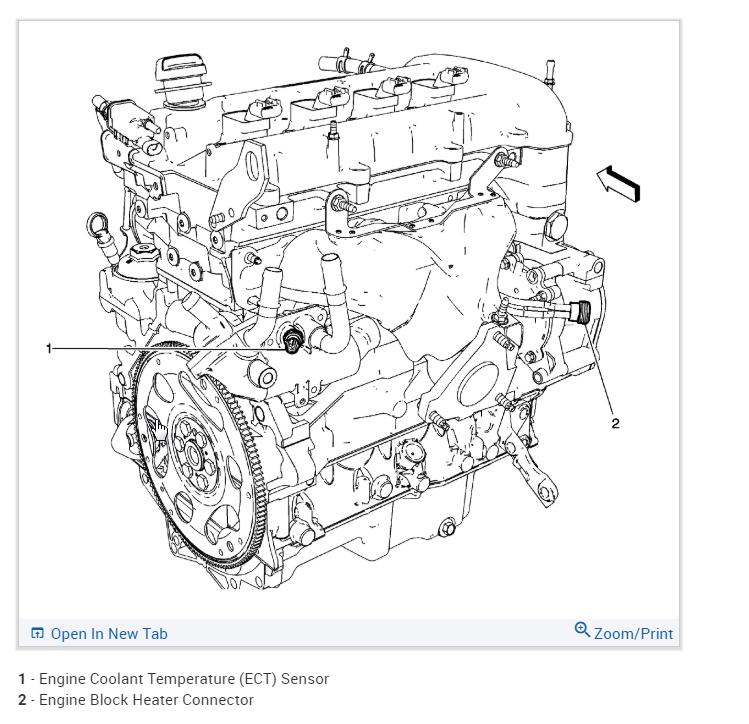

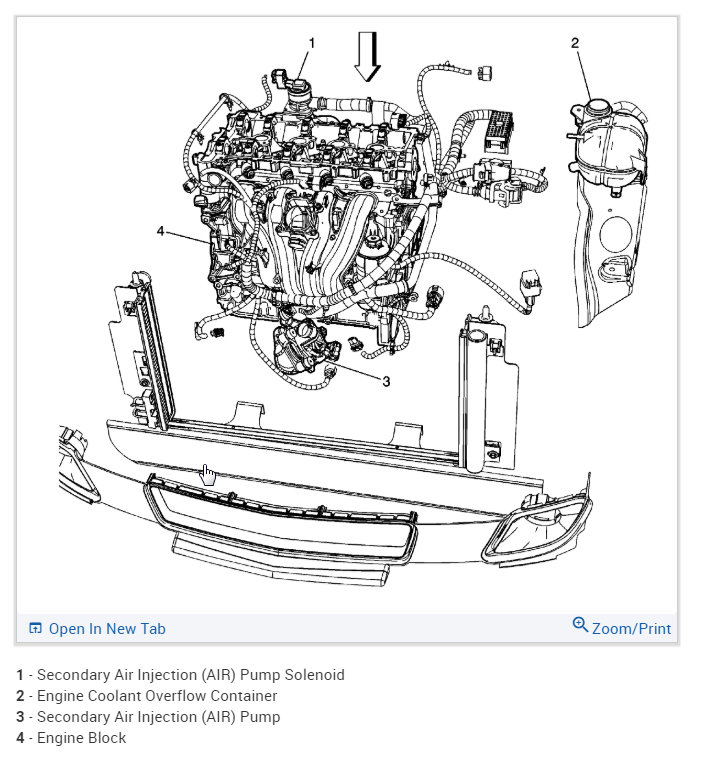

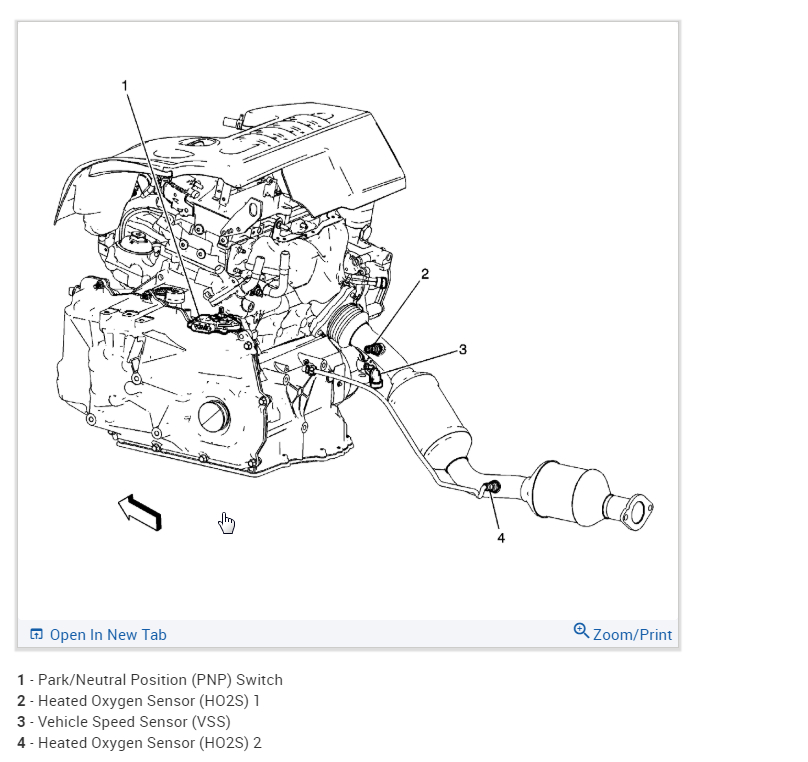

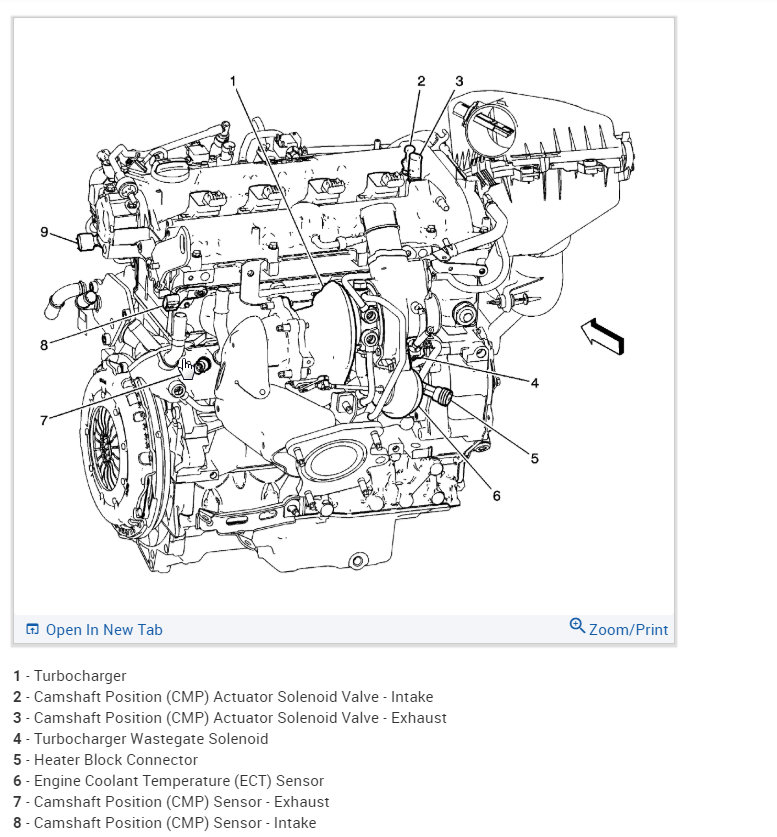

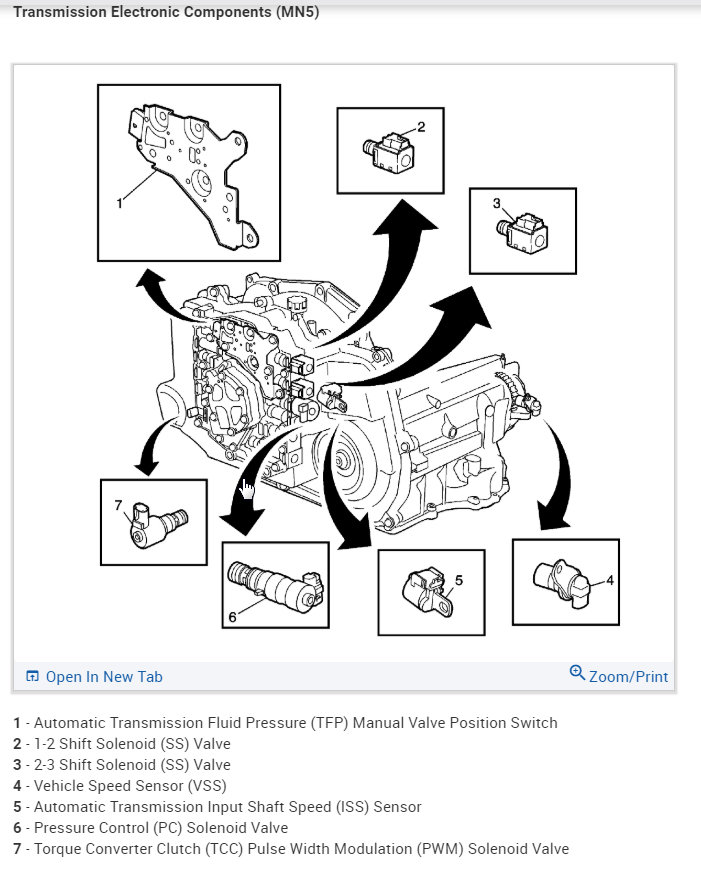

Looks like this includes everything power-train related. Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed. Please let me know if you need other items. Thanks

Images (Click to enlarge)

Jun 27, 2019 at 4:46 PM
