Coil packs how to wire the replacement ones?

2004 KIA OPTIMA
154,000 MILES • 2.4L • 4 CYL • 2WD • AUTOMATIC
Avatar
CREWCHF2
  • MEMBER
  • 1 POST
My coil packs wire connector broke ordered new packs and connectors, but the new connector all the wires are black. I don't know how to wire the new ones.
Jul 30, 2024 at 10:55 AM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS

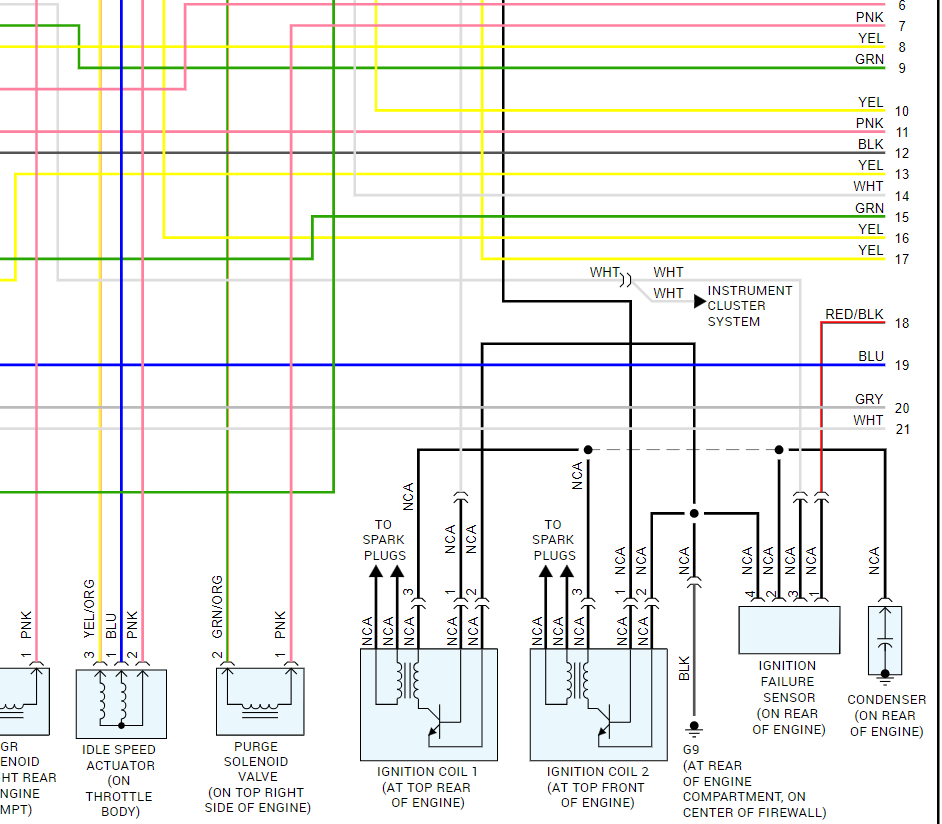

I would swap the wires one at a time because it looks like the old wires are all black as well unfortunately. Here is what the ignition coil wiring diagrams look like. I don't have a connector view which would have helped, sorry. Check out the images (below). Let us know how it goes.
Jul 30, 2024 at 3:31 PM
