Coil pack wires connected incorrectly; can I get a color-coded wiring diagram for the control wire?

2002 FORD ESCAPE
100,000 MILES • 3.0L • V6 • 4WD • AUTOMATIC
Avatar
ROXYPERRIN6569
  • MEMBER
  • 2 POSTS
When changing out plugs and coil packs the guy pulled all the wires at the same time on 4,5 and 6 and put them back on wrong. I need the color code for the control wires to 4 5 and 6 so I can put them on the correct coils. The wires coming from the coil driver to cylinders 4,5 and 6 I need the colors of wires.
Aug 6, 2022 at 3:53 PM
Advertisement
Avatar
STEVE W.
  • CERTIFIED EXPERT
  • 15,113 POSTS

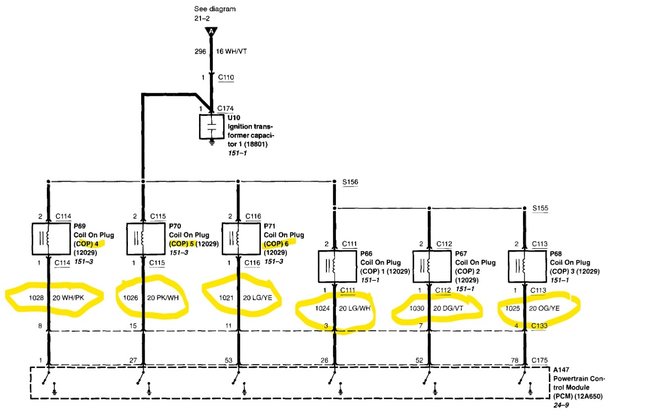

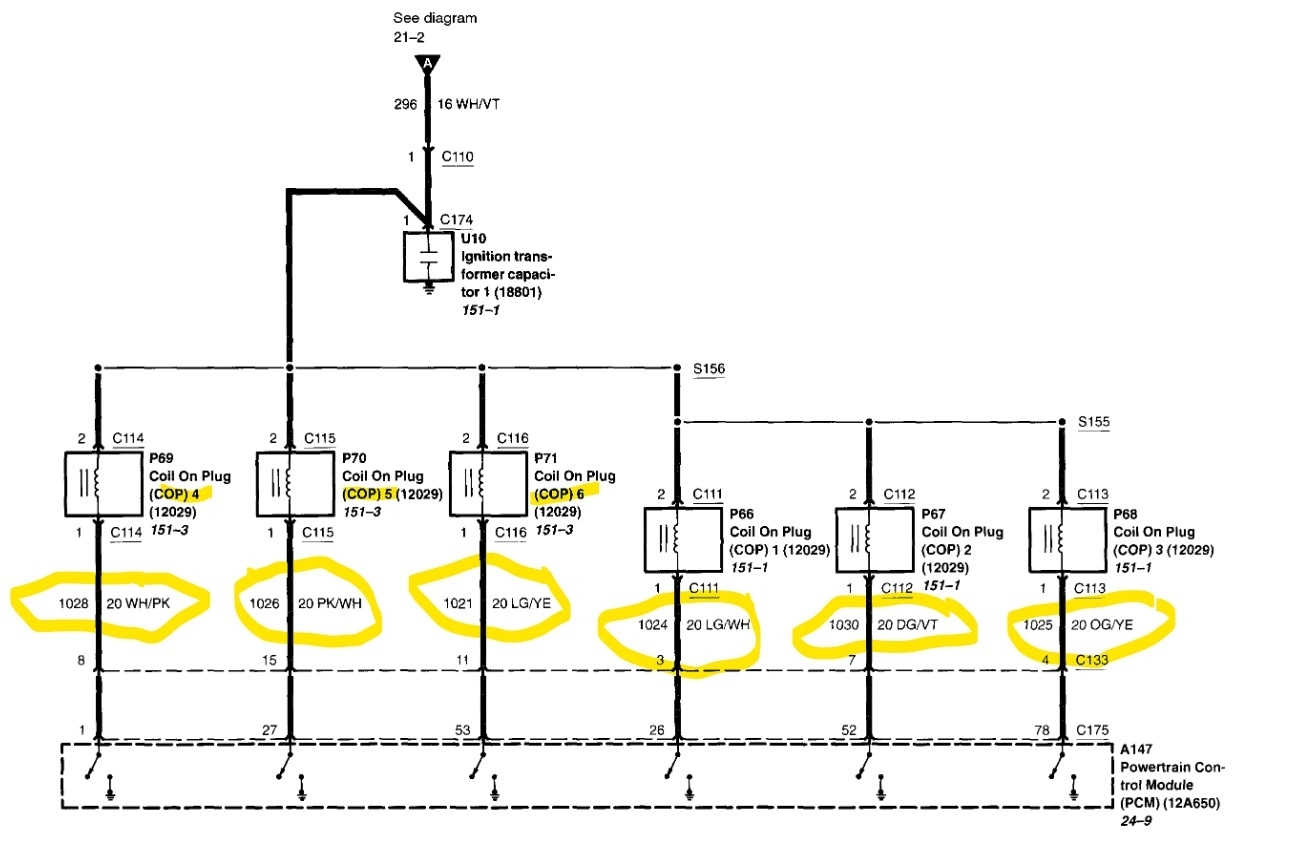

That's a bit of an oops. Here is the OE diagram, in the event it's hard to read the coil wires are 4 -white with pink trace, 5 -pink with white trace and 6 -light green with yellow trace.
Image (Click to enlarge)
Attached Media
Aug 6, 2022 at 4:14 PM
Avatar
ROXYPERRIN6569
  • MEMBER
  • 2 POSTS
Thanks, I'm going to be on it when it stops raining.
Aug 6, 2022 at 4:50 PM
Advertisement
Avatar
STEVE W.
  • CERTIFIED EXPERT
  • 15,113 POSTS
We'll be here.
Aug 6, 2022 at 6:10 PM
