code p1706

Hi,

Here are the diagnostics for the code. The attached pics correlate with these directions.

________________


pic 1

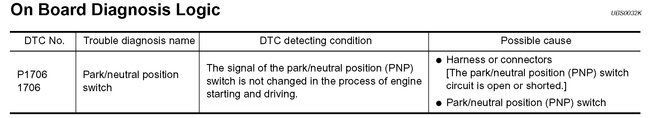

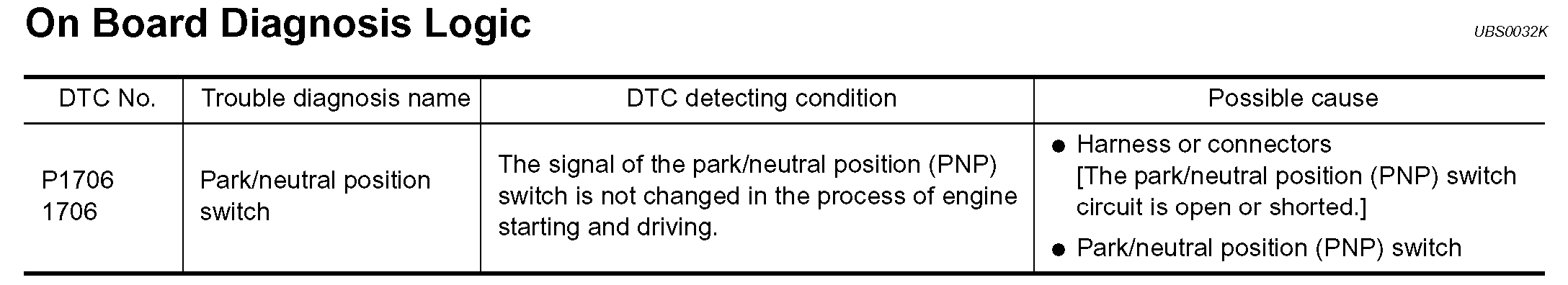

On Board Diagnosis Logic

DTC Confirmation Procedure

CAUTION: Always drive vehicle at a safe speed.

NOTE: If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at least 10 seconds before conducting the next test.

WITH CONSULT-II
1. Turn ignition switch ON.


pic 2

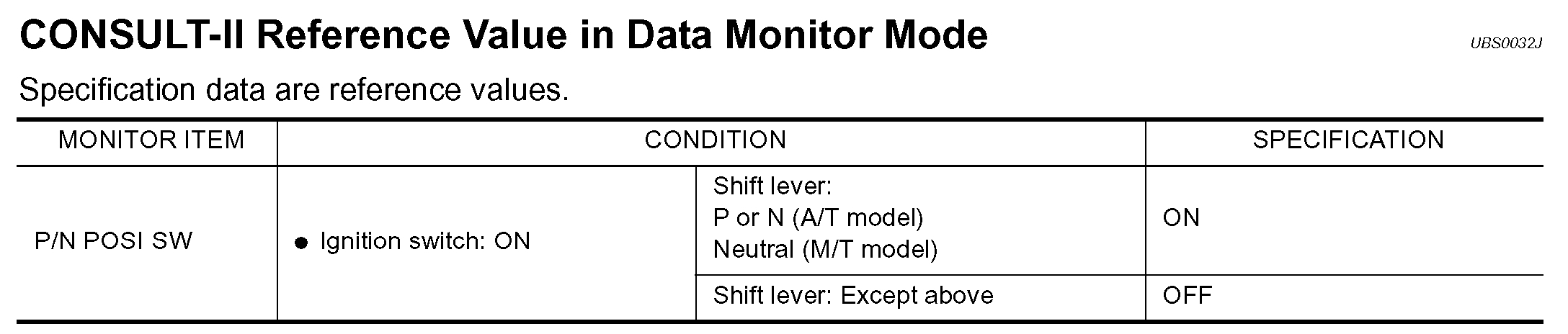

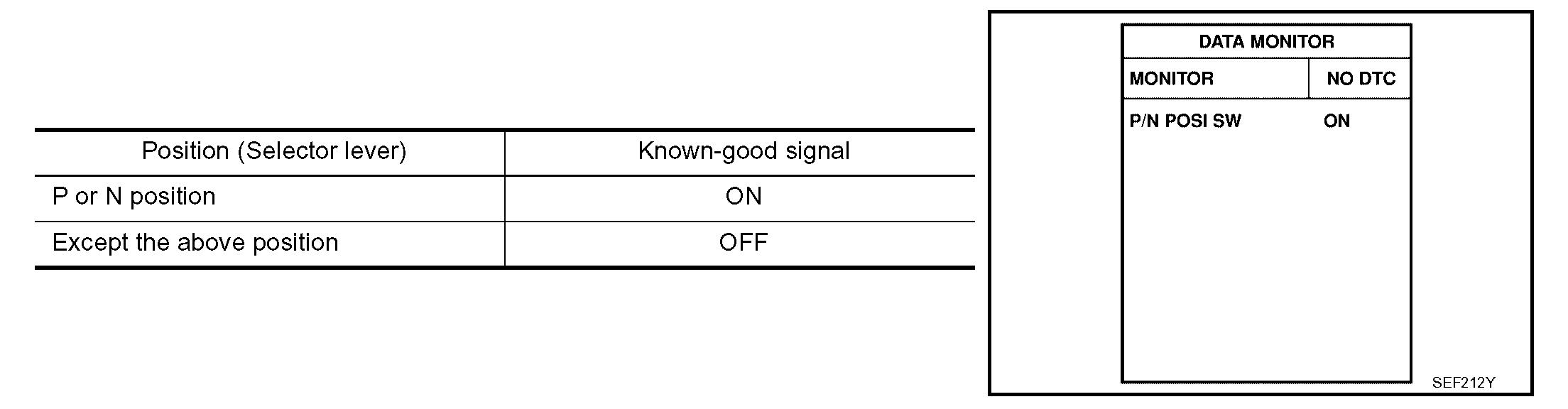

2. Select "P/N POSI SW" in "DATA MONITOR" mode with CONSULT-II. Then check the "P/N POSI SW" signal under the given conditions.
If NG, go to "Diagnostic Procedure" below.
If OK, go to following step.

3. Select "DATA MONITOR" mode with CONSULT-II.
4. Start engine and warm it up to normal operating temperature.

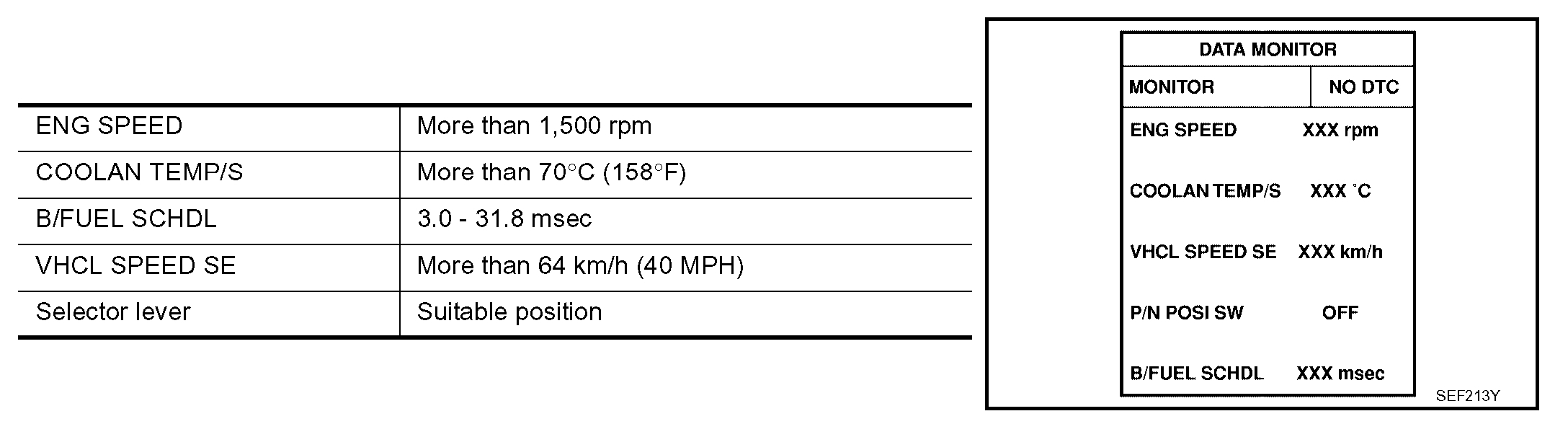

pic 3

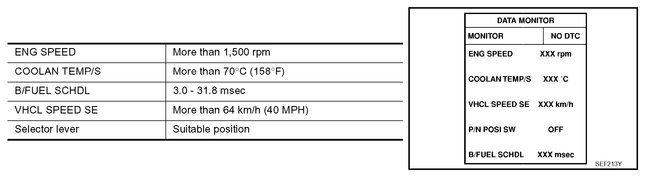

5. Maintain the given conditions for at least 60 consecutive seconds.
6. If 1st trip DTC is detected, go to "Diagnostic Procedure" below.

Overall Function Check
Use this procedure to check the overall function of the park/neutral position (PNP) switch circuit. During this check, a 1st trip DTC might not be confirmed.

WITH GST
1. Turn ignition switch ON.

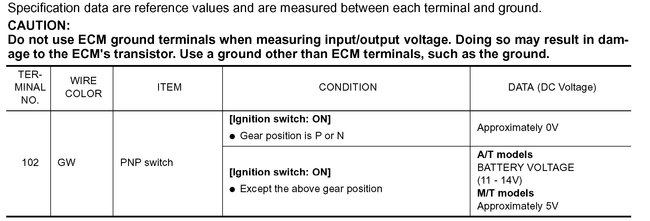

pic 4

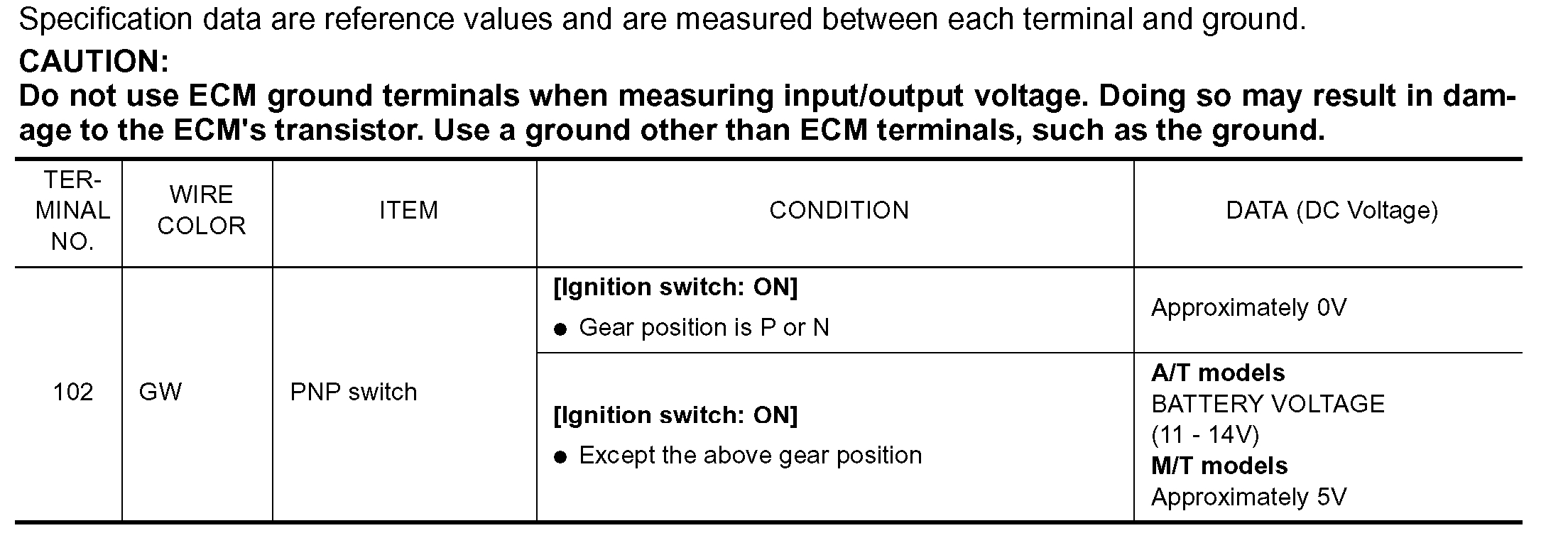

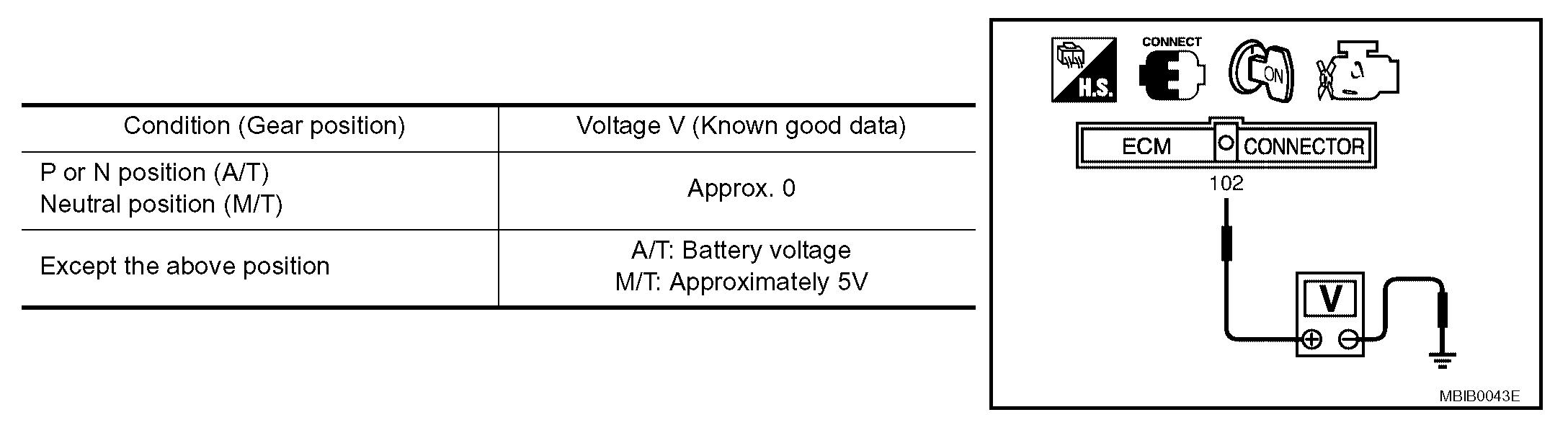

2. Check voltage between ECM terminal 102 (PNP switch signal) and ground under the given conditions.
3. If NG, go to "Diagnostic Procedure" below.

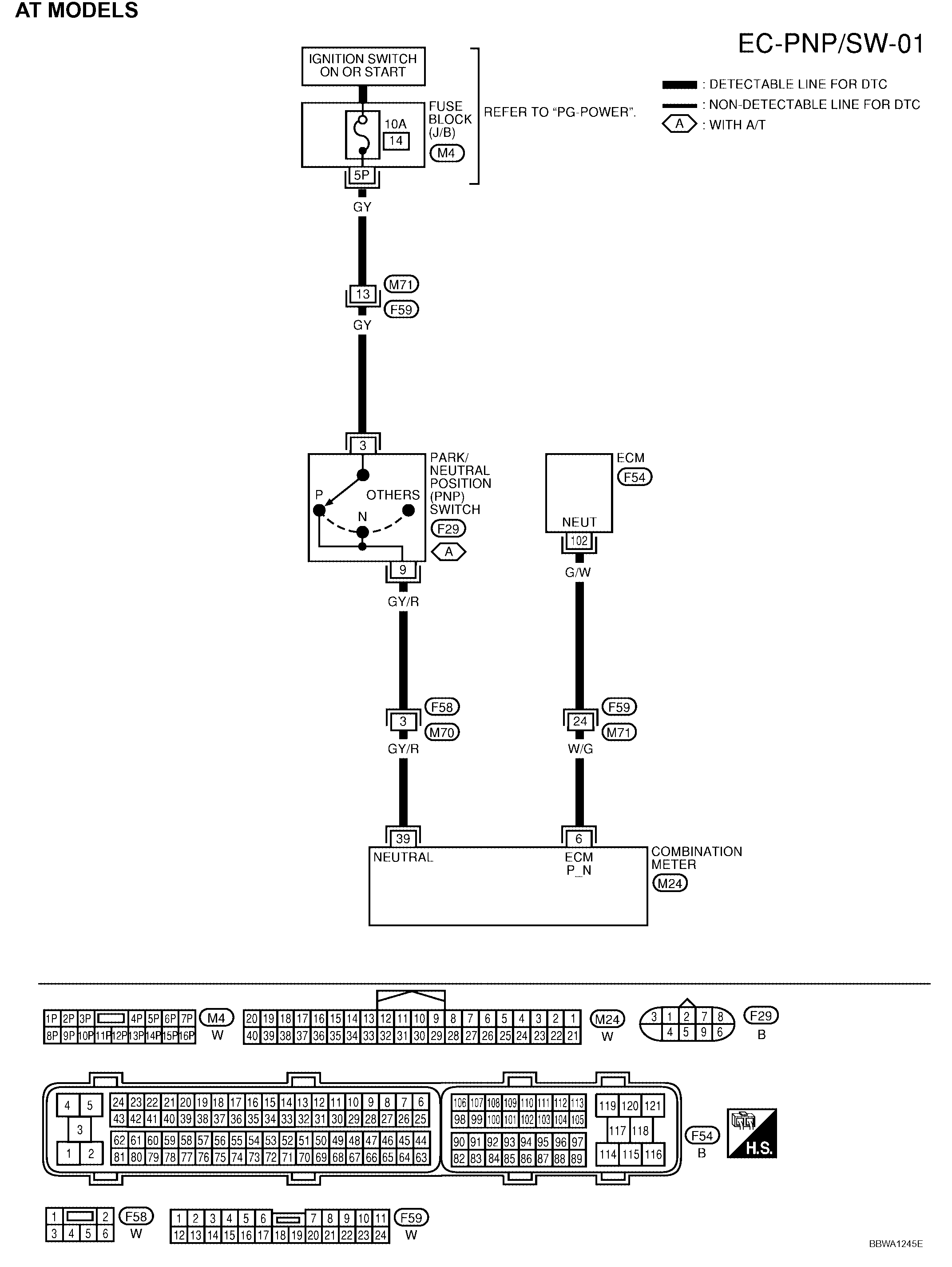

EC-PNP/SW-01
pic 5

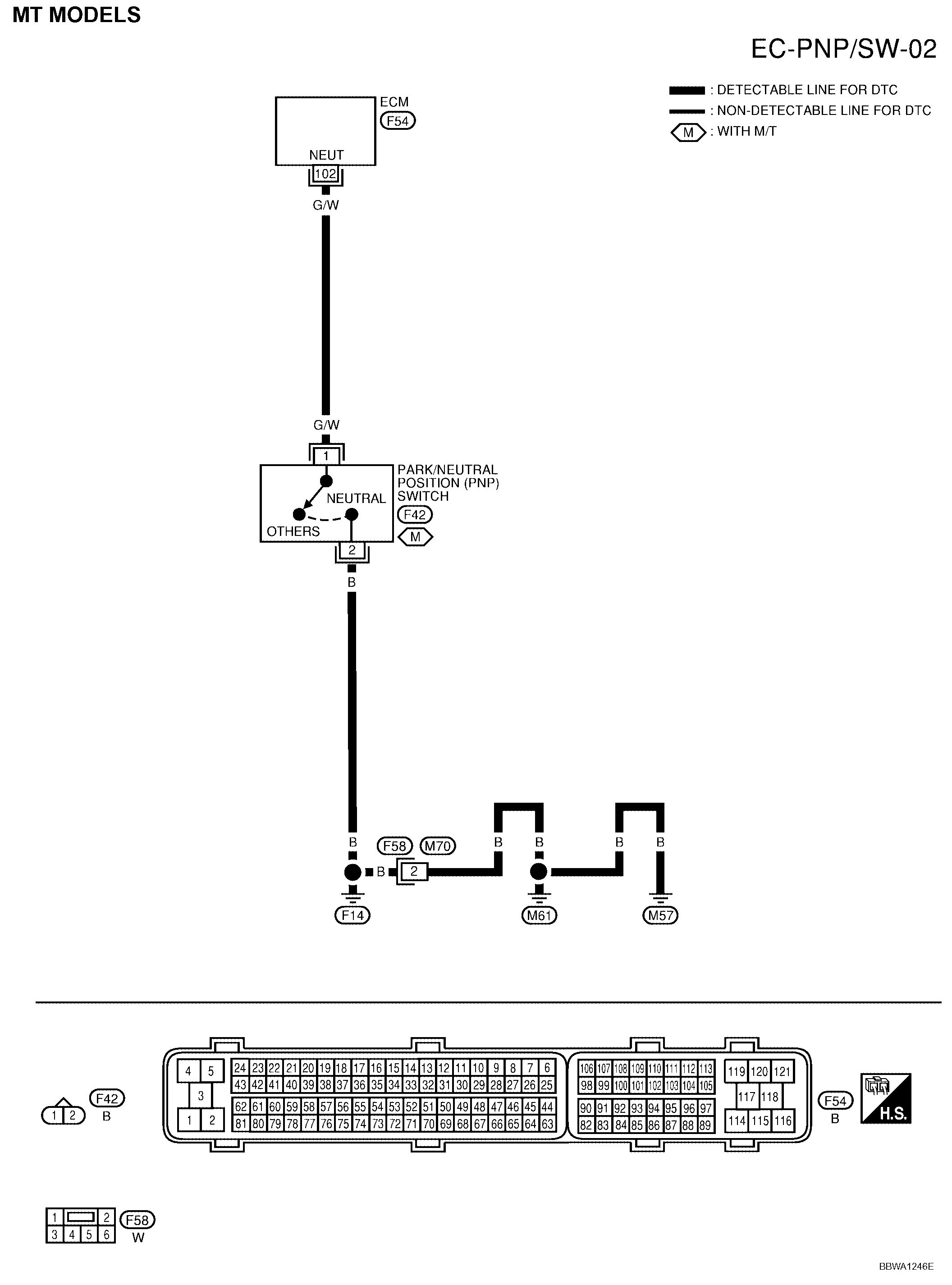

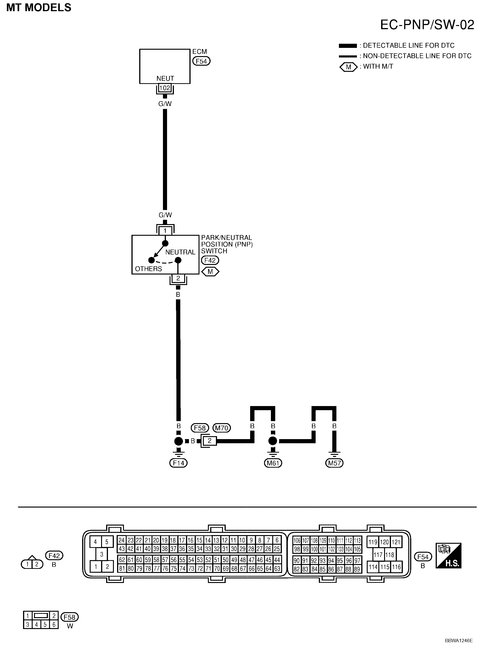

EC-PNP/SW-02
pic 6


pic 7

Wiring Diagram

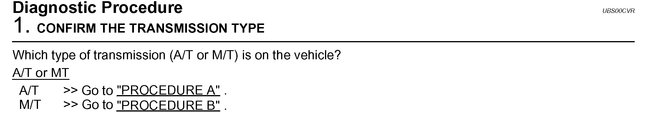

Diagnostic Procedure
Diagnostic Procedure (Step 1)
pic 8

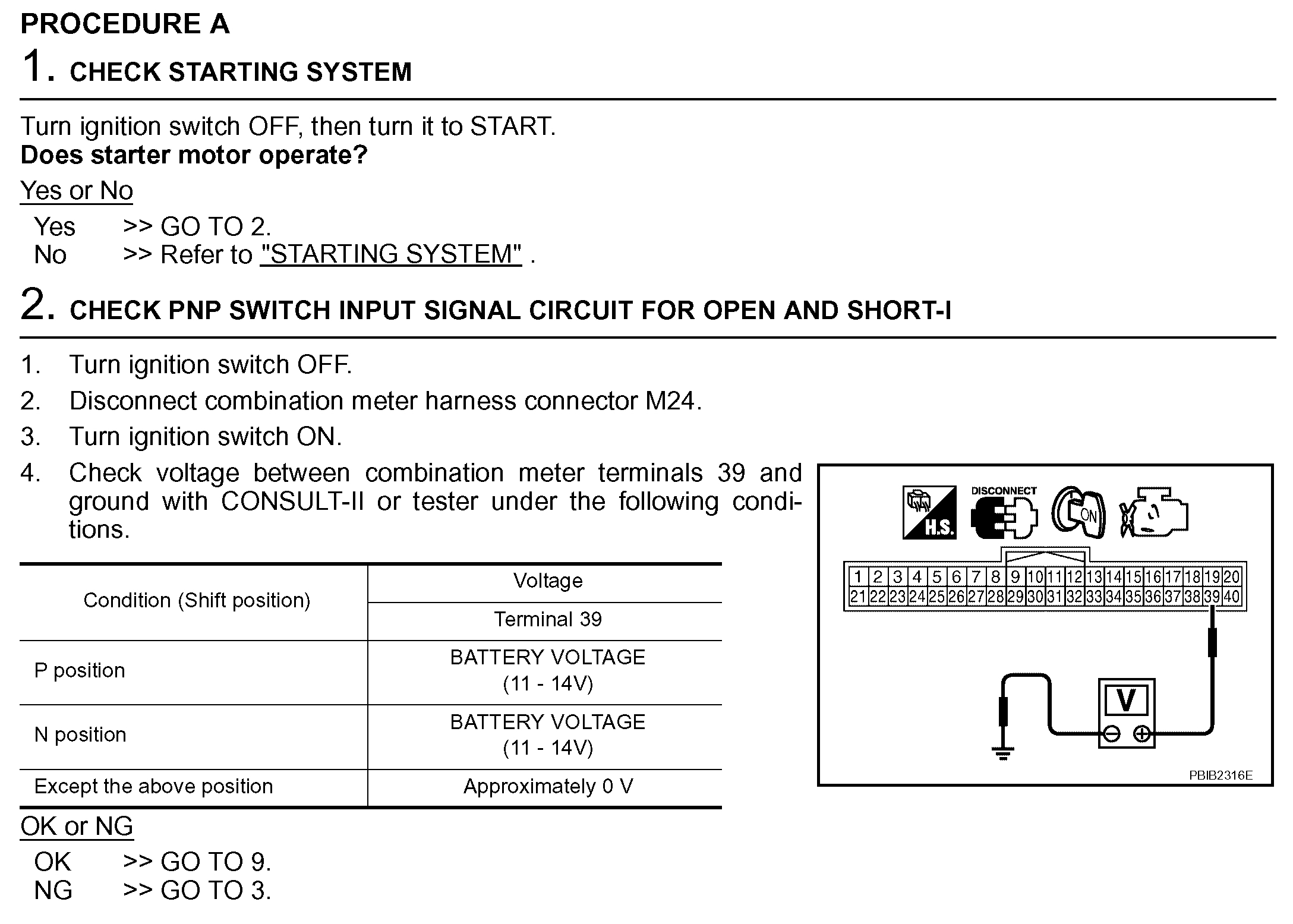

PROCEDURE A
Procedure A (Steps 1 - 2)
pic 9

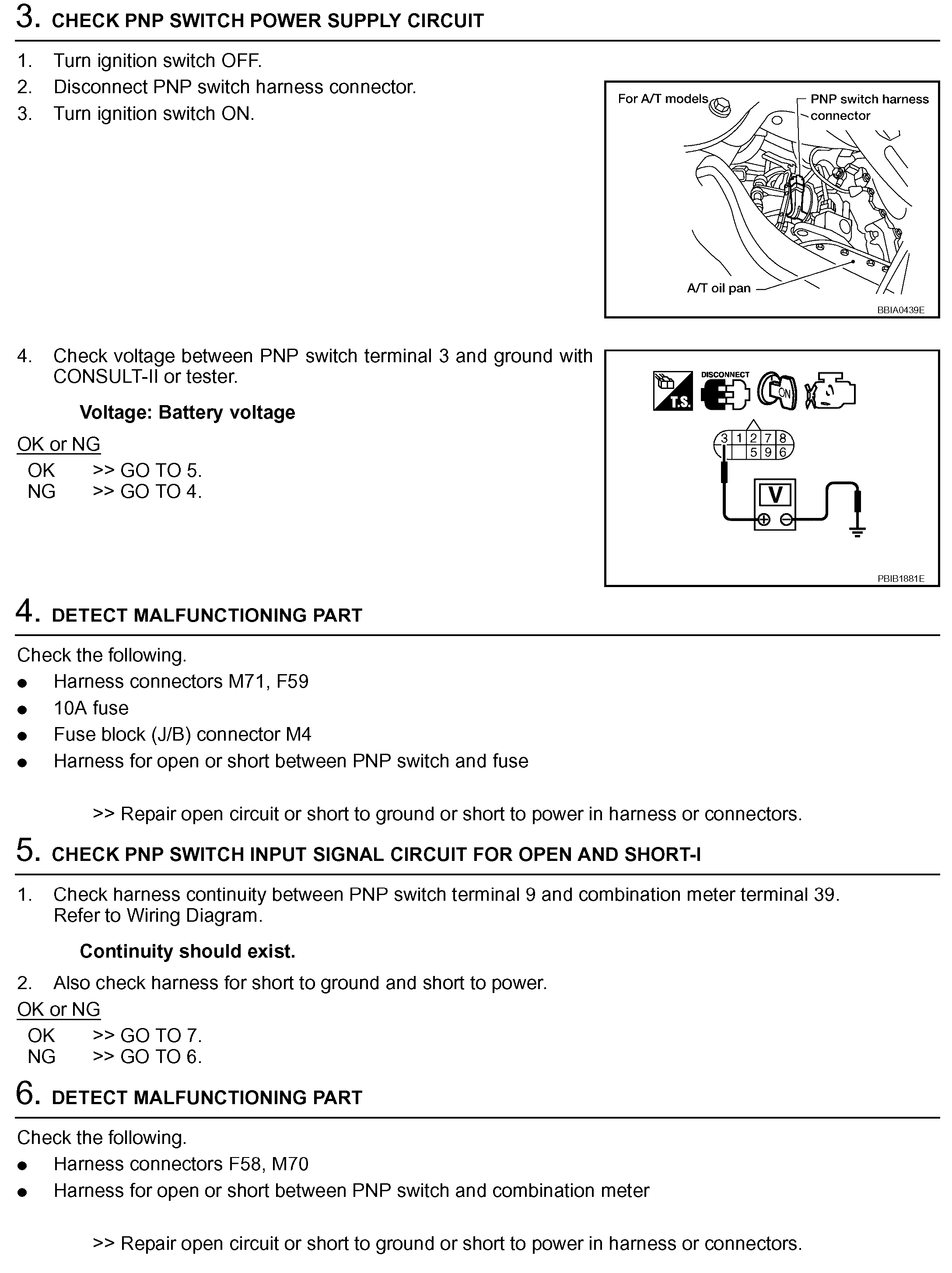

Procedure A (Steps 3 - 6)
pic 10

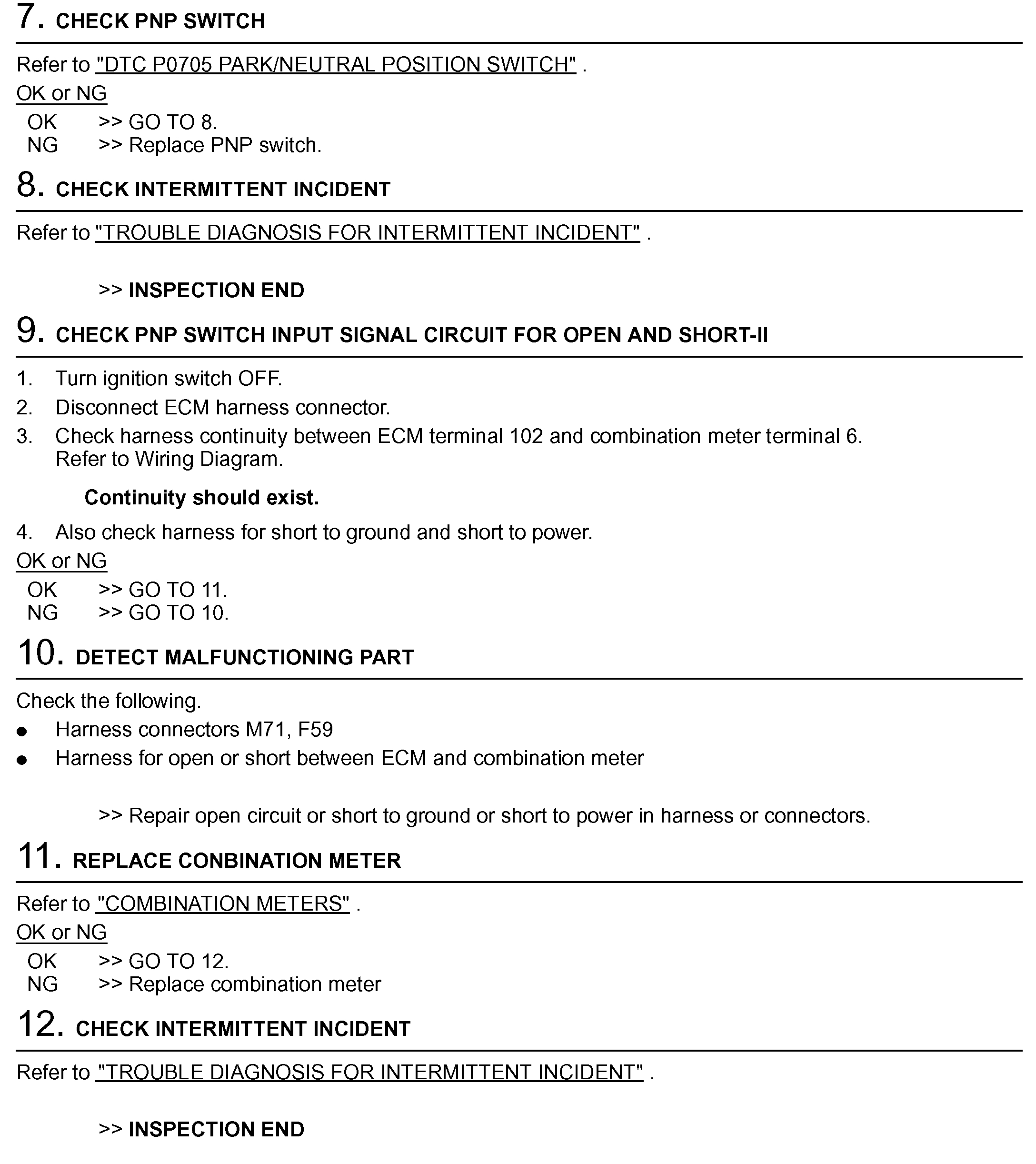

Procedure A (Steps 7 - 12)
pic 11

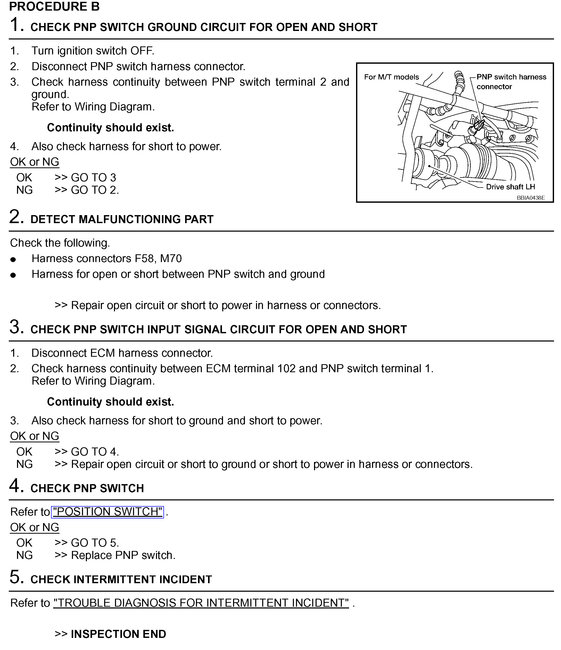

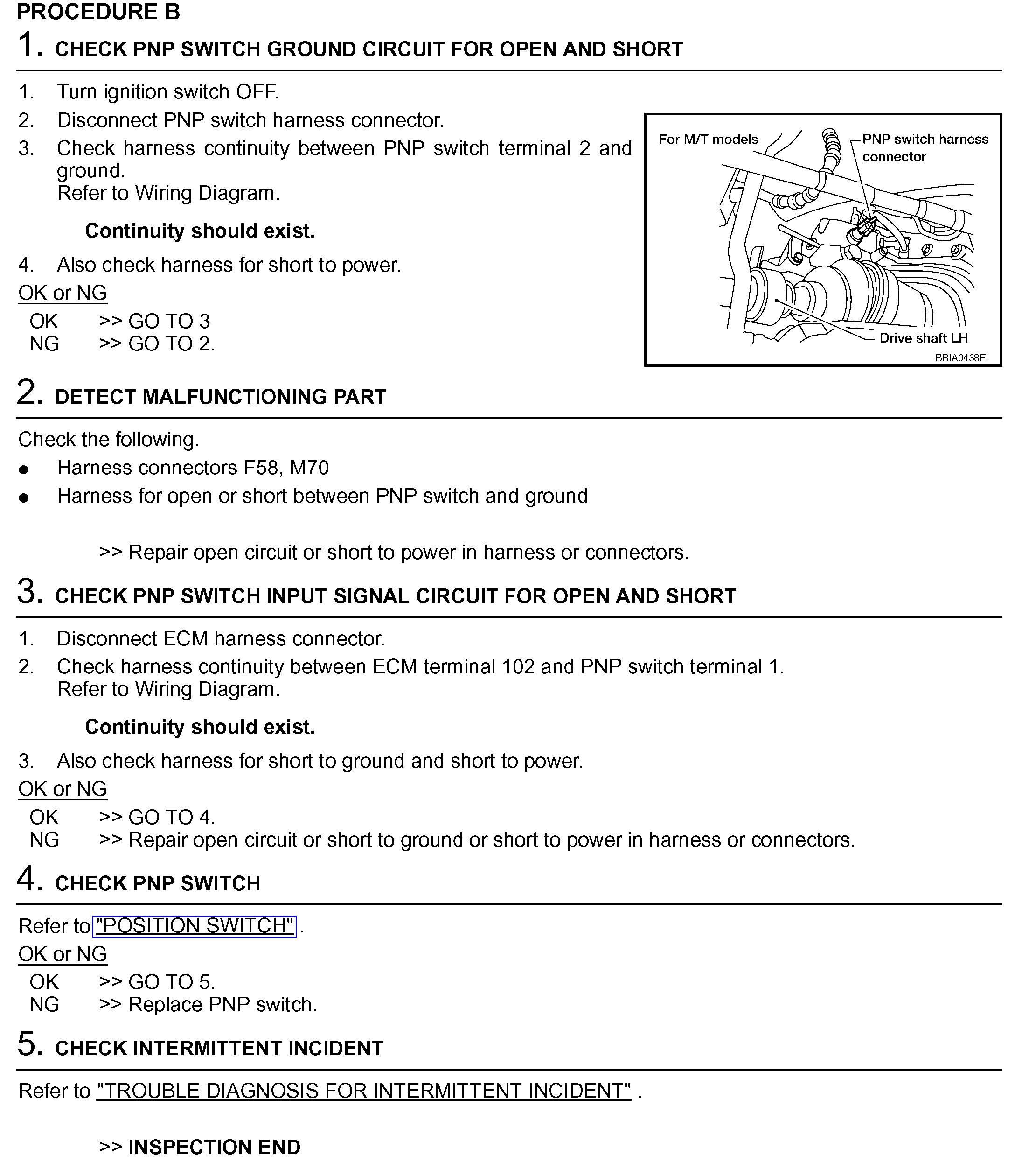

PROCEDURE B
Procedure B
pic 12

______________

Let me know if this helps.
Joe
