Code P0715?

2003 HONDA CIVIC
220,000 MILES • 1.7L • 4 CYL • 2WD • AUTOMATIC
Avatar
JUSTICEBISMARCK
  • MEMBER
  • 2 POSTS
I have the car listed above Ex model coupe. I got a P0715 code with the following description: "Cvt Input Shaft (Drive Pulley) Speed Sensor Malfunction". I am wondering what it could be.
Jun 23, 2025 at 12:00 PM
Advertisement
Avatar
JACOBANDNICKOLAS
  • CERTIFIED EXPERT
  • 110,175 POSTS
Hi,

As far as the code is concerned, it is related to the transmission's main shaft speed sensor. Chances are it is the sensor, but it could also be a wiring related issue.

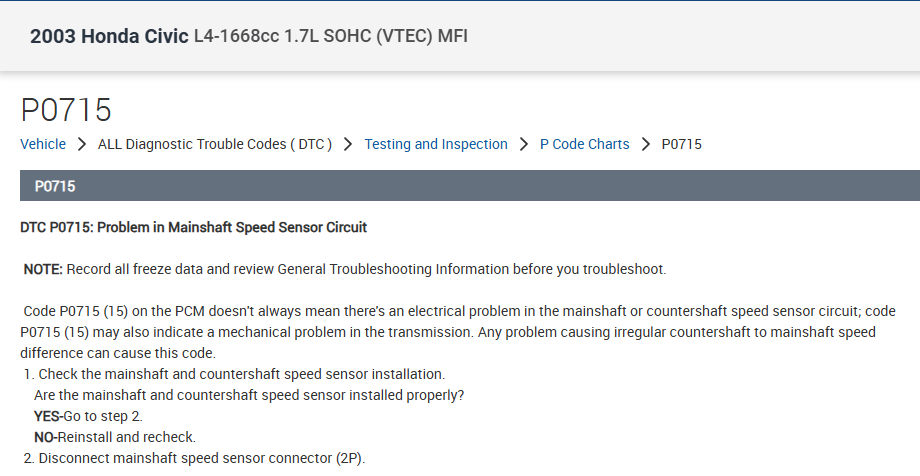

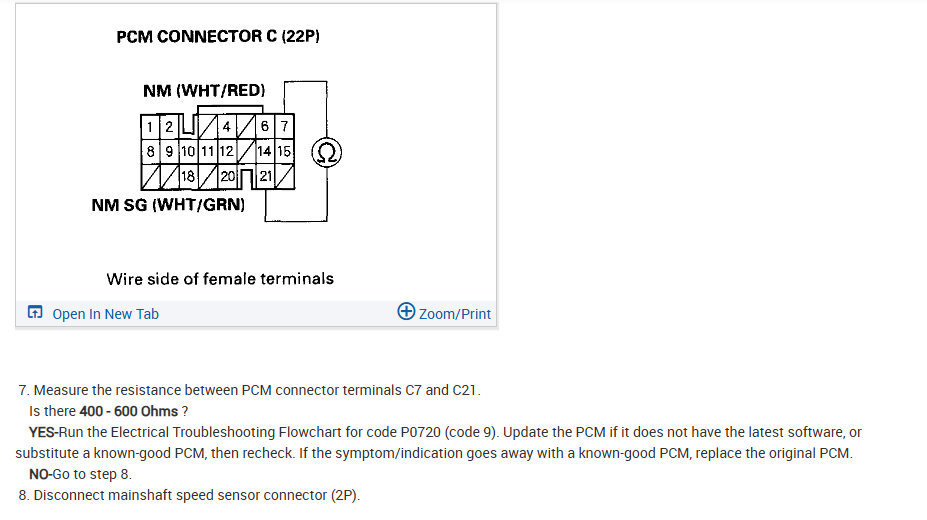

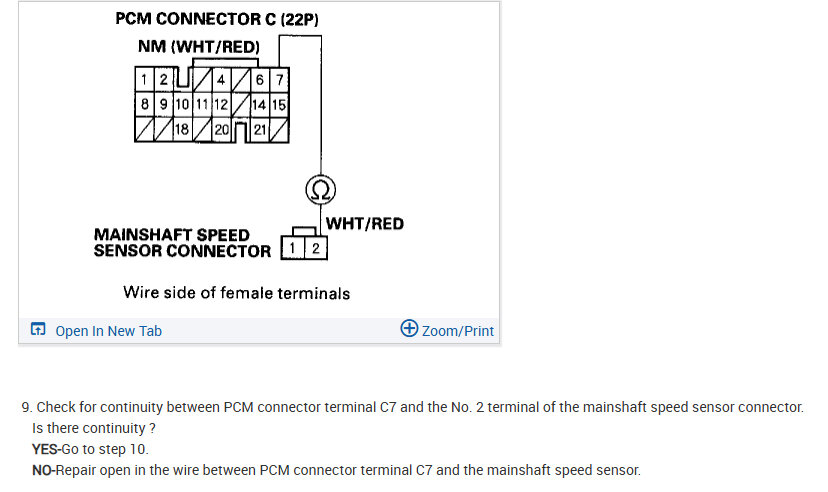

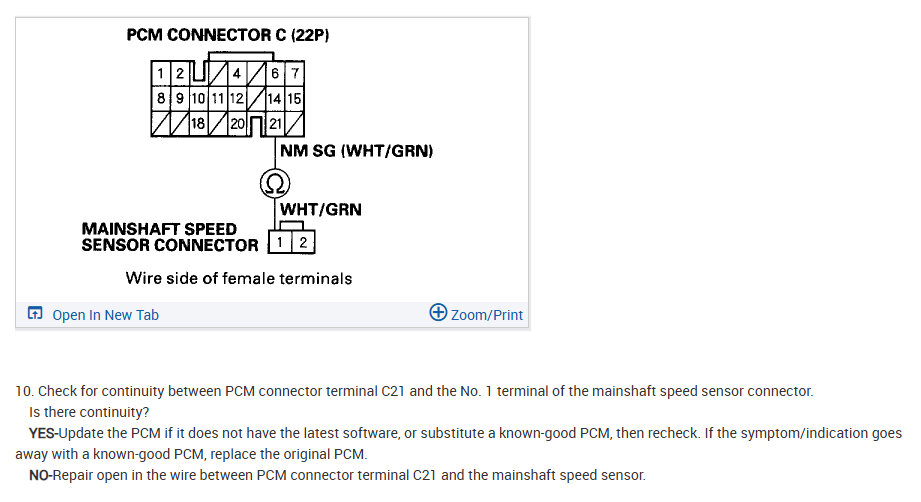

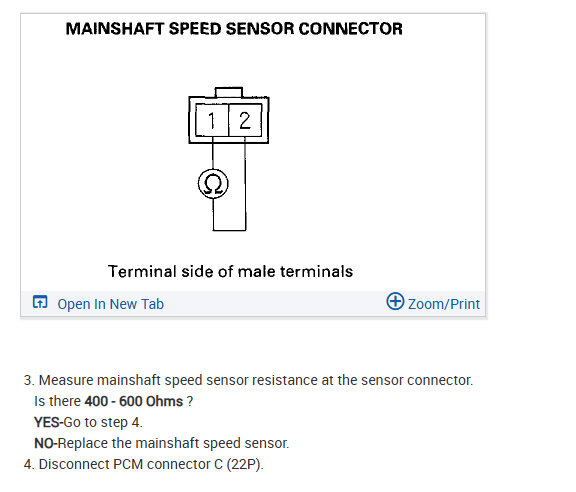

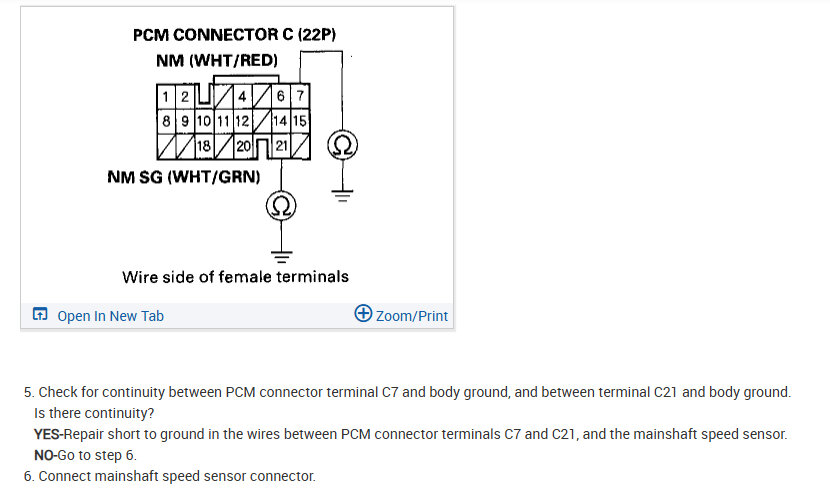

I attached the diagnostics below. I'm not familiar with your abilities, so you may look at them and not want to attempt it. However, I wanted to add them in the event you are comfortable.

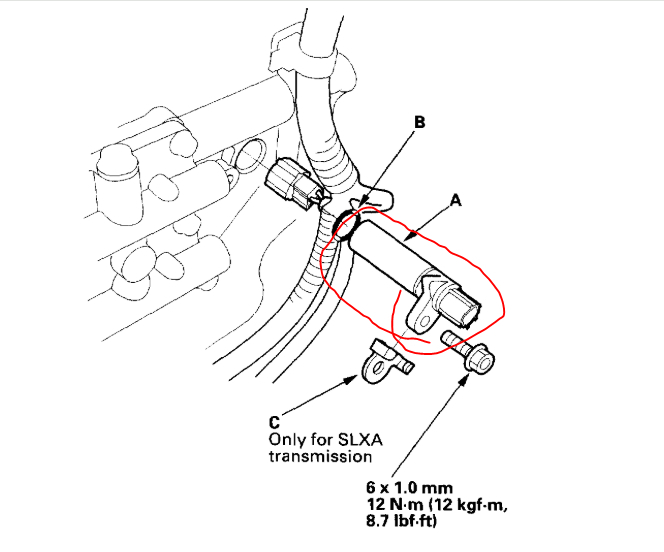

The last pic I attached shows the sensor. It is on the side of the transmission.

Let me know if this helps or if you have other questions.

Take care,

joe

See pics below.
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Jun 23, 2025 at 9:04 PM
Avatar
JUSTICEBISMARCK
  • MEMBER
  • 2 POSTS
Sorry for the late reply, I did get the main shaft speed sensor installed. I seem to have clear the code. I am wondering if I should just continue with my regular maintenance with a peace of mind or get it full inspection since the vehicle is extremely old?
Jul 8, 2025 at 6:56 PM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
I would change the transmission fluid and use the Type Honda ATF-Z1 fluid only, some of these cars have an external filter, please go over this video so you can see what I am talking about.

https://www.youtube.com/watch?v=pHPkHP4m0SM&pp=0gcJCb4JAYcqIYzv

If everything works good and you have no warning lights, you should be good to go :)
Jul 10, 2025 at 9:12 AM
