Climate control

2006 SUZUKI AERIO
120,000 MILES • 4 CYL • 2WD • AUTOMATIC
Avatar
PRODIGAL.S.81
  • MEMBER
  • 13 POSTS
I have one middle vent blowing cold air and passenger vent blowing cold air. Drivers side is hot. I tried to see if the blender actuators were working but a little hard to see. Would bad blenders be the issue? I put gauge on A/C line and it went to red and said system malfunction.
Jun 5, 2019 at 5:18 PM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS

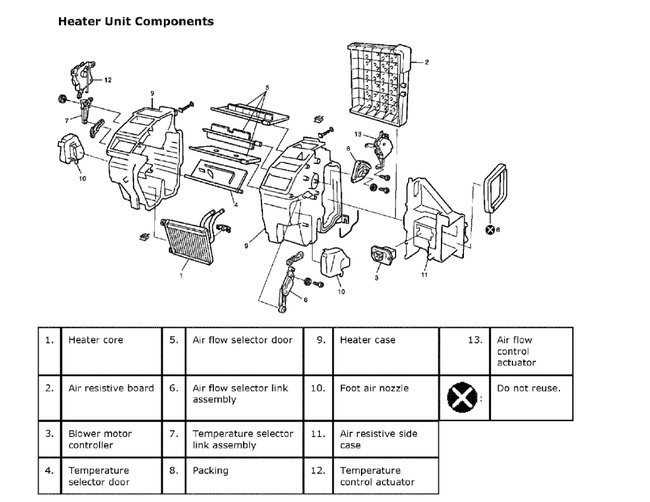

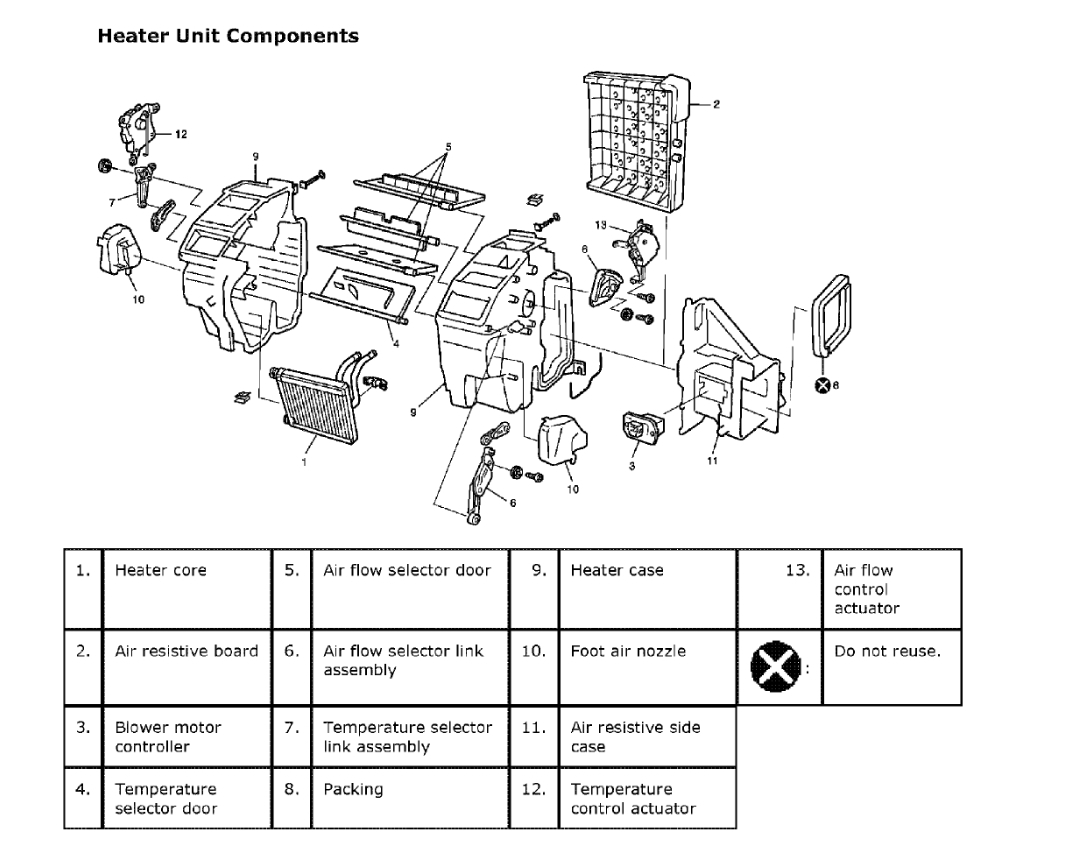

It does sounds like the drivers side actuator is not working. here is a guide to help walk you through the repairs with diagrams for your car below. Do you have dual climate control?

https://www.2carpros.com/articles/replace-blend-door-motor

Check out the diagrams (below). Please let us know what you find.
Image (Click to enlarge)
Attached Media
Jun 8, 2019 at 2:00 PM
Avatar
PRODIGAL.S.81
  • MEMBER
  • 13 POSTS
Okay, I checked the blend doors and all seem to be working. I cycled all the settings and saw the actuators moving. The car is a single climate control I believe cause there are no controls on passenger side. Is there anything else that would cause hot air on drivers side?
Jun 23, 2019 at 8:33 AM
Advertisement
Avatar
PRODIGAL.S.81
  • MEMBER
  • 13 POSTS
I only found three blend doors. One on drivers side and two on passengers.
Jun 23, 2019 at 8:34 AM
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
Can you take a picture of your climate controls so I can see them? If it is just one side not working it is either a blend door actuator or inside the heater plenum a door has broken which means the plenum will need to be replaced. You can upload the picture in your response.
Jun 24, 2019 at 9:54 AM
Avatar
PRODIGAL.S.81
  • MEMBER
  • 13 POSTS

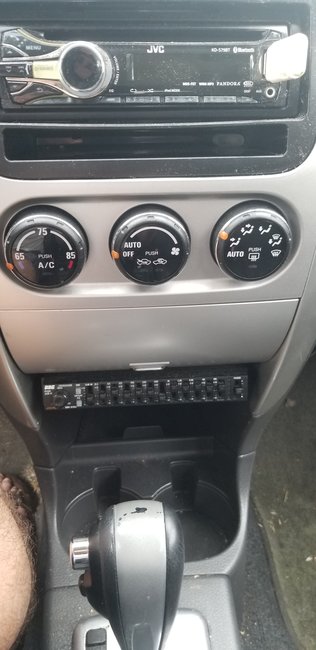

This is the climate control.
Image (Click to enlarge)
Attached Media
Jun 24, 2019 at 3:17 PM
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS

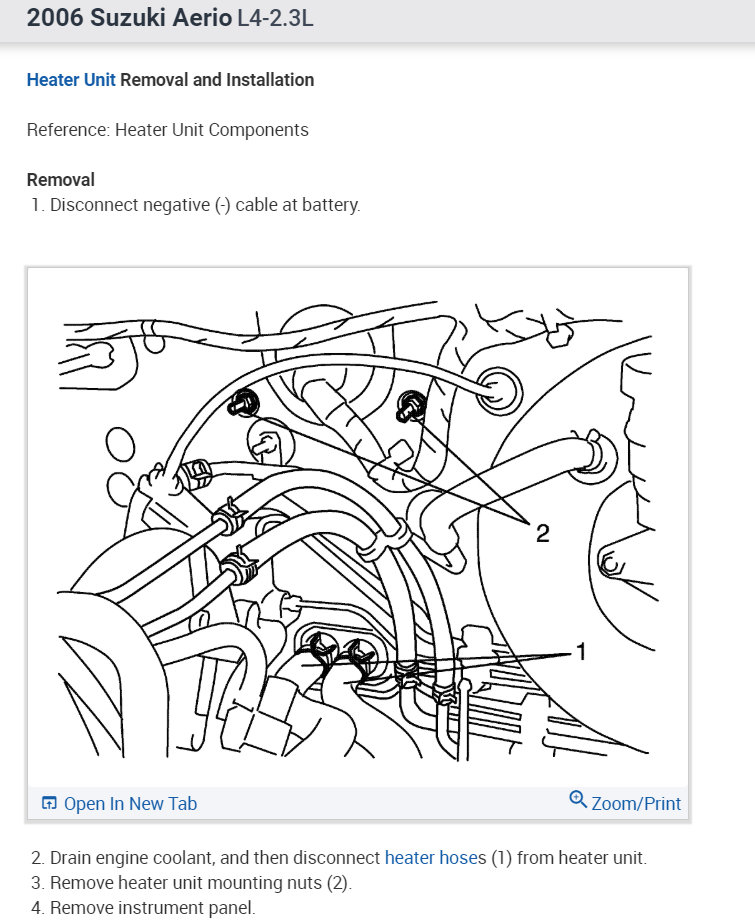

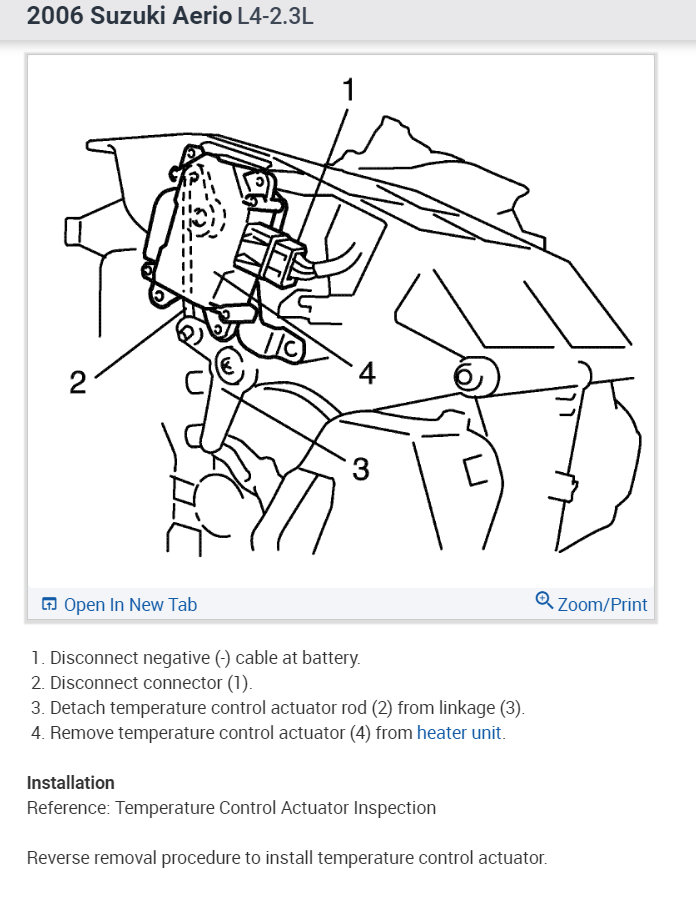

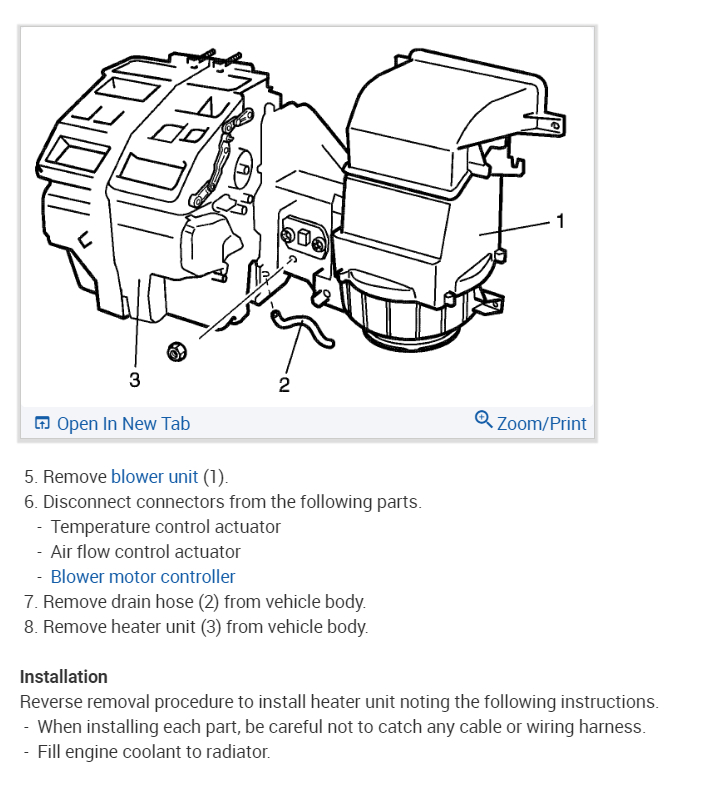

Yep, signal control. It looks like you have a broken blend door. you will need to remove the heater plenum. here are instructions and diagrams to help you get the job done. Start by draining the coolant and disconnecting the battery. Also you will need to discharge the AC system. here are guides to help check out the diagrams below.

https://www.2carpros.com/articles/re-charge-an-air-conditioner-system

Check out the diagrams (below). Please let us know what you find. We are interested to see what it is.
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Jun 25, 2019 at 11:23 AM
Avatar
PRODIGAL.S.81
  • MEMBER
  • 13 POSTS
Ok I went into it and all the blend doors are working. It is odd there is cool air blowing out the passenger middle vent but hot air blowing out drivers middle vent. It all comes from same vent. It T's right before vents. So it has same feed. I charged it last summer and when I tried this summer the gauge went strait to red and said maintenance required. What else could be the cause of this
Jul 23, 2019 at 2:00 PM
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
Did you try removing the blend door actuator and moving the pivot to see if the temp changes? It sounds like you have a blend door that has broken internally.
Jul 24, 2019 at 9:42 AM
Avatar
PRODIGAL.S.81
  • MEMBER
  • 13 POSTS
No I haven't. Would that cause the gauge on low side to react the way it did
Jul 24, 2019 at 10:40 AM
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
Not really, was the compressor on (engages) when you check the pressure?
Jul 24, 2019 at 6:57 PM
