Can I get the climate control wiring diagrams?

Hi,

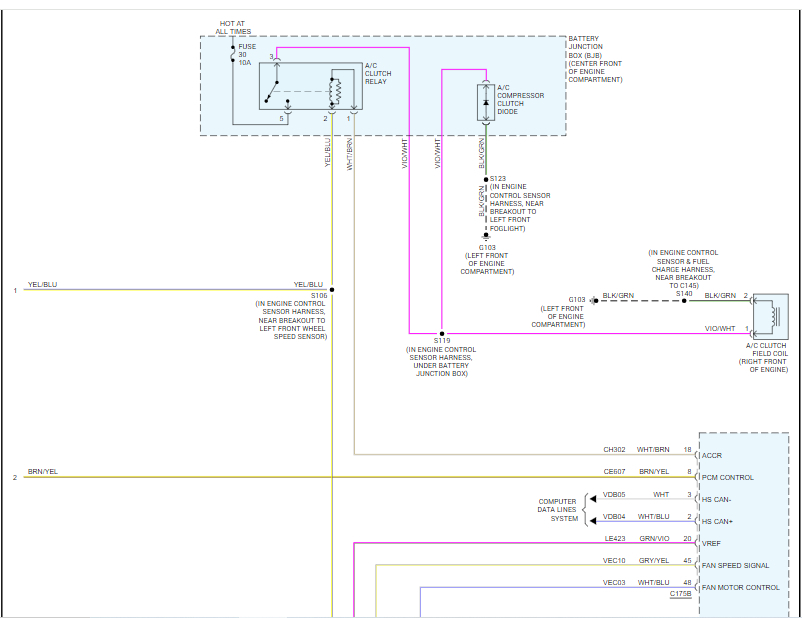

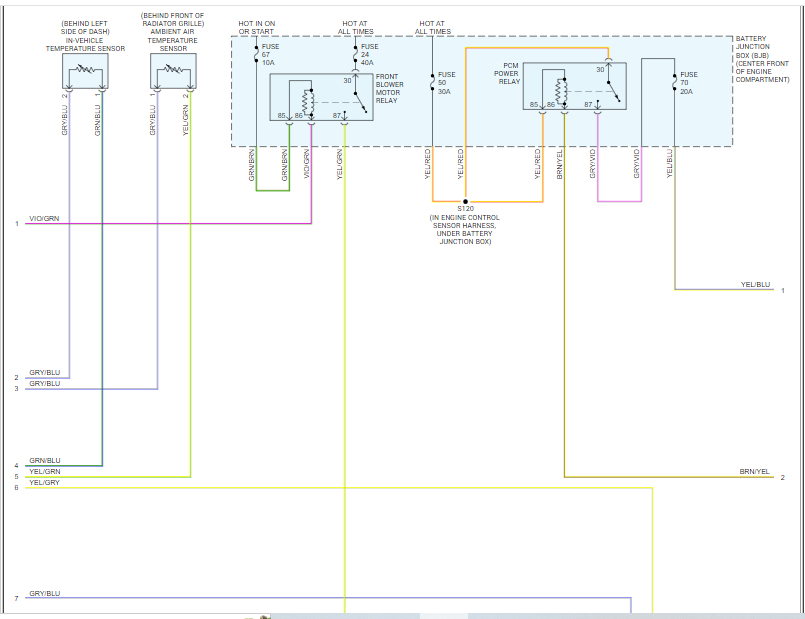

You are correct. It is three pages long. That is if it doesn't have an auxiliary climate control (rear heating/AC).

To make the schematics readable, I had to cut each page in half. I did overlap them so you can follow from one to the next. Take a look through them and let me know if you have questions.

Let me know if this helps.

Take care,

joe

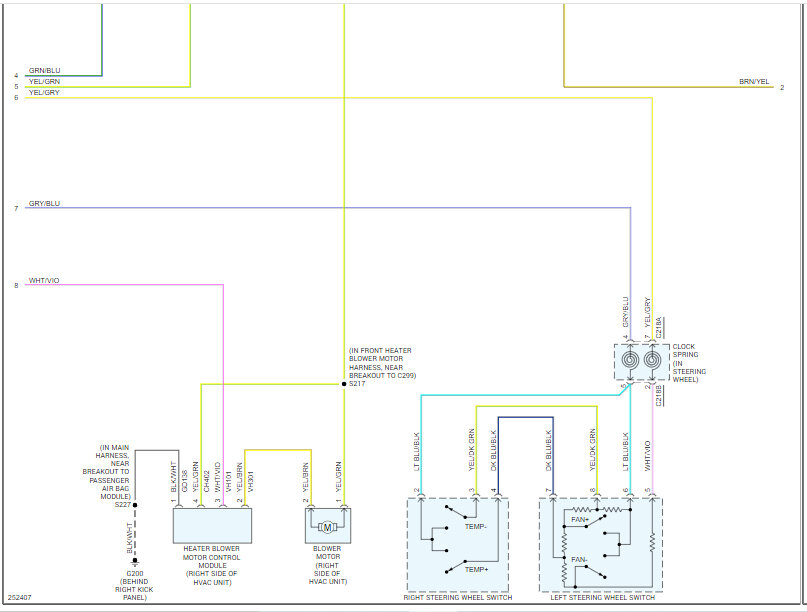

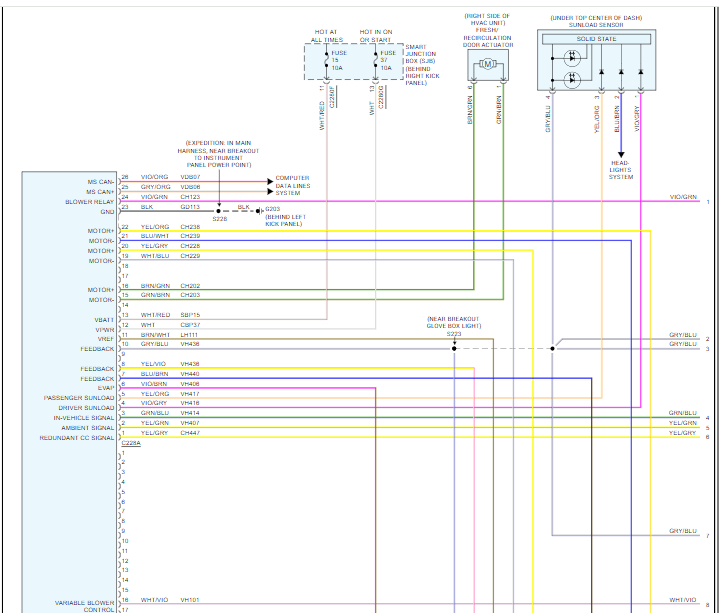

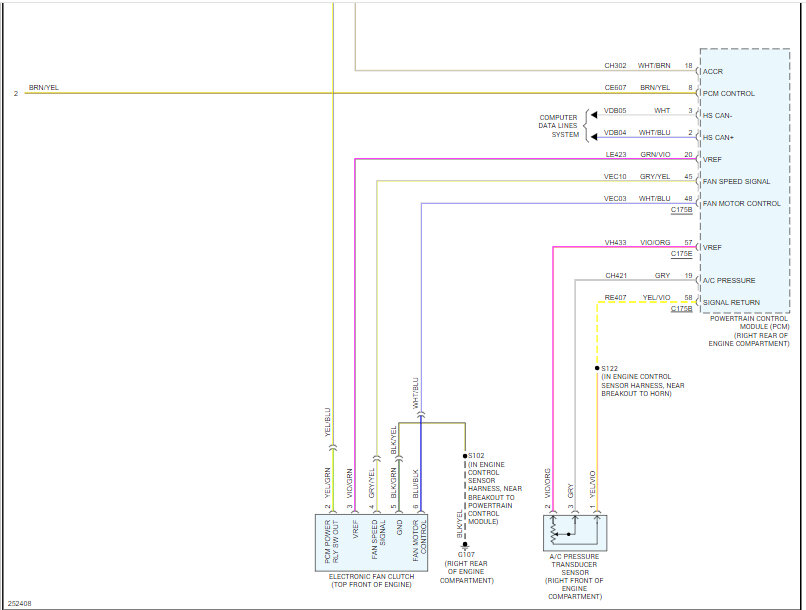

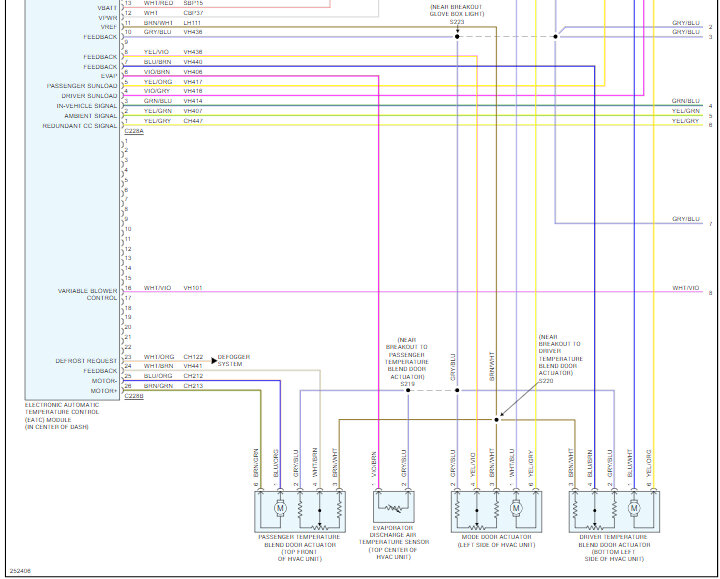

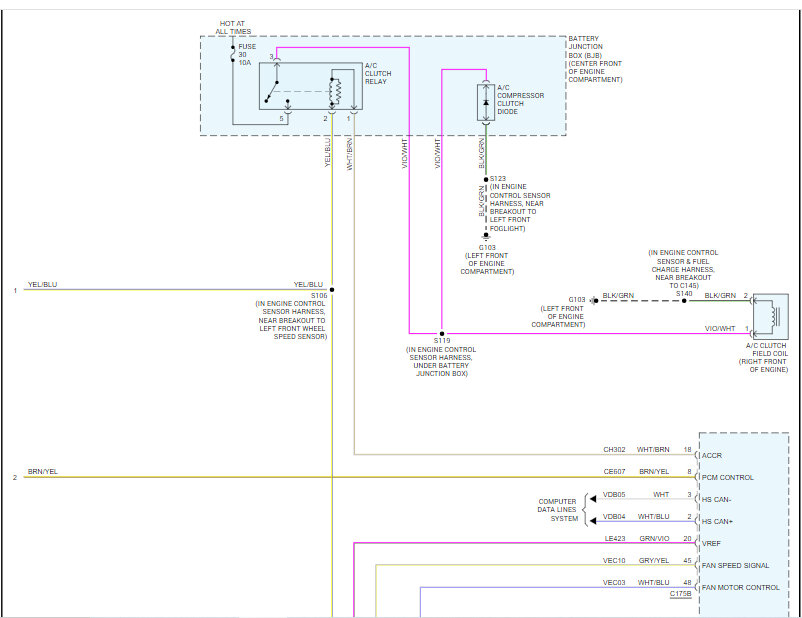

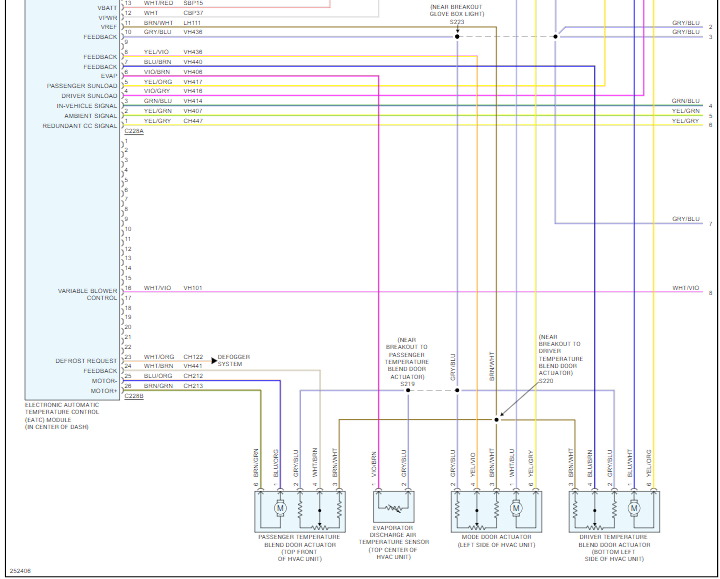

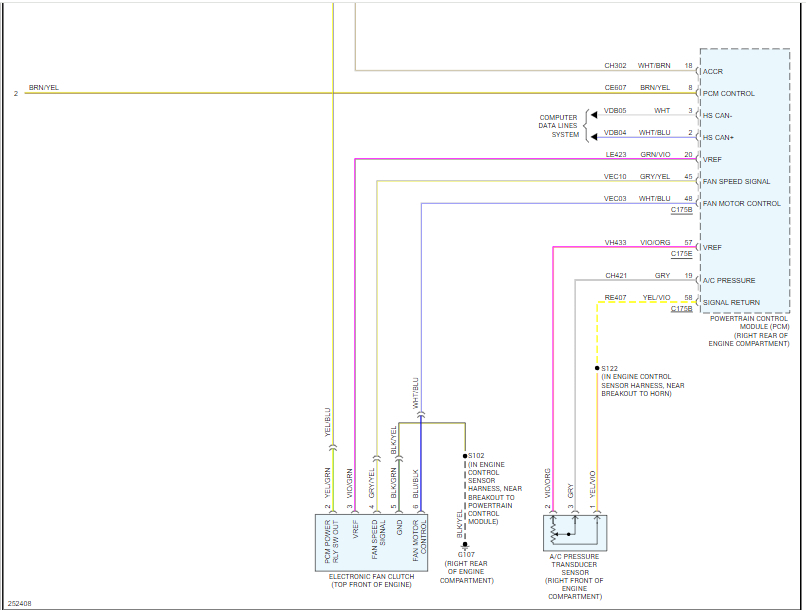

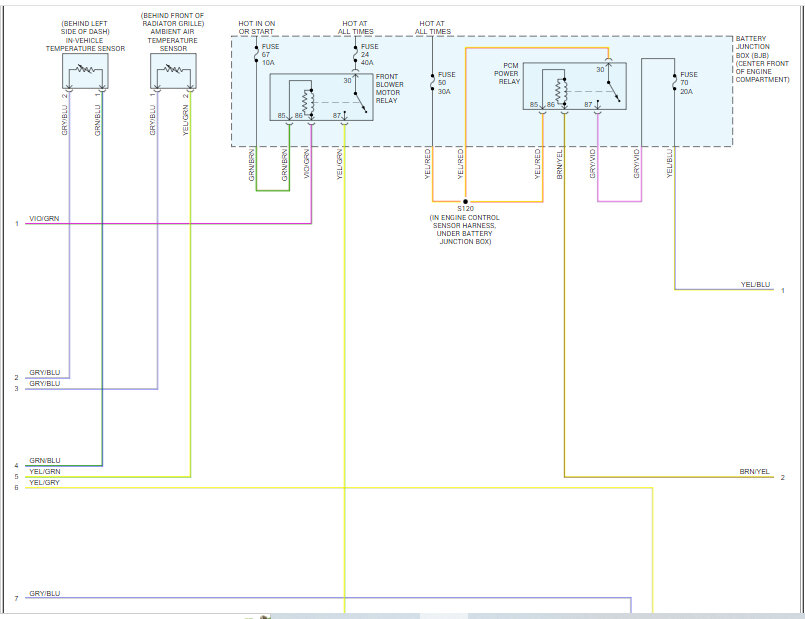

See pics below.

Thanks very much. It's very hard to find something on the internet.

Hi,

No problem whatsoever. I'm glad it helped.

Let me know if you have other questions or if I can help in any way.

Take care,

Joe
