cleaning throttle body

2005 TOYOTA SIENNA

127,000 MILES • V6 • 4WD • AUTOMATIC

IMAGING

MEMBER
151 POSTS
FOLLOW

What is the correct way of cleaning the throttle body, by spraying the throttle body cleaning inside the throttle body or by spraying the cleaner in a lint free cloth and then wiping down the throttle body?

Oct 17, 2021 at 5:07 AM

SQM

CERTIFIED EXPERT
6,383 POSTS

Hello,

You can spray throttle body cleaner directly into the throttle body. This will provide you with the best cleaning power.
Just be sure to use the correct type of cleaner.
It will be ideal to remove the throttle body from the vehicle and clean it.

Here is a helpful video and a guide:

https://youtu.be/bXyF3aP4GyY

https://www.2carpros.com/articles/throttle-actuator-service

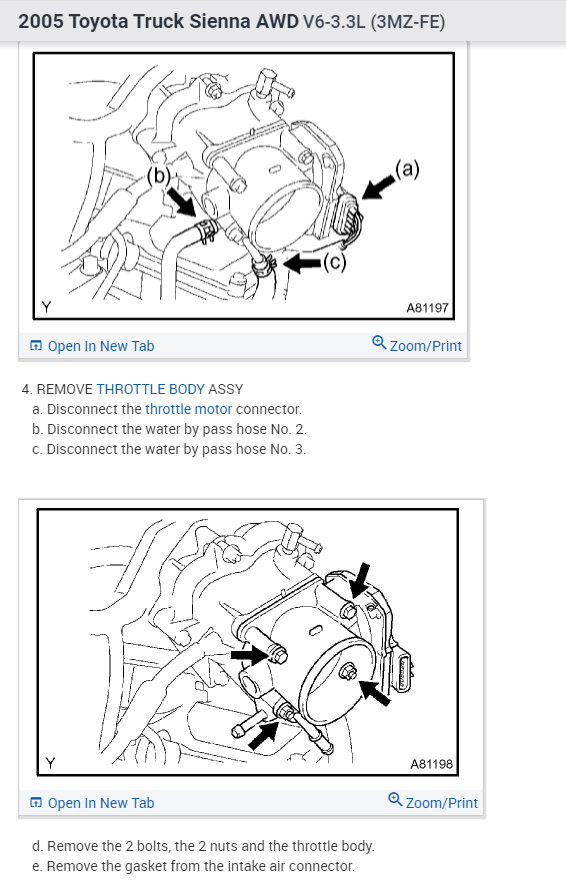

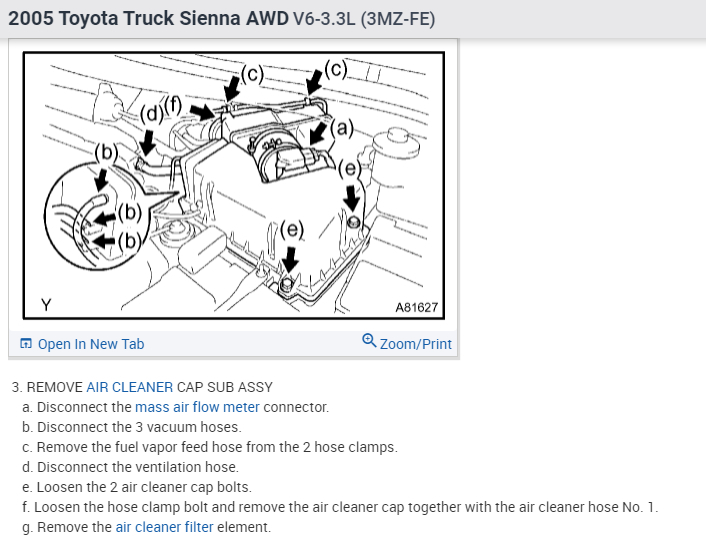

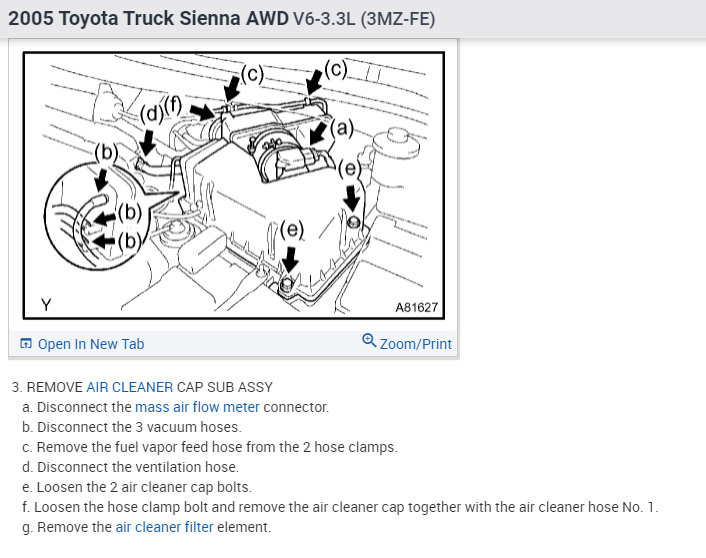

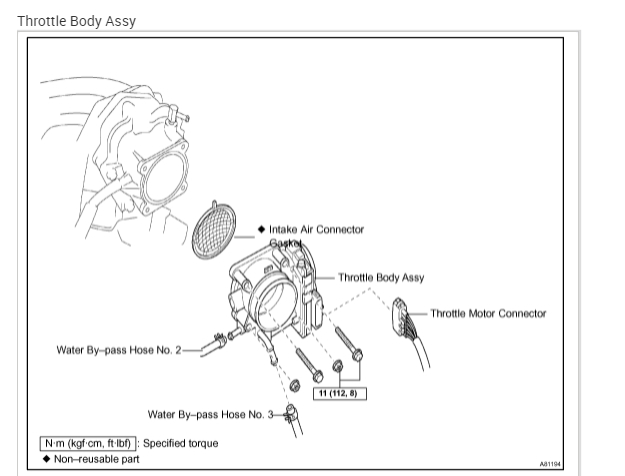

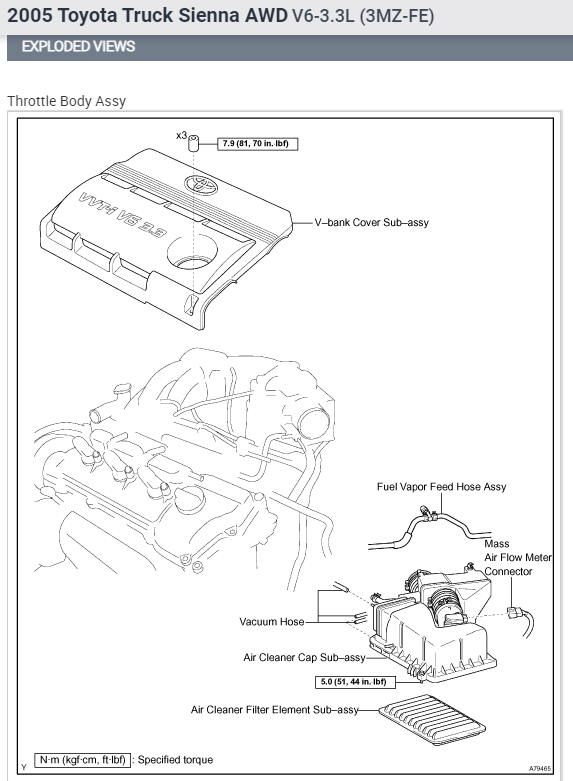

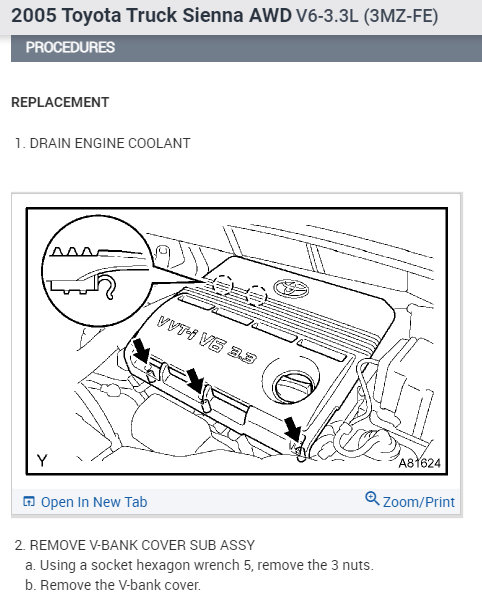

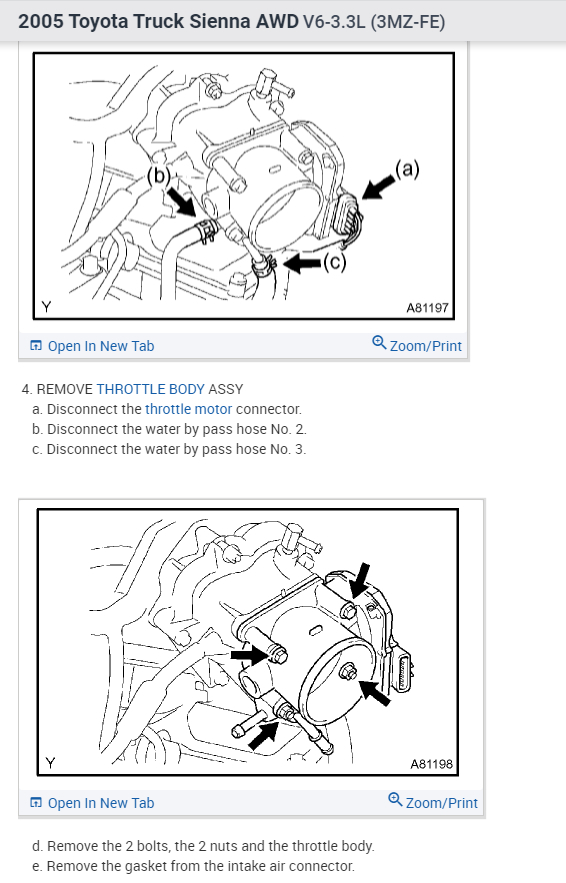

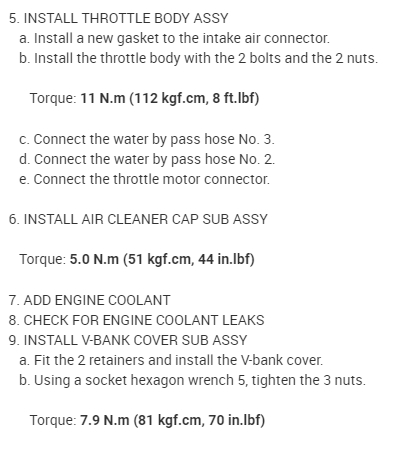

I have attached diagrams for your reference.

Please let me know if you have any questions.
Thank you.

Images (Click to enlarge)

Oct 17, 2021 at 11:22 AM
