Heater Fuse

2000 CHEVROLET TRUCK
Avatar
FREDNJESS
  • MEMBER
  • 3 POSTS
I've got a 2000 Chevy S10 regular cab 4 cylinder with 55000 miles. This morning, 4 degrees, the heater controls stopped working completely. Any selection on any of the three controls does nothing. I checked the interior fuse box and the HVAC fuse is fine. I then checked the engine bay fuse box and the HVAC 30A fuse was cooked. I replaced it with one of the spare 30A fuses. I fired up the truck with all switches off and turned it to floor heat, fan level 1 and got nothing. Everything on the HVAC control panel does nothing. I have not gone any further. Any advice or direction would be much appreciated. No air is moving. Moving any of the three heater switches does absolutely nothing. Thanks!
Jan 15, 2007 at 2:57 PM
Advertisement
Avatar
SERVICE WRITER
  • CERTIFIED EXPERT
  • 9,123 POSTS
Sometimes the switch is bad, sometimes the resistor, but usually high will work, blower motor is most common for many. Sometimes you can rap on the motor housing while the switch is on and trigger it to work temporarily. You need to get to the connector of the motor and test it with a test light to see if it is getting power. If it is, you need a motor, if it isn't go one step back into the circuit.

https://www.2carpros.com/articles/how-to-check-a-car-fuse

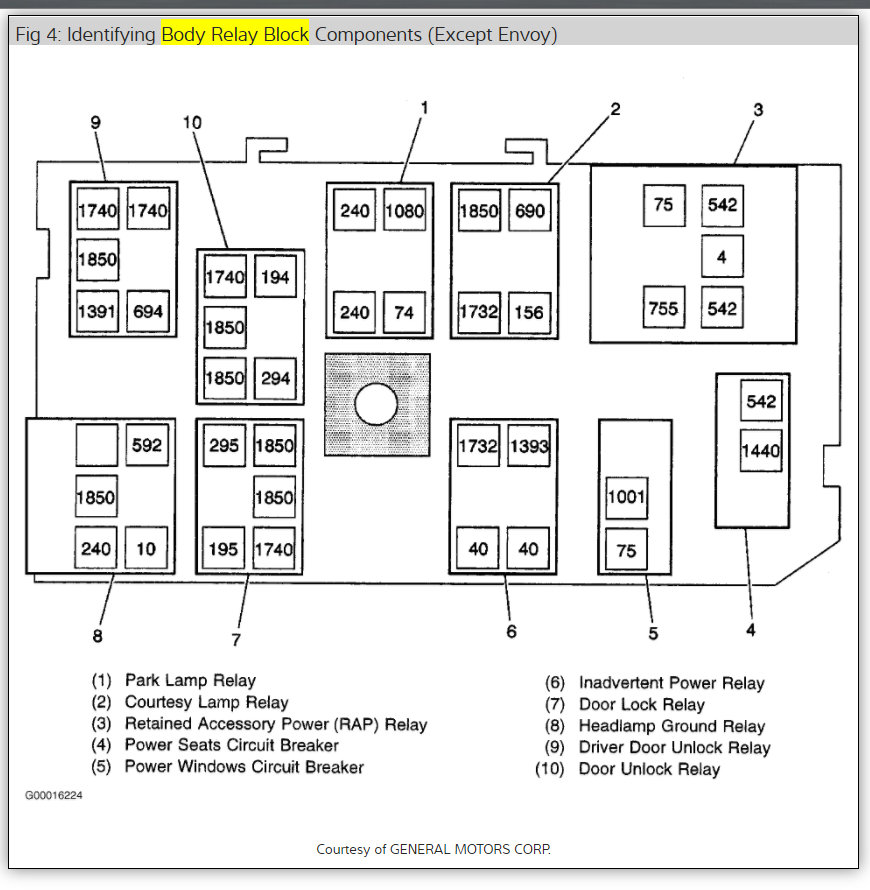

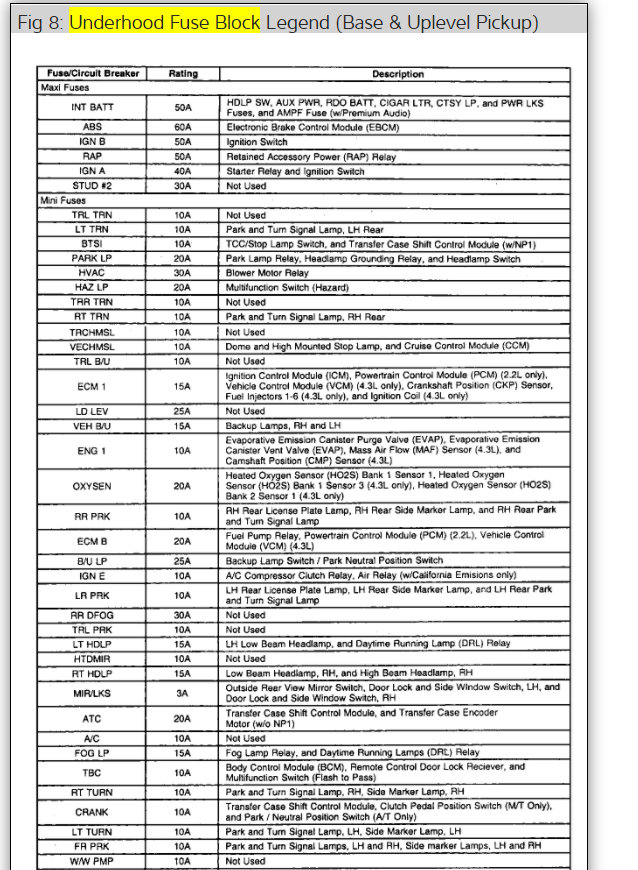

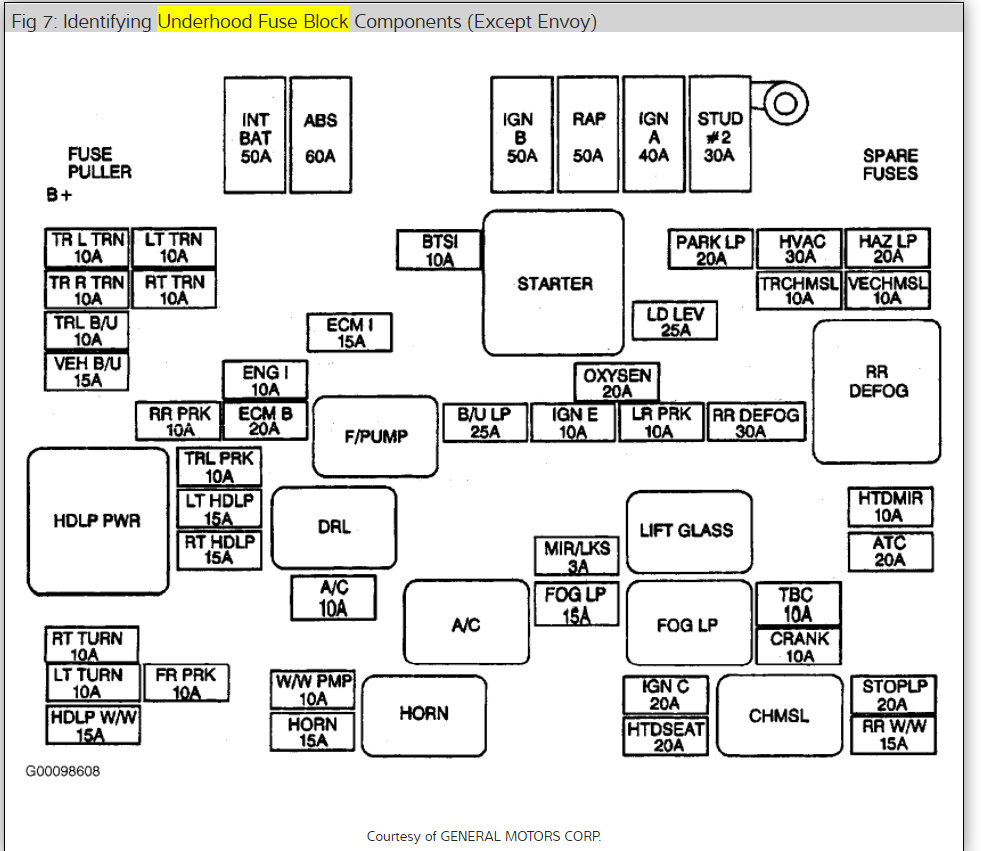

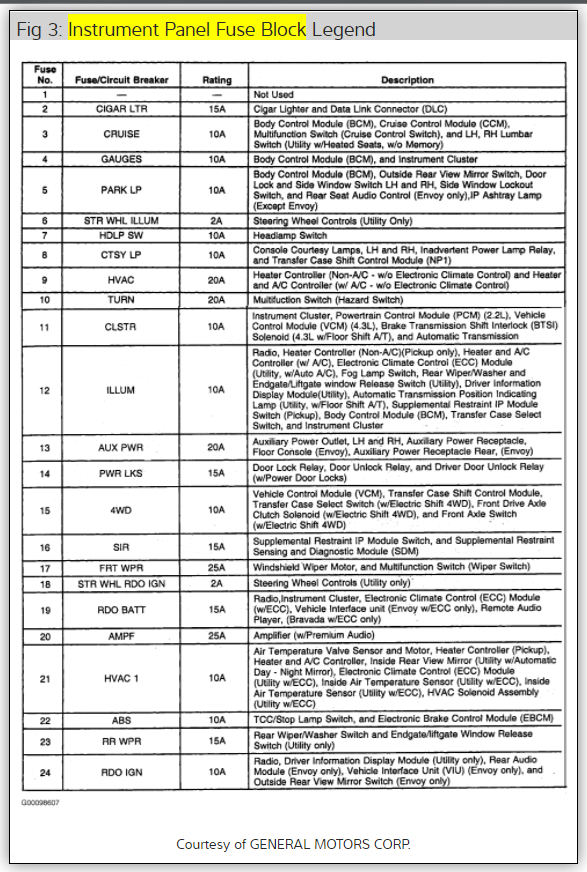

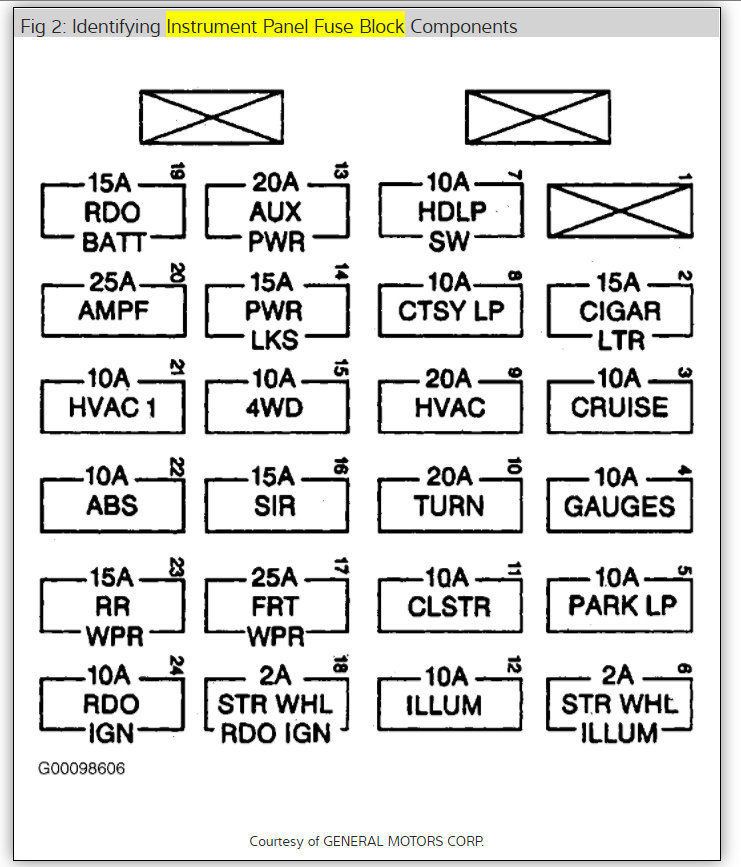

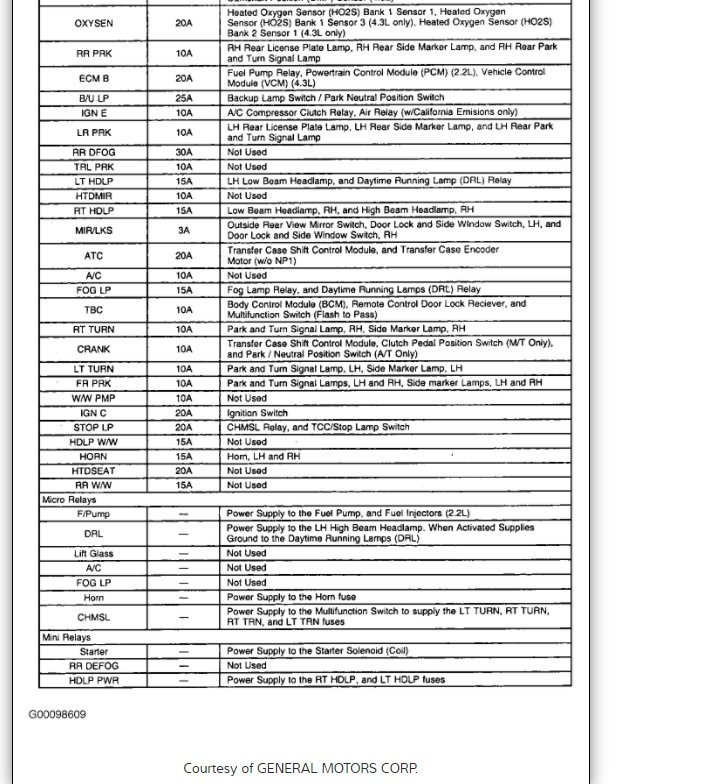

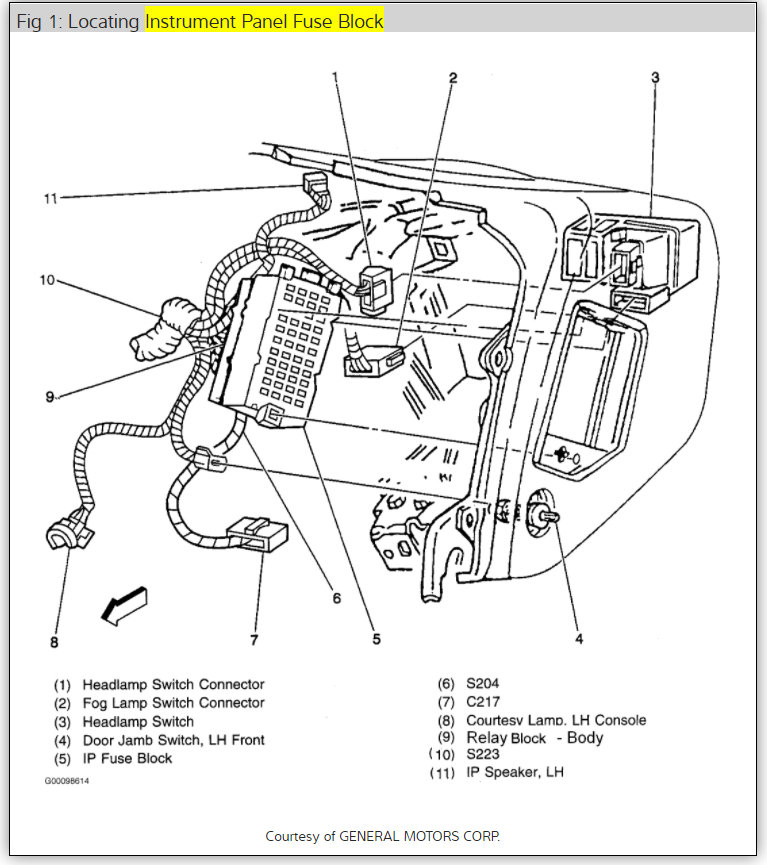

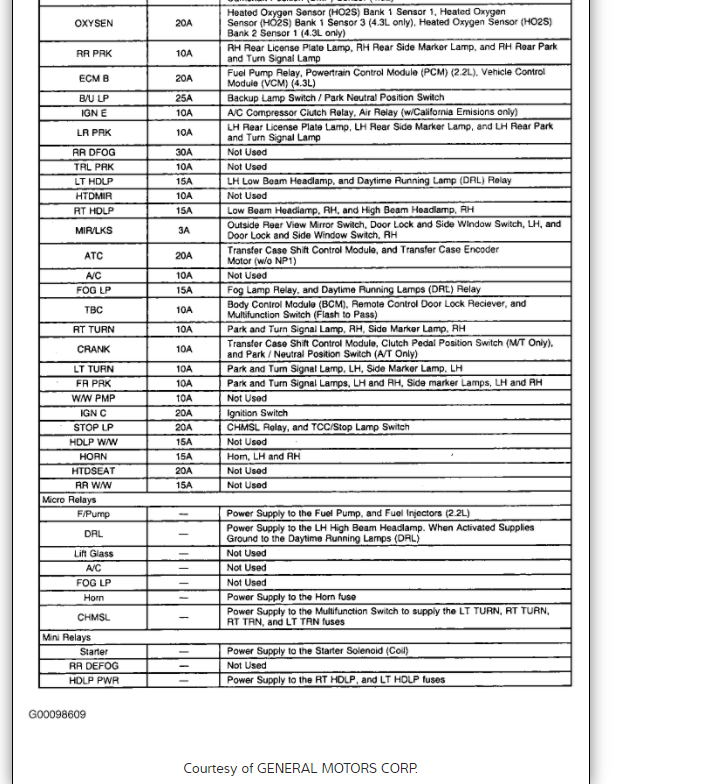

Check out the diagrams (Below). Please let us know what you find. We are interested to see what it is.
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Jan 15, 2007 at 8:15 PM
Avatar
FREDNJESS
  • MEMBER
  • 3 POSTS
I checked the truck this morning and yesterdays 30A HVAC had cooked just like th original offender. I have the dash apart along with the underdash skirts. I can access the back of the heating system controls and I've located the fan housing (black, round, and about 6 inches tall). How do I get the fan housing open (there's not much room in there) and where are the wires to the fan motor? I've looked from both sides and can't see where they are. Thanks
Jan 16, 2007 at 3:26 PM
Advertisement
Avatar
SERVICE WRITER
  • CERTIFIED EXPERT
  • 9,123 POSTS
It should plug in through the outside, that is from the engine compartment. Before you cut into the case, you can check for power there. This guide will help

https://www.2carpros.com/articles/blower-fan-motor-works-on-high-speed-only
Jan 16, 2007 at 6:12 PM
Avatar
TRAINES3
  • MEMBER
  • 1 POST
Thanks for this post I had this problem had to get a new blower motor cost me $87.00
Feb 21, 2019 at 11:42 AM
Avatar
CINDIE
  • MEMBER
  • 2 POSTS
Driving the truck, the A/C was blowing cold, fan was on high when I shut the truck off. 4 hours later I restarted truck and turned the headlights on. The dash lit up except for the A/C-Heater buttons, the vent direction, and fan speed. I tried to turn the A/C on, the fan on, even the heater on--NOTHING! I checked the fuse marked ac heater in fuse box located under left front of dash. Is there another fuse box I should check? Or do I have to replace the whole a/c heater control block?
Feb 21, 2019 at 11:43 AM (Merged)
Avatar
2CARPRO JACK
  • CERTIFIED EXPERT
  • 11,533 POSTS
remove the controller, check for power at pins, 12, and A , if power at both it is most likely the controller, if no power at 12, check all fusible links at the batt and power center on the firewall. Pin A is fed by the a/c fuse you already checked
