radio wiring diagrams please?

It sounds like you have an amplifier or head unit (radio) that has gone out. Here is a guide for you to check the power and ground of the amp. If it checks out then the radio is bad.

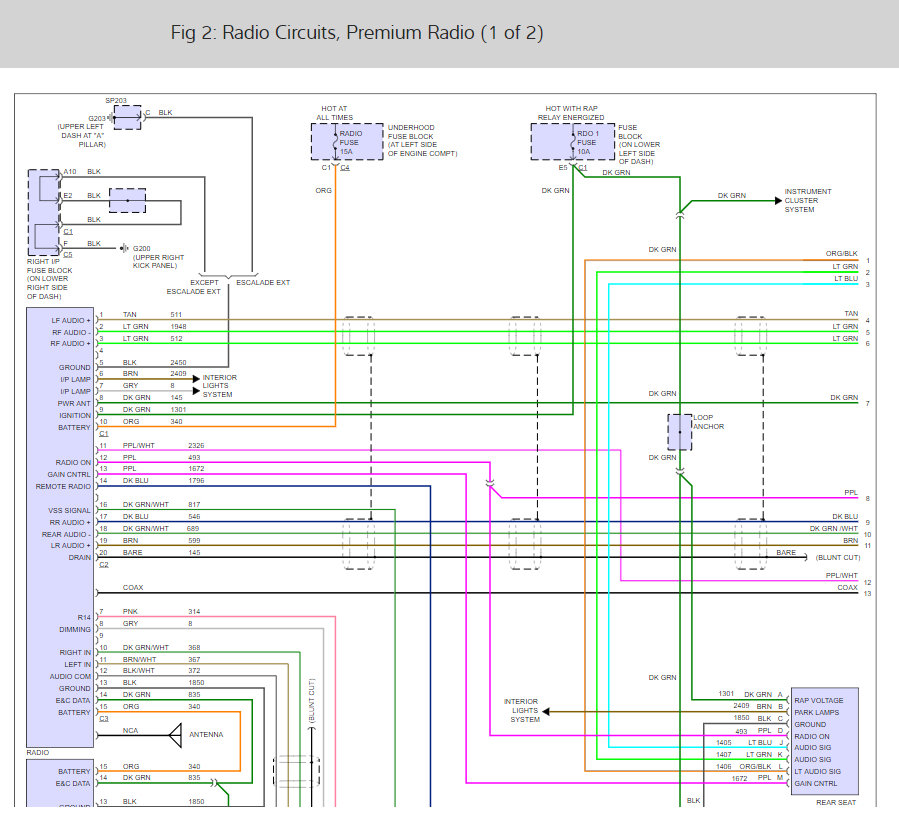

Here is a guide and some wiring diagram (below) so you can do some testing:

https://www.2carpros.com/articles/how-to-use-a-test-light-circuit-tester

and

https://www.2carpros.com/articles/how-to-check-wiring

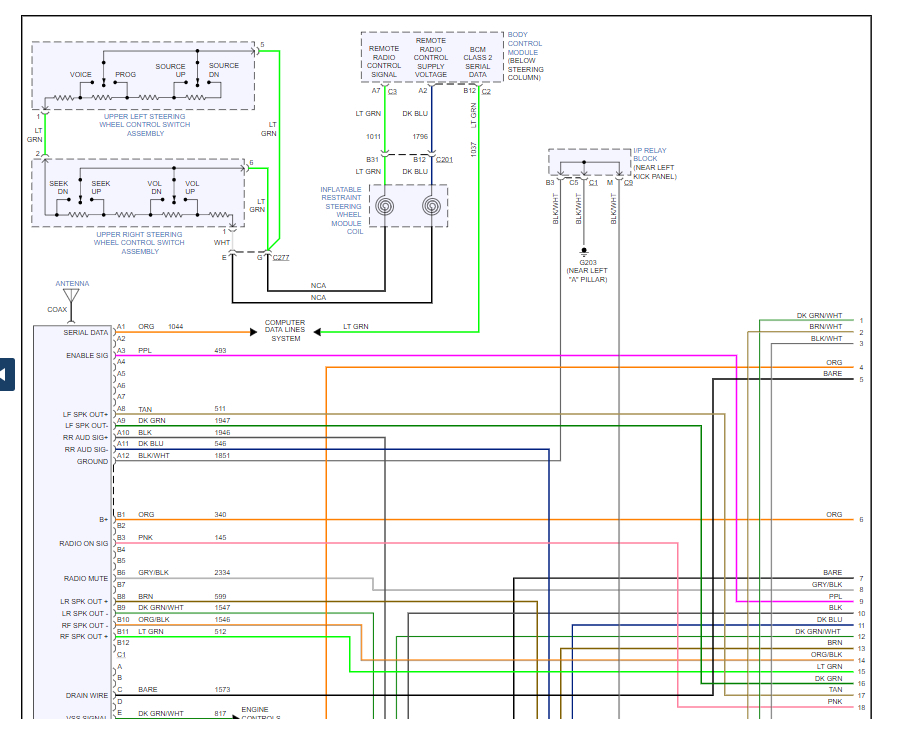

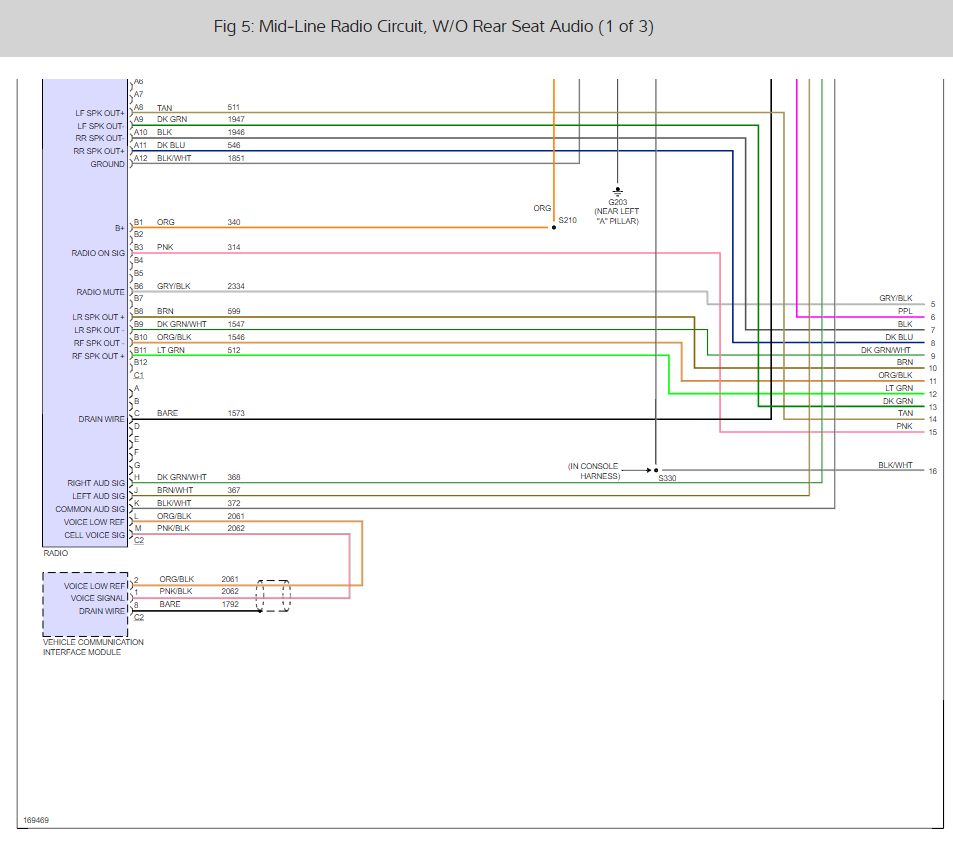

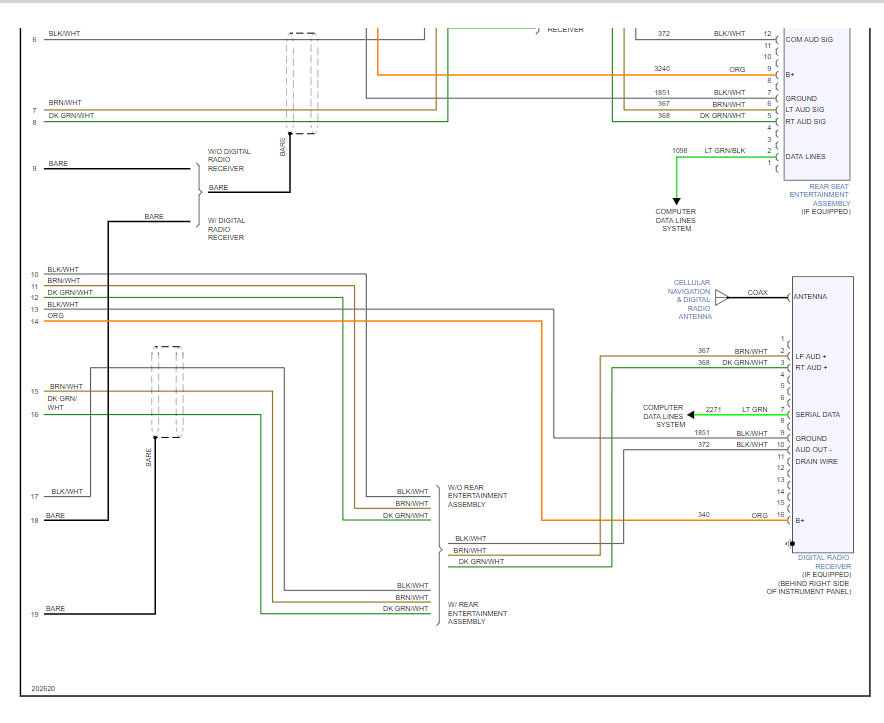

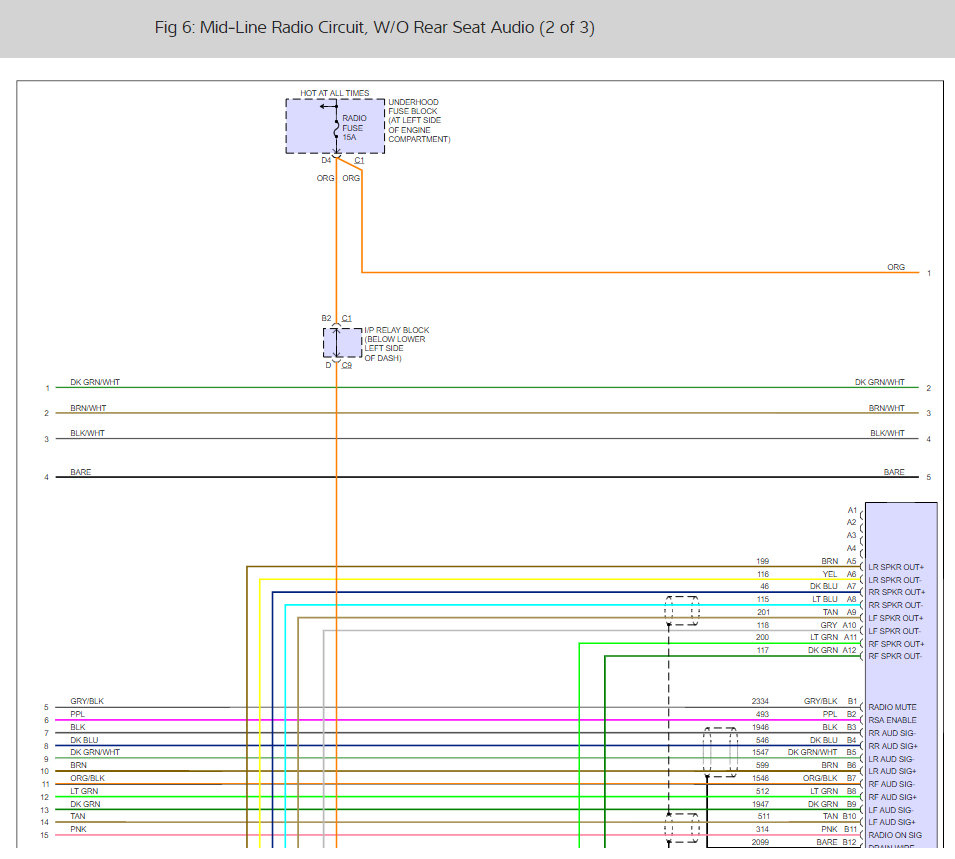

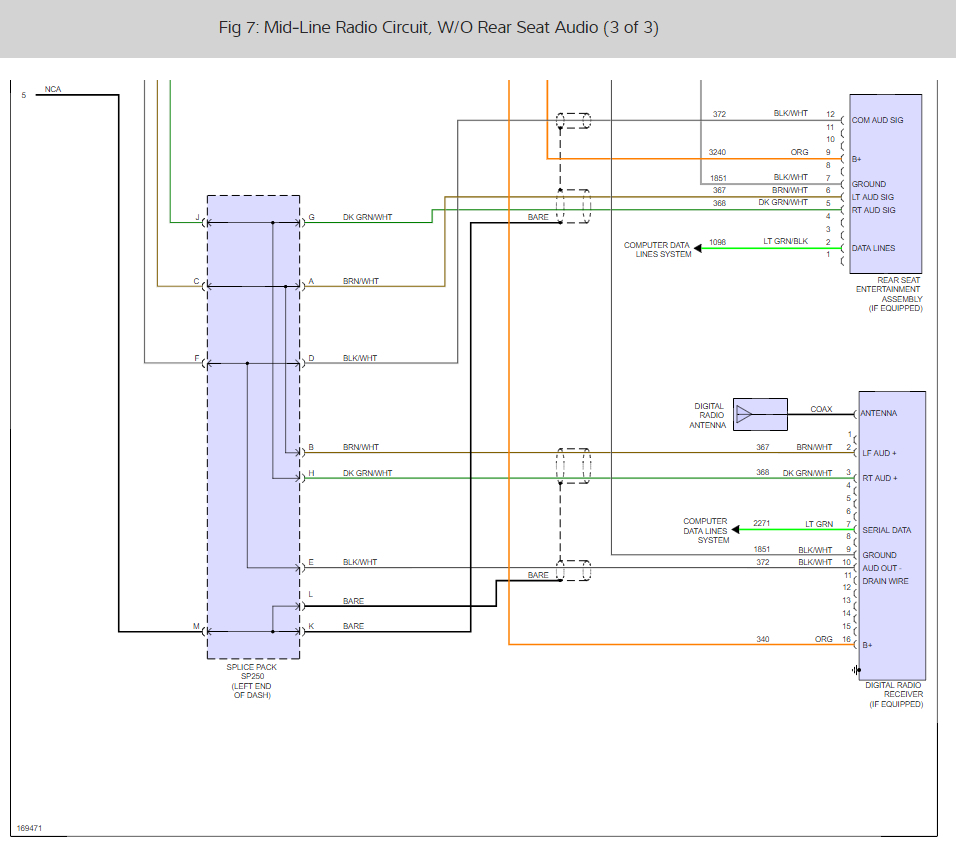

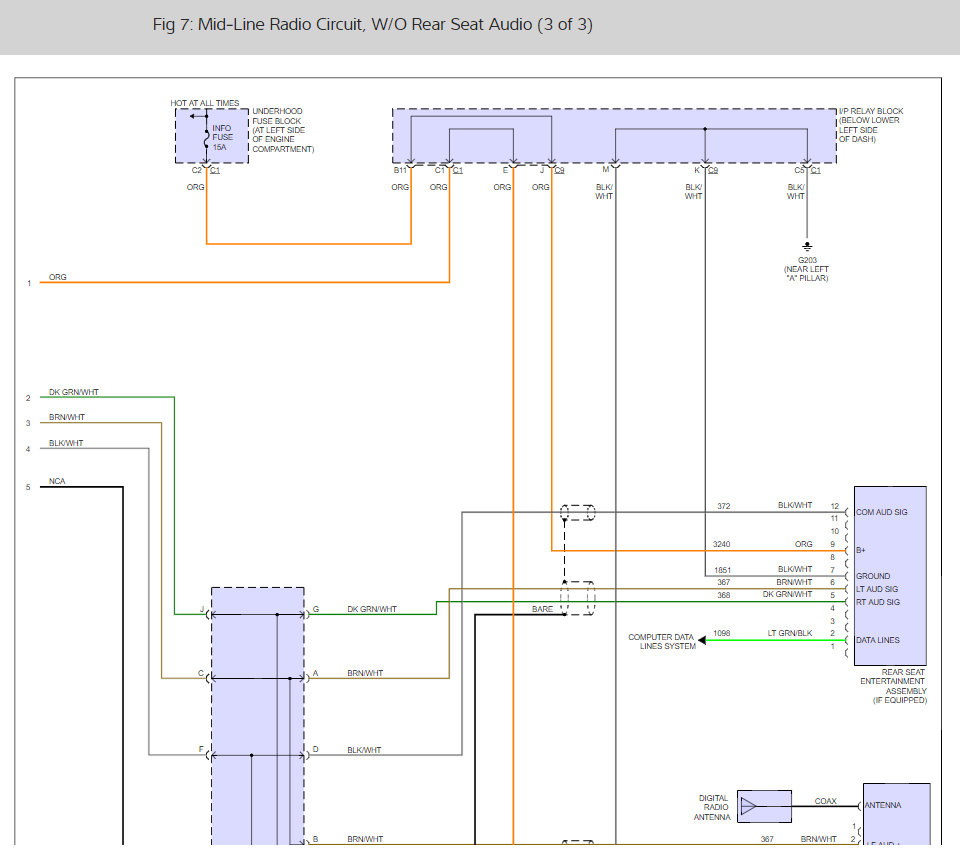

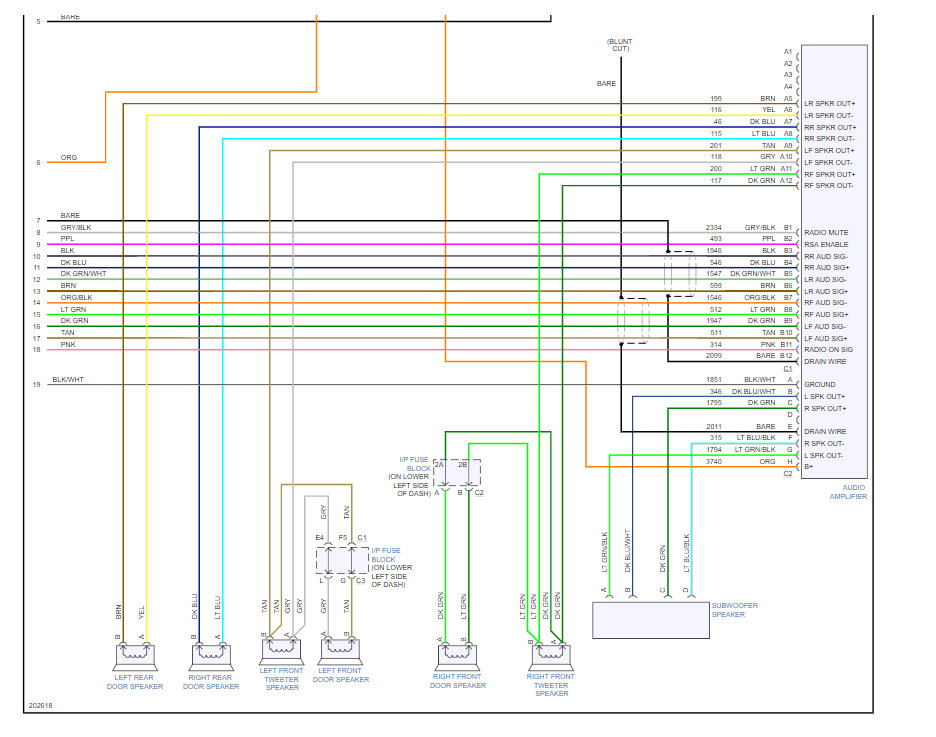

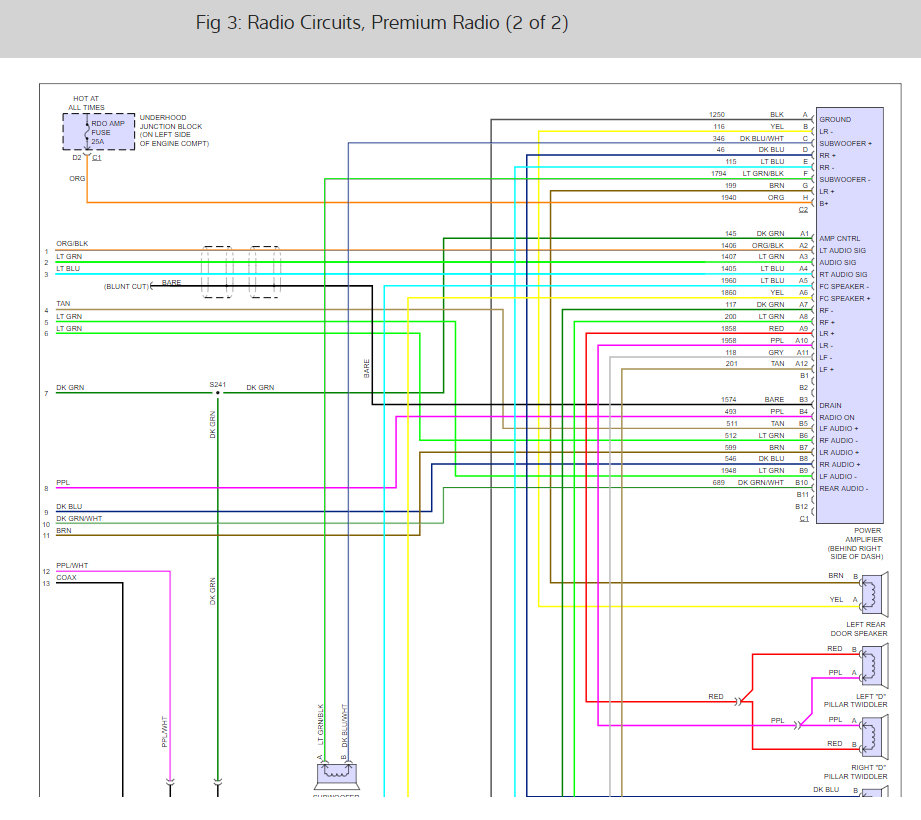

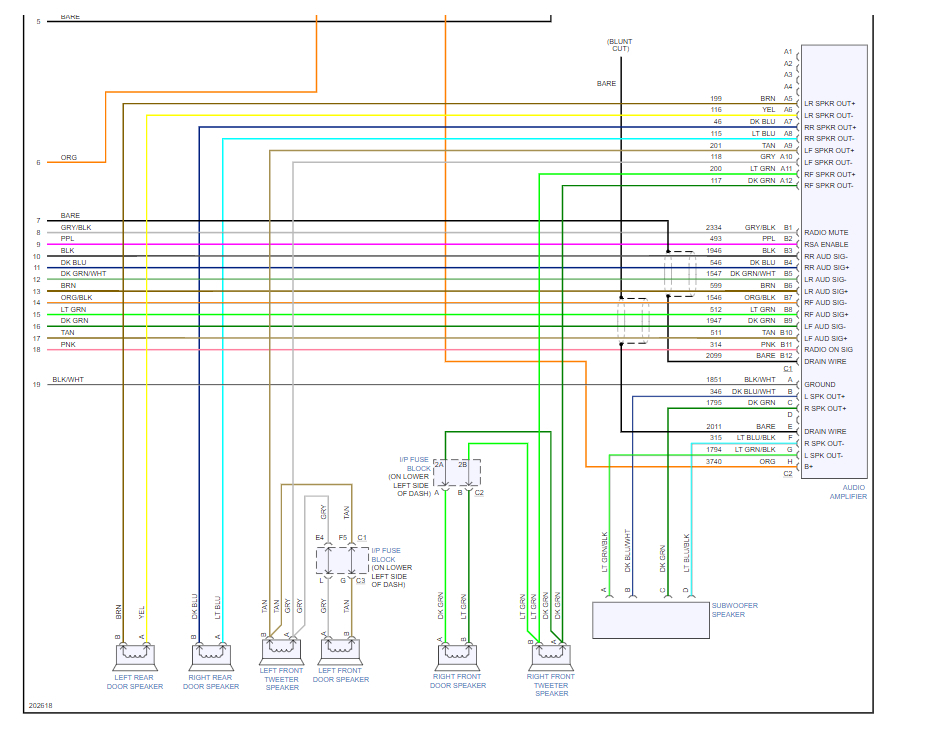

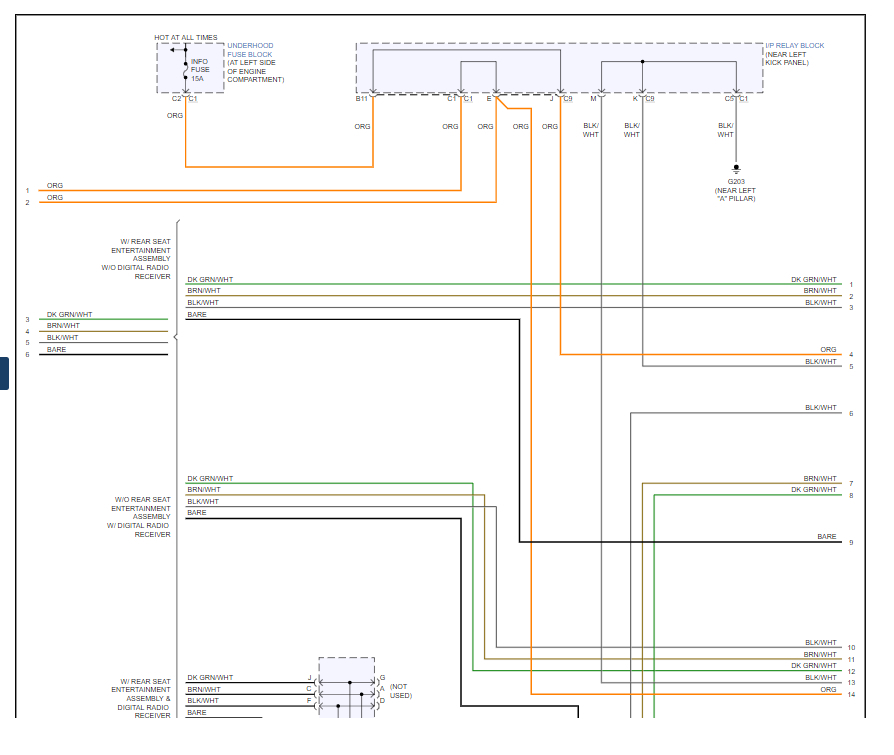

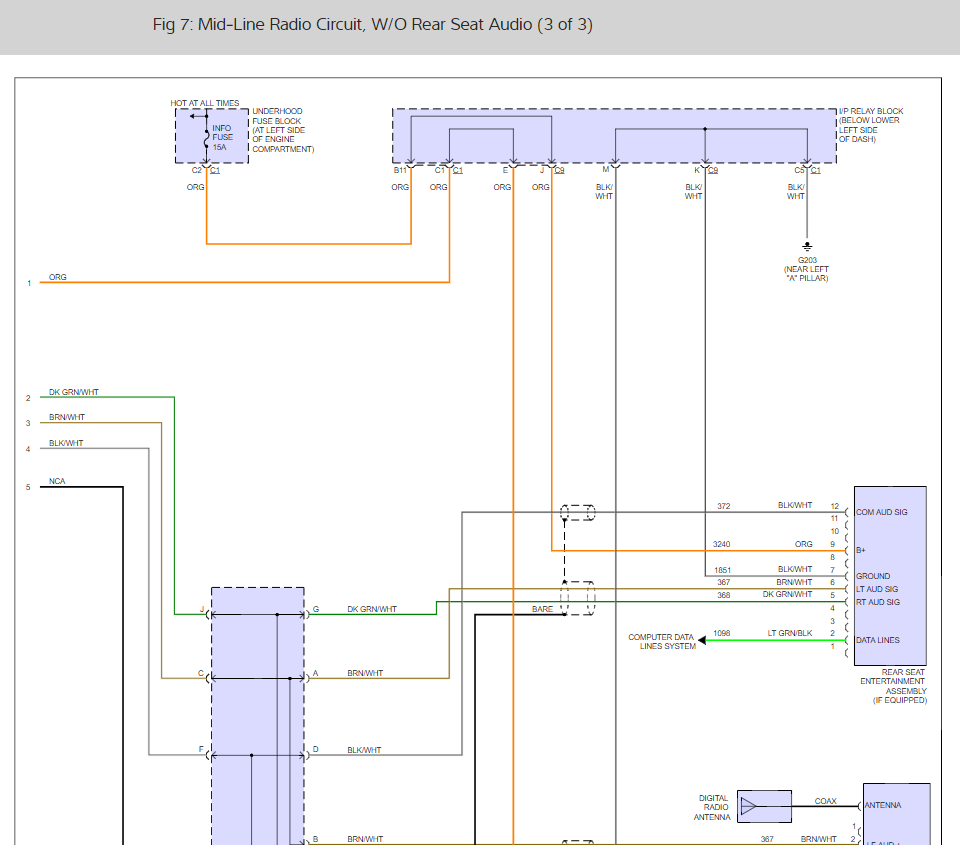

(The wiring diagrams are below)

Here is a bulletin from the factory I found:

Subject: Diagnostic for no sound from speakers but radio display is operative. keywords amp amplifier audio inoperative mute off on speaker voltage volume.

Models: 2003-2006 Chevrolet Avalanche, Suburban, Tahoe

2007 Chevrolet Silverado Classic

2007 GMC Sierra Classic

2003-2006 GMC Yukon, Yukon XL

2004-2007 Hummer H2

With UQ7 without Y91


The following diagnosis might be helpful if the vehicle exhibits the symptom(s) described in this PI.

Condition/Concern:
This information is in addition to the normal no audio diagnostics which includes checking for shorted speakers or speaker wires.


Recommendation/Instructions:
For complaints of no audio from vehicle equipped with a non-class 2 amplifier, perform the following checks to determine if it is a radio or an amp issue. Do these checks with vehicle running, radio on and amp plugged in.


Check for audio at the Rear Seat Audio controls through the head phones. If there is, then the radio is producing audio.

Check pin B3 (switched 12 volts) for 12 volts. This is a radio output that tells the amp to turn on. It should show 12 volts, if it does not, and then radio B3 pin output is not operating properly. This could be caused if the radio is not programmed correctly or a circuit concern.

Check pin B6 (amp mute) for 0 volts to 5 volt. If the voltage is between 0 and 1 volt this tells the amp to mute and play. If it shows between 3 and 5 volts this tells the amp to mute and stop playing. This could be caused if the radio is not programmed correctly or a circuit concern.

If the above steps indicate that the system should be playing then check for power and grounds to the amplifier and if okay, replace the amplifier.

Please follow this diagnostic or repair process thoroughly and complete each step. If the condition exhibited is resolved without completing every step, the remaining steps do not need to be performed.

Please let us know what happens so it will help others.

Cheers

I checked out the wiring diagrams and found the amp is getting power and has a good ground so I think it is good.

I used the balance and fader controls to single out each speaker. could be a short in one of the speaker wires.

Usually when this happens you will just get a static distorted sound but with these newer factory stereos there could be an internal breaker that shuts off the speaker output when a short is detected. may not be the case but it could not hurt to check it out.

I am having this issue. Non of my speakers work and my head phone plugs in the back do not work, not even with the DVD player playing. DVD player plays but get no sound. I checked the radio and hooked a separate speaker to it and it is working. I got an aftermarket CD player and now it is working great.

I got this one from Amazon for $118.00 and bam all fixed. Was not that bad to install either make sure you get the right adapter.

Check the fuse in the under hood fuse panel. If that is okay these radios have a problem with the internal amplifier going out which will cause the problem you are describing. You must replace the radio to fix it.

On some models they have a speaker reply but for yours it does not seem to have it.

I am having the same problem as the OP--headphone jacks are working fine, display is fine. If I read the bulletin posted above, this indicates that the amplifier is the cause?

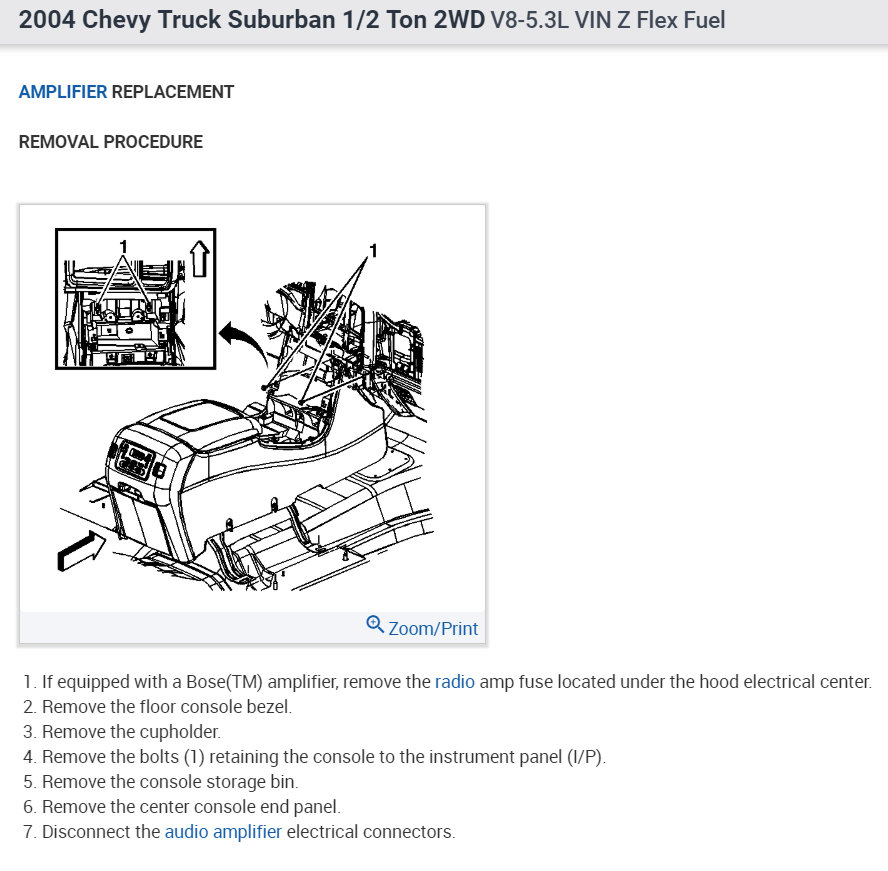

Yes, the amplifier went out causing the issue. Make sure the unit is getting power and ground to confirm the failure by using the wiring diagrams from above. Here is the location.

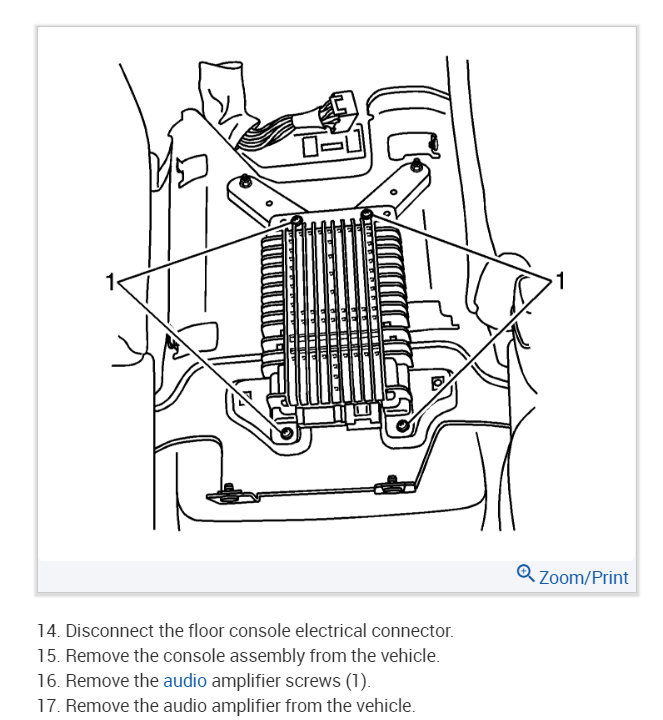

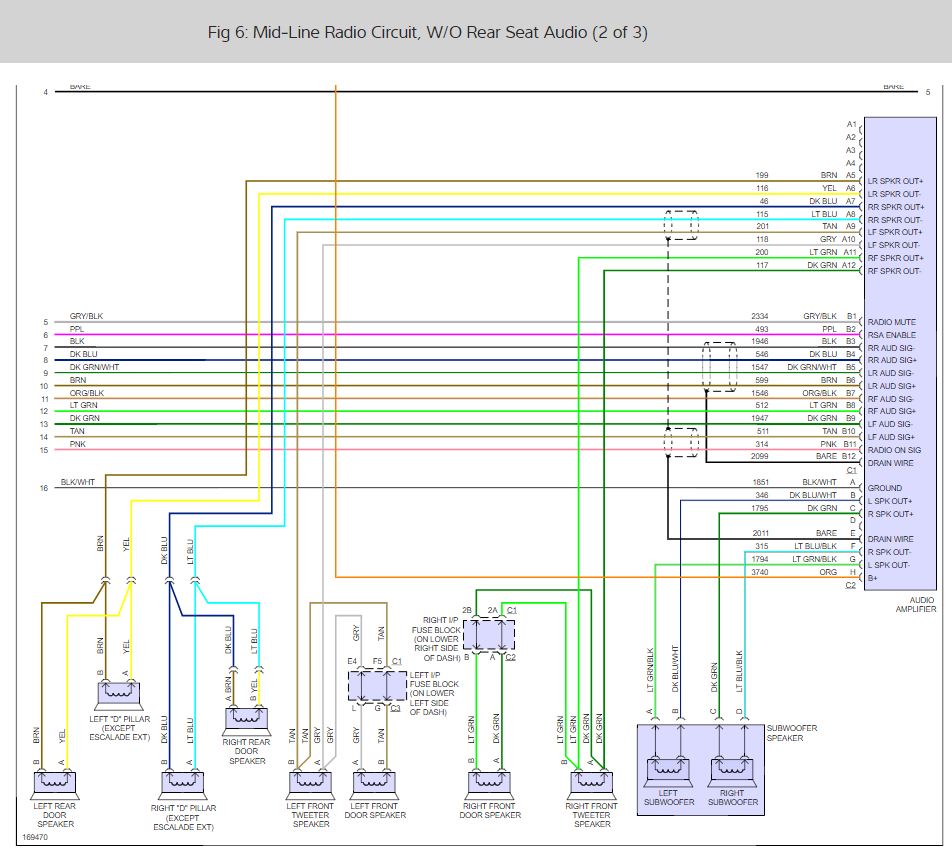

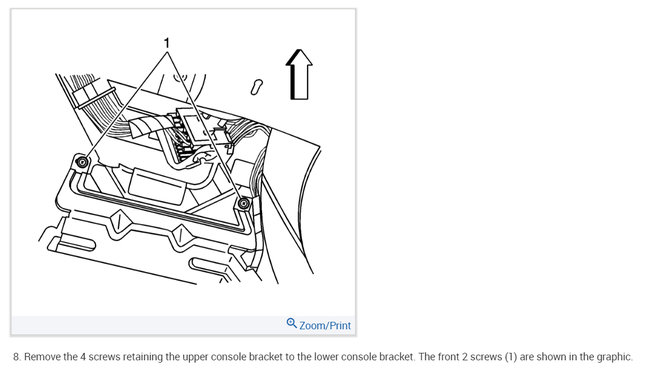

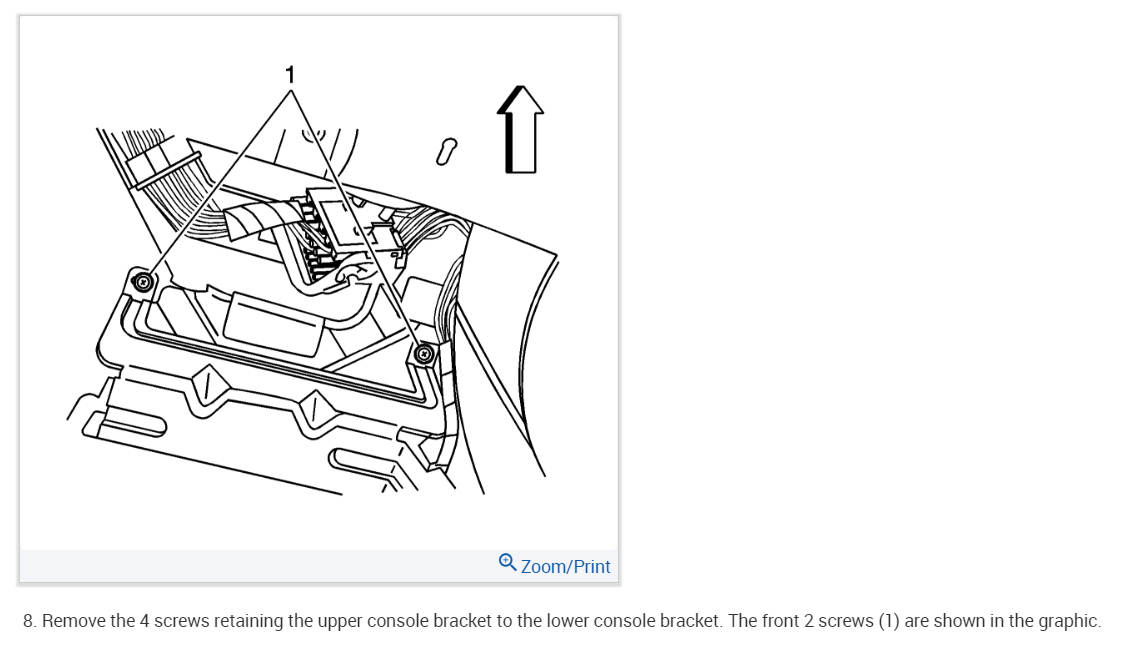

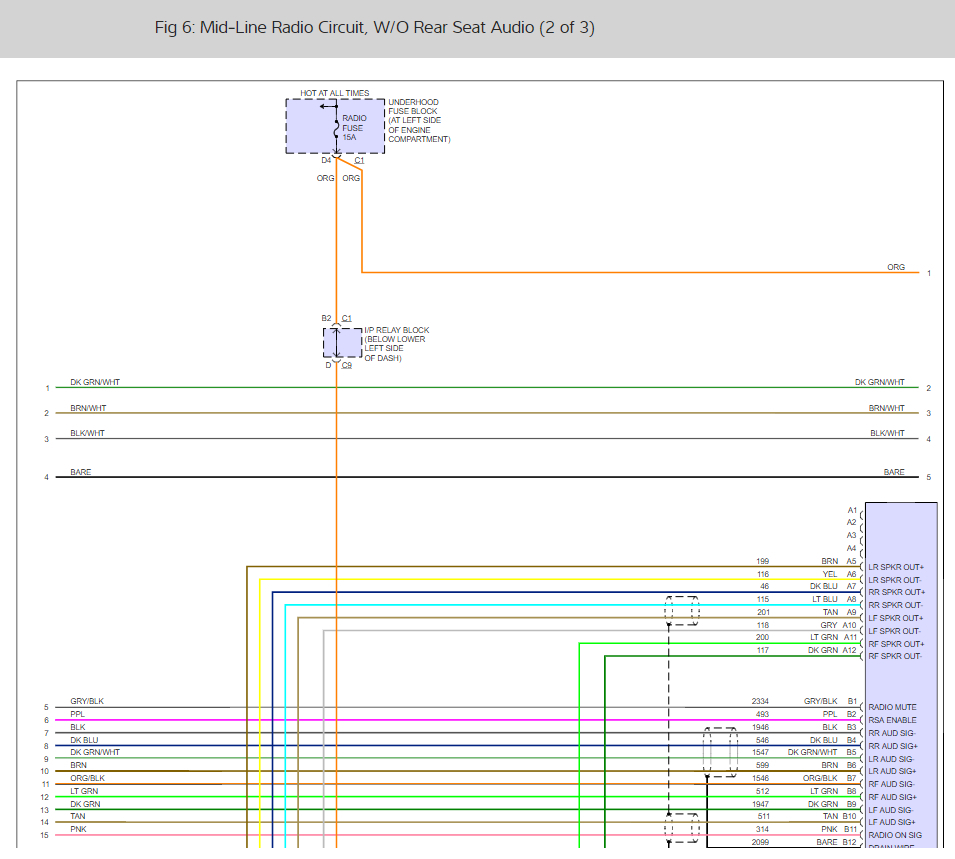

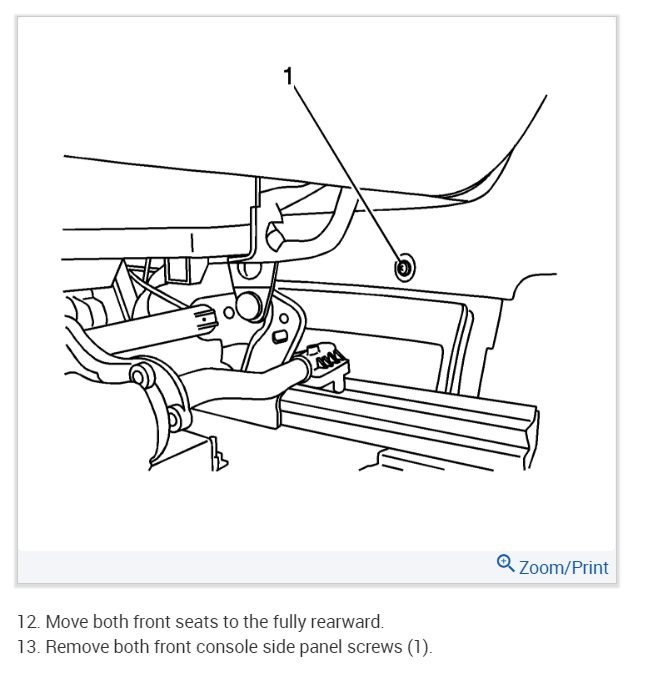

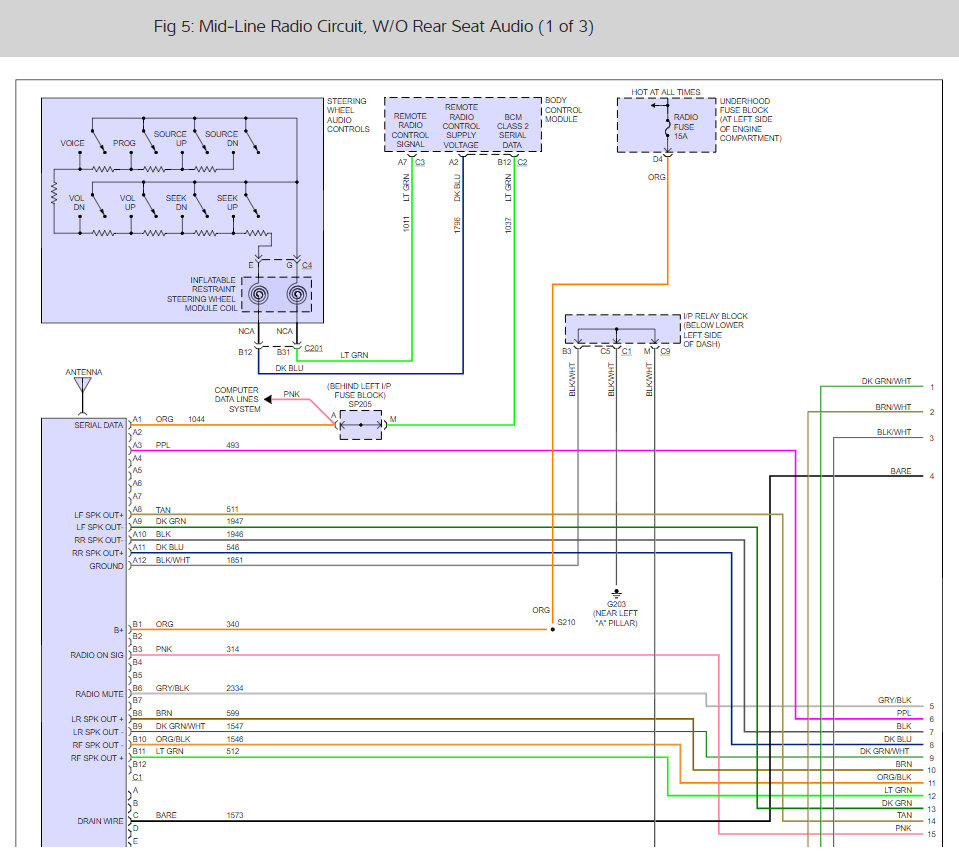

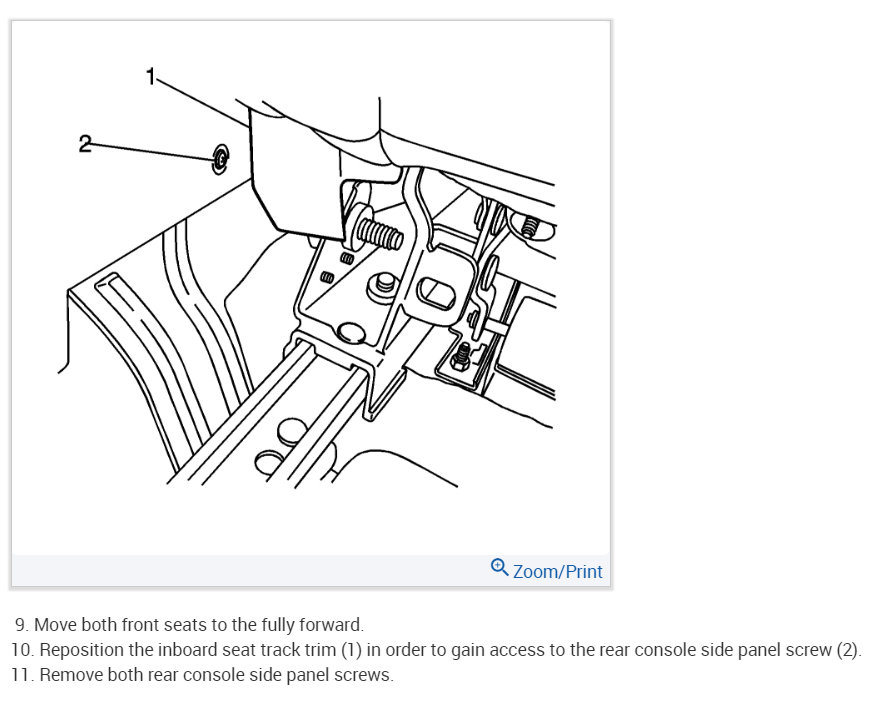

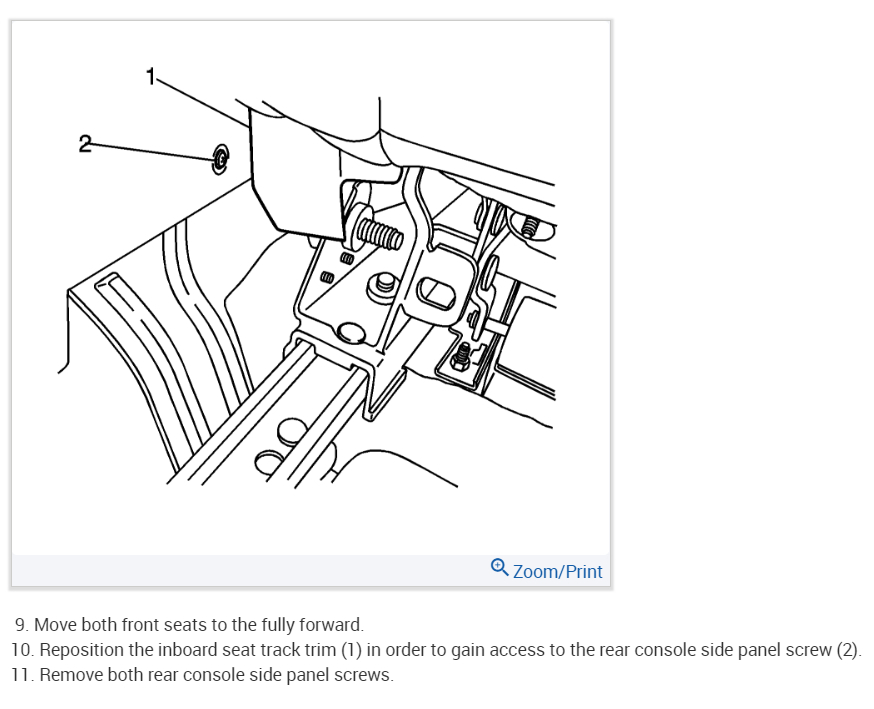

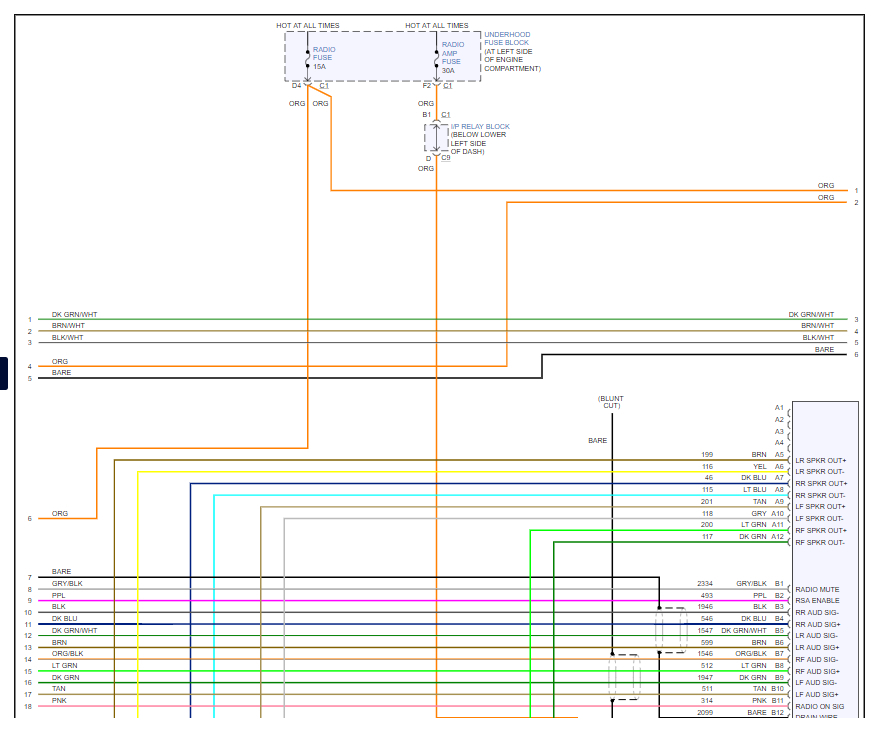

Check out the diagrams (below). Please let us know what happens.

Cheers, Ken

I'm having the same issue as well as a random reduced engine power mode kick in as I said all randomly atm. I'm wondering if some of these onstar, hands-free and theft disabling devices are just reaching end of life or something, I'm about to hunt a 80's or older non CPU operated vehicle to rid myself of this nonsense. The forum for the reduced engine power mentions a wild loose wire somewhere in the harness network and doesn't specify any clues as to track it but the only take away from this thread is I need to bypass the internal amp altogether I wonder if this is where the onstar is incorporated into the onboard CPU.

Hi,

A random power loss shouldn't be related to the radio. Have you scanned the computer to see if there are specific diagnostic trouble codes stored?

Joe

Hi my vehicle has started making what appears to be a static noise in my rear speakers, this goes away when I turn off the rear speakers from the console or if I shut the radio off completely. I have the navigation model on a LTZ.

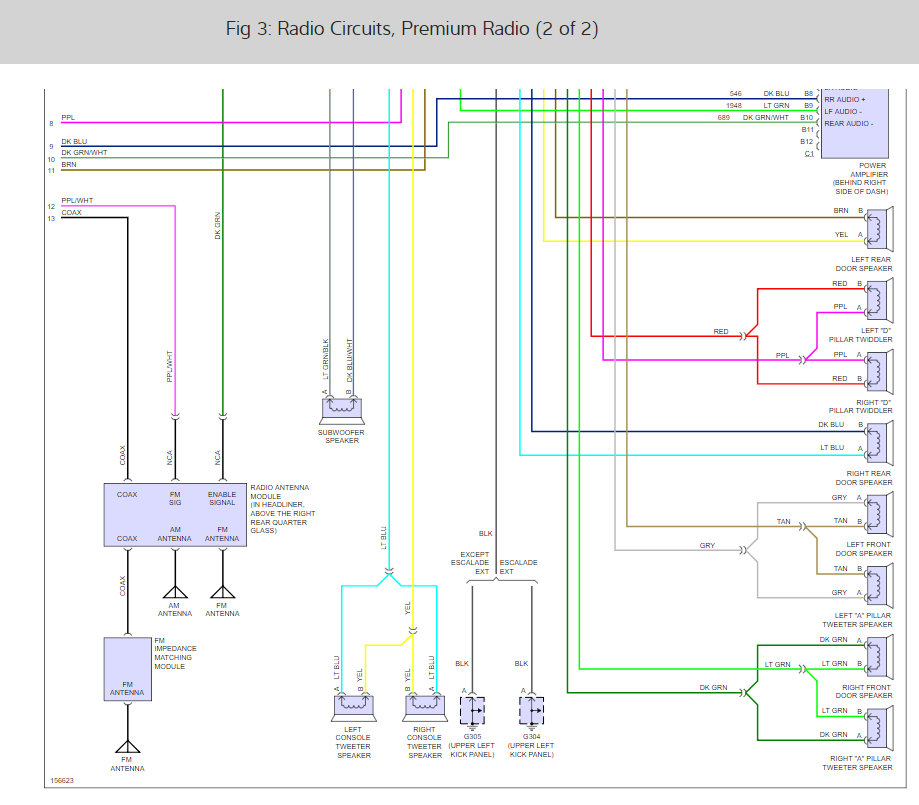

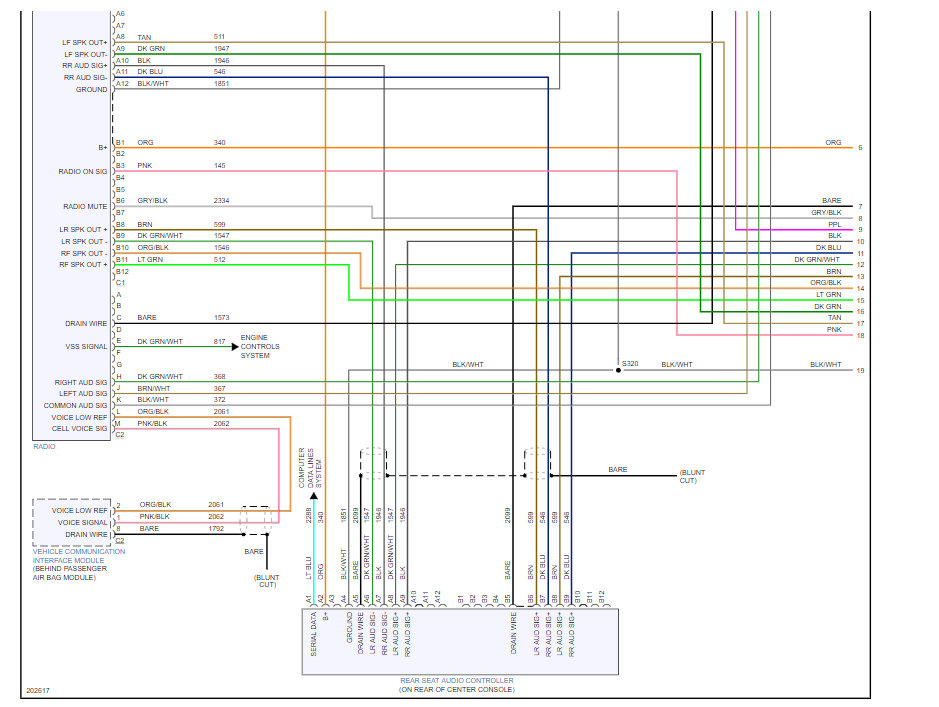

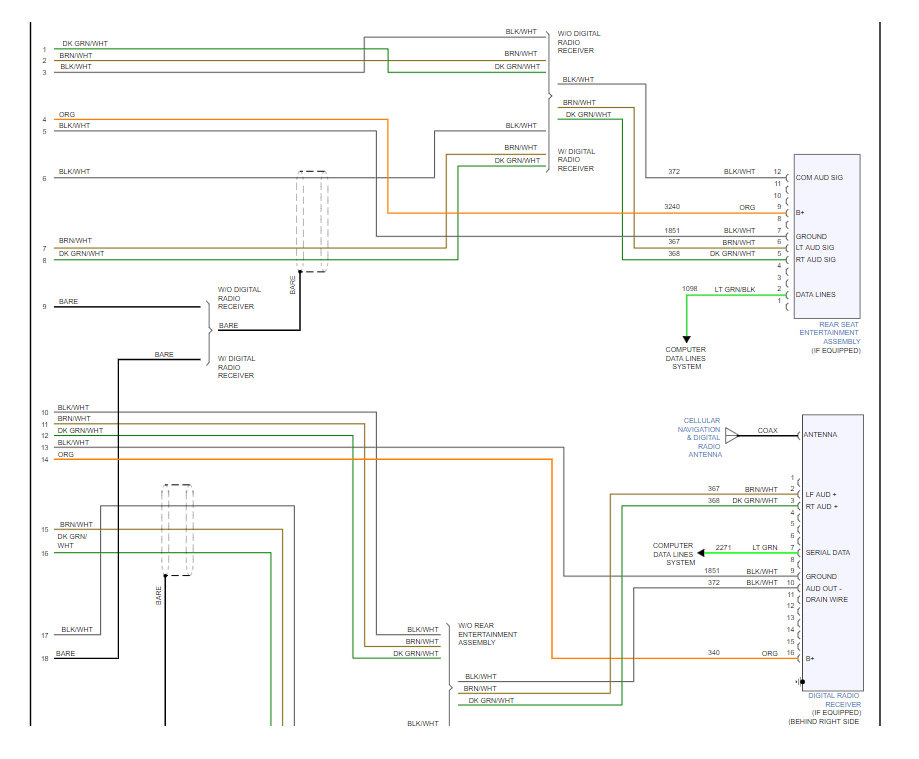

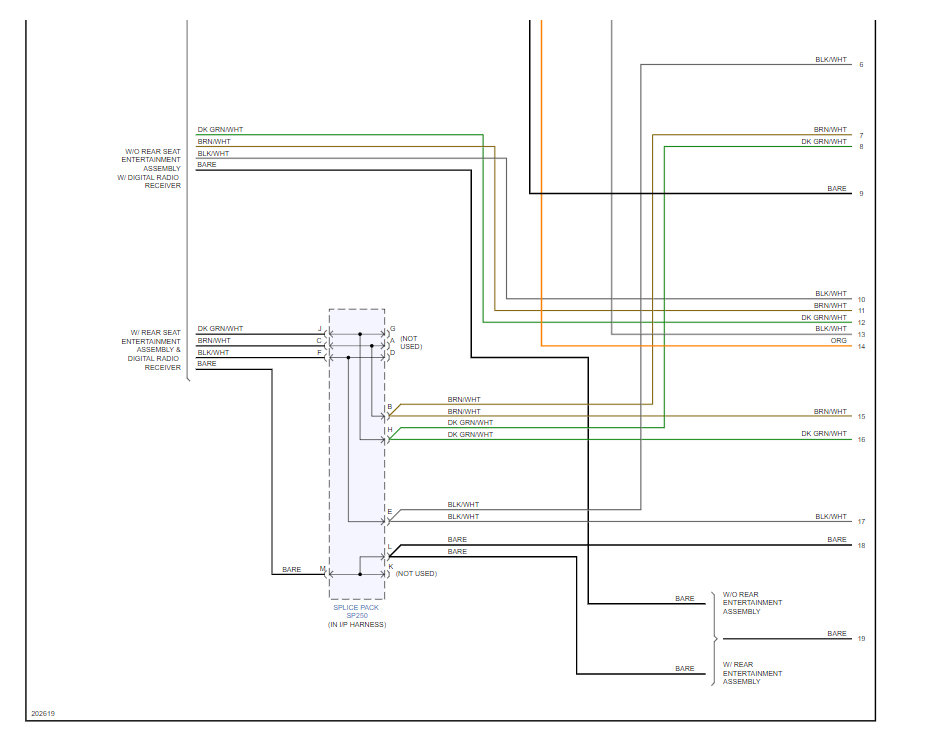

It sounds like the vehicle communication interface module could be going out. Here are the wiring diagrams so you can see how the system works. Check out the diagrams (below). Please let us know what you find. We are interested to see what it is.

They have looked at it once and although they were not sure, they suggested replacing the amplifier and radio, to the tune of $1,300.00 which they thought would get rid of the problem, shockingly I am not going to do that in the hope it would work.

I will keep looking as it seems several other folks have had this problem with a fix being the grounding/shielding of the wires in the rear audio control module or amp.

Thanks

the amp was bad so I got a used one for $100.00 from eBay, FYI.

My dad and I are trying to hook up an aftermarket radio into my vehicle. We made all the shown connections and we get power to the stereo, but no sound. We even tried using the blue wire for the amp.

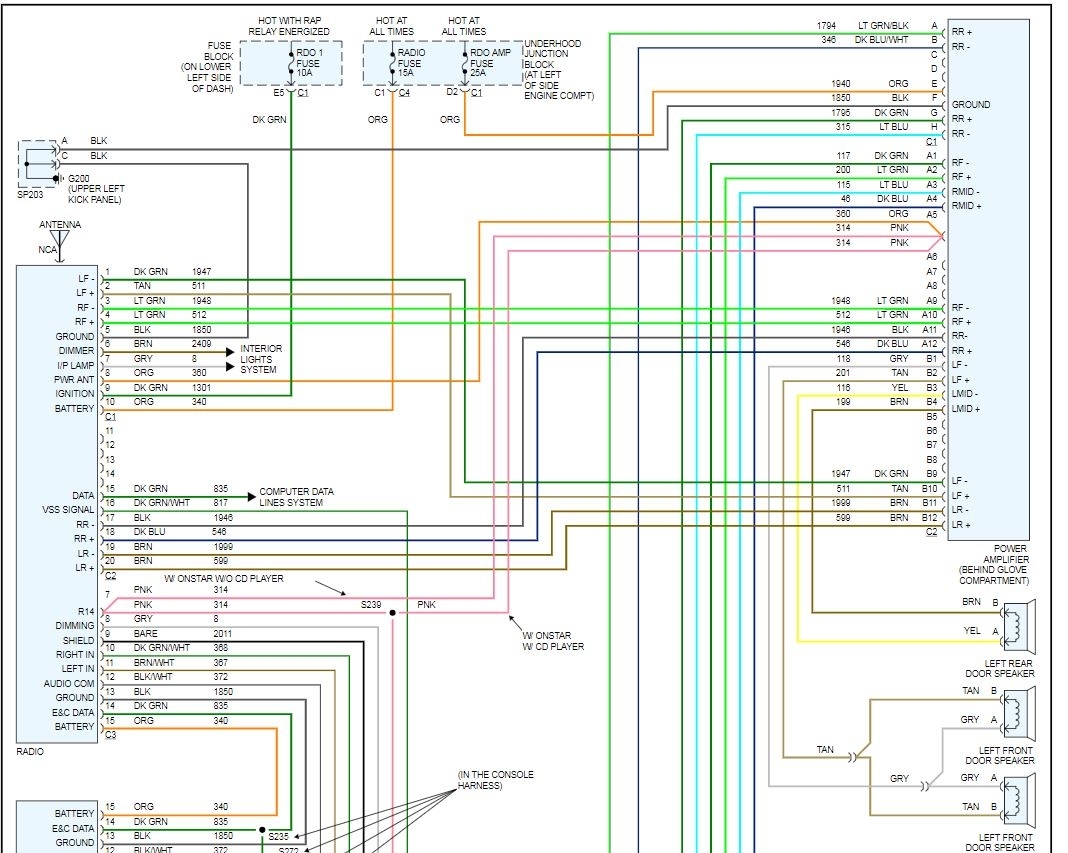

It sounds like the amp is still not turning on. Did you use an adapter to wire the radio or are you doing it without? There are two power wires (dark green and purple) to the amp. Here are the wiring diagrams so you can see how the system works:

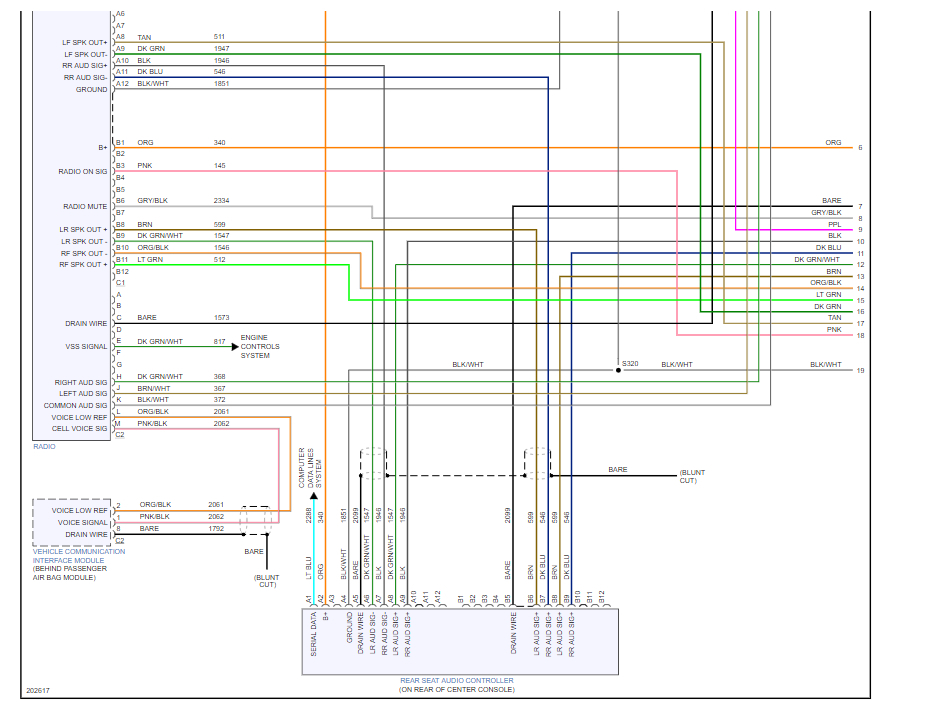

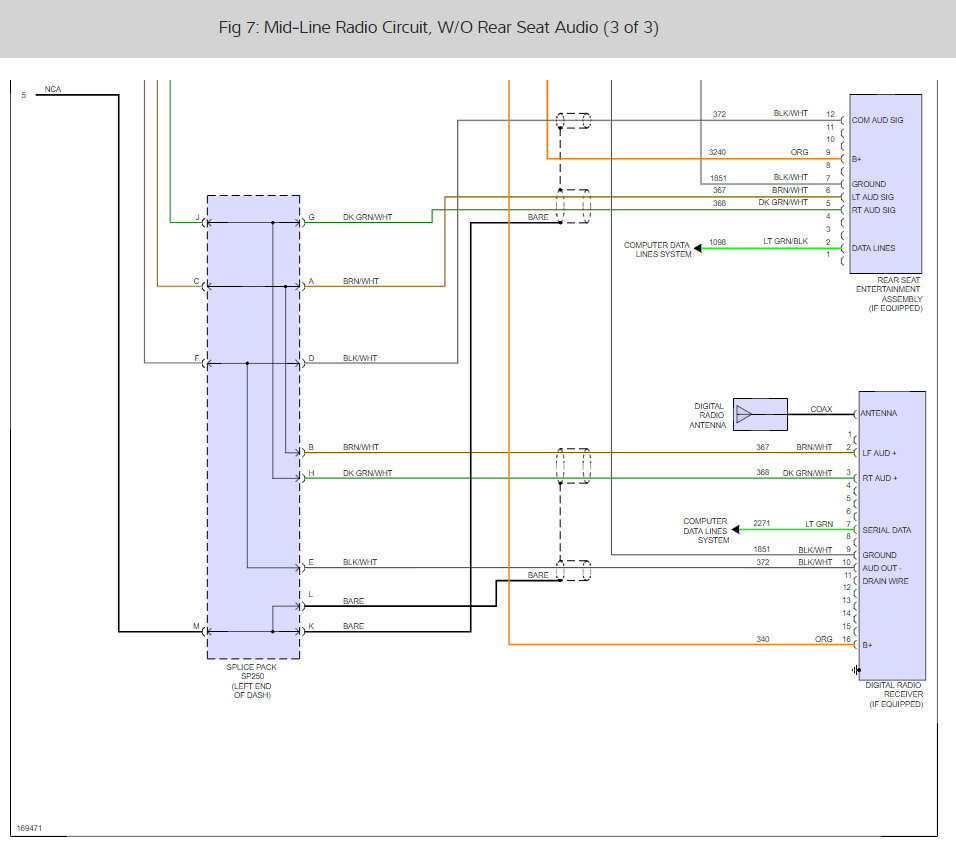

Check out the diagrams (below). Please let us know what happens.

Do you have the wiring schematic for the radio amplifier I changed the radio to after market and connected the new harness adapter but it still doesn't work and I need to bypass the original amplifier.

Here you go.... thanks for using 2Carpros.com

Let us know if you need anything else

ok my suburban the radio wont work and the dash lights wont work but the headlights will and turning signals ect. and i cant find the fuse or the problem can someone help me please

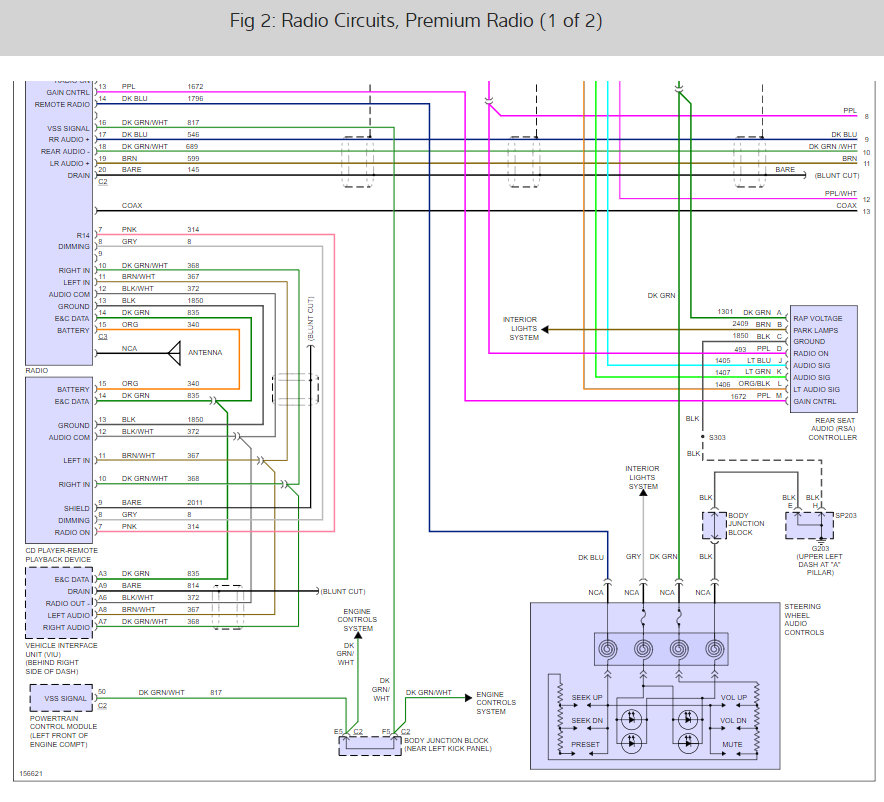

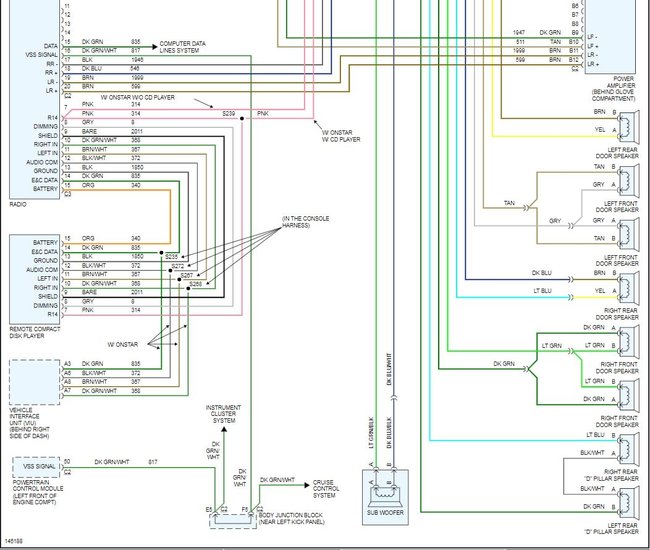

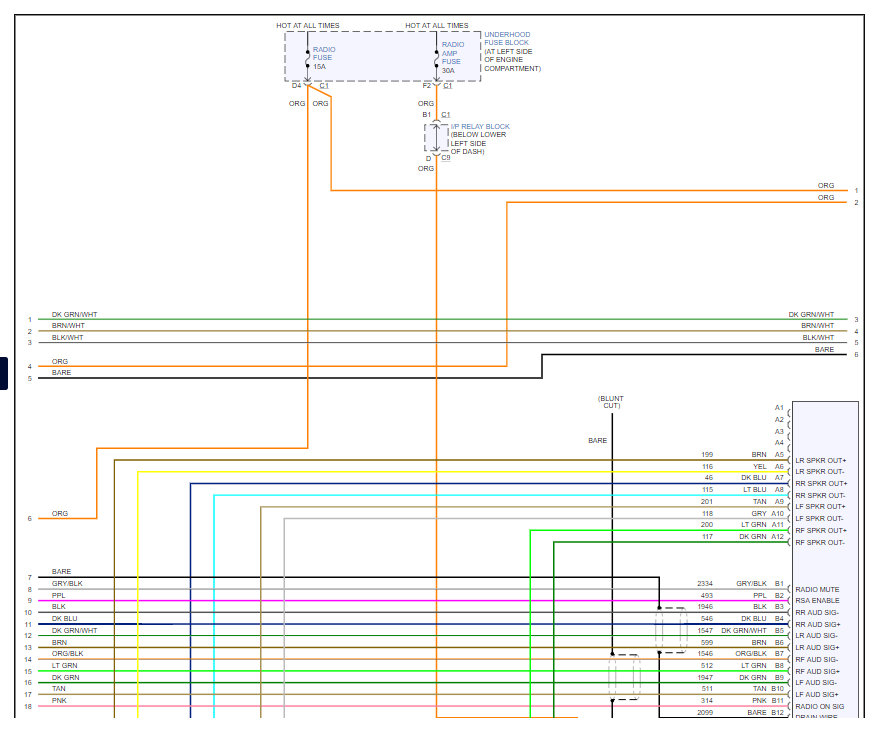

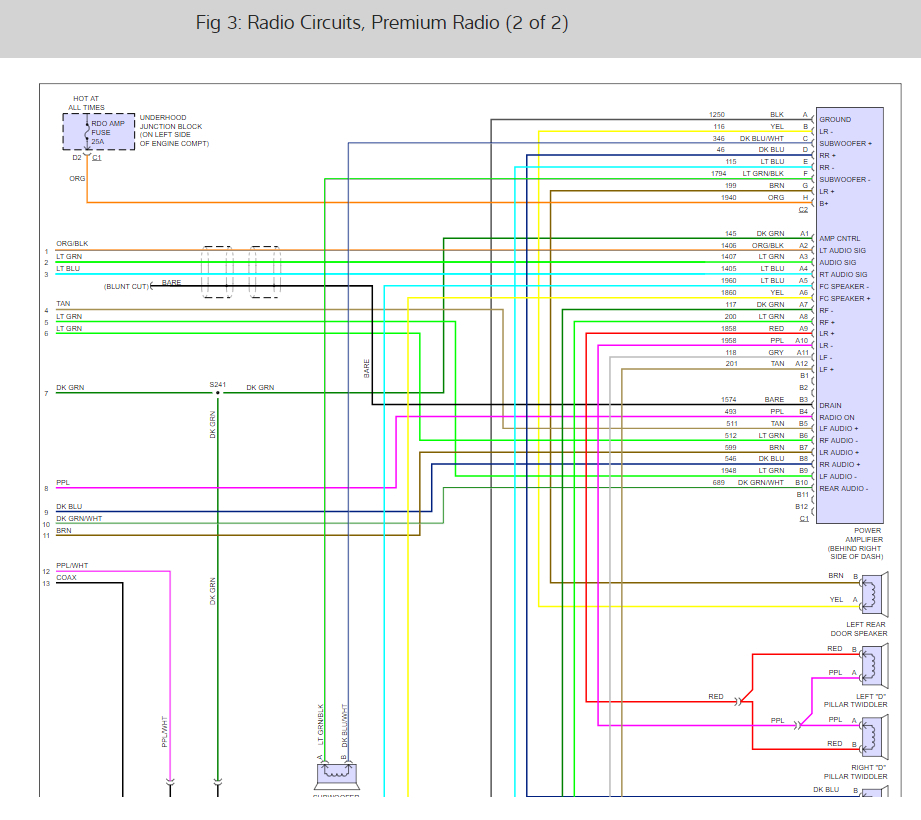

here are two diagrams. I'd bet that if you fix one of the fuses that they show for the radio your dash lights will work again. If not they are either burnt out(bulbs) or you may have a bad headlight switch....

You can click on these and they should download to make bigger

Have a 2004 Chevrolet Suburban,
Turn vehicle on and all the lights come on, on the radio everything works, but no sound, but 2 to 3 minutes after turning truck on speakers will have sound, turn vehicle off and-on-and speakers and radio work with sound. Turn off let it sit for 35 minutes or so same thing all over again.

Hi,

Can you tell me which system you have? For example, do you have a basic radio or front and rear audio with navigation?

This may require a factory reset based on the system you have. Also, the radio or amplifier may have an internal circuit issue. I'm not sure where you are located, so let me know if there is anything you can think of that makes it better or worse. For example, when it's extremely cold it's worse.

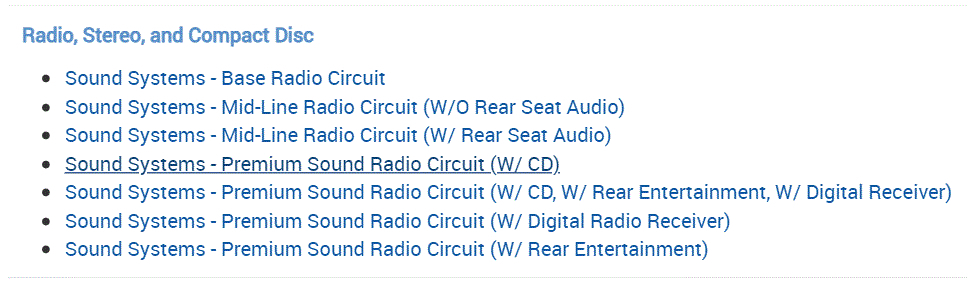

I attached a pic below showing the options.

Joe

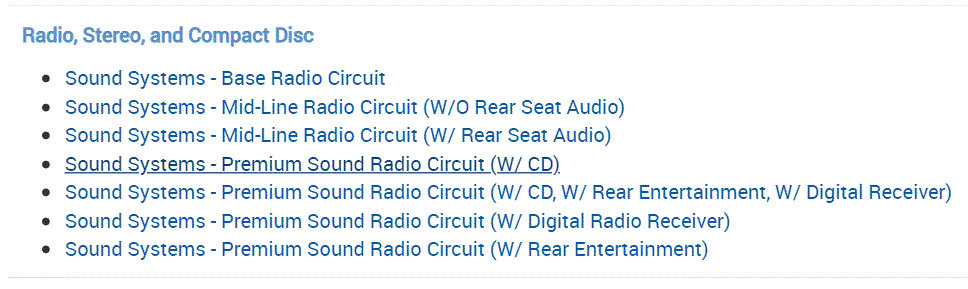

See pics below.
