My battery is always running down.

2004 CHEVROLET SILVERADO
49,000 MILES • V8 • 2WD • AUTOMATIC
Avatar
SIMMONSJH113
  • MEMBER
  • 3 POSTS
My battery is always running down. Have had Battery and Alt checked they are good. I have used a test light and have a definite power draw. Have pulled all visible fuses and circuit breakers but I still cannot find problem. IS there more fuses? if so where are they?
Nov 28, 2008 at 2:26 PM
Advertisement
Avatar
DOCFIXIT
  • CERTIFIED EXPERT
  • 18,828 POSTS

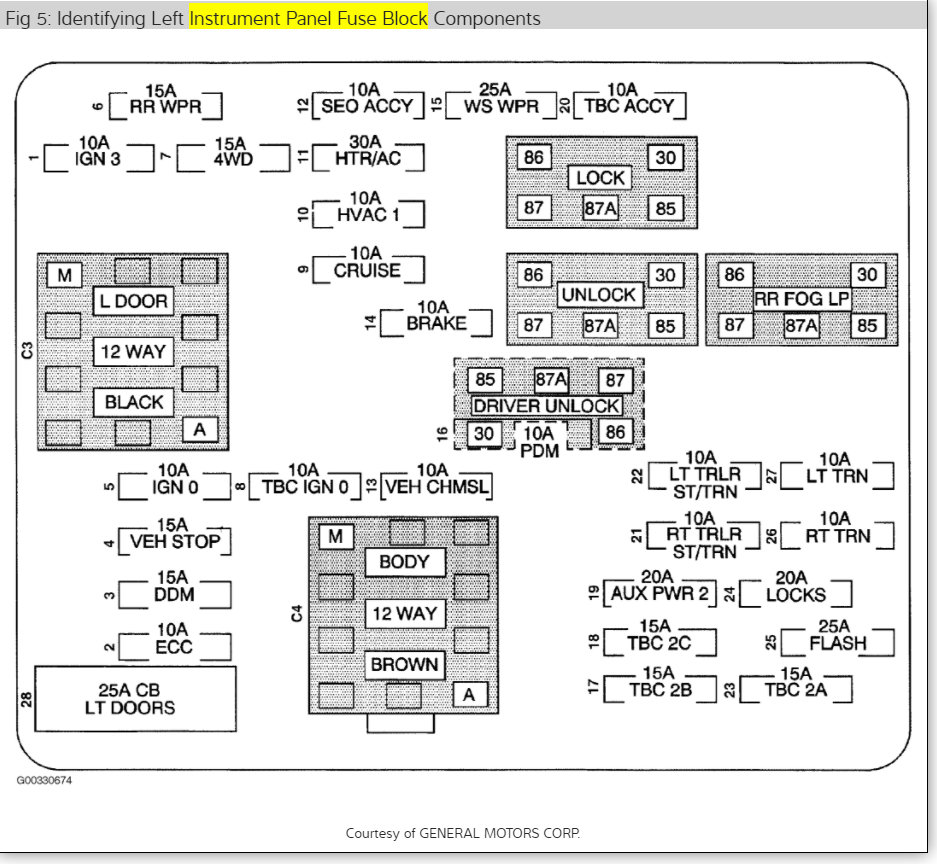

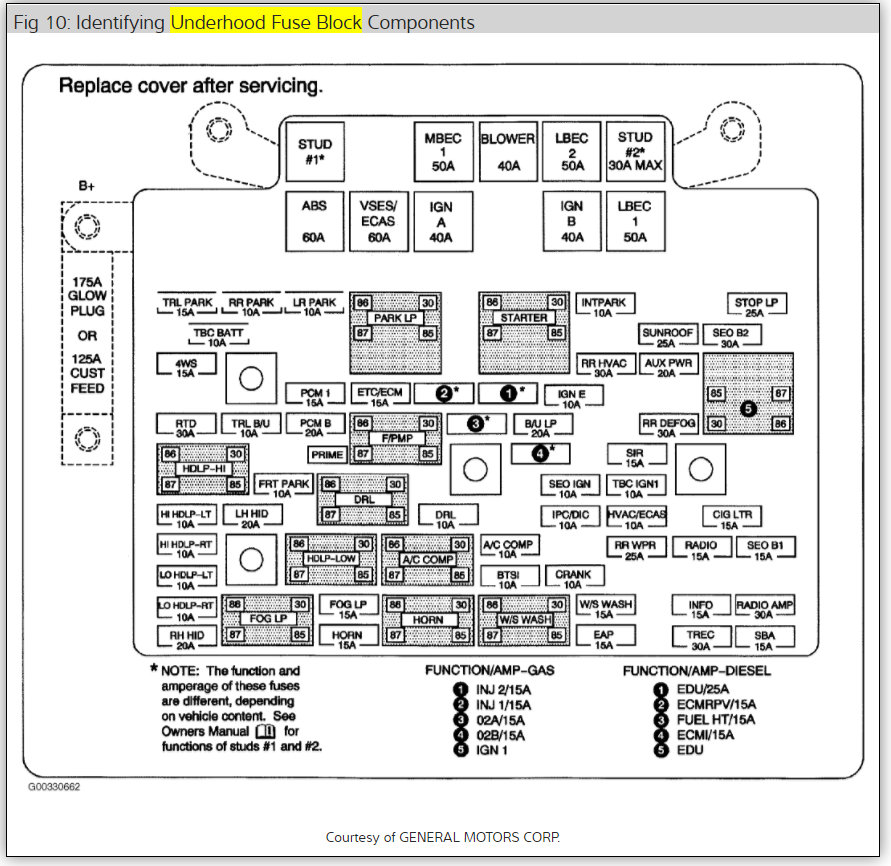

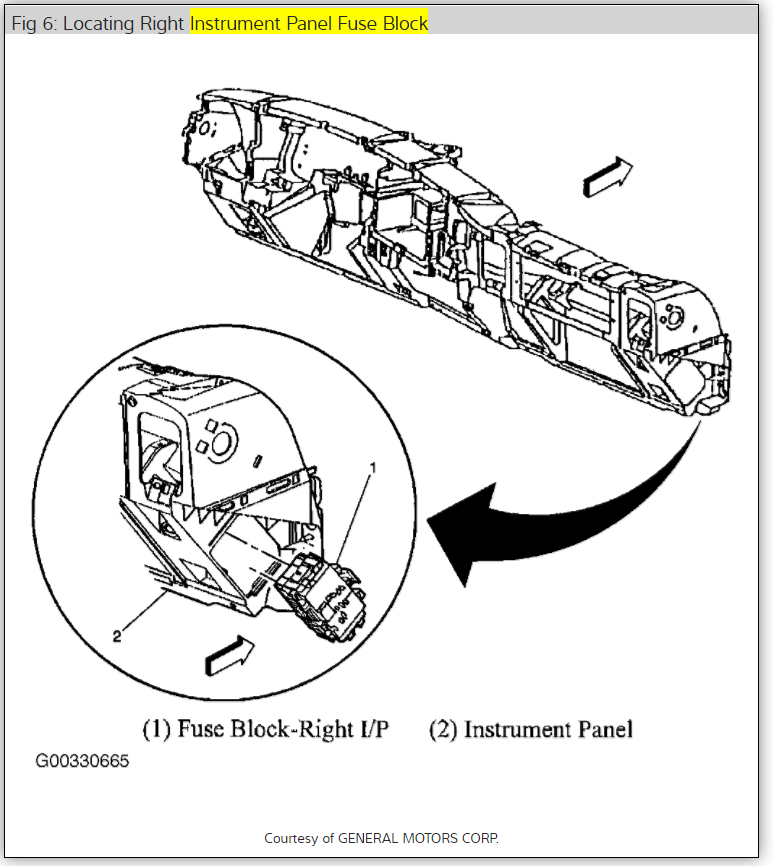

So when you put test light in series with batt term and batt it lights? if yes you got a big drain. If all is so try disconnecting the B+ to alt. Light goes out then alt diodes out defective. Here are eht fuse panels in the diagrams below.
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
May 13, 2021 at 6:34 PM
Avatar
SIMMONSJH113
  • MEMBER
  • 3 POSTS
I went back and pulled alt. wire and light stayed on. I went so far as disconnecting alt. completly with no change. I rechecked all fuses and breakers with no change. I have double checked everything being turned off?????????????? What can I be missing???
May 13, 2021 at 6:34 PM
Advertisement
Avatar
DOCFIXIT
  • CERTIFIED EXPERT
  • 18,828 POSTS
Need a DVOM digital volt ohm meter placed in series with neg. batt term . Set on 10 amp scale. Are you pulling relays a large amp fuses in engine compartment?
May 13, 2021 at 6:34 PM
Avatar
SIMMONSJH113
  • MEMBER
  • 3 POSTS
Yes I have pulled these and I now have a meter
May 13, 2021 at 6:34 PM
