spark plug wire diagram

1997 CHEVROLET CAMARO
10,000 MILES • 6 CYL • 2WD • AUTOMATIC
Avatar
TJSMAL
  • MEMBER
  • 1 POST
Do you have a picture of the correct wire harness form the ignition coils to each spark plug
Sep 29, 2009 at 5:11 PM
Advertisement
Avatar
BLUELIGHTNIN6
  • CERTIFIED EXPERT
  • 16,542 POSTS
Depends on engine size and body type. 3.8L engine , diagram is below.


https://www.2carpros.com/forum/automotive_pictures/261618_Graphic_188.jpg

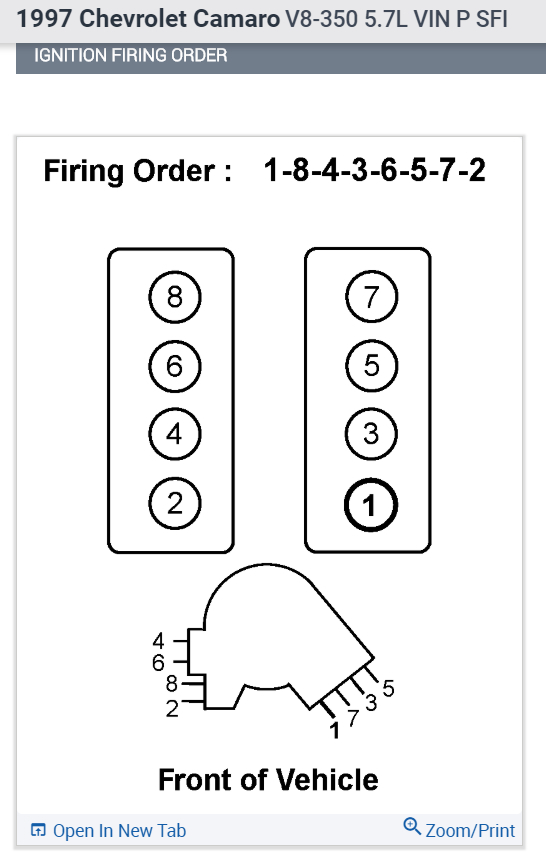

The V8 firing order is below. Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed. Cheers, Ken
