Battery is dead after SUV sits overnight

2002 GMC ENVOY

270,000 MILES • 6 CYL • 4WD • AUTOMATIC

TONYNEAL

MEMBER
37 POSTS
FOLLOW

If I hook up the battery charger, with the battery in the SUV, it will not charge. But
If I disconnect one of the battery cables
it will.
Now, the battery stays charged, and I have only head and brake lights, but lost all cabin and dash lights, windows, door locks, blower, stereo, and can't use the fob.
Any ideas?

Dec 13, 2019 at 11:55 AM

SCGRANTURISMO

CERTIFIED EXPERT
4,897 POSTS

Hello,

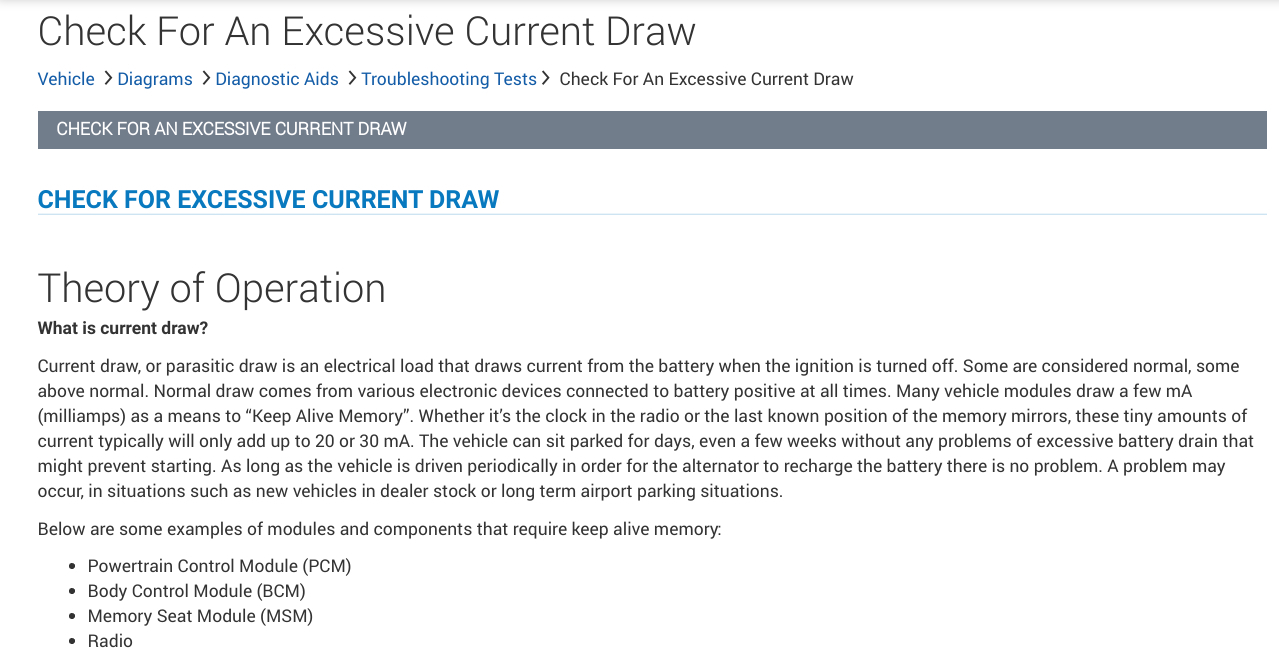

This sounds like you have a definite parasitic draw situation going on here. Parasitic draw is the term we use when a component, for whatever reason, either not turning off, being left on, or a short to power somewhere in the electrical circuit, keeps that component powered when it shouldn't, and thus draining your vehicle's battery overnight. Here is a link below to a generic guide on parasitic draw for you to go to below:

https://www.2carpros.com/articles/car-battery-dead-overnight

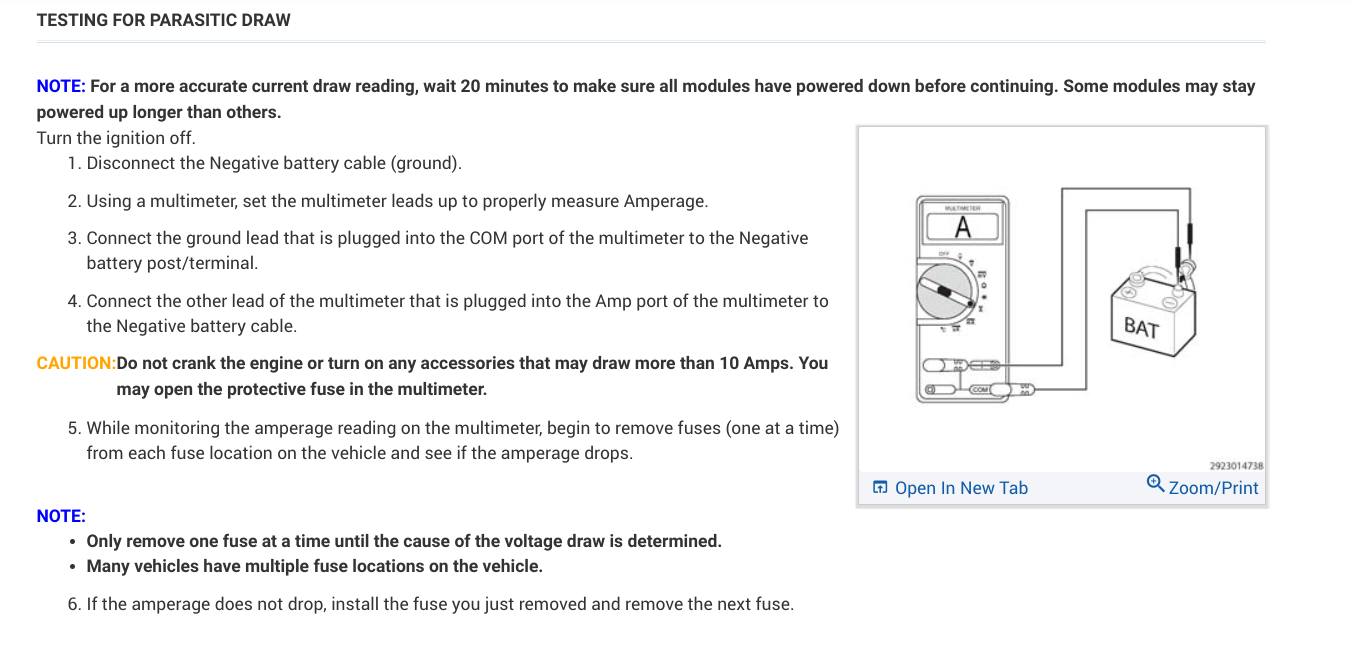

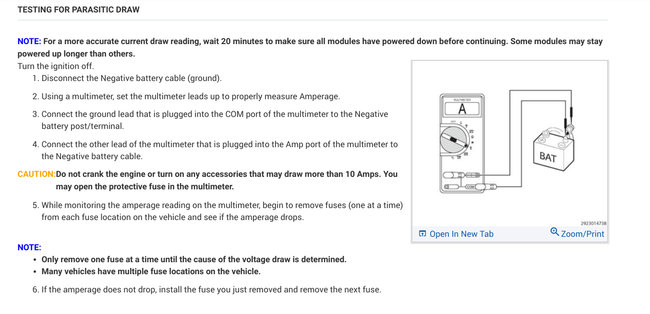

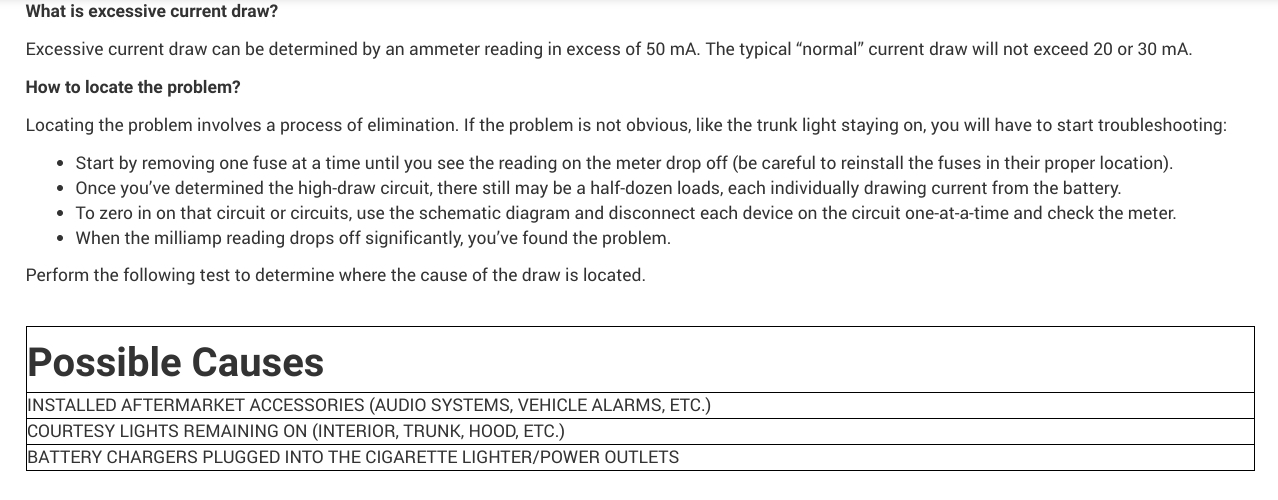

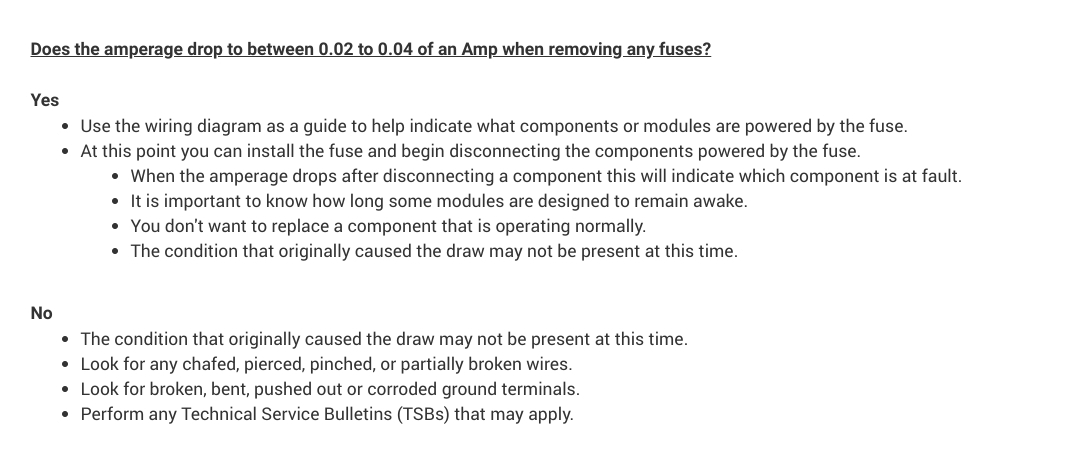

In the diagrams down below I have included a guide on how to specifically track down the parasitic draw and isolate it to the offending circuit[s]. Please go through these guides and get back to us with what you find out, and we can go from there.

Thanks,
Alex
2CarPros

Images (Click to enlarge)

Dec 13, 2019 at 4:08 PM
