Changing the climate control panel

1989 CHEVROLET 2500
250,000 MILES • 5.7L • V8 • 4WD • MANUAL
Avatar
06BELL
  • MEMBER
  • 2 POSTS
I have had to change the climate control panel in my truck. The previous owner played with it before and messed up all the wires that plug into the blower speed switch. I need help figuring out what wire goes where to get it to work properly.
Sep 24, 2018 at 12:44 PM
Advertisement
Avatar
ASEMASTER6371
  • CERTIFIED EXPERT
  • 52,796 POSTS
Good afternoon.

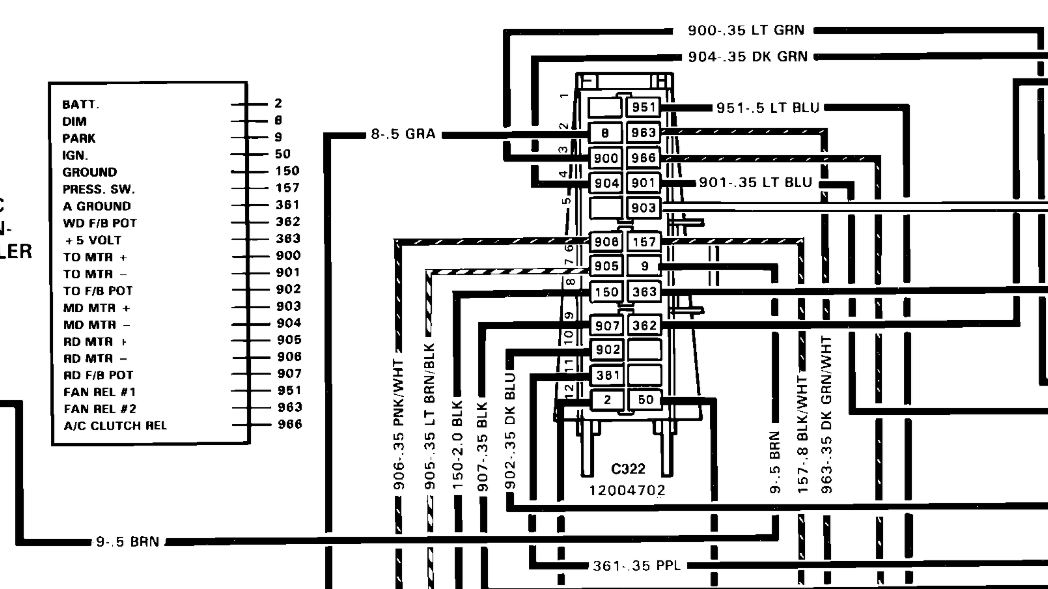

I attached a wiring diagram for you to view. It shows the connector as well as the connector with all the wire colors.

Roy
Image (Click to enlarge)
Attached Media
Sep 24, 2018 at 2:35 PM
Avatar
06BELL
  • MEMBER
  • 2 POSTS
I have a non digital climate control panel. Sorry I forgot to mention that.
Sep 24, 2018 at 3:39 PM
Advertisement
Avatar
ASEMASTER6371
  • CERTIFIED EXPERT
  • 52,796 POSTS
That was the only one listed.

Roy
Sep 24, 2018 at 3:46 PM
