Camshaft position sensor wiring connector pin diagram needed

2011 FORD ESCAPE
300,000 MILES • 2.5L • 4 CYL • 2WD • AUTOMATIC
Avatar
MORGAN8173
  • MEMBER
  • 71 POSTS
Do you have the connector pin wiring diagram for the camshaft position sensor please?
Jan 10, 2022 at 11:01 AM
Advertisement
Avatar
SQM
  • CERTIFIED EXPERT
  • 6,383 POSTS
Hello,

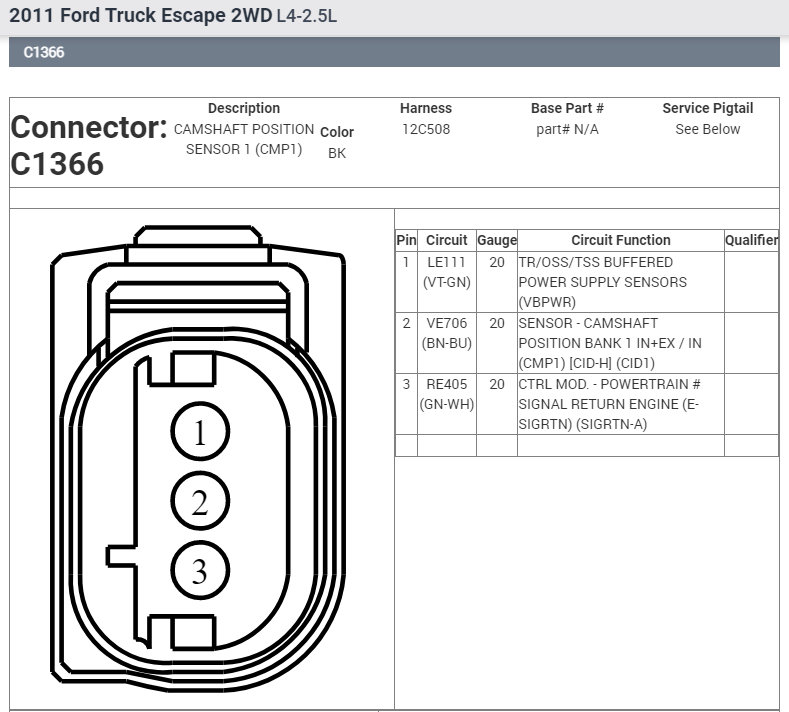

See attached for the pinout diagram for the camshaft position sensor.

https://www.2carpros.com/articles/how-to-check-wiring

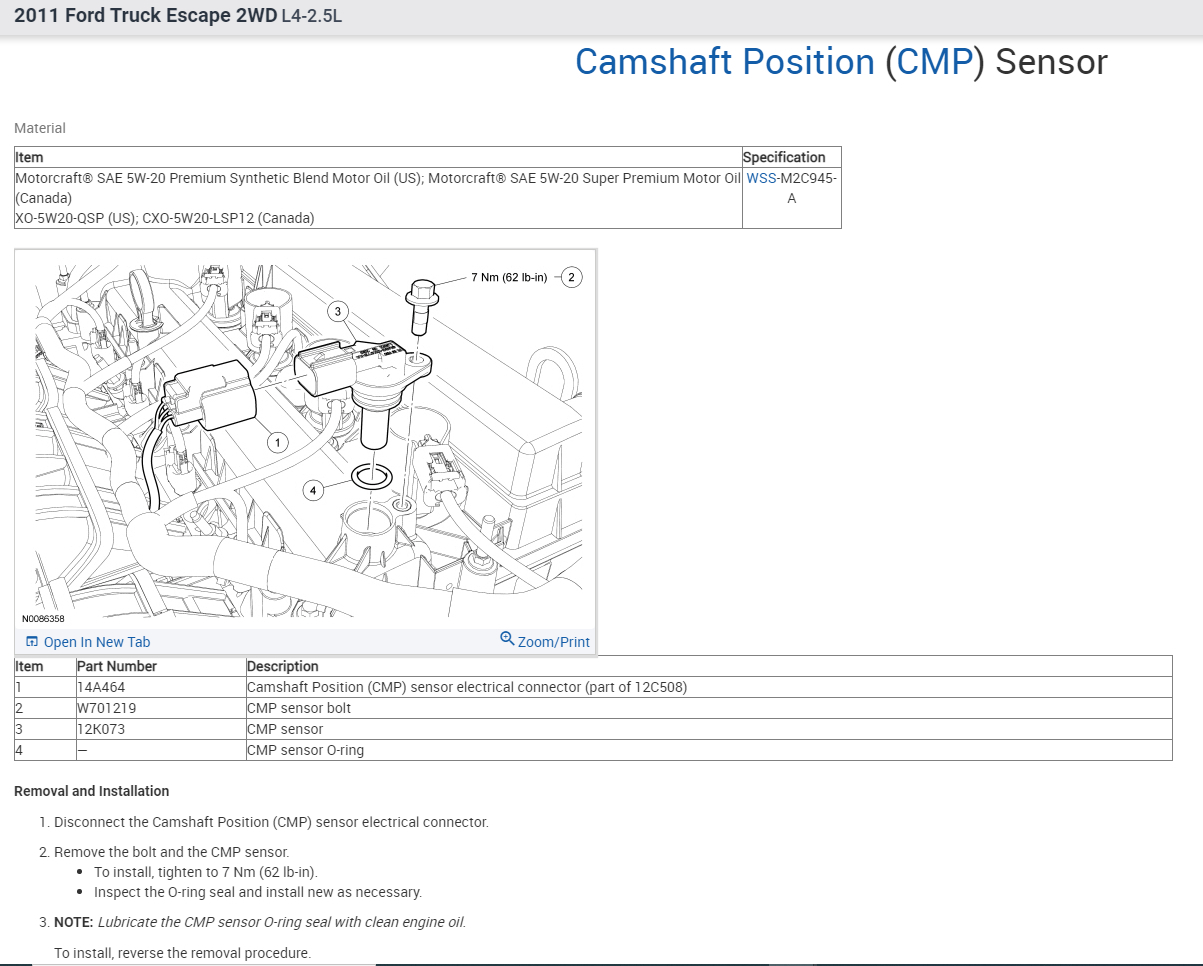

Also included is the replacement procedure including the torque specification.

Please let me know if you have any questions.
Thank you.
Images (Click to enlarge)
Attached Media
Attached Media
Jan 10, 2022 at 11:59 AM
