Camshaft position sensor pigtail, wiring diagram needed?

1999 PLYMOUTH BREEZE
217,138 MILES • 2.0L • 4 CYL • 2WD • AUTOMATIC
Avatar
CNICHOLLS21
  • MEMBER
  • 1 POST
I had to change the pigtail to the camshaft position sensor, and i do not know what the new colors go, or how to hook up the 3 wires?
Apr 14, 2023 at 11:23 PM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS

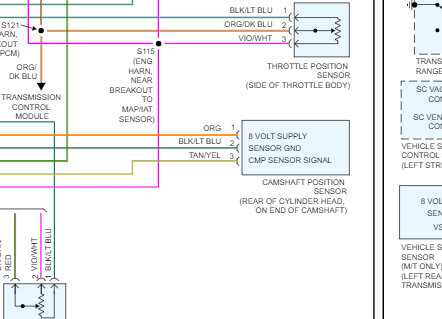

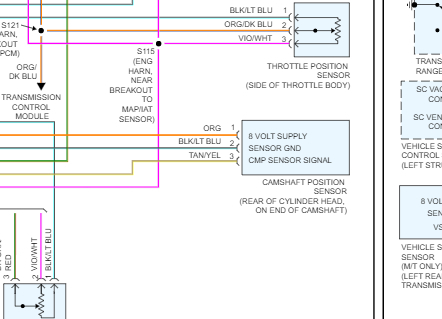

Here are the wiring configurations for the camshaft position sensor as you have requested. Check out the images (below). Please let us know if you need anything else to get the problem fixed.
Image (Click to enlarge)
Attached Media
Apr 15, 2023 at 11:03 AM
