Camshaft position sensor from the sensor to the ECU I need the wire colors?

2005 MAZDA 3
150,000 MILES • 2.3L • 4 CYL • 2WD • MANUAL
Avatar
HARPO1020
  • MEMBER
  • 1 POST
Camshaft position sensor wires lost I don't know where to find them I need to know when they come from the ECU what color they are and then to the camshaft position sensor.
Aug 18, 2025 at 11:37 AM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
Sure, here you go but can I ask if you have a camshaft code? This guide can help you with the testing:

https://www.2carpros.com/articles/how-to-check-wiring

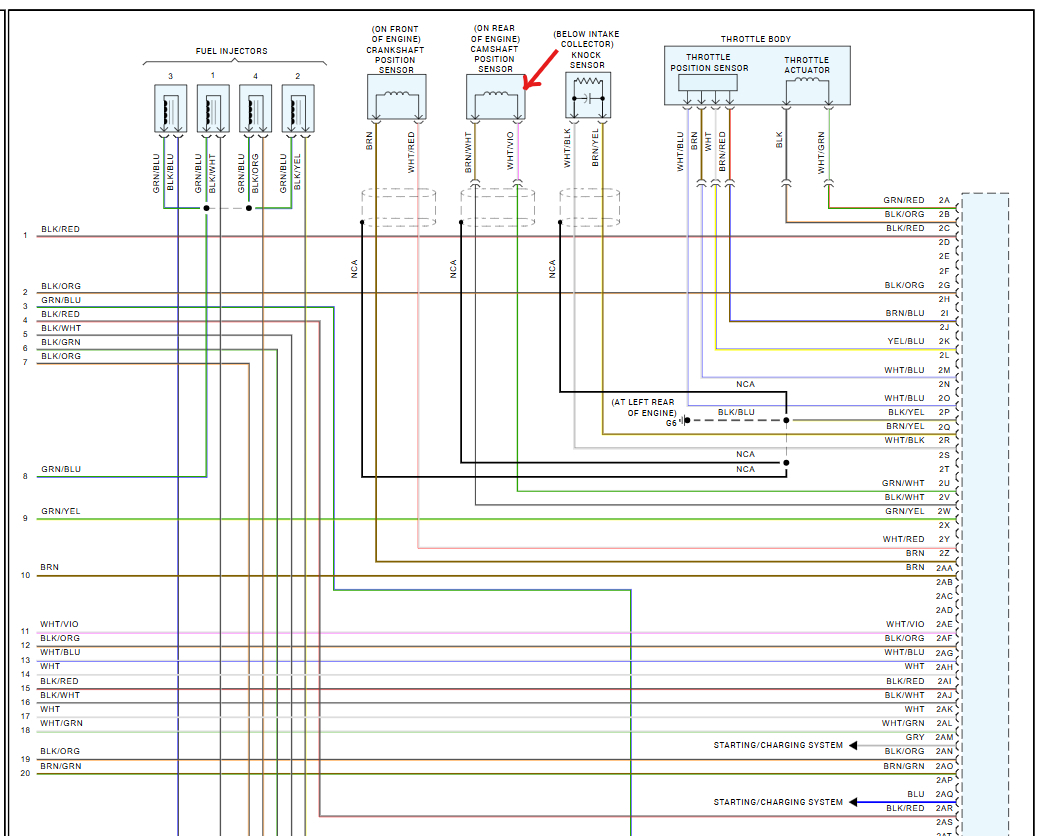

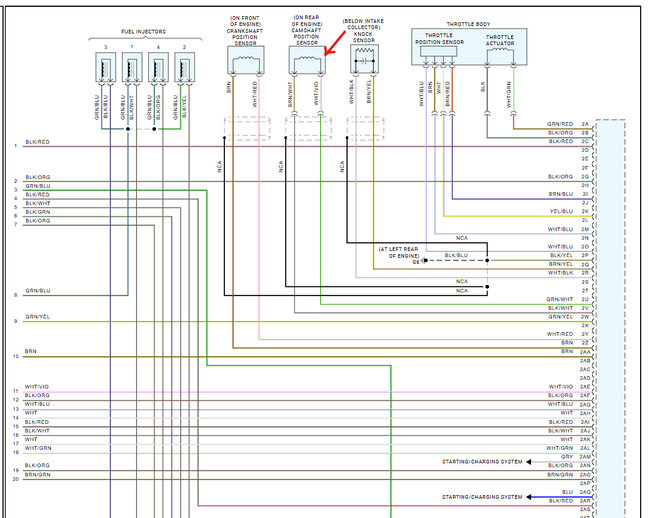

Here are the camshaft sensor wiring diagrams as requested. Check out the images (below). Let us know if you need anything else.
Image (Click to enlarge)
Attached Media
Aug 18, 2025 at 12:58 PM
