What is the placement of the camshaft and how the time them?

2006 KIA SPORTAGE
175,000 MILES • 2.7L • V6 • 2WD • AUTOMATIC
Avatar
CLAYNOR82
  • MEMBER
  • 1 POST
Removed heads to replace a head gasket sent to head to the shop to get it fixed got them back installed them, but I didn't mark the cams to know which ones went in which place.
Mar 31, 2022 at 9:09 AM
Advertisement
Avatar
JACOBANDNICKOLAS
  • CERTIFIED EXPERT
  • 110,175 POSTS
Hi,.

The intake camshaft will be closest to the intake manifold on both sides.

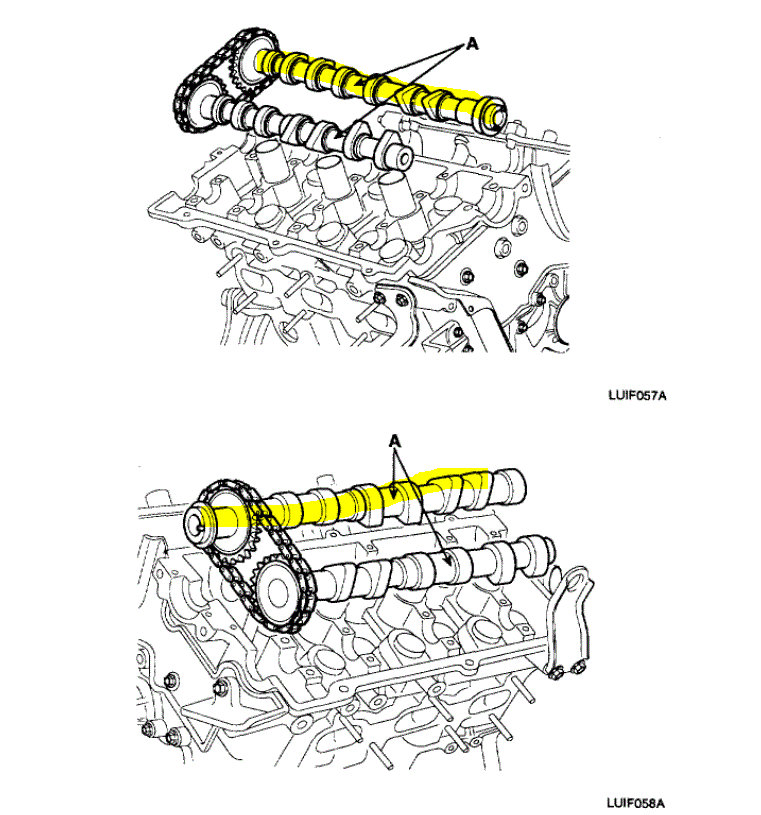

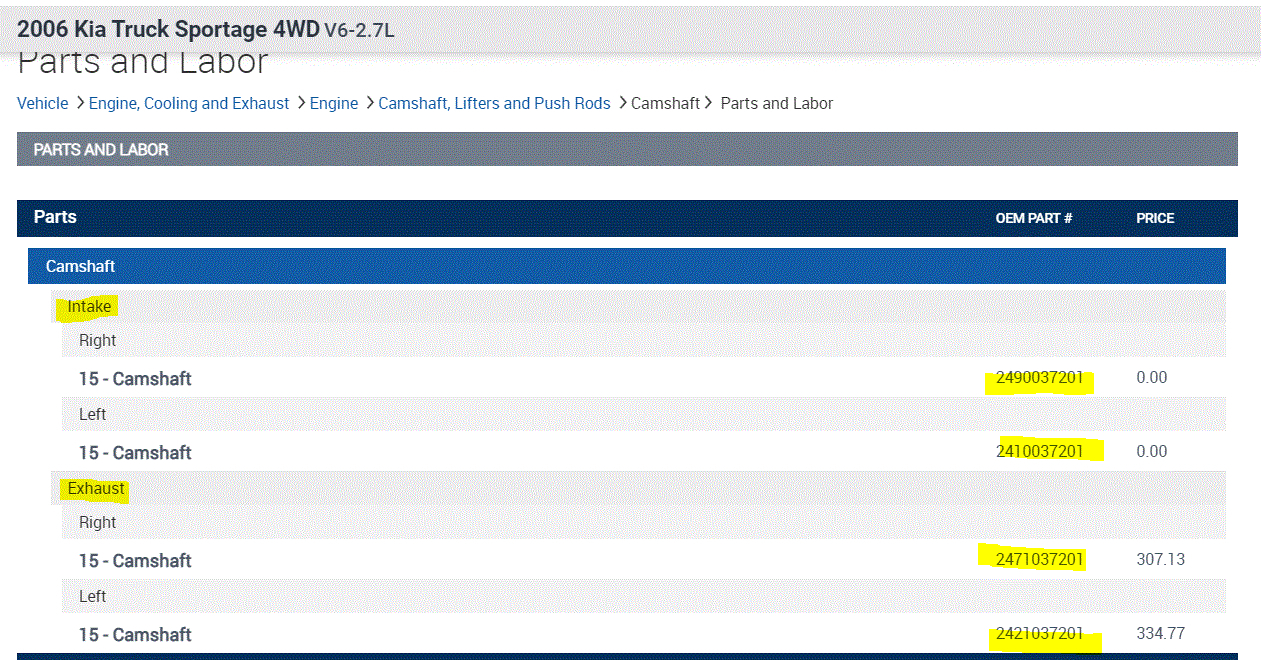

If you look below, pic 1 shows the part numbers. See if you can locate them on the cams to identify which is which. Pic 2 shows the intake cam positioning.

Let me know if this helps.

Take care,

Joe

See pics below.
