Bulkhead pinout needed?

1994 CHEVROLET 1500
238,000 MILES • 4.3L • 6 CYL • 2WD • AUTOMATIC
Avatar
GARRETTR
  • MEMBER
  • 2 POSTS
I have looked everywhere for a bulkhead pin out diagram. I have a 1994 truck but motor and transmission and wiring harness from a 1995 and the bulkhead connectors are different I need to convert the 1995 to the 1994 connector but cannot find the pin out diagram TYA.
Aug 7, 2025 at 3:34 PM
Advertisement
Avatar
GARRETTR
  • MEMBER
  • 2 POSTS
I need the pinout diagram for the 1994.
Aug 7, 2025 at 9:35 PM
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS

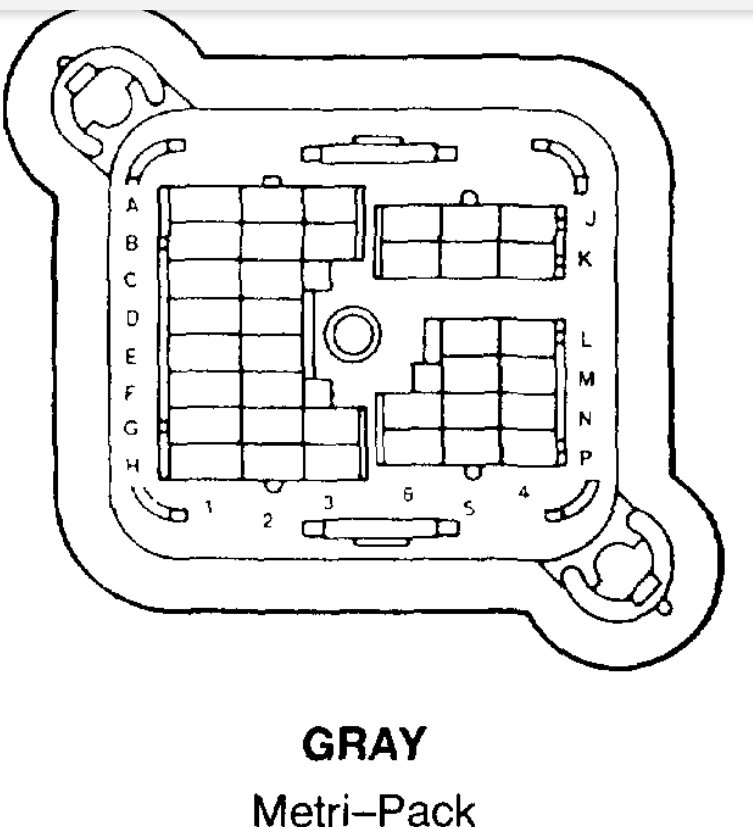

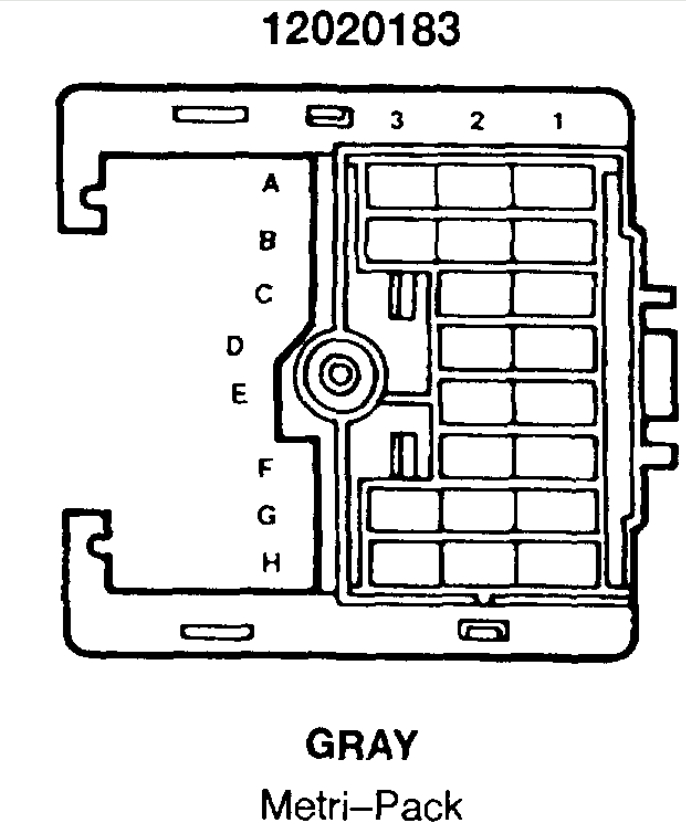

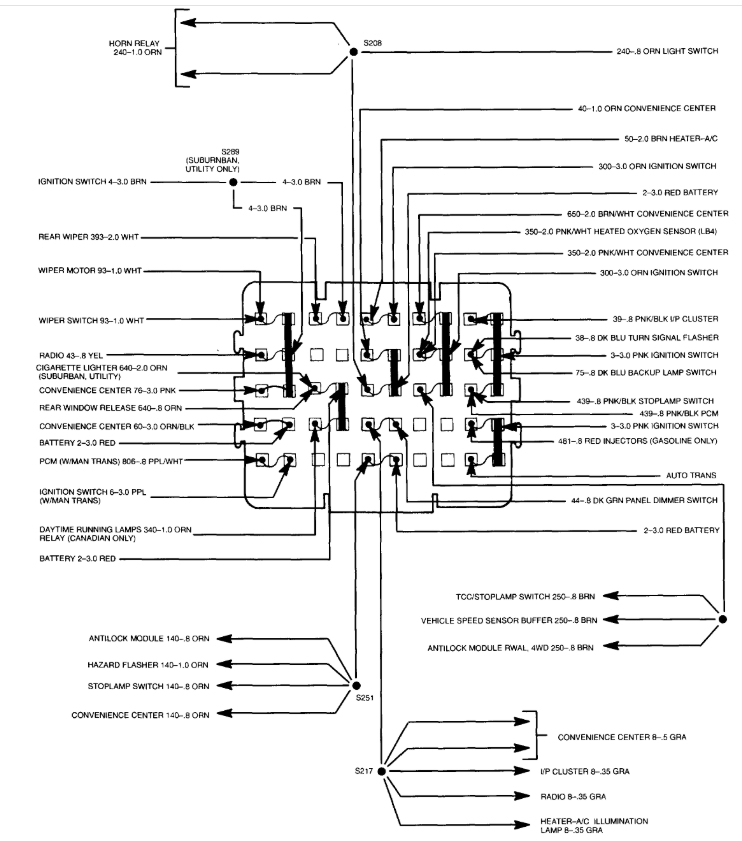

They really don't give that information, here is the bulkhead connector but I don't see the wiring for it. But I did find wiring diagrams for the fuse panel. Check out the images (below).
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Aug 8, 2025 at 12:02 PM
