Broken lever on vent mode?

2011 FORD F-150
120,000 MILES • 5.0L • V8 • 4WD • AUTOMATIC
Avatar
TERRAPHIN
  • MEMBER
  • 4 POSTS
I have found that the reason my vents won't change is a broken lever that the actuator is moving. I however can't seem to find any info on this part that appears to come off. Can you direct me on where to find this part? Seems silly to replace the entire system because of on part that can be changed.
Feb 3, 2023 at 10:33 AM
Advertisement
Avatar
JACOBANDNICKOLAS
  • CERTIFIED EXPERT
  • 110,175 POSTS
Hi,

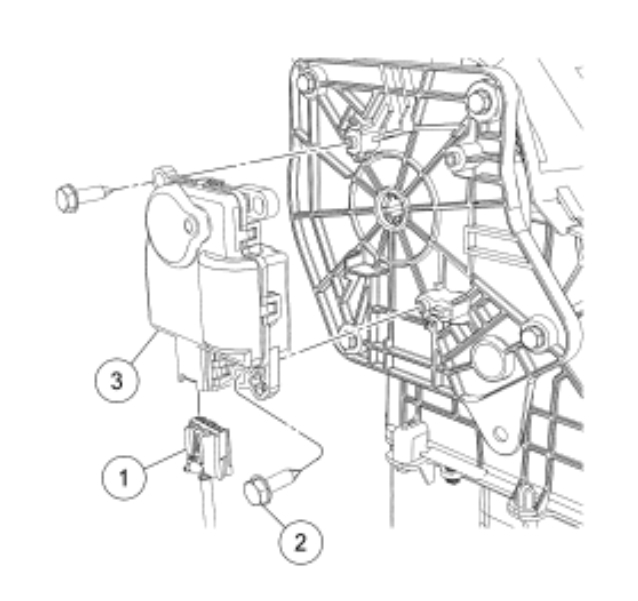

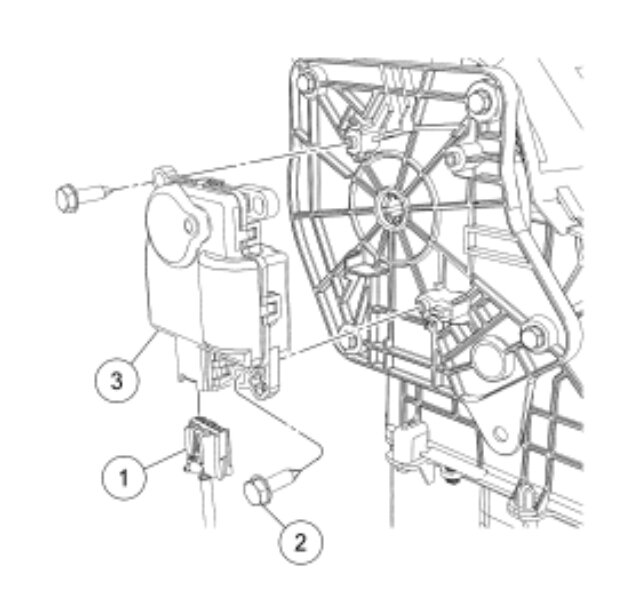

The mode door actuator shouldn't have a lever. It should key into the mode door at the side of the HVAC box.

I attached a pic below. Do you see the part you are referring to?

Let me know.

Joe
Image (Click to enlarge)
Attached Media
Feb 3, 2023 at 2:04 PM
Avatar
TERRAPHIN
  • MEMBER
  • 4 POSTS

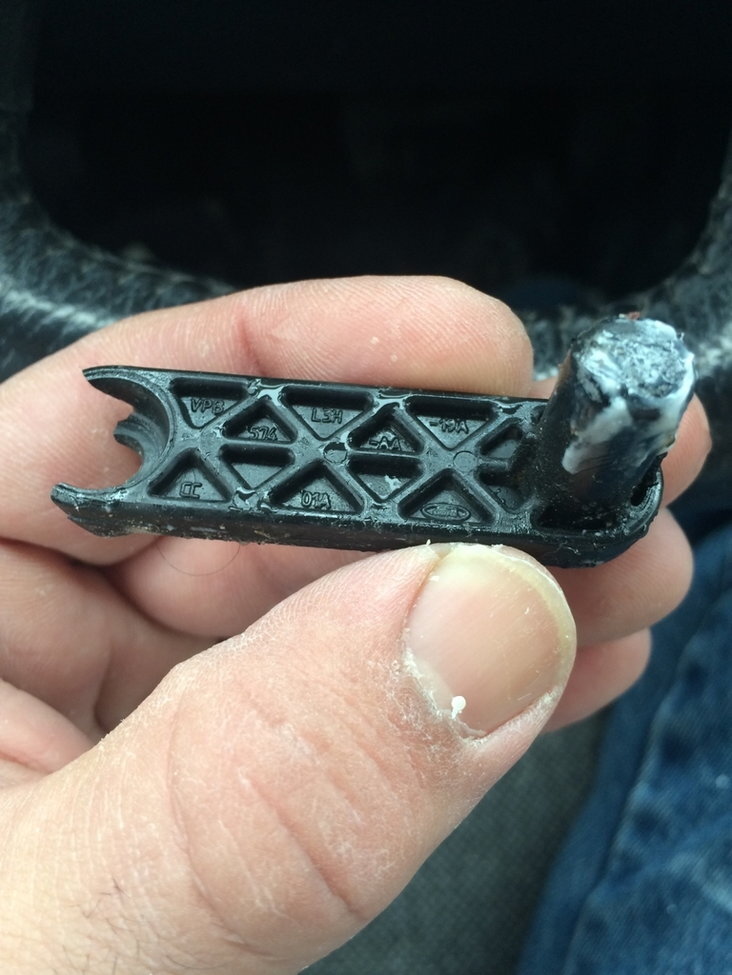

It is behind the plate that the actuator attaches to. Between that plate and the actual HVAC box. Included a picture of broken part.
Image (Click to enlarge)
Attached Media
Feb 3, 2023 at 3:06 PM
Advertisement
Avatar
JACOBANDNICKOLAS
  • CERTIFIED EXPERT
  • 110,175 POSTS
Hi,

I looked at the pic. Am I correct in saying the broken section is where the actuator connects? Also, do you have the HVAC box taken apart?

Joe
Feb 3, 2023 at 3:12 PM
Avatar
TERRAPHIN
  • MEMBER
  • 4 POSTS
The actuator connects through the black plate into a white wheel that moves this lever and some other ones. Actually, this picture is from the only reference I could find. It is on the F150 forum, so no I have not taken mine apart yet. I was hoping to have the replacement before I get into it.
Feb 3, 2023 at 3:24 PM
Avatar
JACOBANDNICKOLAS
  • CERTIFIED EXPERT
  • 110,175 POSTS
Hi,

I went through two manuals, google, and anything I can think of, and can't find info on that connector. You mentioned seeing a forum that mentioned it. Can you provide the link? I want to see if that is part of another component.

Let me know.

Joe
Feb 3, 2023 at 6:55 PM
Avatar
TERRAPHIN
  • MEMBER
  • 4 POSTS
Sure thing, this is it.

https://www.f150forum.com/f38/2011-lariat-completely-intermittent-c-heater-functions-320308/index2/

I have continued to look and found this YouTube video as well:

https://www.youtube.com/watch?v=Fx-rEEK_-0Y

Hope this helps. The video says he found a compatible part from an older modal in the wrecking yard. I would prefer to get new parts if possible, though.
The lack of info on this is disturbing. lol
Feb 3, 2023 at 8:48 PM
Avatar
TERRAPHIN
  • MEMBER
  • 4 POSTS
Sure thing this is the post that I found.
www.f150forum.com/f38/2011-lariat-completely-intermittent-c-heater-functions-320308/index2/
Also I continued looking and found a similar story on YouTube.
www.youtube.com/watch?v=Fx-rEEK_-0Y
He says that he found a replacement off of a older modal in a wreaking yard. I'd just assume get a new part if posable.
Feb 3, 2023 at 8:57 PM
Avatar
TERRAPHIN
  • MEMBER
  • 4 POSTS
had to remove the h t t p s :// to let me post them. Hope they can work.
