brake switch wiring diagram?

1987 CHEVROLET EL CAMINO
200,000 MILES • V8 • 2WD • AUTOMATIC
Avatar
DOLLABILL25
  • MEMBER
  • 44 POSTS
I just need to know the brake switch wiring diagram / schematic. Because I don't have brake lights on my vehicle, lol all fuses and bulbs are good, tail lights work, just no brake lights. Thank you
Jun 6, 2024 at 1:17 PM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS

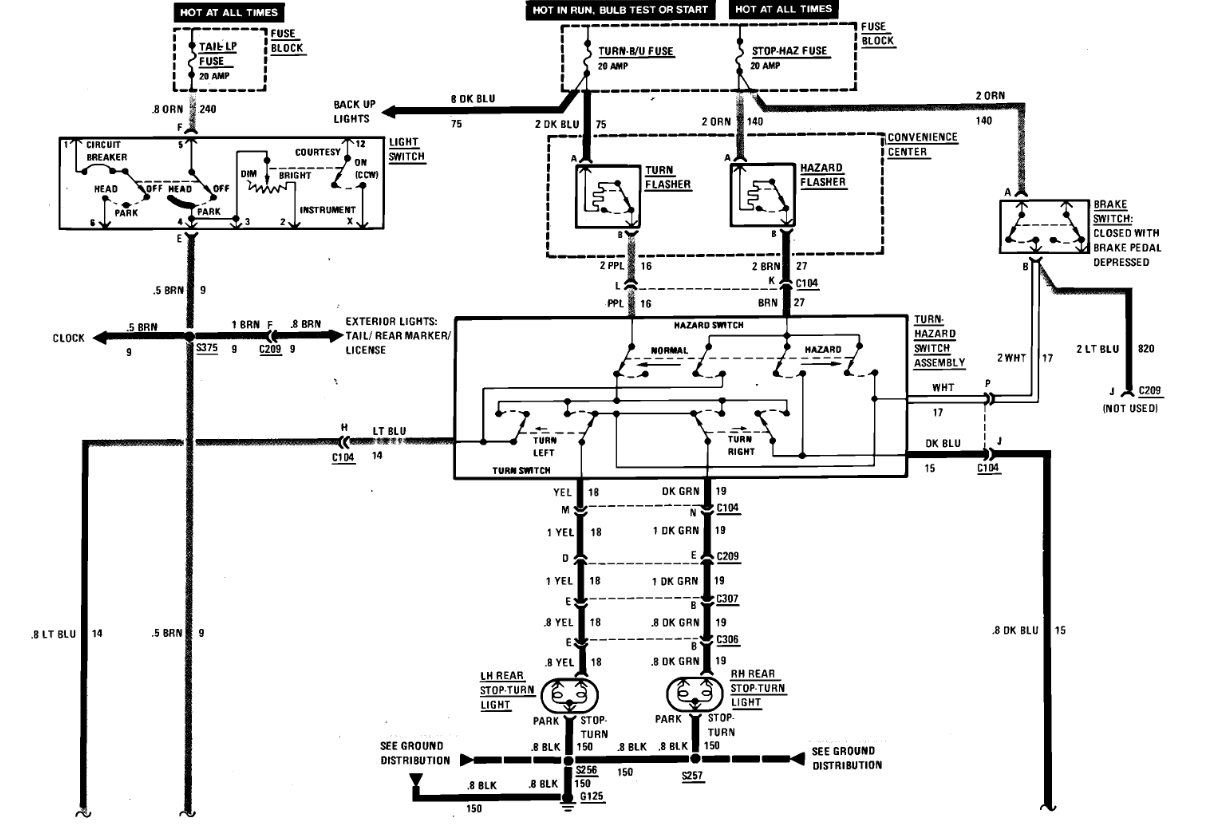

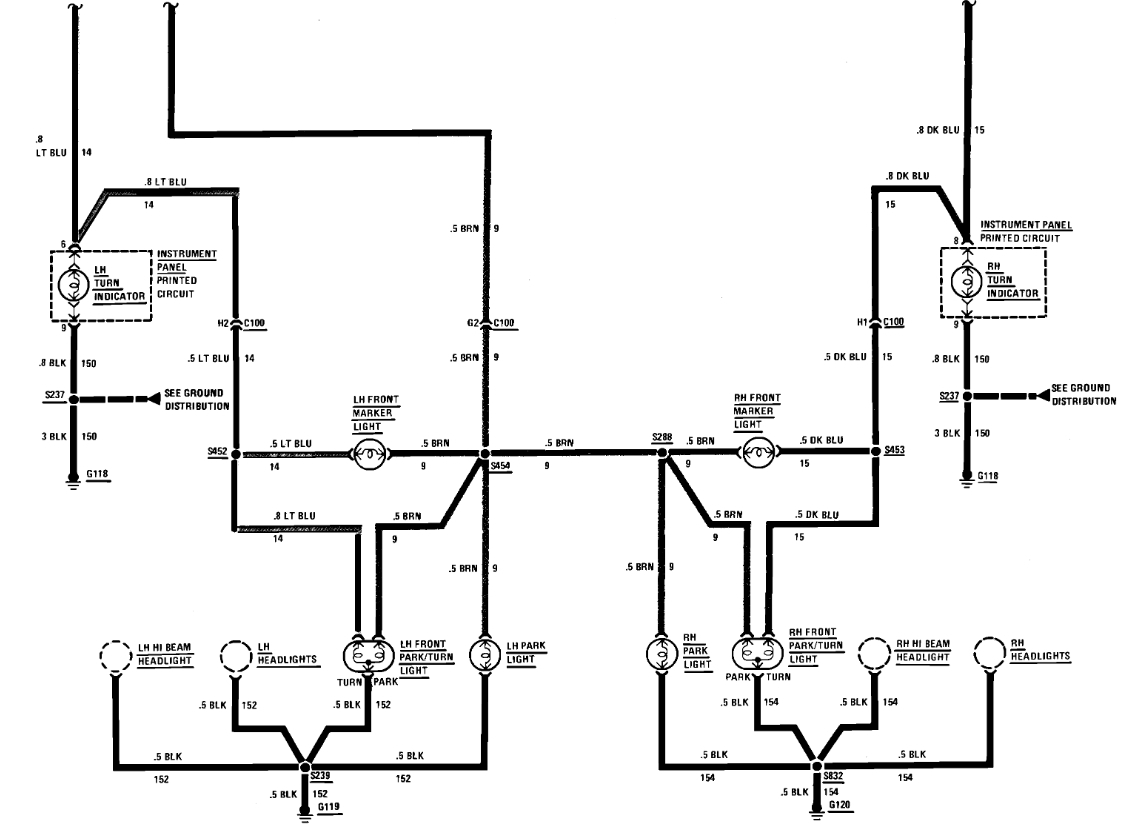

Sure, here is the factory wiring diagrams for the brake light and blinkers as requested, you are welcome. Check out the images (below). Let us know if you need anything else.
Images (Click to enlarge)
Attached Media
Attached Media
Jun 6, 2024 at 5:39 PM
