My brake pad came off. From looking at the way the pad "set"

2012 VOLVO S60
78,000 MILES • TURBO
Avatar
STEELBURNER
  • MEMBER
  • 1 POST
My brake pad came off. From looking at the way the pad "set" I suspect it was not properly installed. I have a new one now. How can I do the job myself?
Dec 3, 2018 at 4:20 PM
Advertisement
Avatar
DANNY L
  • CERTIFIED EXPERT
  • 5,648 POSTS
Hello, I'm Danny.

Sorry to hear about the improper brake installation. This is the correct way. Here is a tutorial showing what is involved on how to change front brake pads and brake rotors:

https://www.2carpros.com/articles/how-to-replace-front-brake-pads-and-rotors-fwd

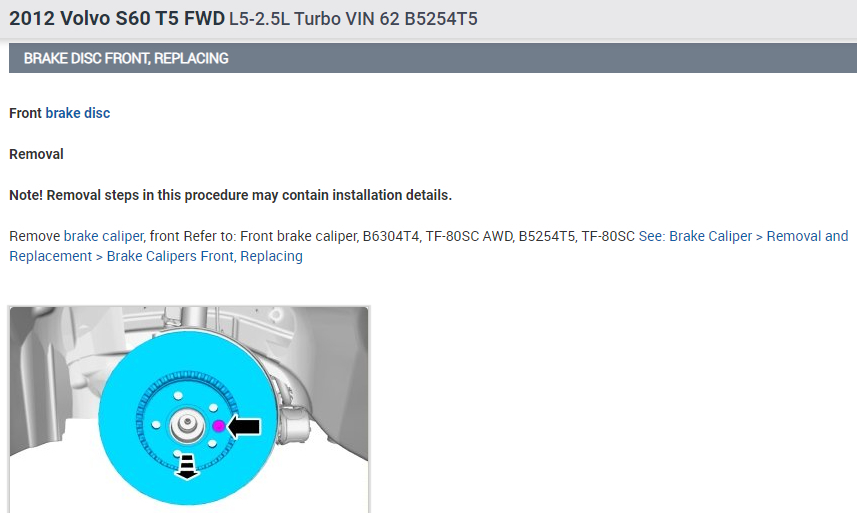

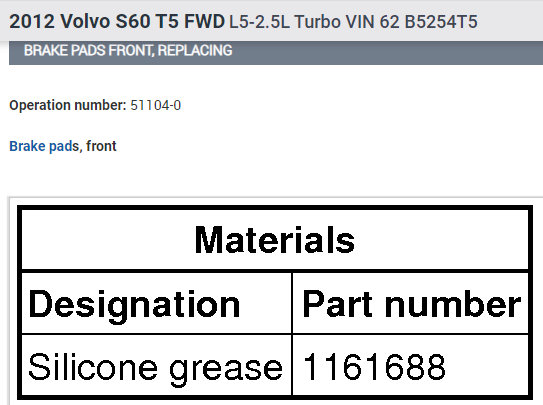

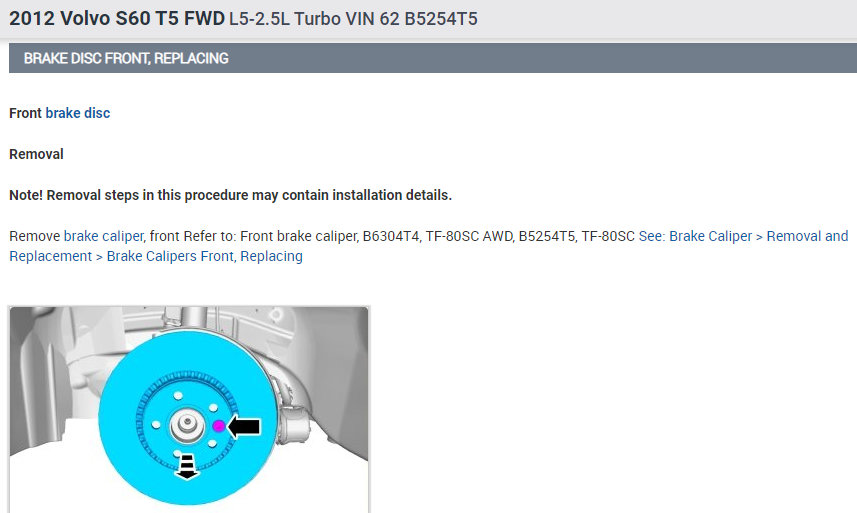

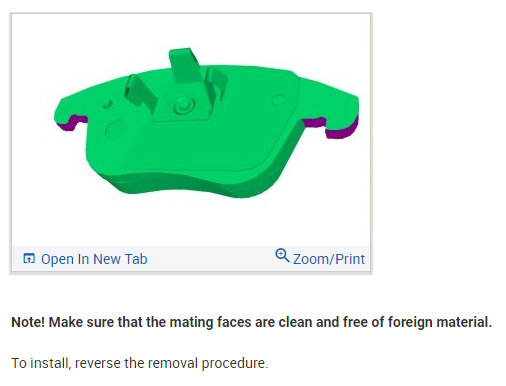

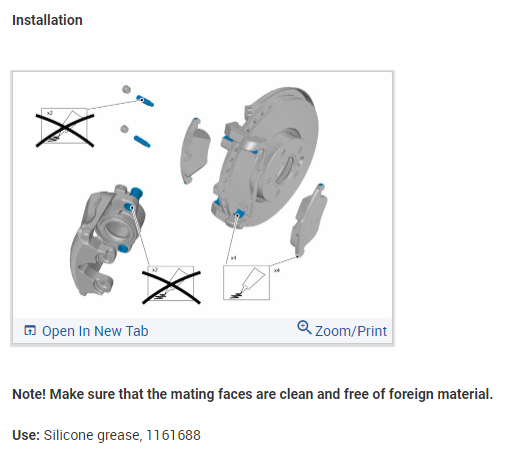

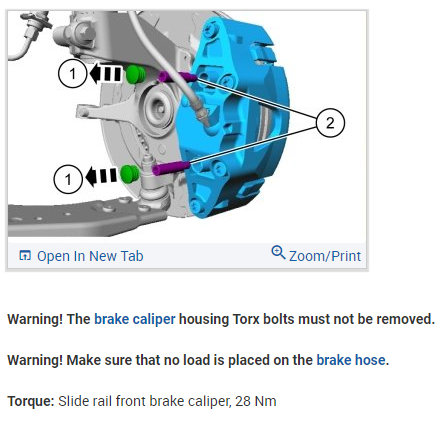

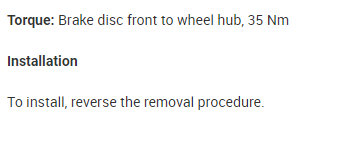

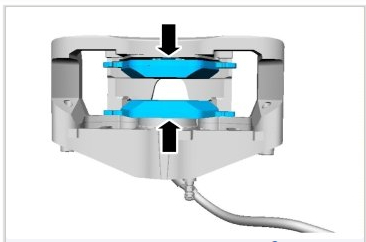

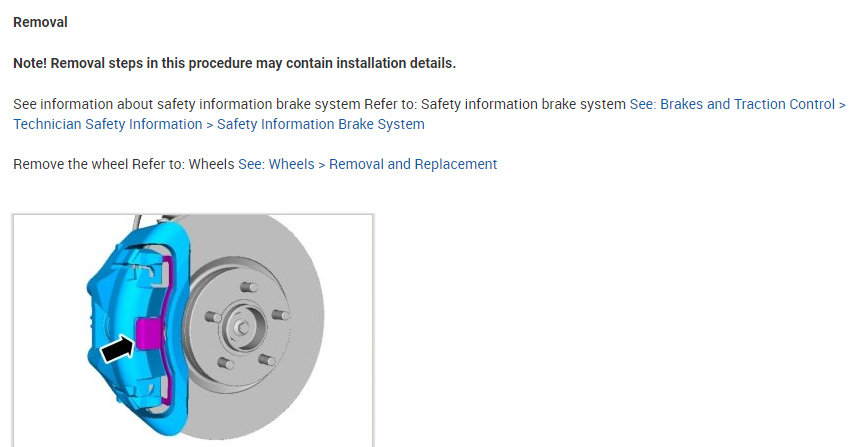

I've attached picture steps below on how to change the front brake pads and rotors on your vehicle. Hope this helps and thanks for using 2CarPros.
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Feb 18, 2021 at 11:06 PM
