Brake light switch plug wiring diagram needed

2001 FORD TAURUS
100,000 MILES
Avatar
JON SPRINGER
  • MEMBER
  • 1 POST
My brake light switch plug pigtail somehow wrapped itself around my steering shaft. The pigtail broke off at a location that I cannot find. If I can find the opposite end I can splice them back together. Any advice is appreciated greatly.. thank you for your time.
Sep 1, 2021 at 1:45 AM
Advertisement
Avatar
DANNY L
  • CERTIFIED EXPERT
  • 5,648 POSTS
Hello, I'm Danny.

I've attached brake light switch diagrams below for you to trace the wiring. Here is a tutorial showing how to test vehicle wiring:

https://www.2carpros.com/articles/how-to-check-wiring

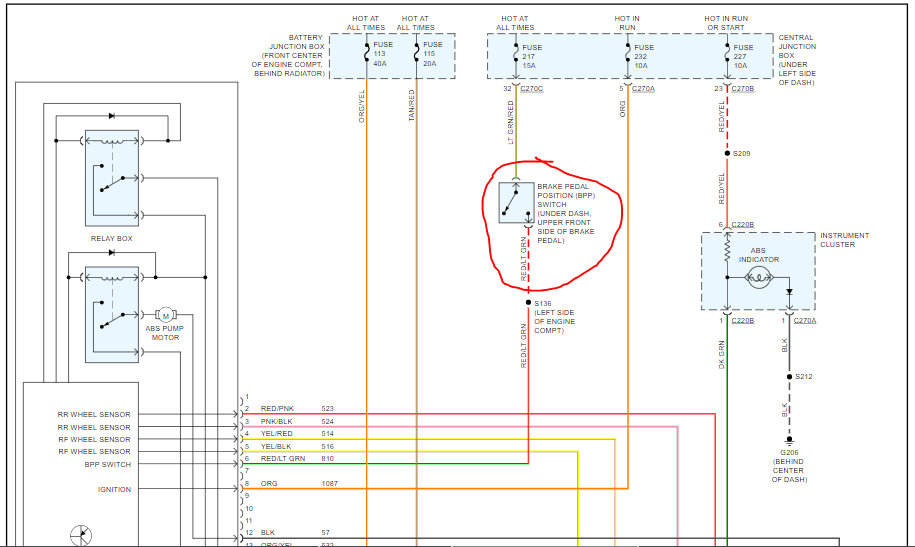

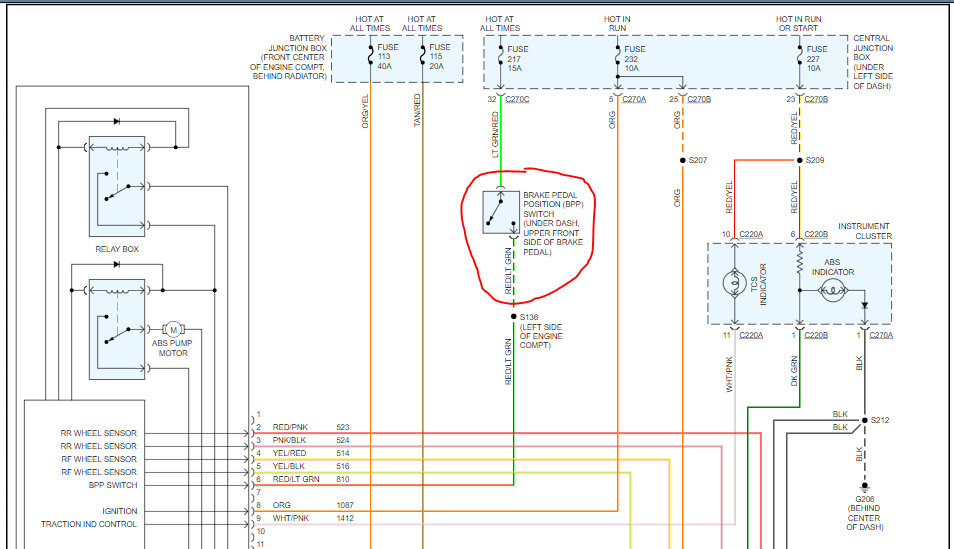

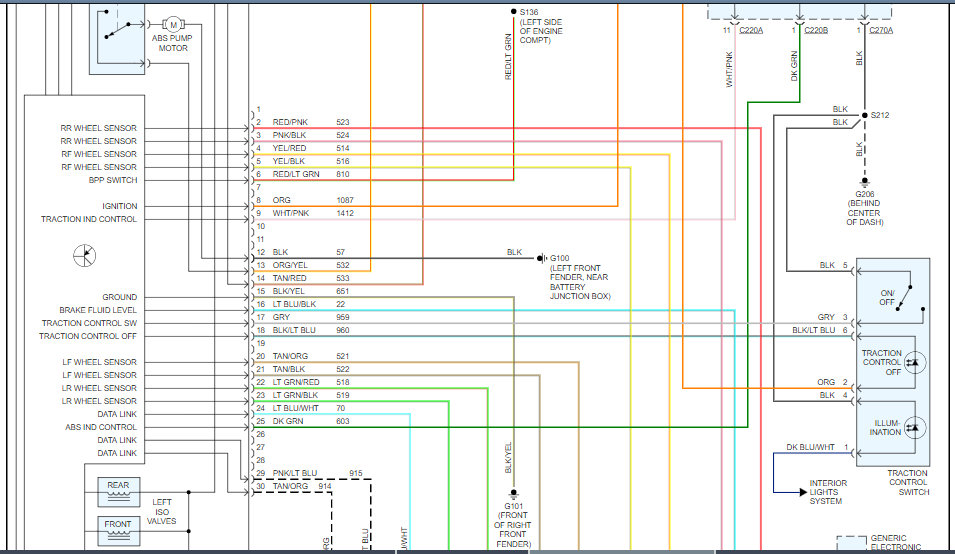

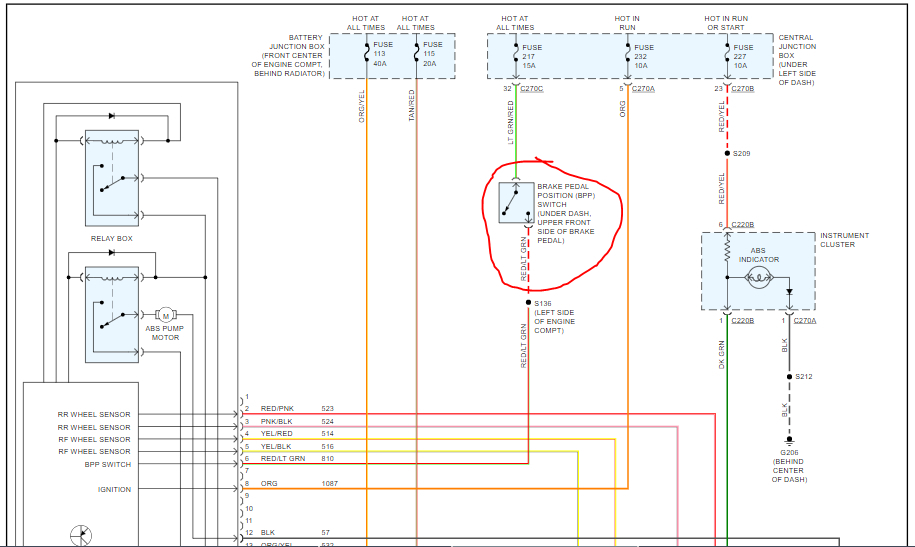

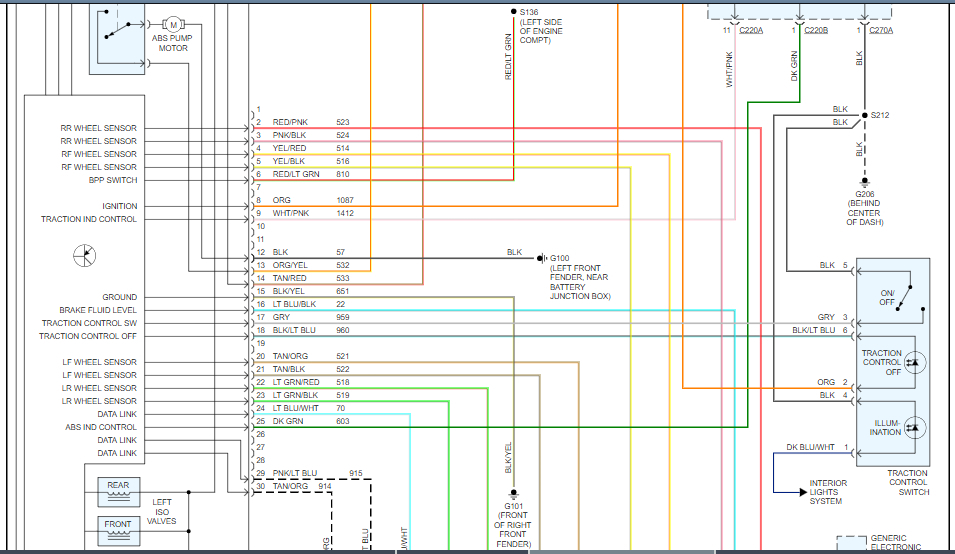

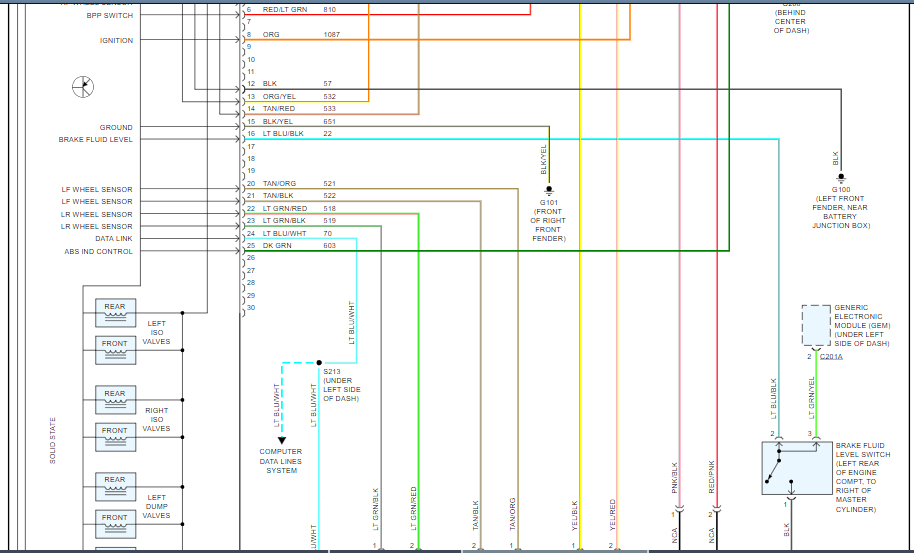

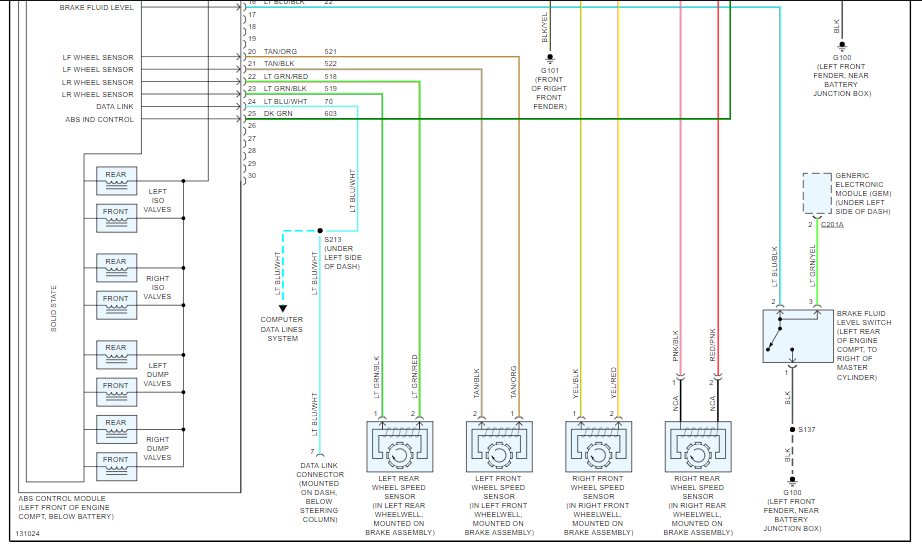

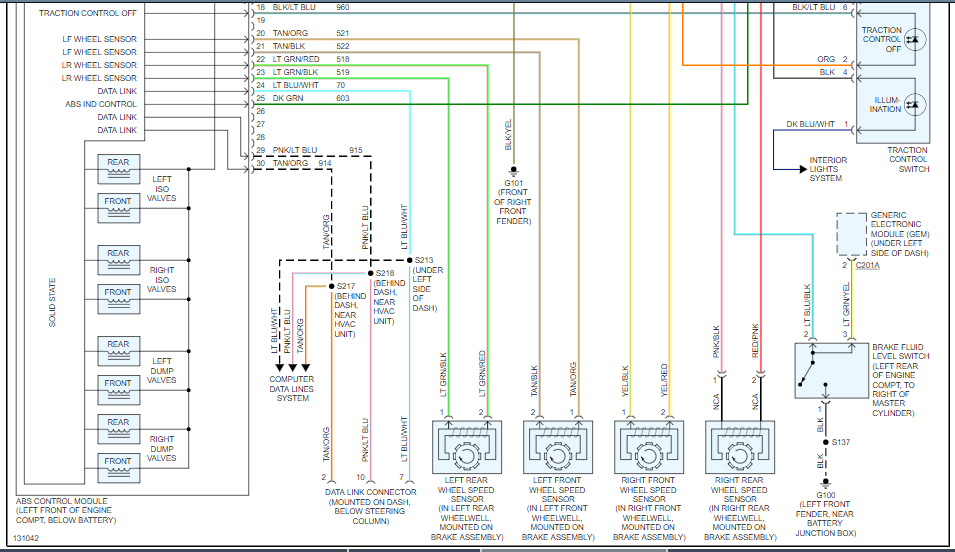

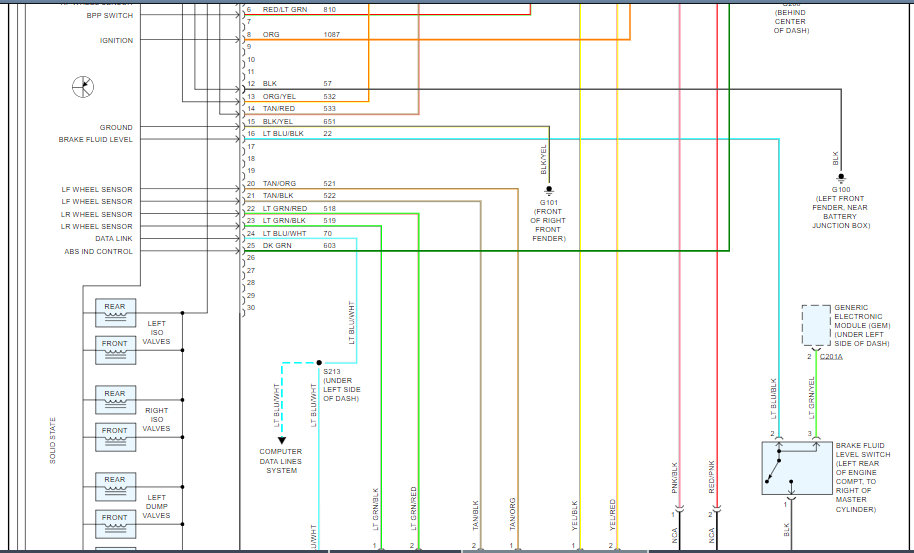

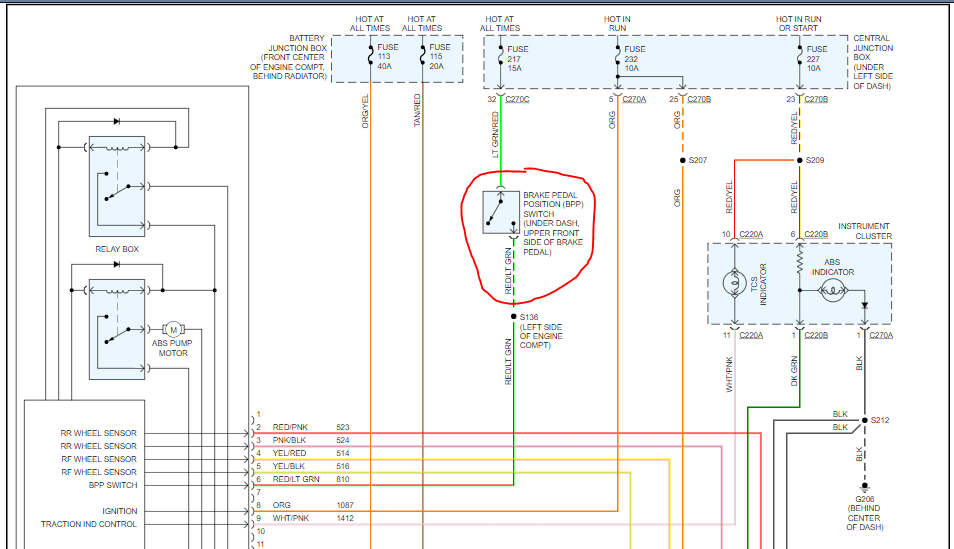

I've cut both pictures into 3 pieces each so you can view larger. The first 3 pictures are for a Taurus with traction control and the last 3 are for without traction control. I've also circled the brake light switch in red. Hope this helps and thanks for using 2CarPros.
