New booster old one was out. so don't know what line goes where and size bolt goes in the booster or cylinder.
Jul 15, 2019 at 5:41 AM
Brake diagram from master cylinder to booster to lines
2002 PONTIAC GRAND AM
JUSTIN OSLEY
- MEMBER
- 1 POST
- FOLLOW
Advertisement
Hi Justin,

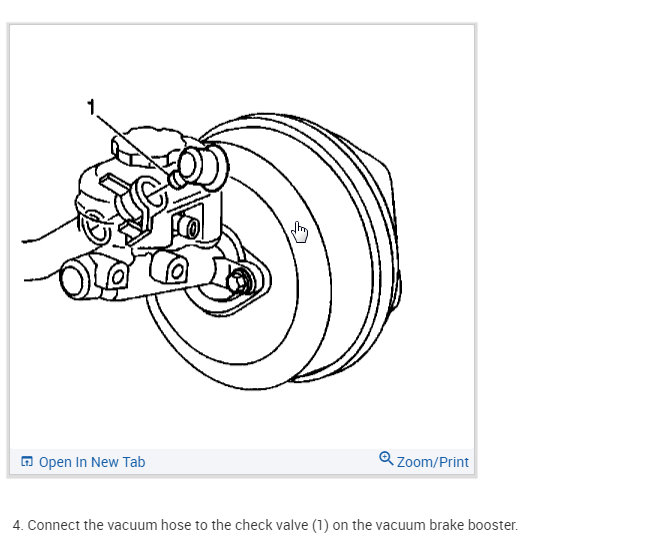

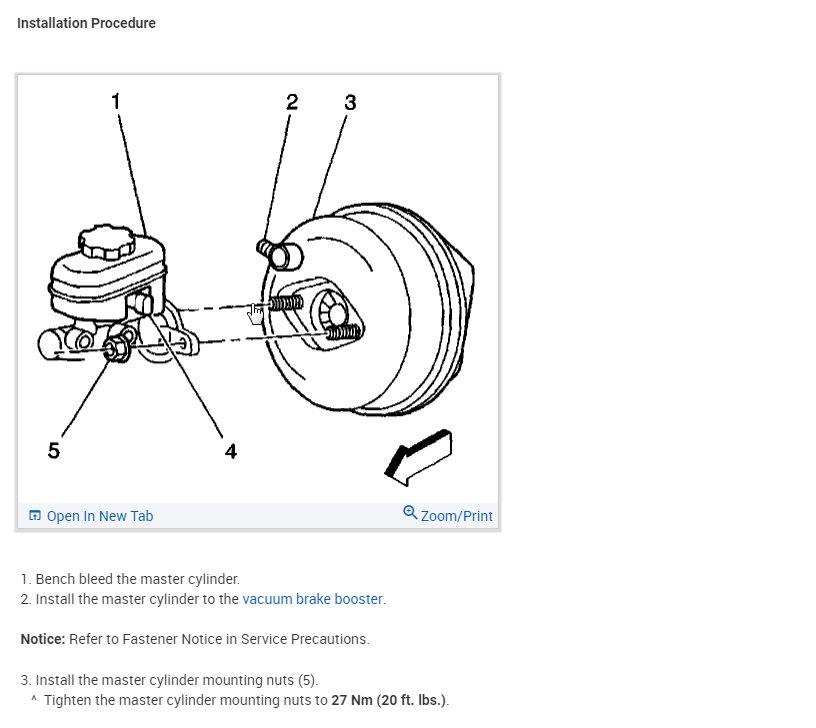

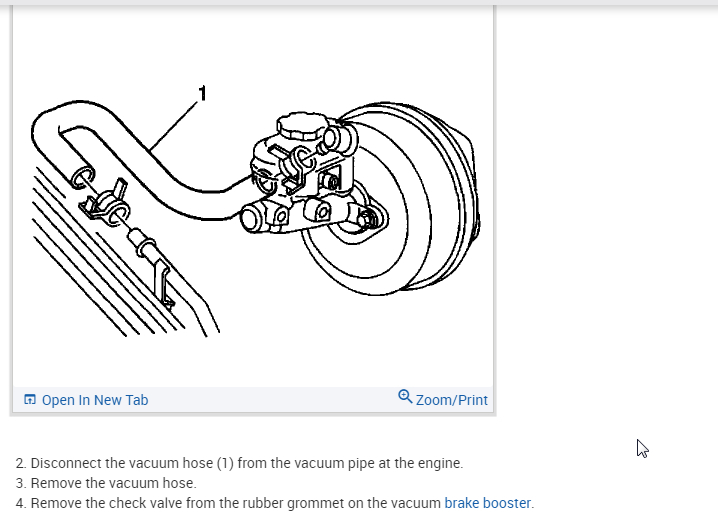

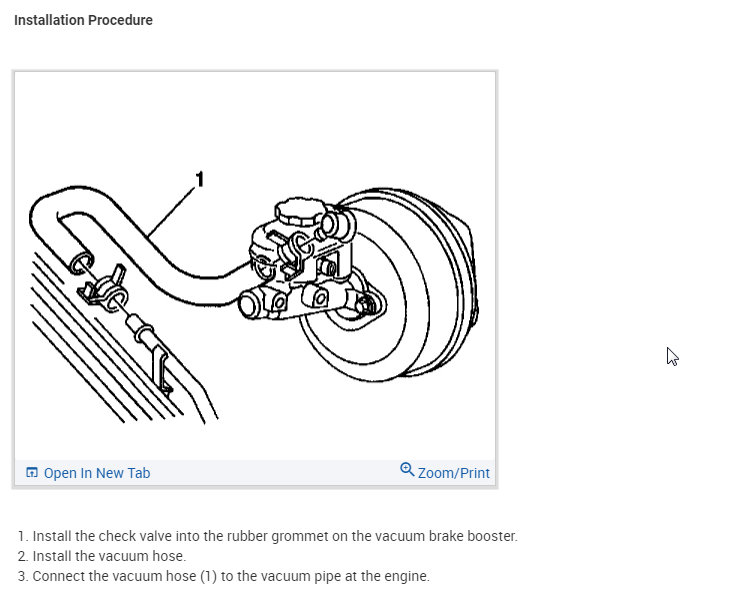

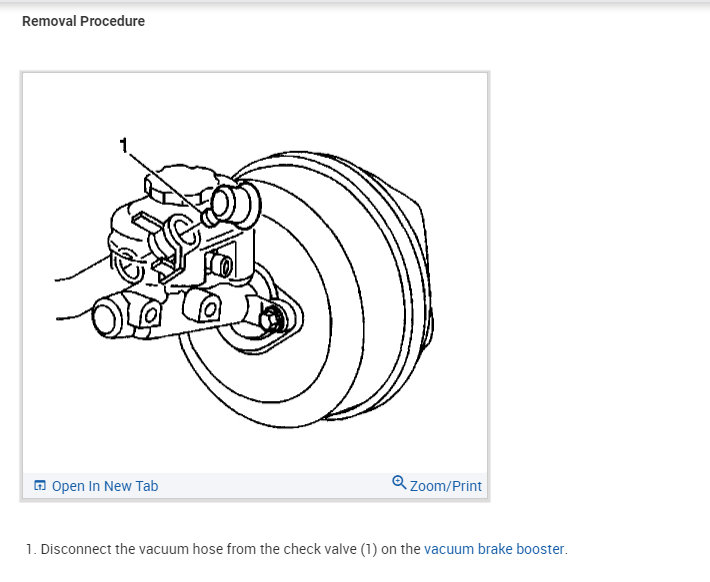

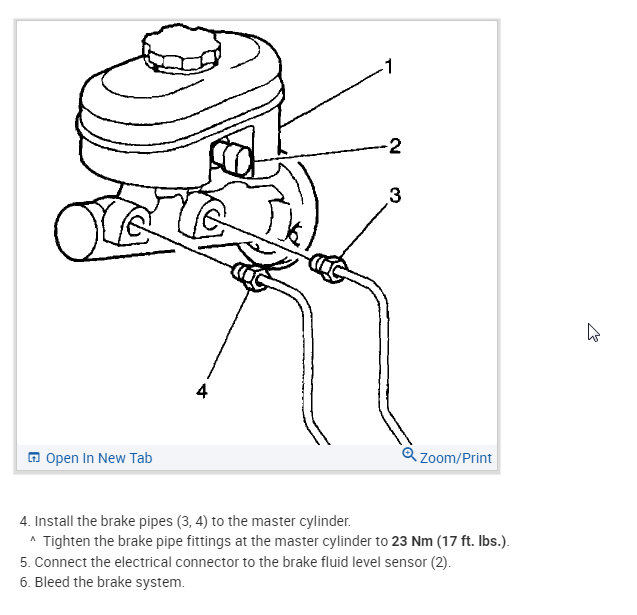

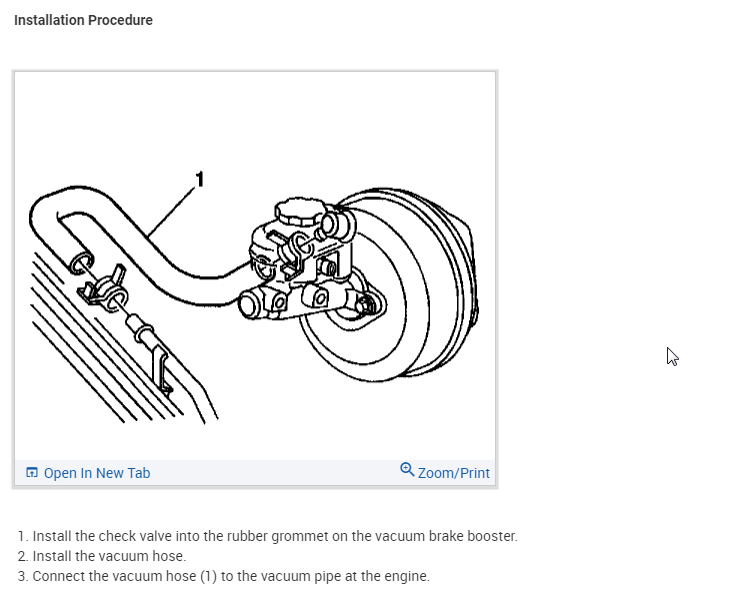

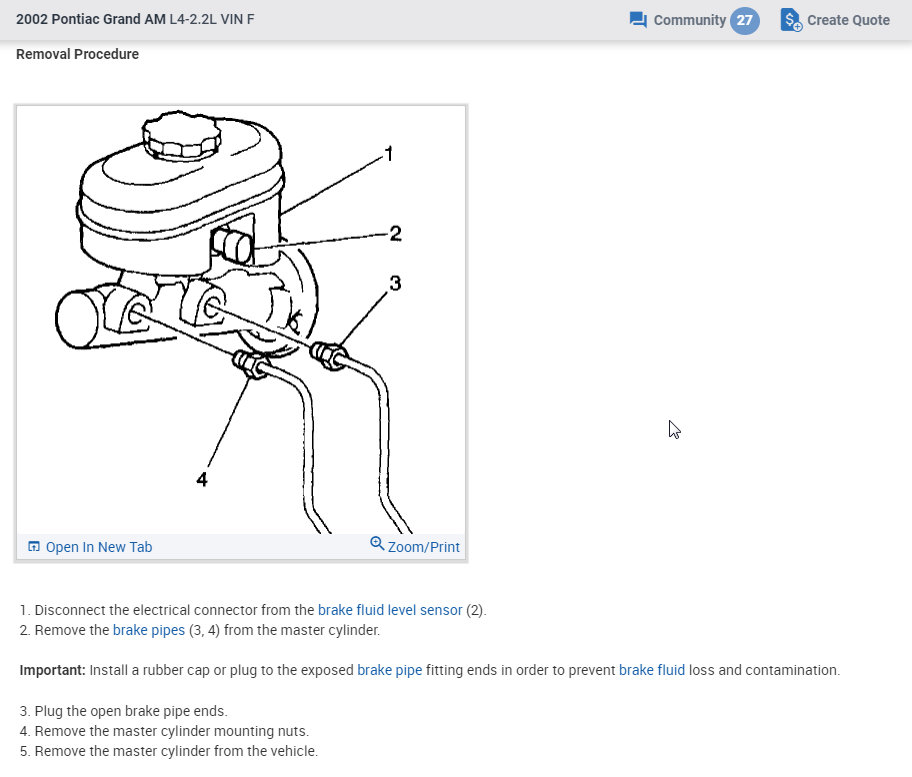

Here are the procedures for the master cylinder and booster. Unfortunately, I am not sure which lines you are referring to in order to better assist. Maybe taking pictures of what you are dealing with will be able to decipher what line is what.
Let me know if you need more information and we can go from there. Thanks
Here are the procedures for the master cylinder and booster. Unfortunately, I am not sure which lines you are referring to in order to better assist. Maybe taking pictures of what you are dealing with will be able to decipher what line is what.
Let me know if you need more information and we can go from there. Thanks
Images (Click to enlarge)
Jul 15, 2019 at 4:34 PM
