Cant communicate

1997 BMW 740
Avatar
MCAVOYSR
  • MEMBER
  • 1 POST
Computer problem V8 Two Wheel Drive Automatic 97500 miles
----------------------------------------------------------------
My scanner is unable to communicate with the vehicle either though the OBD or the under hood BMW connector ,I have a snap on Solus. This scanner work with other BMW's (1999 740il, 2001 540i, 1998 328). It powers up, but when prompted to scan for codes it tries for a few seconds and then says unable to communicate, make sure key is on.
Aug 19, 2008 at 10:28 AM
Advertisement
Avatar
RICHARD61
  • MEMBER
  • 1 POST
the 20 pin cap is on and tight check the fuses in the engine compartment and in the trunk they were good.
Sep 13, 2017 at 5:40 PM
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS

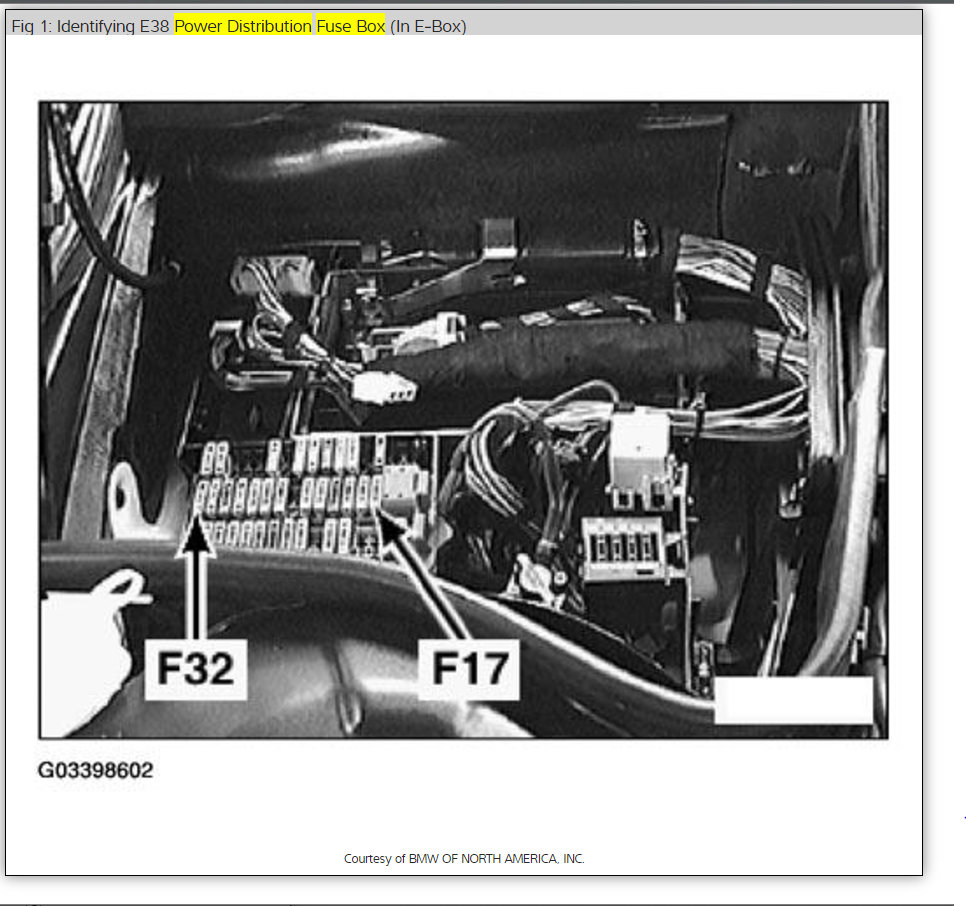

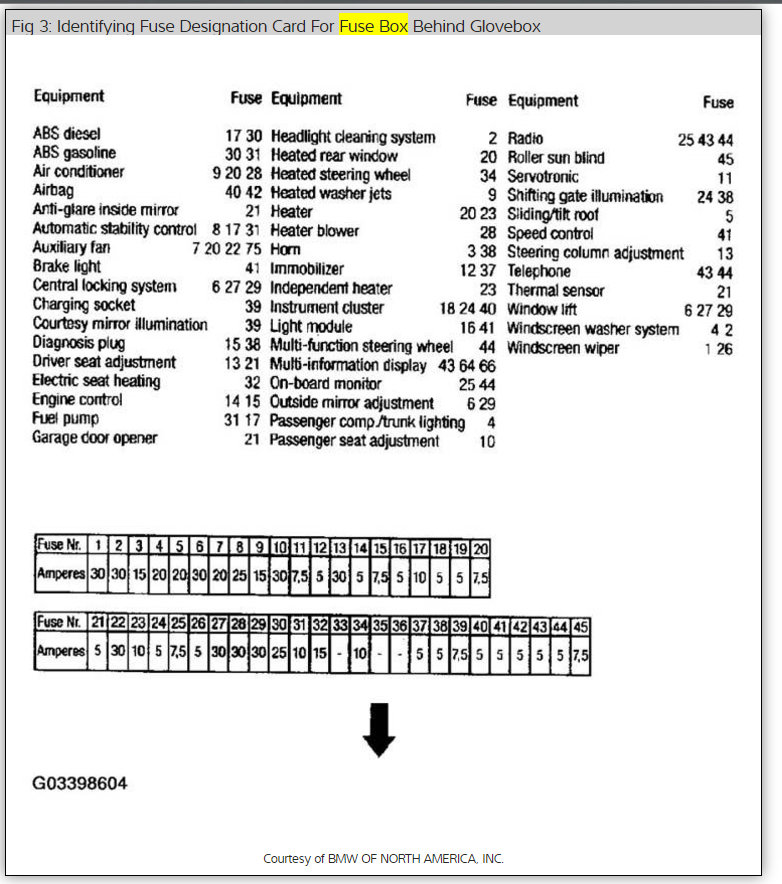

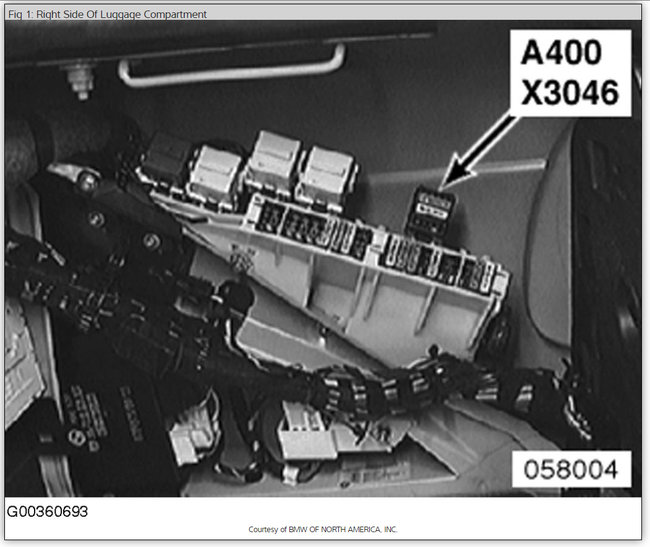

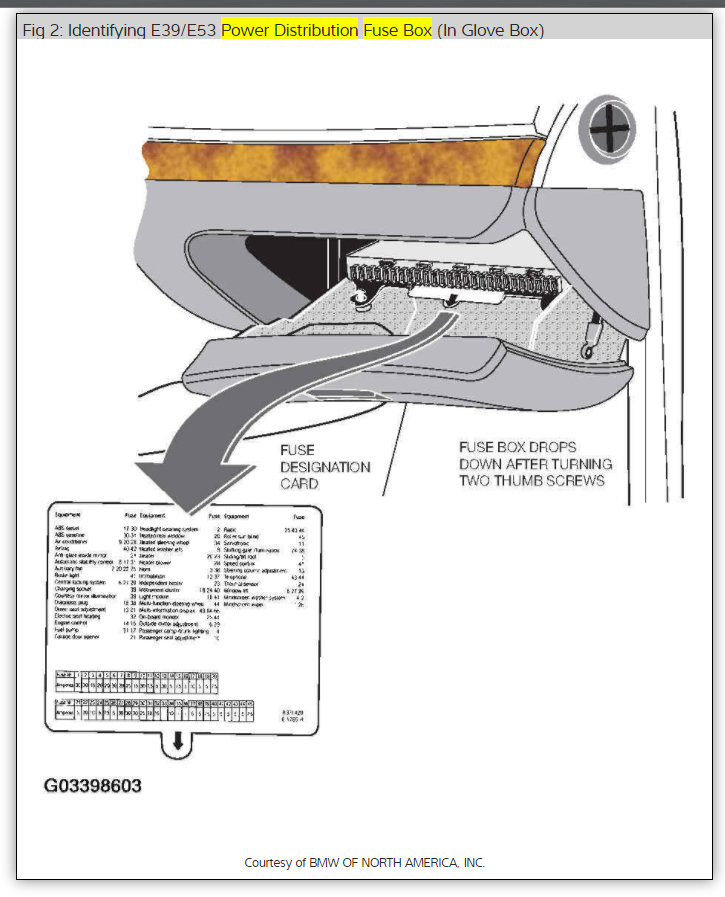

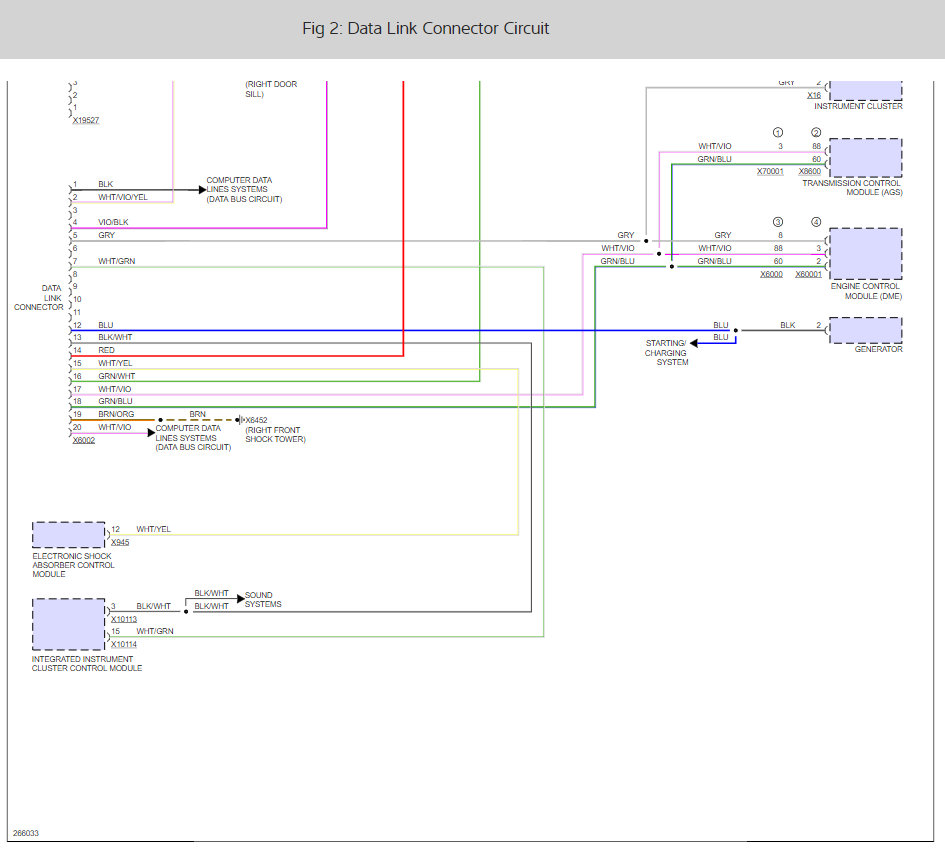

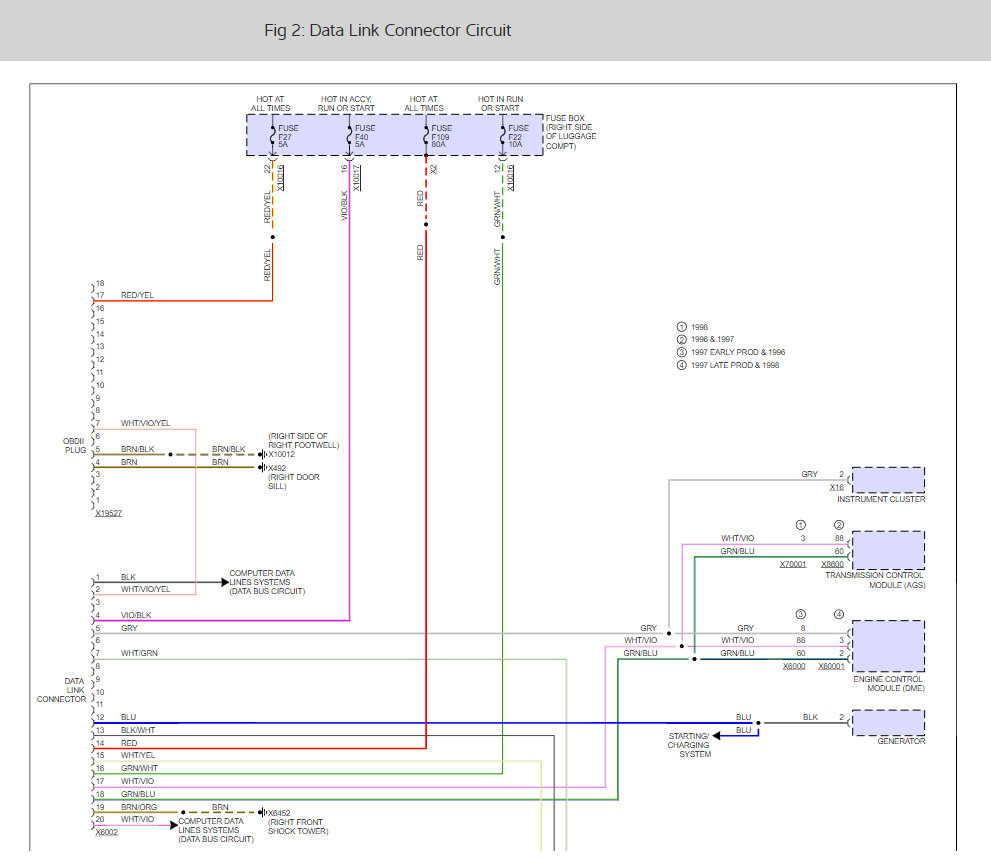

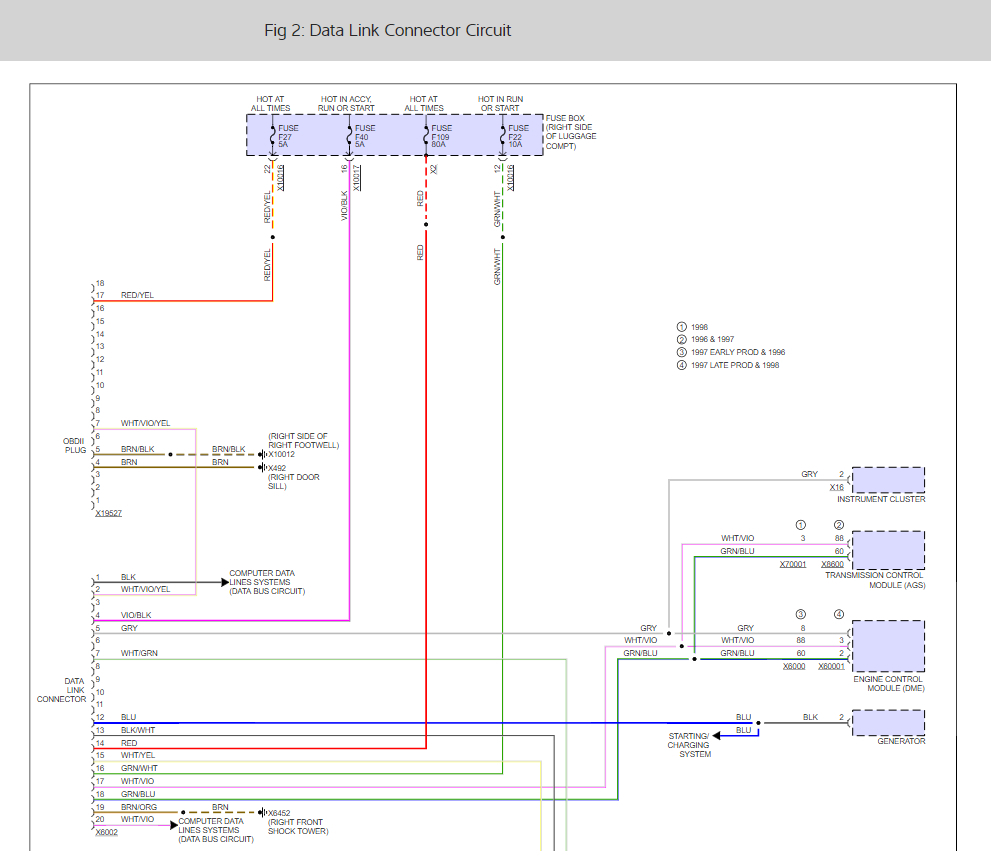

It sounds like you still may have a fuse out here is a guide and a wiring diagram of the connector so we can do some testing and get the problem fixed.

https://www.2carpros.com/articles/how-to-use-a-test-light-circuit-tester

and

https://www.2carpros.com/articles/how-to-check-a-car-fuse

Please let us know what you find.

Cheers, Ken
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Sep 14, 2017 at 4:19 PM
