Second fuse box location

1990 BMW 525I

189,000 MILES • 6 CYL • 2WD • AUTOMATIC

JASON FAKHOURY

MEMBER
1 POST
FOLLOW

I just got this car and my radio all of a sudden stopped working. I checked the fuses under the hood and 10-14 were out. I changed them but they still do not have any power. I was told everything is connected so I should check the fuses inside the car, but I cannot find them. Does anyone know where it might be? Is there a second set of fuses at all?

Aug 15, 2010 at 9:35 PM

BLUELIGHTNIN6

CERTIFIED EXPERT
16,542 POSTS

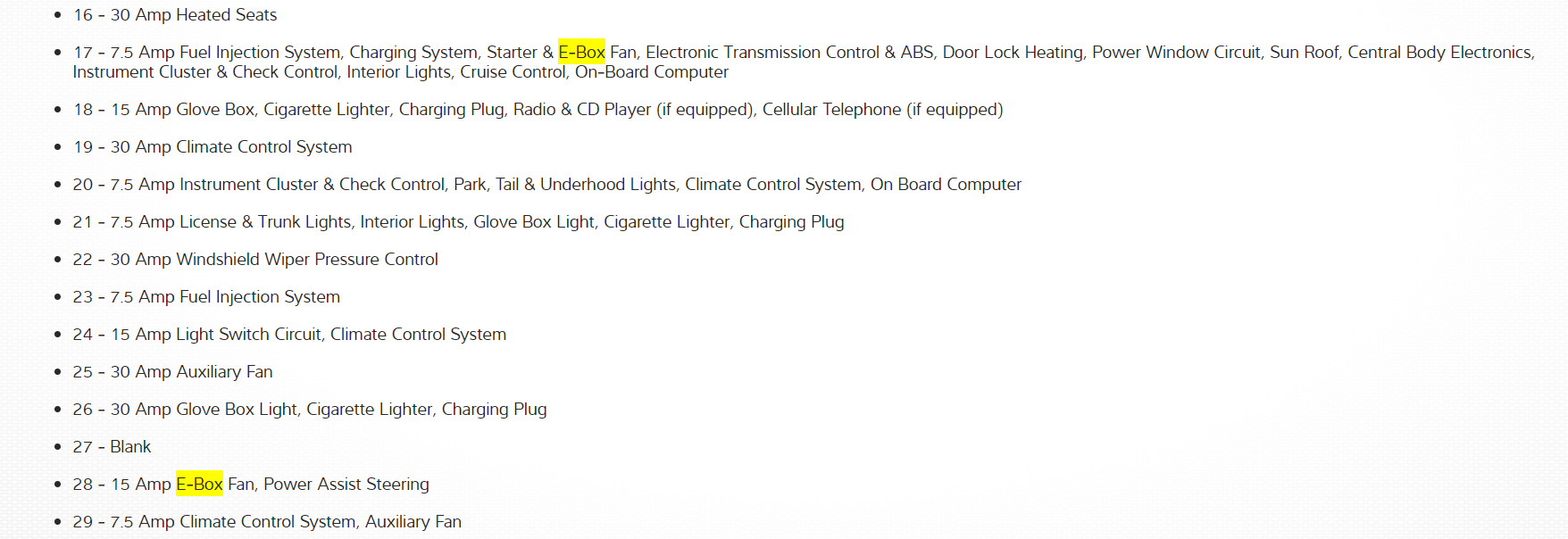

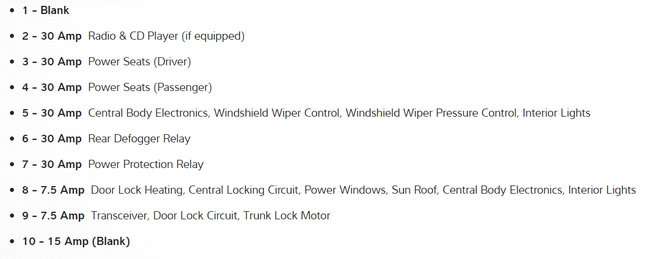

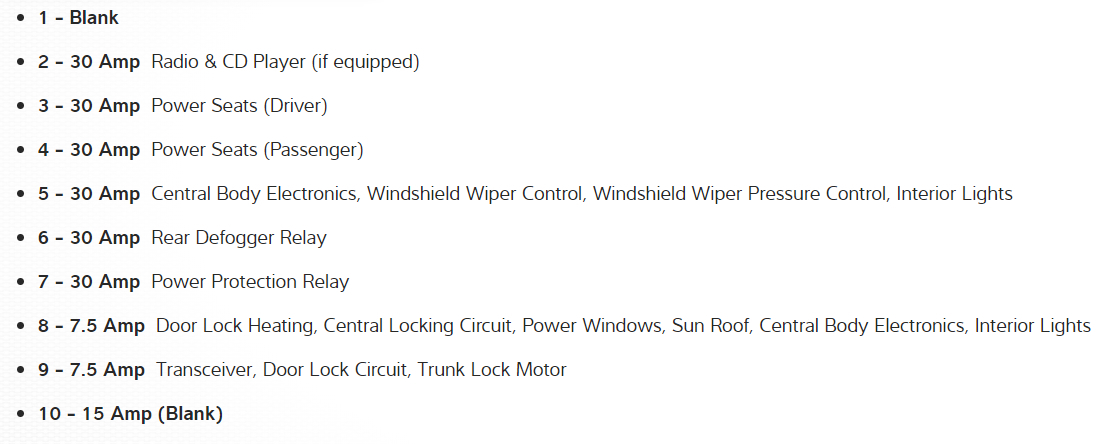

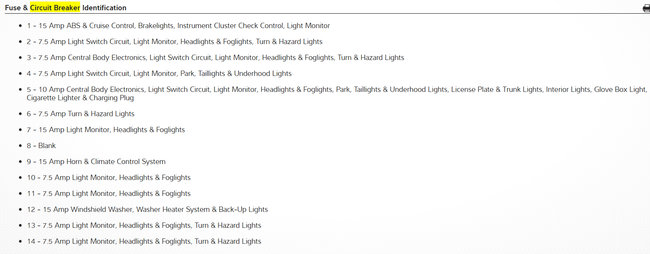

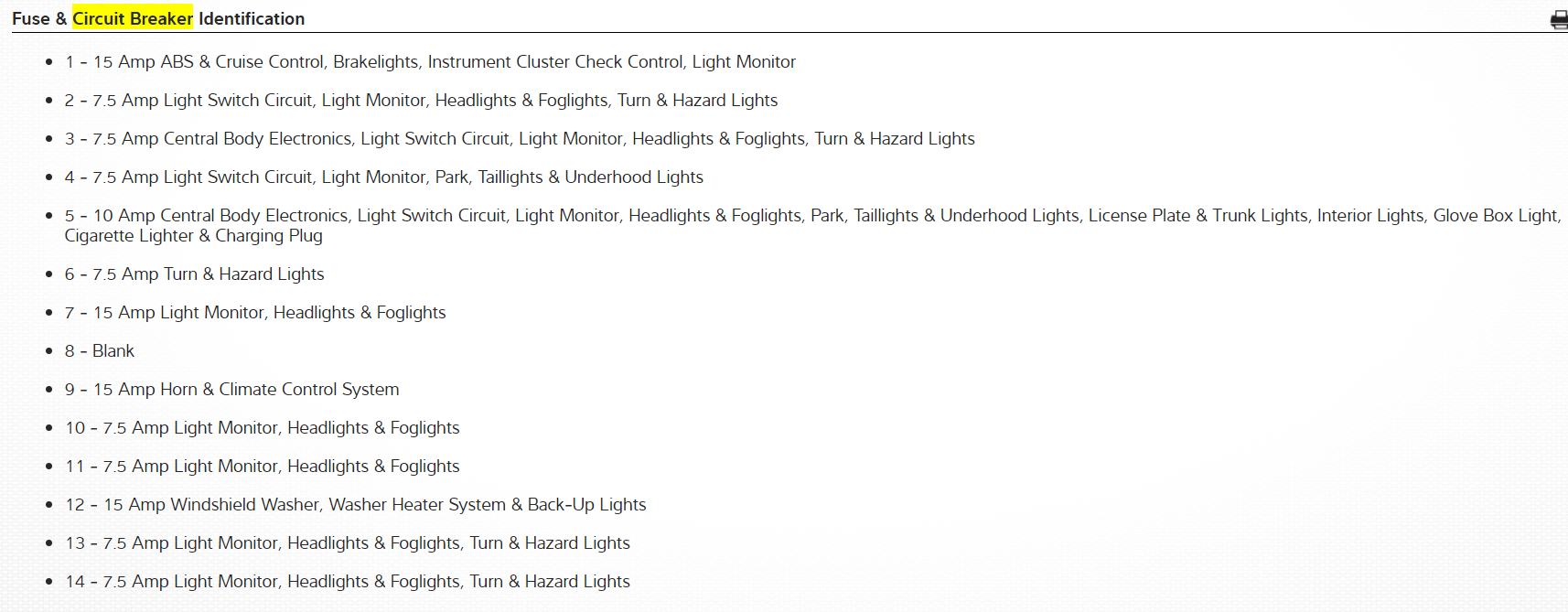

Check fuse #18 (15 amp) in the front fuse panel. Also, check fuse #2 (30 amp) in the rear fuse/relay panel.

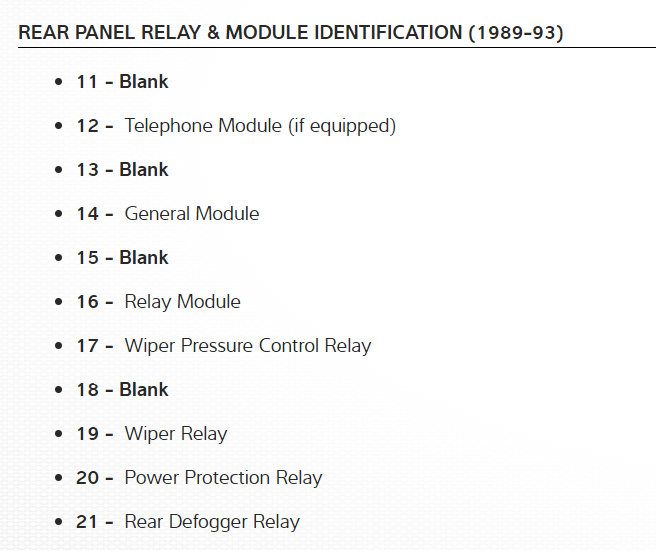

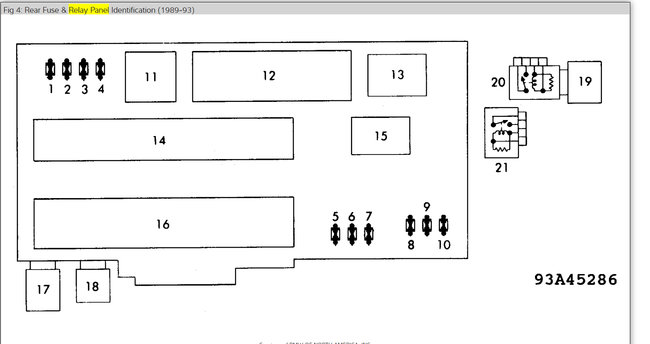

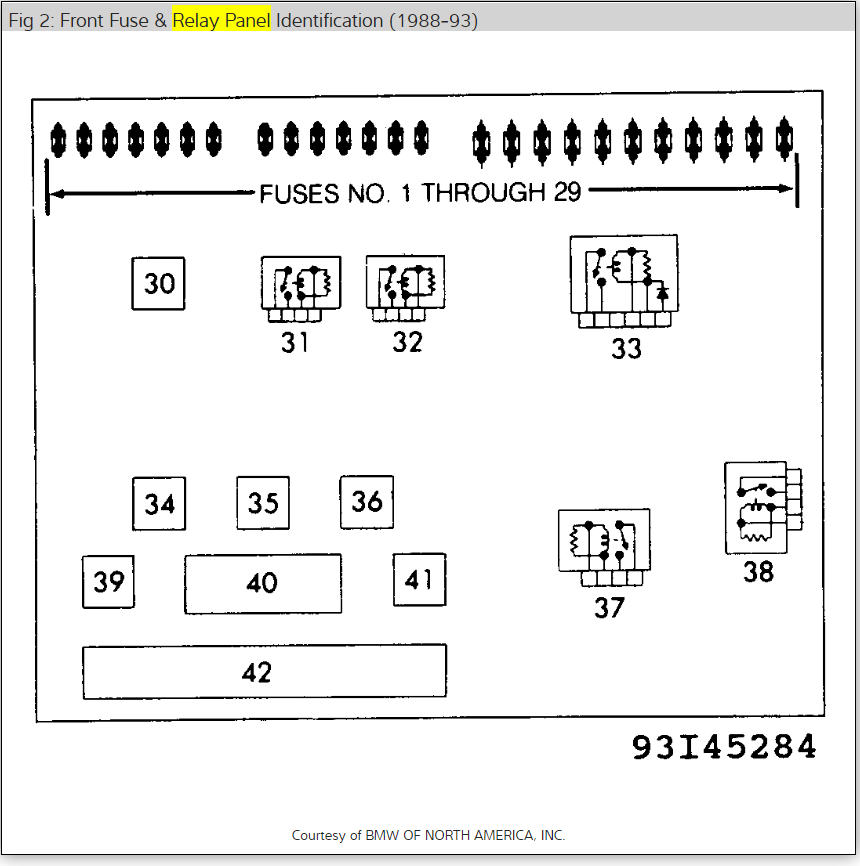

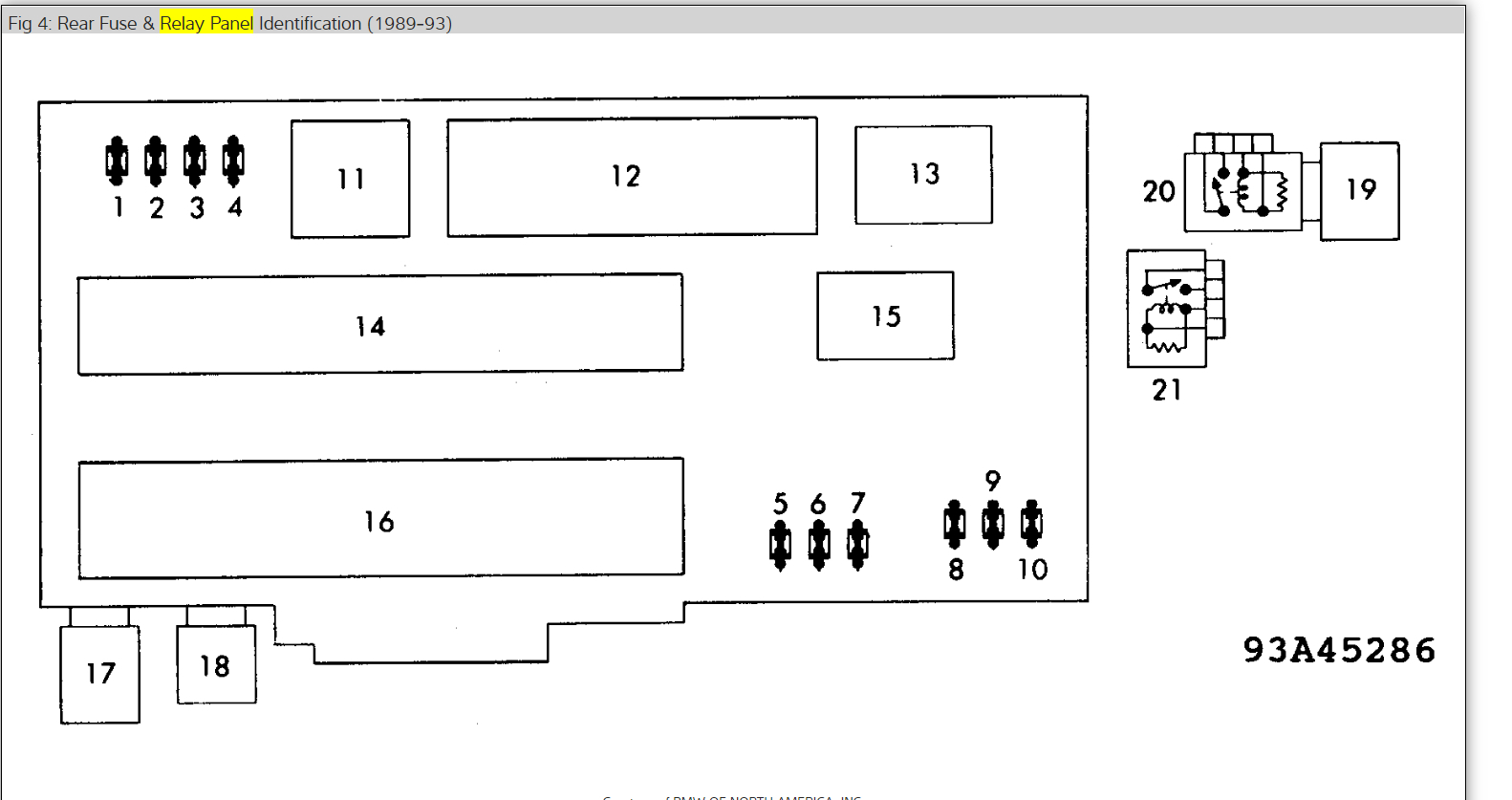

The front fuse panel is in the left rear corner of the engine compartment while the rear fuse/relay panel is under the left side of the rear seat.

https://www.2carpros.com/articles/how-to-check-a-car-fuse

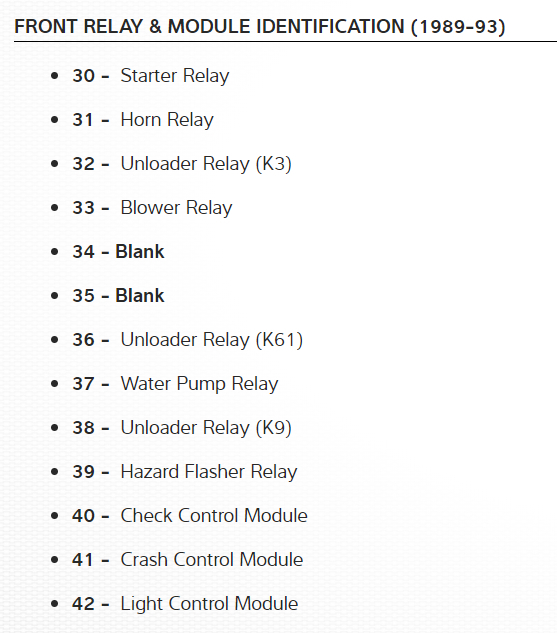

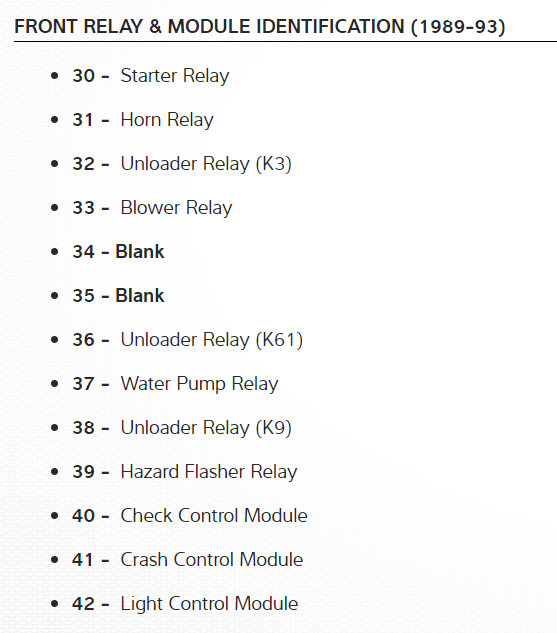

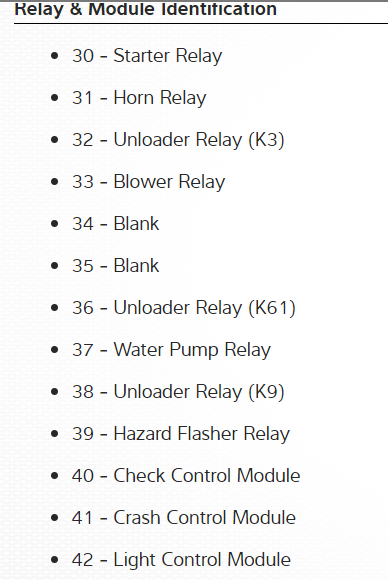

Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.

Cheers

Images (Click to enlarge)

Aug 15, 2010 at 11:54 PM
