Blown main fuse

1998 TOYOTA 4RUNNER
200,000 MILES • 3.5L • 6 CYL • 4WD • AUTOMATIC
Avatar
HJLEE
  • MEMBER
  • 1 POST
I was jumping the car battery, and got the plus/minus crossed. When I turned the car on, nothing happened. I checked the fuse box but I don’t see anything blown. I think I need to check the main fuse, but I don’t know where that is. Can you tell me where to find the main fuse?
Aug 3, 2019 at 1:06 PM
Advertisement
Avatar
SCGRANTURISMO
  • CERTIFIED EXPERT
  • 4,897 POSTS
Hello,

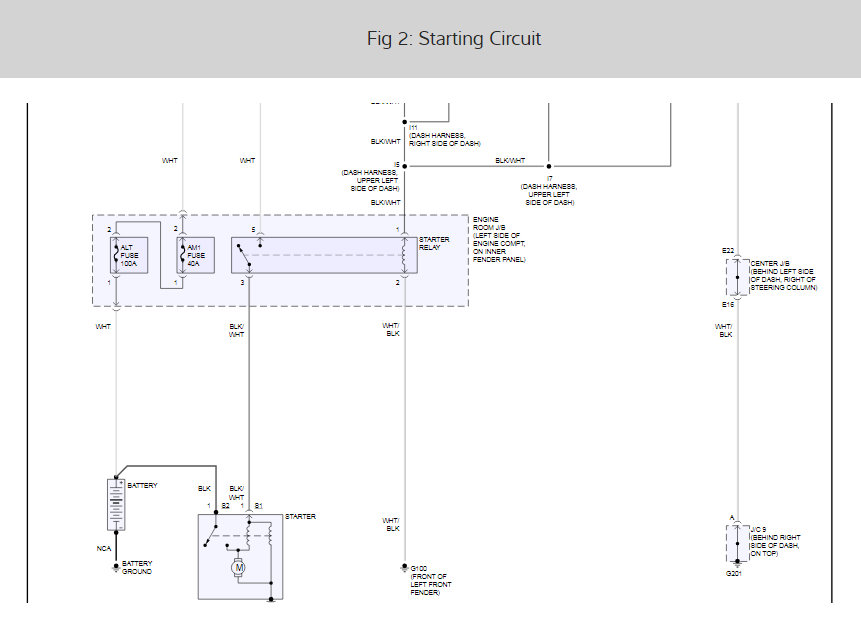

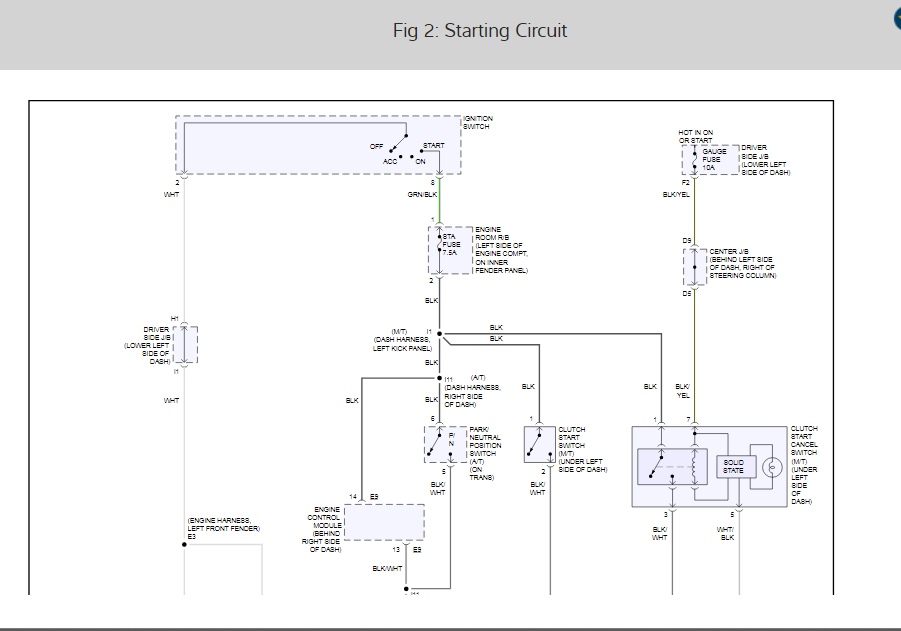

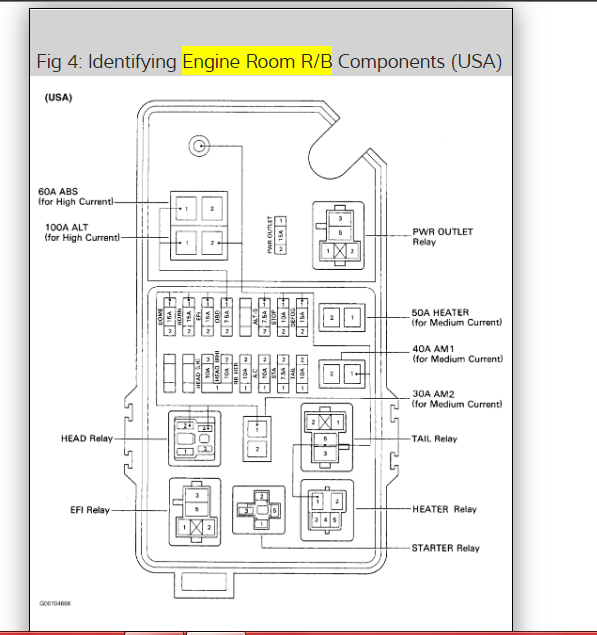

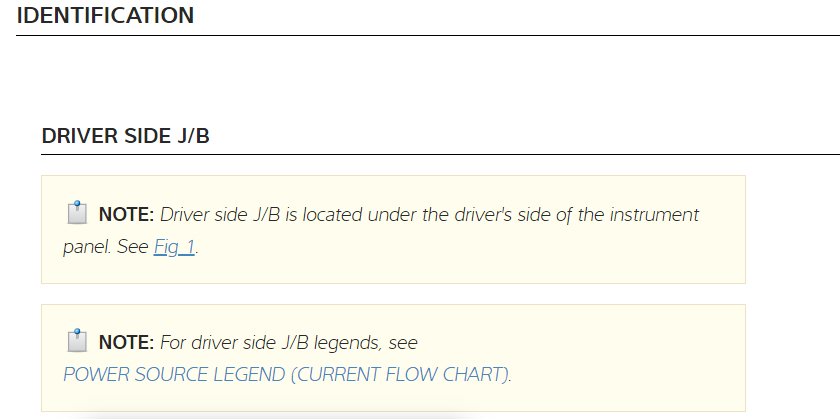

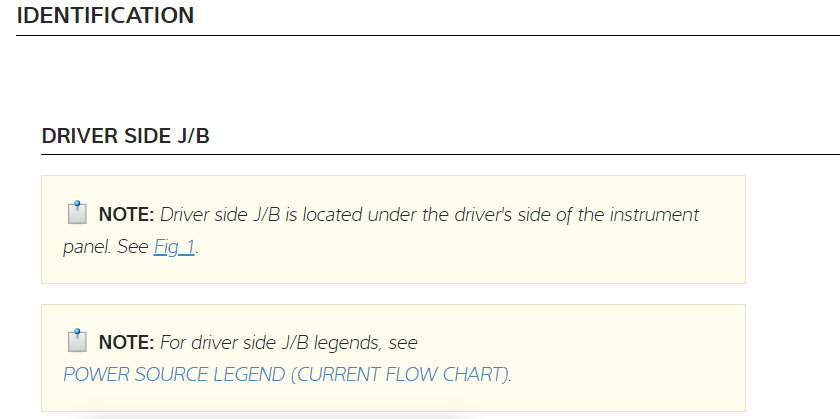

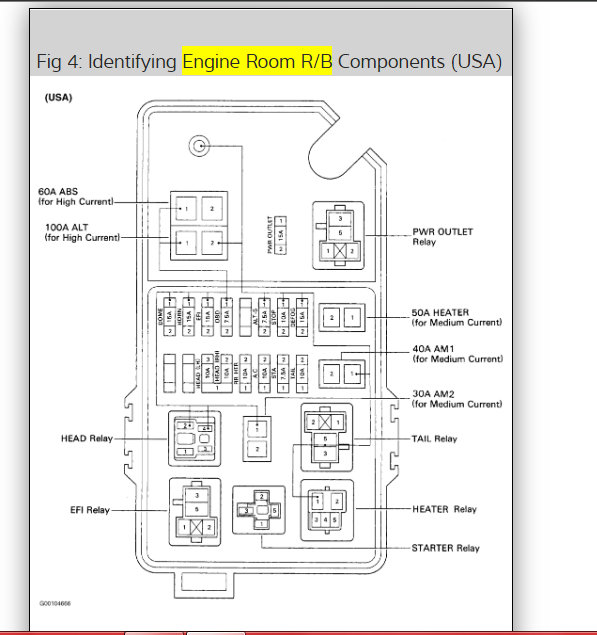

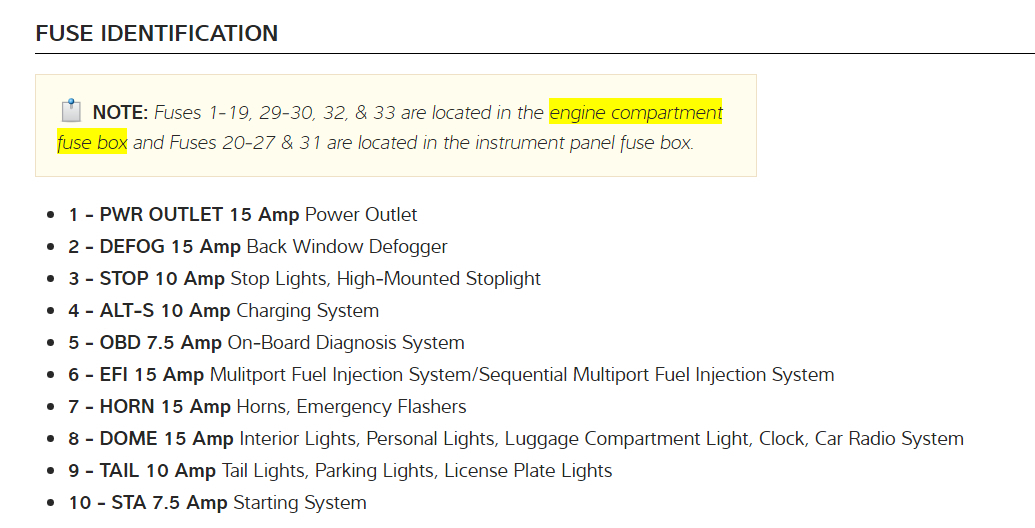

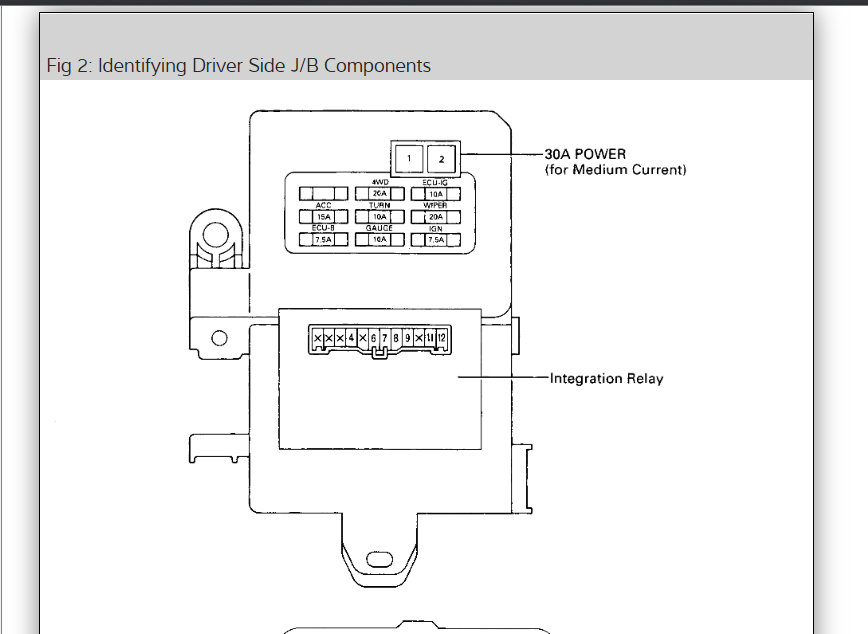

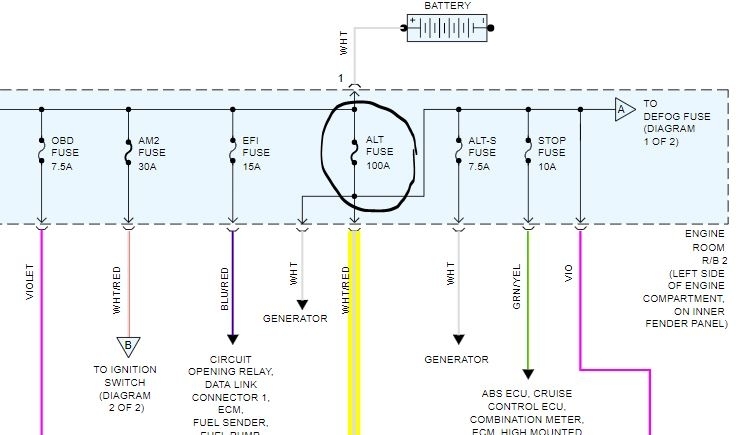

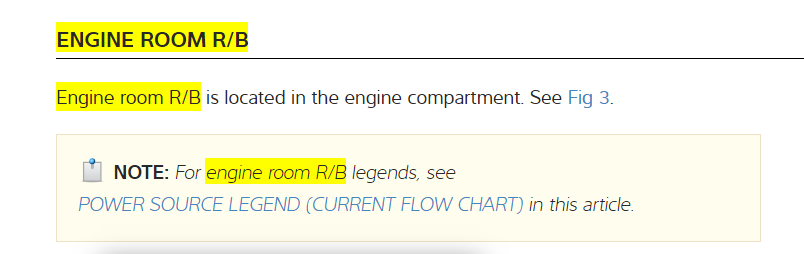

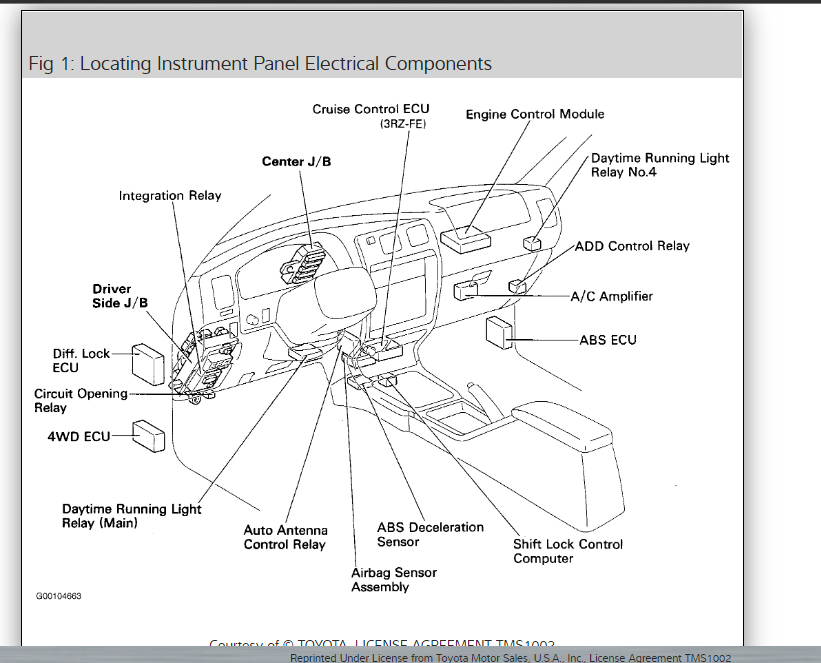

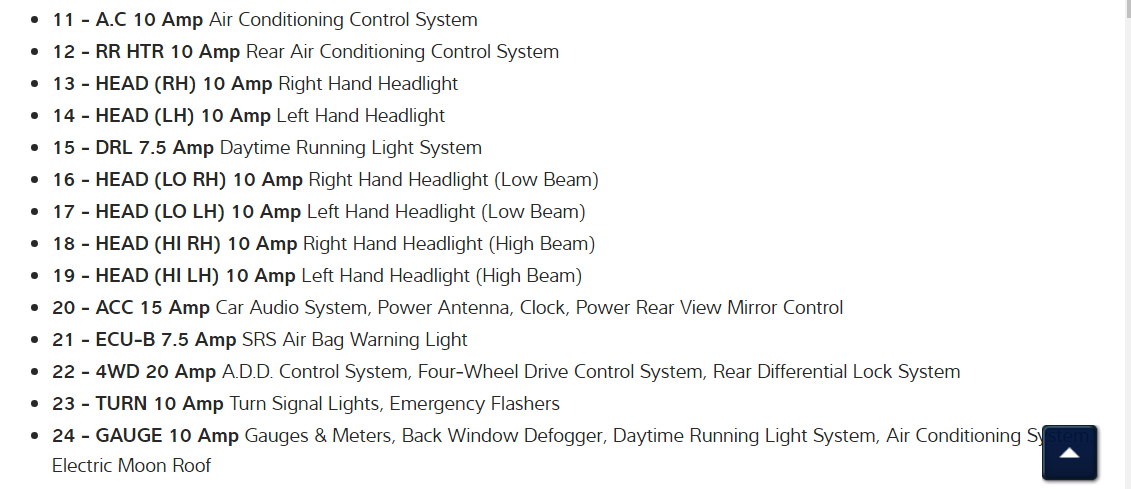

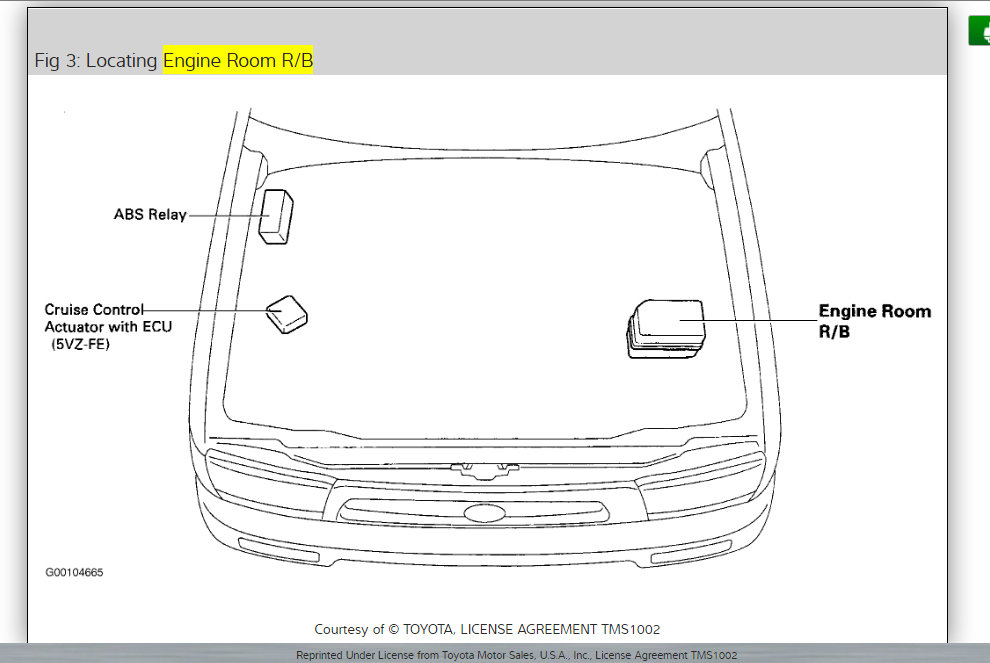

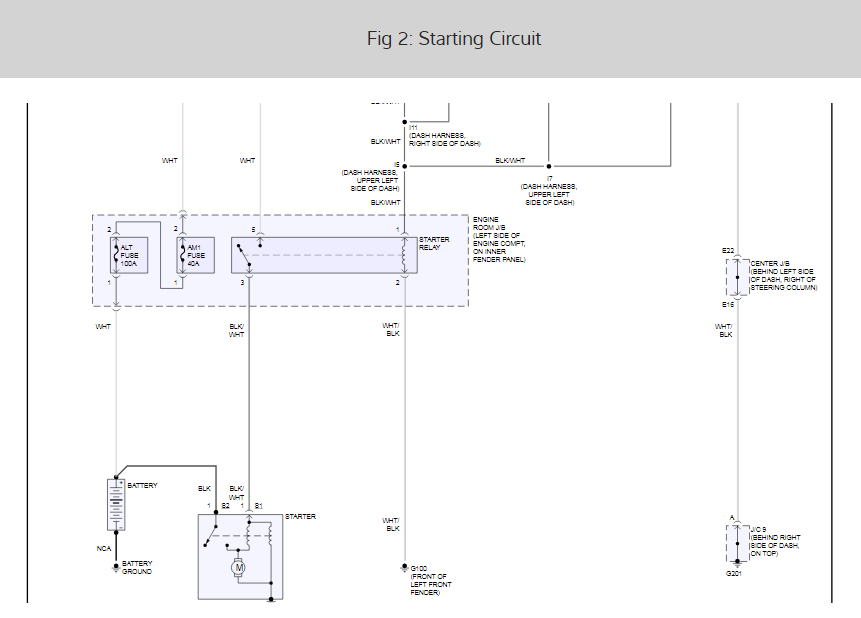

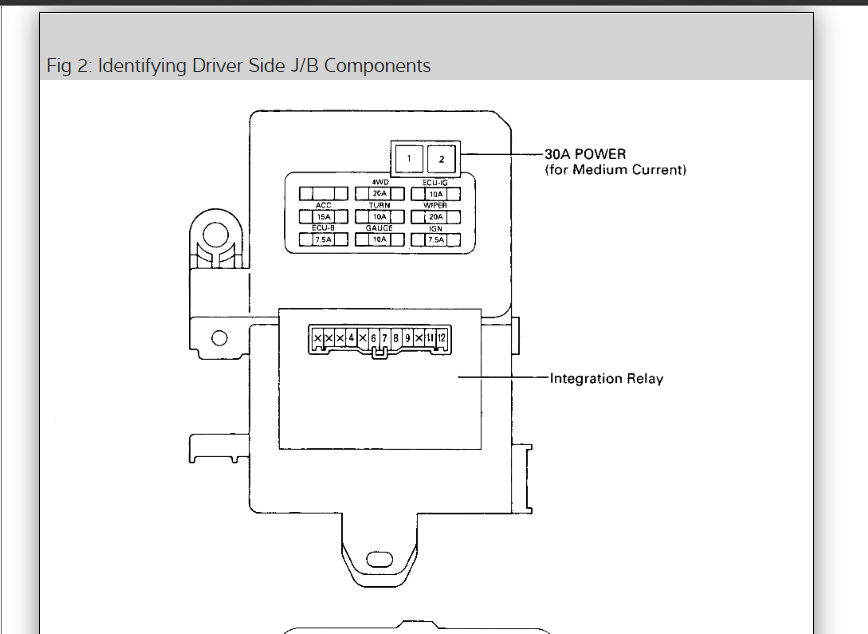

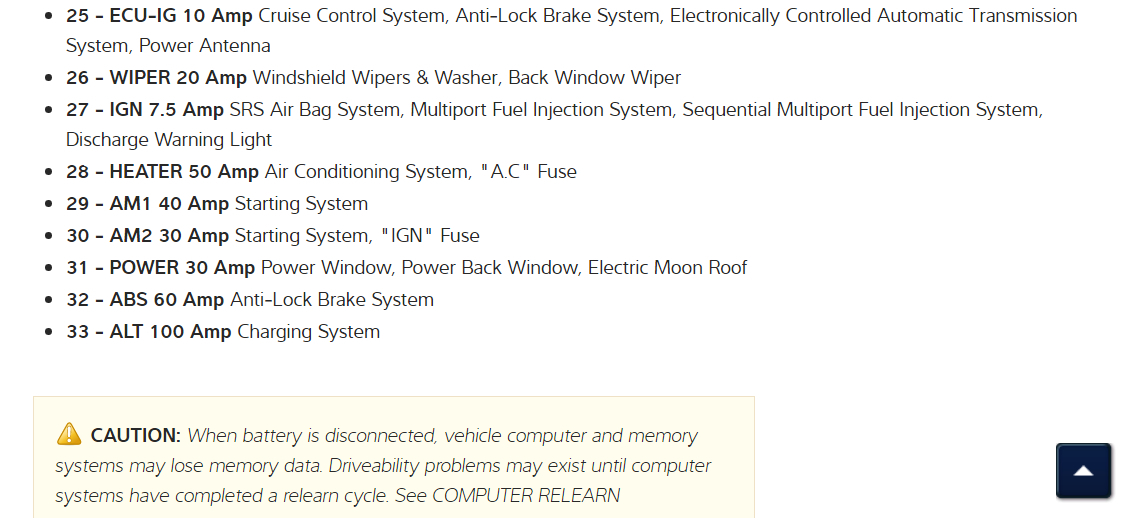

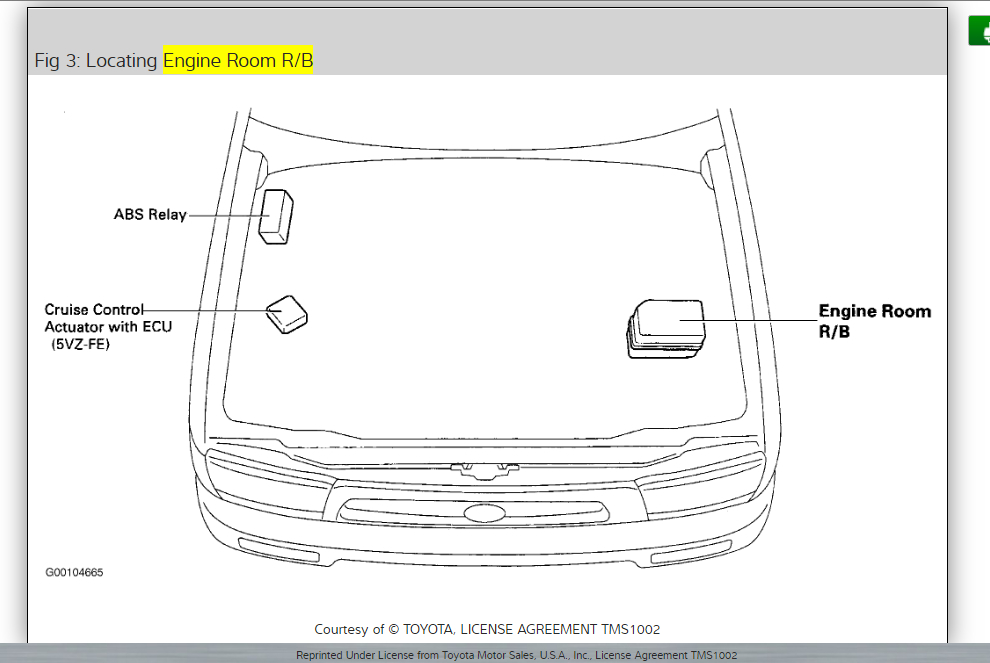

In the diagrams down below I have included the wiring diagram for your vehicle's Starting Circuit (with the fuses and their location highlighted for you) and the location, diagrams, and callouts for your vehicle's fuse panels. Please go through this information and get back to us with what you are able to find out.

Thanks,
Alex
2CarPros
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Aug 3, 2019 at 10:33 PM
Avatar
JACOBANDNICKOLAS
  • CERTIFIED EXPERT
  • 110,175 POSTS
Welcome to 2CarPros.

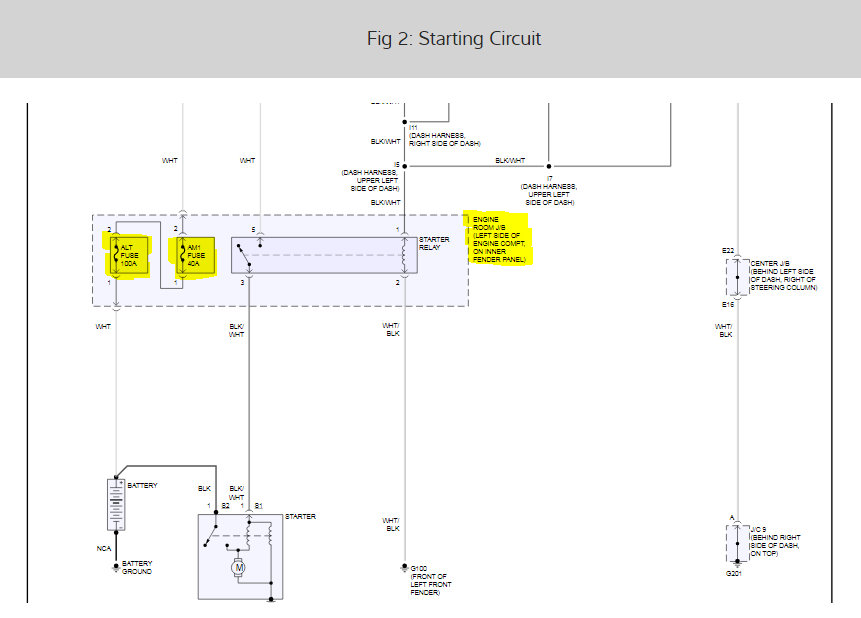

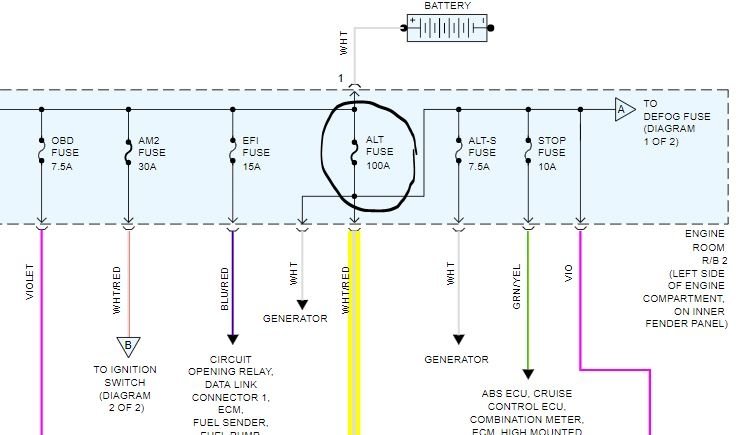

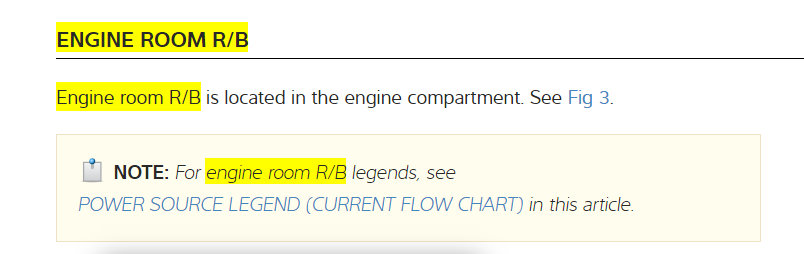

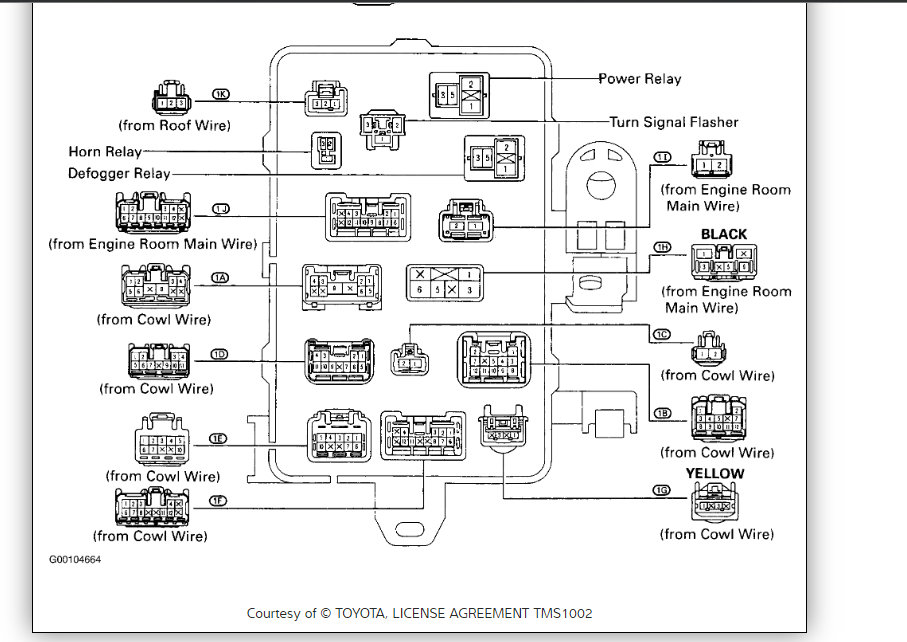

There really isn't a main fuse, but there is a 100 amp fuse that powers several things. Take a look at picture 1.

Also, does anything work?

Here are a few links to help:

https://www.2carpros.com/articles/how-a-car-fuse-works

https://www.2carpros.com/articles/how-to-check-a-car-fuse

https://www.2carpros.com/articles/how-to-use-a-voltmeter

https://www.2carpros.com/articles/how-to-use-a-test-light-circuit-tester

https://www.2carpros.com/articles/how-to-check-wiring

Let me know what you find or if you have other questions.

Take care,
Joe
Image (Click to enlarge)
Attached Media
Aug 3, 2019 at 10:40 PM
