Blend door actuator location

1997 CHRYSLER LHS
140,000 MILES • 3.5L • V6 • 2WD • AUTOMATIC
Avatar
CHOMPER1959
  • MEMBER
  • 2 POSTS
We are not getting any heat at all. Have replaced the thermostat, and radiator. The heater core is not bad. Have been told it is the blend door actuator. Where is this located, and is there a diagram with possibly steps to get to it. Oh and also this car has the automatic temperature control system. Thank you so much.
Nov 30, 2018 at 5:35 PM
Advertisement
Avatar
DANNY L
  • CERTIFIED EXPERT
  • 5,648 POSTS
Hello I am Danny,

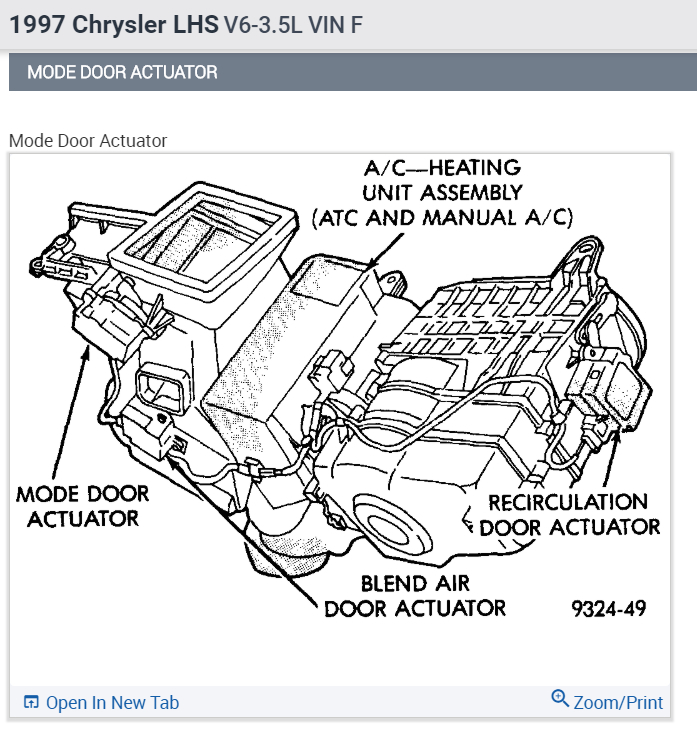

The actuator is located on the left side of the HVAC box.That is located under the dash on the passenger side. I have attached a tutorial and a step-by-step for you to view. Hope this helps and thanks for using 2CarPros.
Danny-

https://www.2carpros.com/articles/replace-blend-door-motor
Image (Click to enlarge)
Attached Media
Nov 30, 2018 at 10:23 PM
Avatar
CHOMPER1959
  • MEMBER
  • 2 POSTS
Hi Danny, my car is a Chrysler and it is not like these diagrams you have sent. We have to remove the complete dash, as it is one piece. I was hoping maybe someone had a diagram or instructions on what is the easiest way to do this. We have a repair manual, but there is not anything about doing this in it. I believe it says to remove the center bezel. Any help is greatly appreciated.
Dec 1, 2018 at 1:37 PM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS

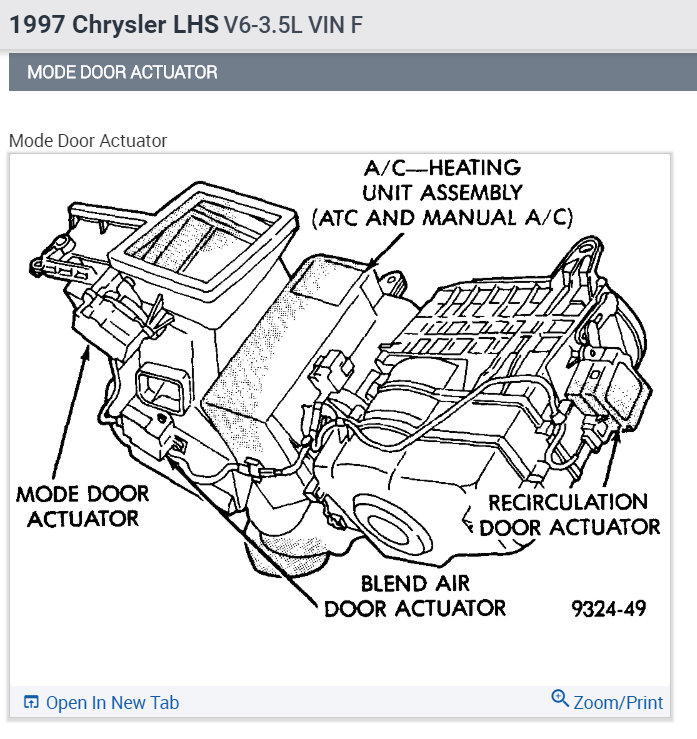

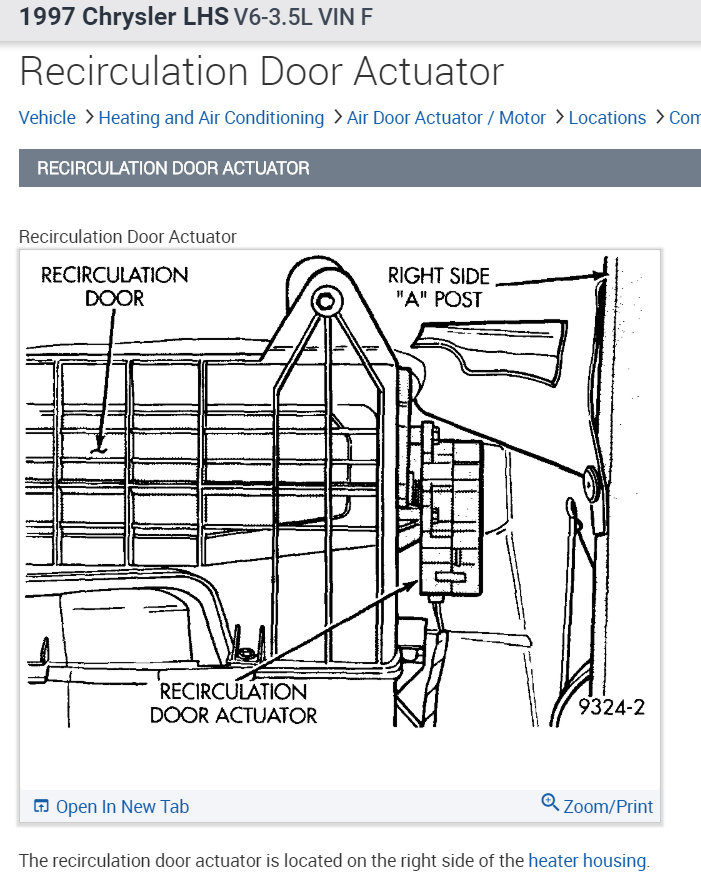

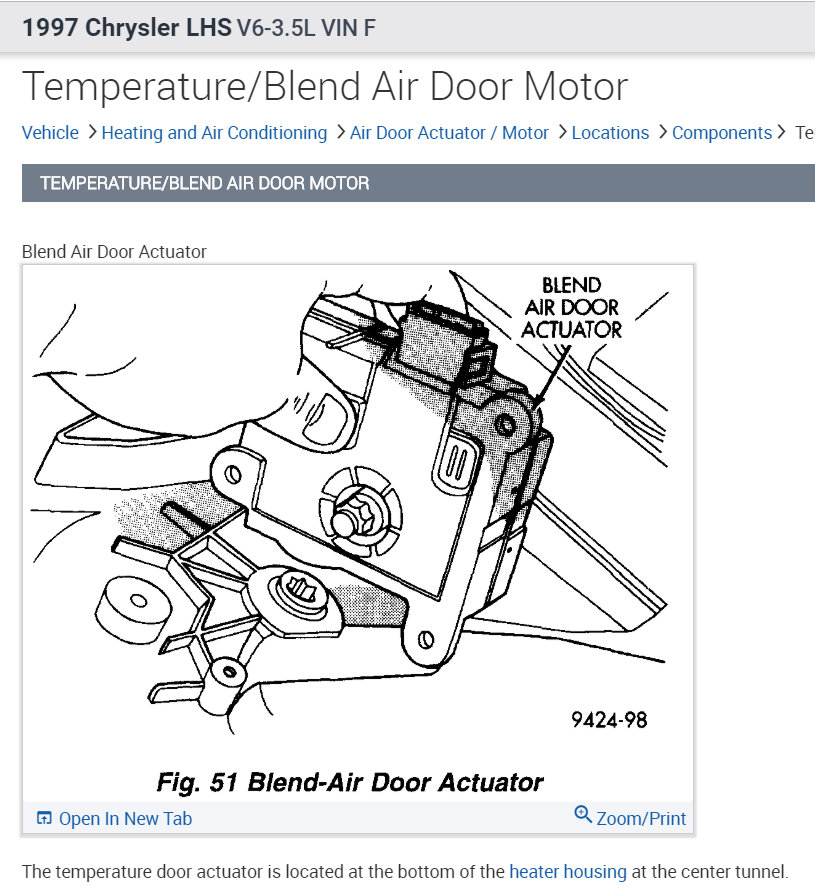

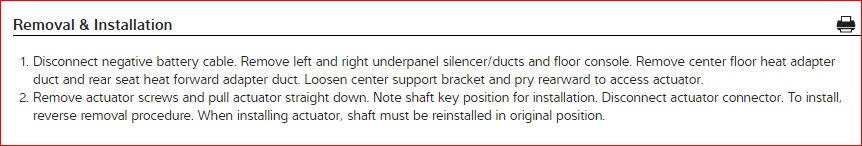

Here is more information to help you do the job. I do not think you need to remove the dash to replace the temperature actuator. Check out the diagrams (below). Please let us know what happens.

Cheers, Ken
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Dec 1, 2018 at 5:59 PM
