Black smoke from exhaust

2002 CHEVROLET TAHOE
179,800 MILES • 5.3L • V8 • 4WD • AUTOMATIC
Avatar
WOODIE WOOD
  • MEMBER
  • 2 POSTS
All 4 spark plugs has carbon build-up or soot (Bank 1) only! And black smoke from tailpipe.
Mar 15, 2020 at 6:26 AM
Advertisement
Avatar
KASEKENNY
  • CERTIFIED EXPERT
  • 18,907 POSTS
Okay. Do you have a scan tool that we can check for codes? If so, are there any codes?

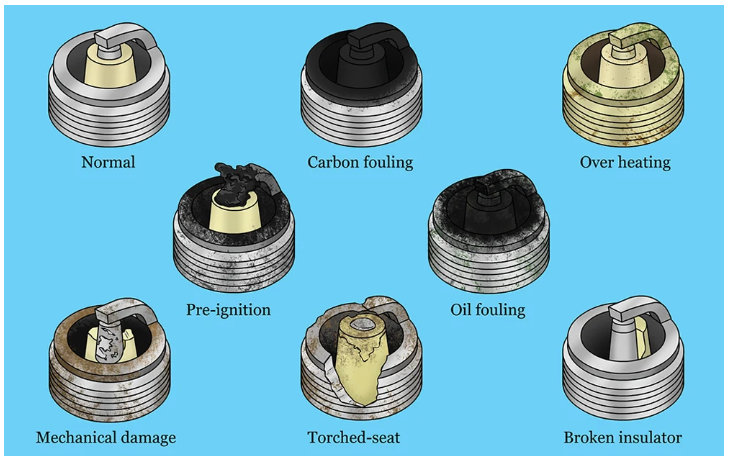

Next the fouled plugs and black smoke are a result of too much fuel. So if all cylinders on that side are fouled the same the we need to look for things in common on that side that could cause over fueling.

This means we need to monitor o2 sensors on both banks and go from there. Clearly the o2 sensors should reflect the rich condition so we need to confirm this first. Make sure you put new plugs in as well. Thanks
Mar 15, 2020 at 7:53 AM
Avatar
WOODIE WOOD
  • MEMBER
  • 2 POSTS
Code P0171(system too lean (Bank 1) and P0300 random misfire. I've changed all the spark plugs, change the fuel injectors, change PCV valve. And mass air flow sensor. I have changed the upstream O2 sensor not too long ago because it through a code that said it was the O2 sensor. I should try changing the downstream sensor?
Mar 15, 2020 at 6:03 PM
Advertisement
Avatar
KASEKENNY
  • CERTIFIED EXPERT
  • 18,907 POSTS
That is interesting that it is throwing a lean code. Have you checked for a vacuum leak?

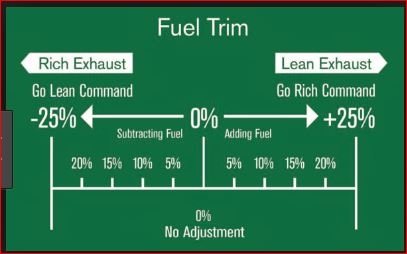

Are you able to read the o2 sensors with a scan tool?

If not, let's start with checking for a vacuum leak. Here are a few guides that will flood you with the info about what is happening:

https://www.2carpros.com/articles/repair-lean-mixture-codes-p0171-or-p0174-on-some-manufacturers

https://www.2carpros.com/articles/how-to-use-an-engine-vacuum-gauge

https://www.2carpros.com/articles/engine-black-smoke
Mar 15, 2020 at 6:36 PM
