I need diagram of serpentine drive belt routing?

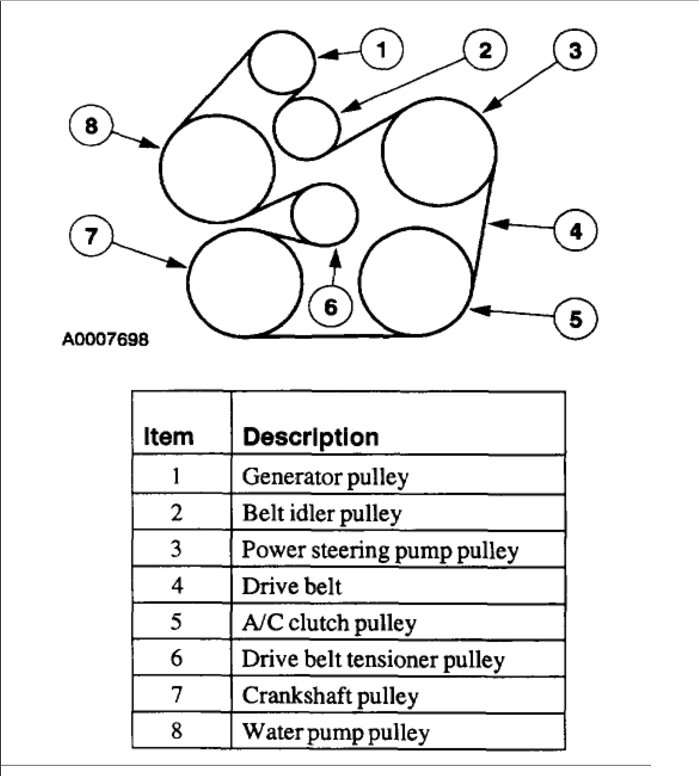

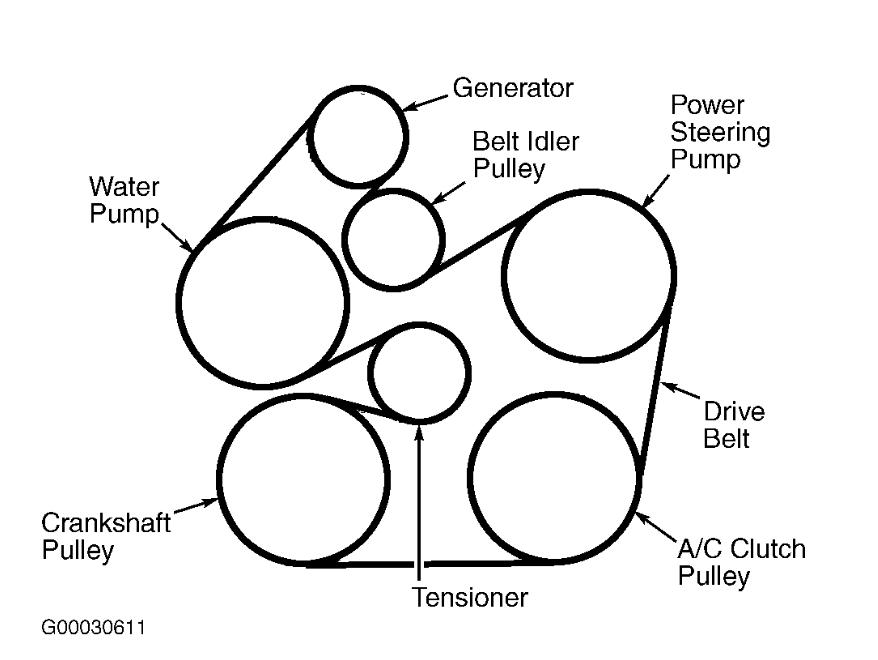

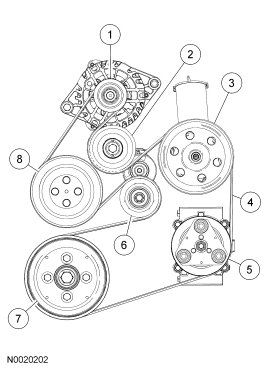

There were two choices to get into "Prodemand" I just guessed at yours being an "SE" (the SEL may be exactly the same as far as the belt) Just let me know (you have a SEL) I will look up the other model. Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.

How do you loosen the belt(s) so the alternator can be reinstalled and then how do you tighten them

I posted a diagram of your belt routing and belt tensor.Your tensor is spring loaded no adjustment.All you do is what the instruction's i posted say take a wrench put it on the belt tensor pulley bolt and turn it clock wise to release the tension then remove the belt.Then when your done route the belt around the pulley's and get a wrench and turn the tensor pulley bolt clockwise to get the belt back on.

need belt routing diagram 2005 Ford Taurus 3.0L V-6....it is not a DOHC, it is OHV. Can u help??

Here is a guide and the diagrams below so you can see how the job is done. Its the same as a 2005.

https://www.2carpros.com/diagrams/ford/taurus/2004

and

https://www.2carpros.com/articles/replace-serpentine-belt

Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed. Cheers

Hey I don't do a whole lot of car repairs, but I have just replaced my alternator to find that I can't budge the thing and get it to reduce the tension on the belt enough to get it back on the tensioner pully. I see that there is a bolt near the alternator going through a black bar that has a slot, and that this slot allows the screw to slide back and forth. I'm assuming tightening this bolt is how you lock in the tension when you move it back and forth. Anyhow, I loosened all the bolts relating to the alternator or brackets near it, and even with a pry-bar I still can't budge the alternator assembly to move that bolt up or down the slot. Am I doing something wrong? Can someone describe what direction (up-down-towards cab, etc...) I should be pushing the alternator to reduce the tension? Am I missing a screw somewhere that is holding this thing still? I feel like I've checked everything...

THANKS!!!

Hopefully it is a 2valve 3.0 Liter engine.If so here is a diagram of what pulleys are for what. The tensioner has a bolt head, use a wrench to get the spring loaded tensioner to swing away so that the belt can be installed

I am having a problem getting my drive belt reinstalled. I have a V6 3.0 Flex fuel engine. I have a Haynes manual and routed it like it said, but it is still loose. Both belts are the same size. The manual said there should be a diagram of the belt routing on the car, but I have yet to find it. I would take a hand sketched drawing at this point. lol

I will give you both two and four valves routing just follow this link

https://www.2carpros.com/diagrams/ford/taurus/2003

Here is a guide to show you what you are in for when doing the job.

https://www.2carpros.com/articles/replace-serpentine-belt

Here is the diagrams (below)

Thank you so much. It was actually the first diagram. The belt broke so I did not know how it went. A guy from my wife's work actually came out (he use to work for Ford) and fixed it fifteen minutes after my post here. Found out my A/C clutch is going bad and that is why the belt broke. Fun stuff. they want $550.00 to replace just the clutch. I can get the A/C compressor and clutch for $218.00 from Autozone or $188.00 from Advance. Cannot be to hard to replace. Just got to find a way to safely get rid of the R134A in the system. They will vacuum and charge it for $80.00.

Hey, I do appreciate your post. I am not really mechanically challenged. I have worked on more Fords than I would like to say. I have taken out too many transmissions and rebuilt more carburetors than I ever wanted too. Guess you could say I am a poor old-school backyard mechanic.

Thank you again

When they vacuum the system it does get rid of the r134a The other thing to think about is a junkyard compressor with a good clutch, they have just one 8mm screw holding the plate, then a snap ring holding the pulley, then you put just those on and you do not even open the system. I did this way on my Town Car in ten minutes. $50.00 at the bone yard!

what tensions the drive belt. I need to loosen something to take the tension off the belt

I'm having my ford taurus 2002 mode having 105K miles, It started to make tickling sounds near the alternator and the idler pulley, I took it to a mechanic and they replaced idler pully and then they replaced the water pump, however the problem stays unresolved. it sounds like some bearings are off inside (not sure where it comes from), alternator works fine. Could you suggest something to check with?

I am surprised that they didn't fully diagnose the problem, rather than just simply replacing parts. What you should do is to remove your serpentine belt out. Then spin your pulleys one by one. Pulleys should not make any noise when spun. NOTE*** You won't be able to spin the crank pulley, unless you have superhuman strength. VIN U

VIN S

check your oil it low.your intake\exaust valves are worn or just not oiled enough. you might have a problem with your oil pump not pumping enough oil to the top.try getting an oil change might help have them change the filter in the oil pan.this is what is wrong.so times i think out loud in this case write out loud. the only thing that will tick is intake\exaust valaes. dark oil some times means one of the fillters is bad hope i helped good luck.

I have a 2002 Ford Taurus SE 3.0 and I am having trouble changing the serpintine belt. I can't find a diagram or anything that will help me. Do you have any information to help make this easier?

Thanks.

what is the routing for the serpentine belt on the 2001 ford taurus se with a 3.0L v6 vulcan engine?

hope that help let me know

belt diagram diagram for 2000 ford taurus serpentine belt?

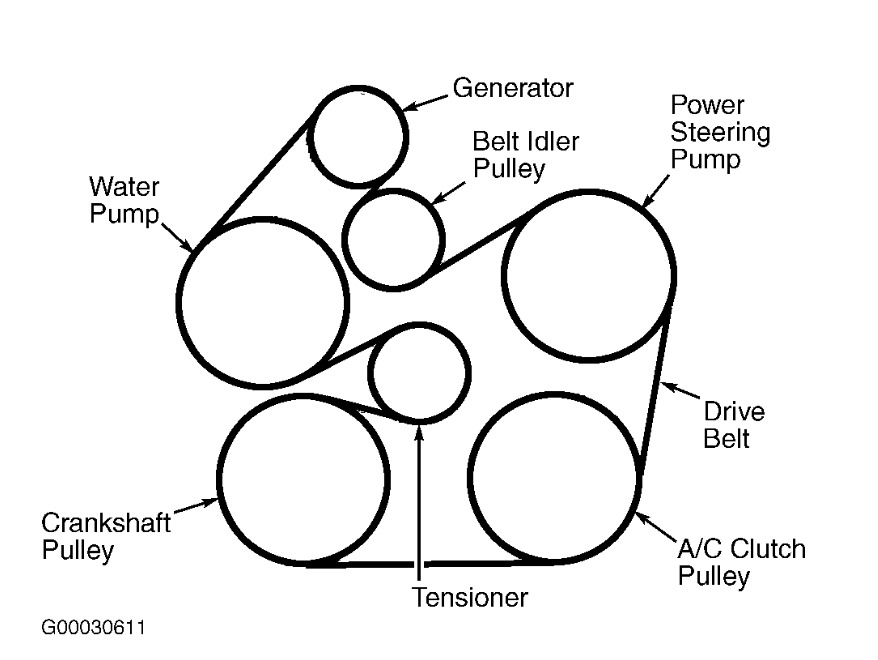

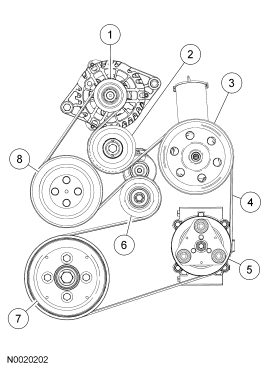

Top is engine code U bottom is S

How do I find the correct belt for my car? There are so many out there that would 'Fit' my car when I searched internet. Does number of ribs important? My car is 2000 Taurus SE gas sedan. Is there a fix measurement that I can use to compare various brand, type or size? What would the best in the market? Good Year, Dayco ...

when you replace the tendsioner the pulley normally comes on it. as long as you give correct engine size and vin which in your case is U the tensioner is what holds the belt tight so replace that. stick with goodyear, dayco or Gates belts. dont' buy any tensioner that is made in CHINA. I'm also sending blet routing so you can install it correctly. if you don't have the routing diagram

Thanks for quick reply and the routing diagram. So ... is Goodyear 4060855 the correct belt for my car? Sometime when it rain, I hear the constant screeching noise. So .... do I need to change the idle pulley ? or most likely the sound just came from bad (a bit torn) belt?

if you have a 2valve 3.0l v6 it will. I told you there are two vin u and vin s you have vin u check with a parts store.one is flex fuel the other isn't but belt fits both it says. make sure to replace tensioner as well other wise you are wasting your money

The routing diagram for the serpentine belt on a 1999 Ford Taurus would be greatly appreciated. There is no diagram on the hood of this vehicle or in the owner's manual.

Hello,

This guide will help walk you through the steps with the diagrams in thee link below.


https://www.2carpros.com/diagrams/ford/taurus/1999

and

https://www.2carpros.com/articles/replace-serpentine-belt

Please let us know if you need anything else to get the problem fixed.

I need to replace the belt on my 1998 Ford Taurus car but there are no instructions on the motor or in the owner's manual. HOw do I get a diagram of the way the belt goes back on. I have the belt but don't know how to put one back on.

Locate your VIN number. Count from left to right, the 8th digit will be either "S" or "U". For example, if the first 10 numbers of your VIN are ABC123DEF4, the 8th digit will be "E". If it is "S"

and if it is "U"

I need the diagram for serpentine belt installation. The sticker showing the route is missing.

Hello, Here is a guide and a page that gives you all the information you need to change and reinstall the belt. https://www.2carpros.com/diagrams/ford/taurus/1997 and https://www.2carpros.com/articles/replace-serpentine-belt

24 valve

Please let us know if you need anything else to get the problem fixed. Cheers
