Belt diagram, need to know how both belts go on?

2002 MERCEDES BENZ C230

80,000 MILES • 2.3L • 4 CYL • AUTOMATIC

HEAVEN6666

MEMBER
1 POST
FOLLOW

I need diagram for both belts for the car listed above, its a Kompressor. I need to know how both belts go on the one in back and on in front of the other one.

Aug 26, 2022 at 6:25 AM

STRAILER

CERTIFIED EXPERT
53,854 POSTS

Here is a video on how to change the belt out and I have left diagrams below to help as well:

https://youtu.be/K13tlf3toiU

and

https://www.2carpros.com/diagrams/mercedes-benz/c230/2002

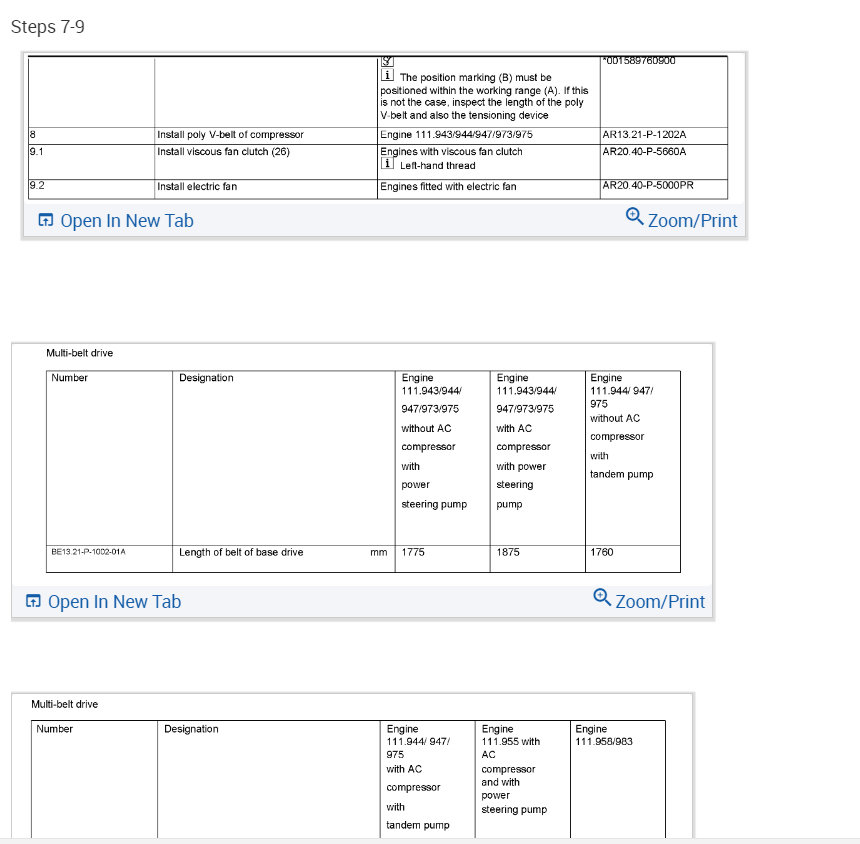

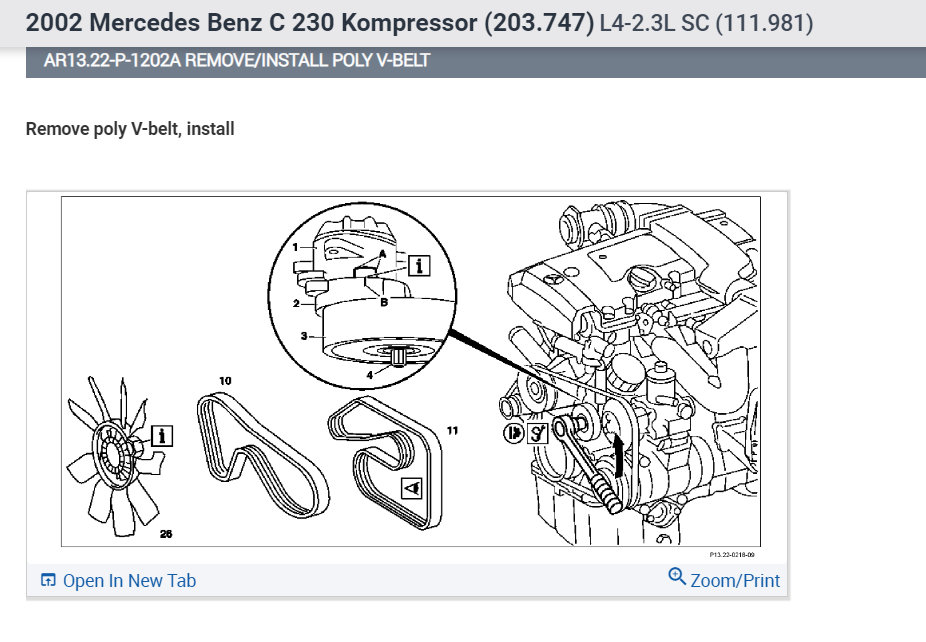

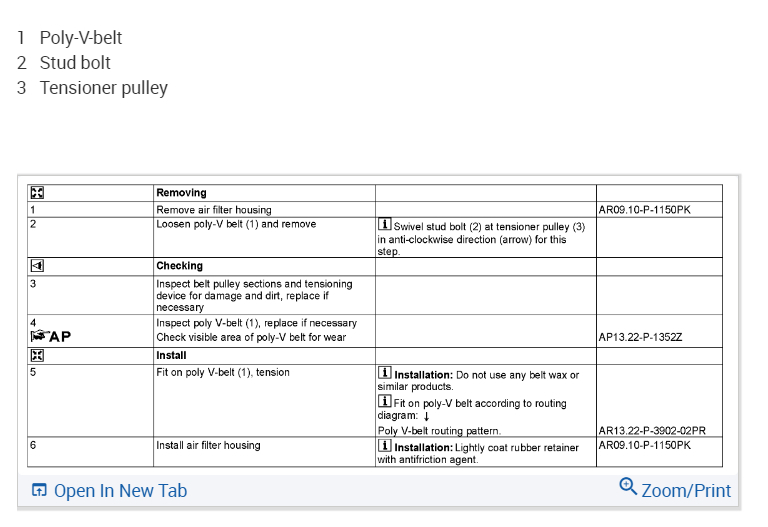

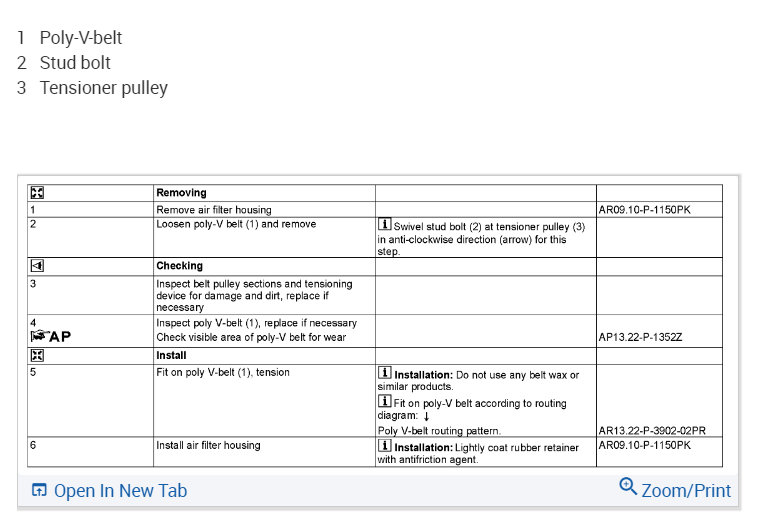

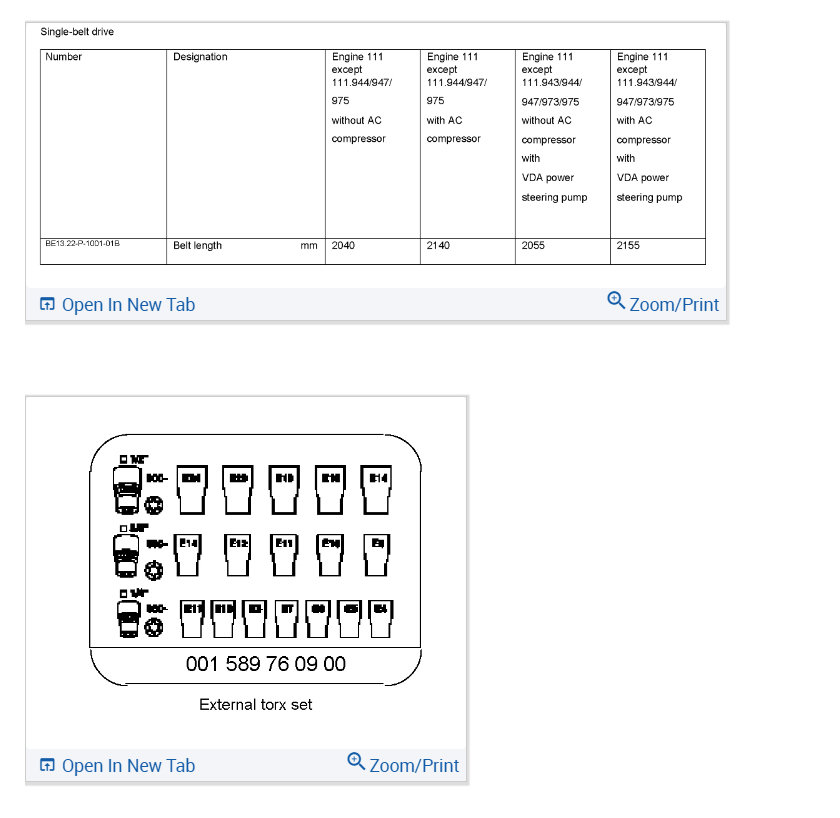

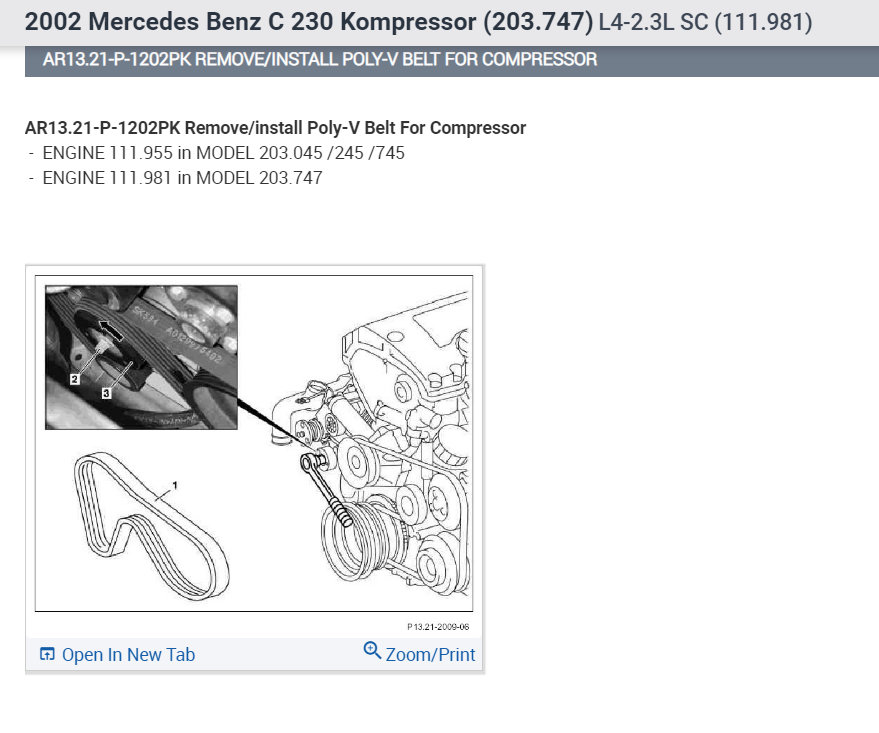

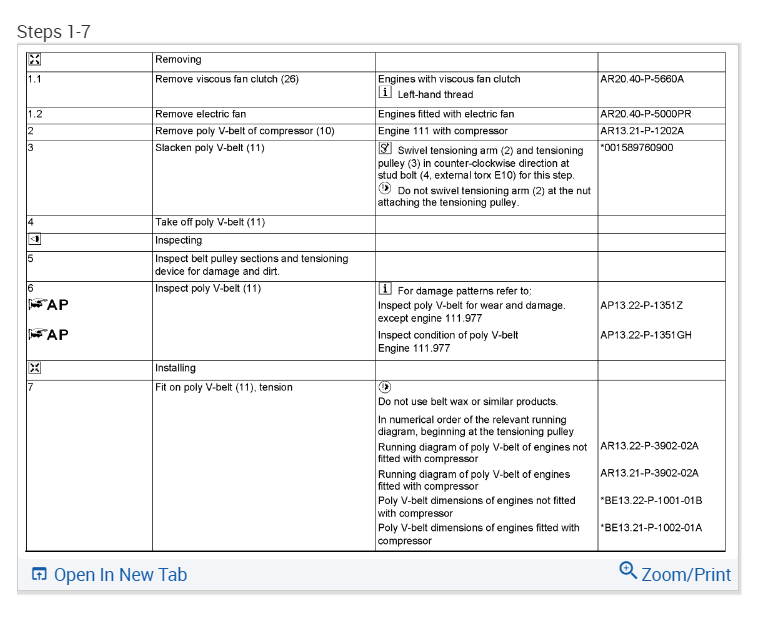

Check out the diagrams (below). Please let us know if you need anything else to get the problem fixed.

Images (Click to enlarge)

Aug 26, 2022 at 10:16 AM
