Can I get a belt diagram?

2011 FORD E-SERIES VAN
218,456 MILES • 5.4L • V8 • 2WD • AUTOMATIC
Avatar
BIGMIKE420
  • MEMBER
  • 2 POSTS
Belt diagram needed.
Aug 18, 2024 at 4:52 AM
Advertisement
Avatar
JACOBANDNICKOLAS
  • CERTIFIED EXPERT
  • 110,175 POSTS
Hi,

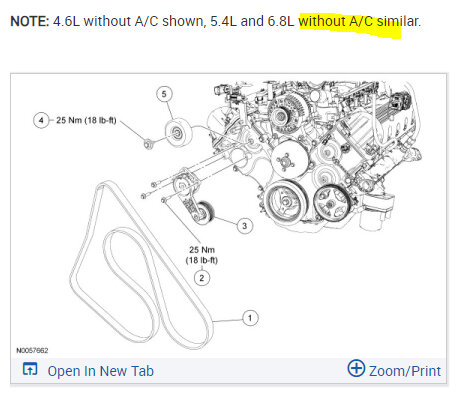

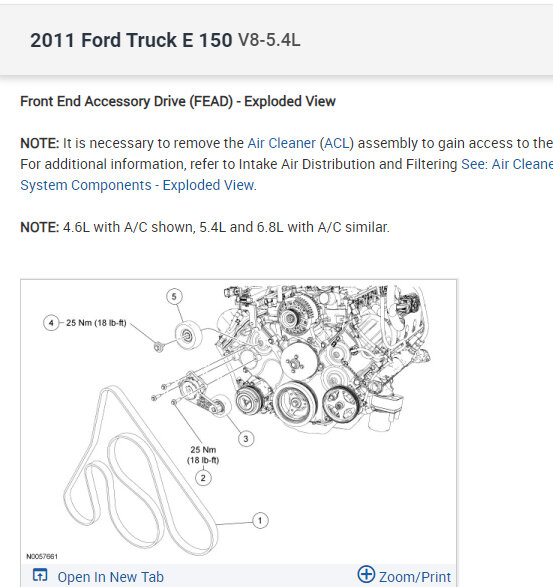

Interestingly, my manual is only showing an exploded view. I did attach those below. Note that the second pic is if the vehicle doesn't have A/C.

Let me know if this helps.

Take care,

Joe

See pics below.
Images (Click to enlarge)
Attached Media
Attached Media
Aug 18, 2024 at 8:34 PM
Avatar
BIGMIKE420
  • MEMBER
  • 2 POSTS
Thank you for this everything, it worked out perfectly. thanks again
Aug 18, 2024 at 10:24 PM
Advertisement
Avatar
JACOBANDNICKOLAS
  • CERTIFIED EXPERT
  • 110,175 POSTS
Hi,

You are very welcome. I'm glad to know it helped.

Take care and feel free to come back anytime in the future.

Joe
Aug 19, 2024 at 7:12 PM
