Alternator wiring? I wanted to check the wiring to find the bad wire?

1997 SATURN SL2
200,000 MILES • 1.9L • 4 CYL • 2WD • MANUAL
Avatar
REAJEANA ROSS
  • MEMBER
  • 1 POST
I just replaced the alternator but now the new oe is not charging the battery I know the part is good cause had them test it when I bought it so wanted to check the wiring to find the bad one that's not working but don't have a wiring diagram for the car so don't know which wires are what is there a way you can tell me cause no parts stores near me have a manual nor can they order me one.
Aug 20, 2022 at 2:39 AM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS

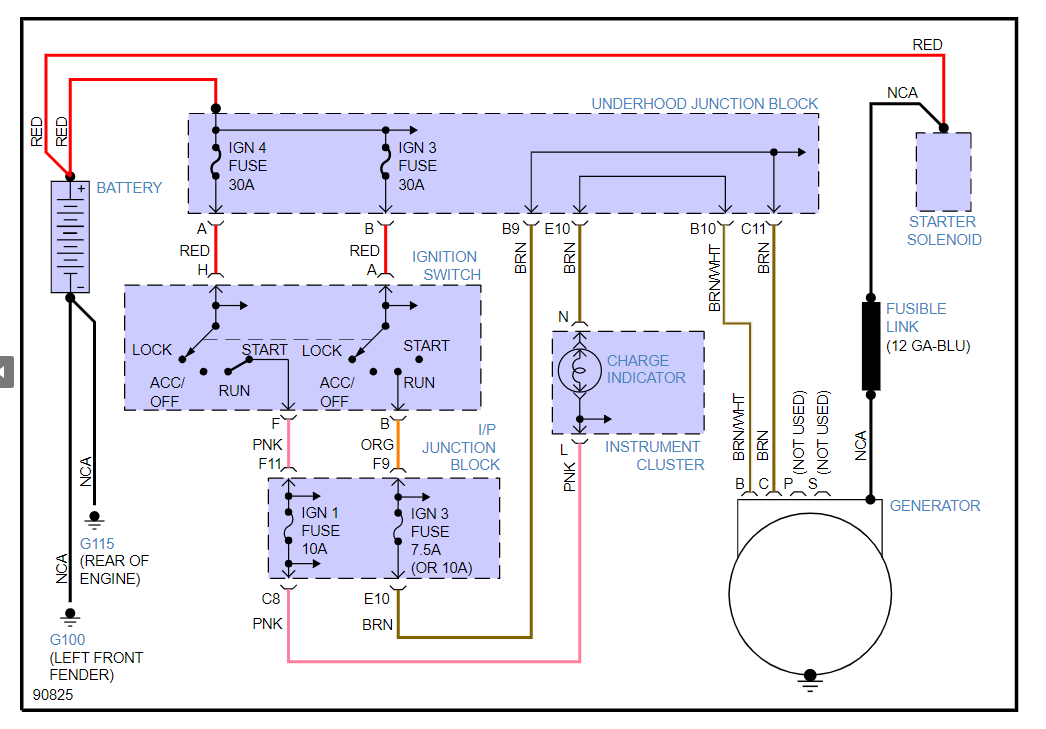

I got you covered, here is the alternator wiring diagrams with a guide to help you check the connections. Make sure the IGN1 and IGN2 fuses are good.

https://www.2carpros.com/articles/how-to-check-wiring

Check out the diagrams (below). Please let us know what happens.
Image (Click to enlarge)
Attached Media
Aug 20, 2022 at 3:16 PM
