Glass on the driver side front door

1995 ACURA LEGEND
220,000 MILES • 6 CYL • 2WD • AUTOMATIC
Avatar
FOREST1930
  • MEMBER
  • 1 POST
I was going to take a look at the glass on the driver's side front door. I got the inner molding and all loose, except the inside door handle. This inside handle is holding everything from coming off. Please inform me, thanks.
Jul 20, 2008 at 2:06 PM
Advertisement
Avatar
SQM
  • CERTIFIED EXPERT
  • 6,383 POSTS
Hello,

There is a mounting screw for the door handle. After removal of that screw, you will be able to remove the door handle. Pay close attention to the connecting rods for the handle.

Here is a helpful guide:

https://www.2carpros.com/articles/door-panel-removal

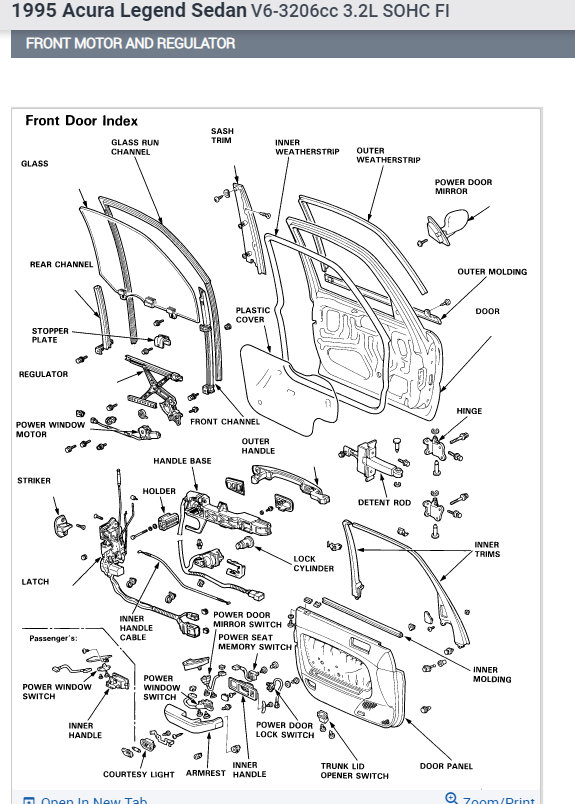

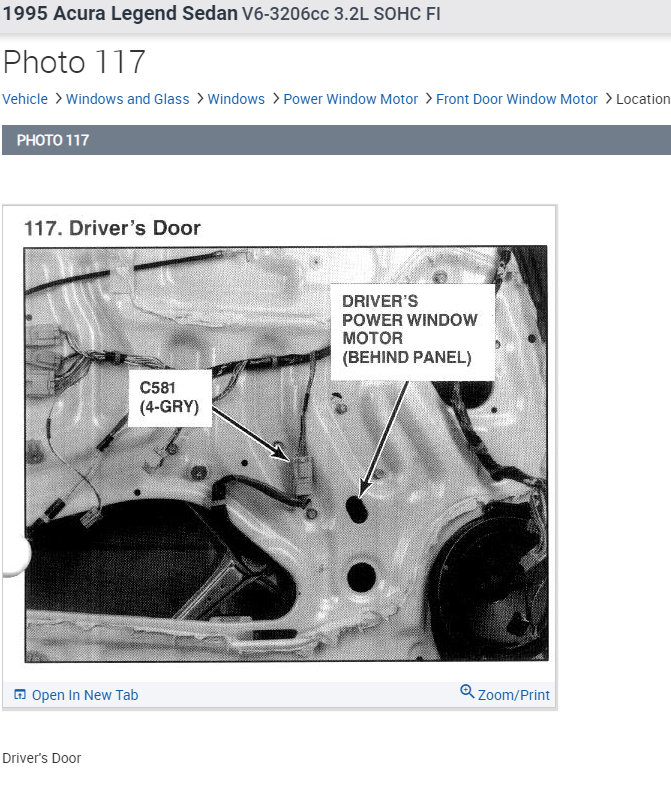

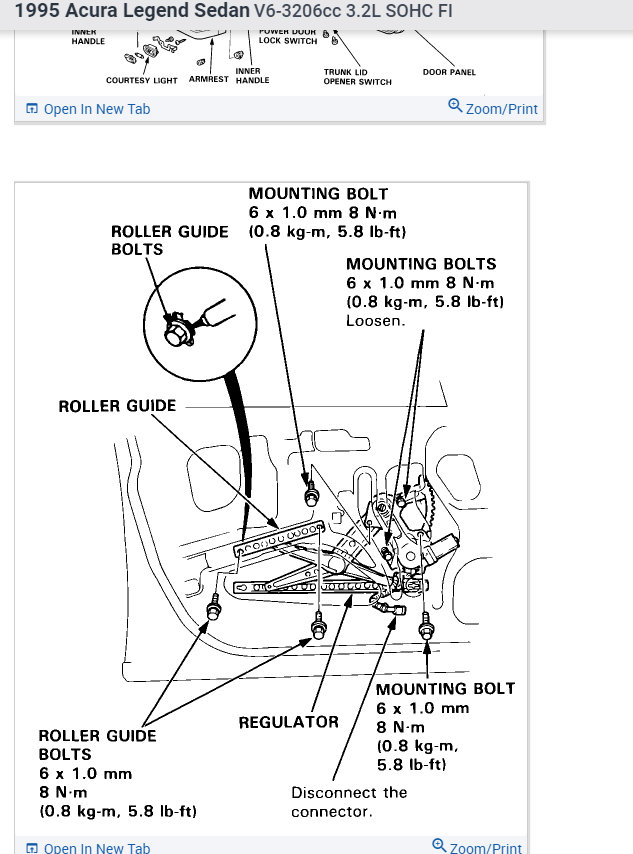

I have attached diagrams of the door below for your reference.


Please let me know if you have any questions.
Thank you.
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Jan 29, 2022 at 10:31 PM
